Generator Removal - Off Vehicle

WARNING: This page is about a different variant/trim than selected.

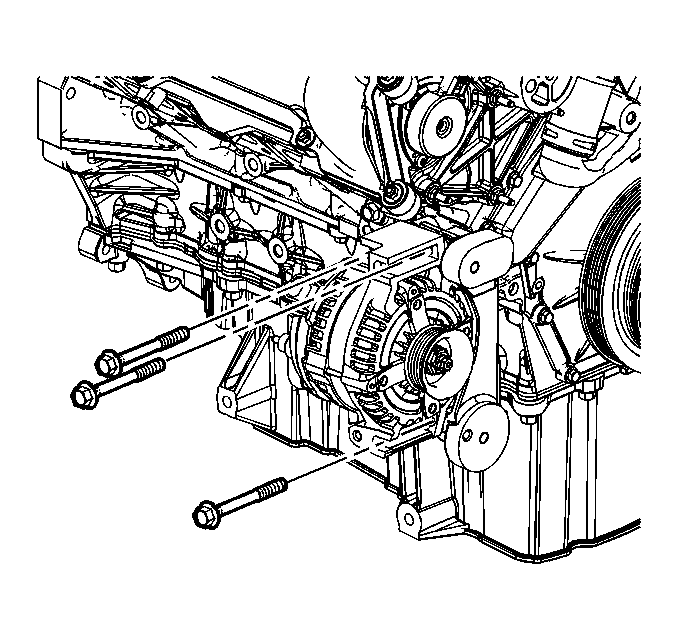

    Fig 1: Generator Bolts
    GM1686847Courtesy of GENERAL MOTORS CORP.
  1. Remove the generator bolts.

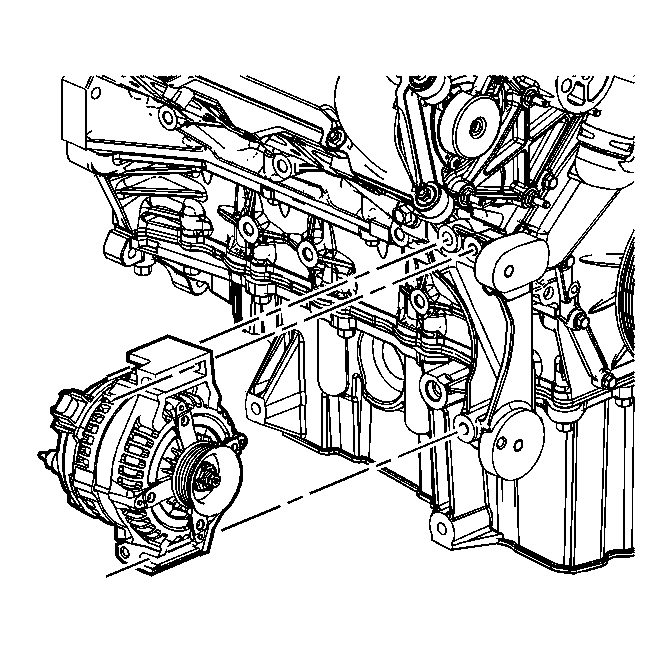

    2. Fig 2: Identifying Generator
    GM1686848Courtesy of GENERAL MOTORS CORP.
  2. Remove the generator.

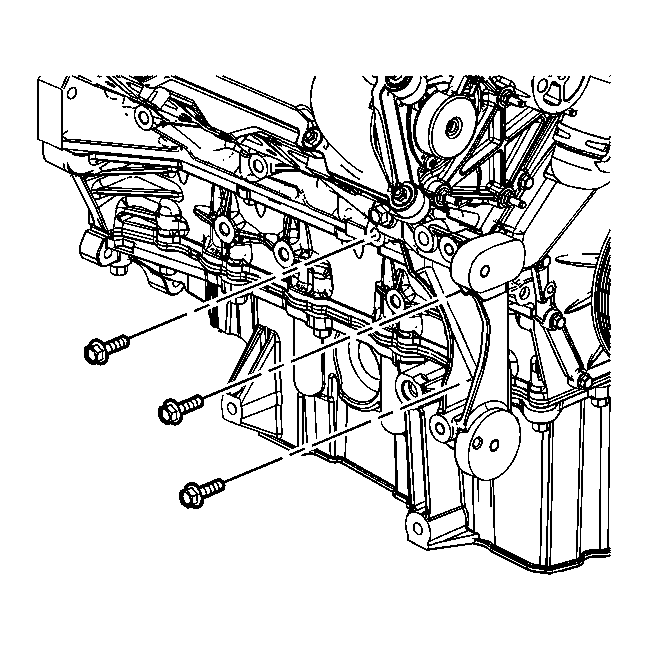

    3. Fig 3: Generator Bracket Bolts
    GM1686849Courtesy of GENERAL MOTORS CORP.
  3. Remove the generator bracket bolts.

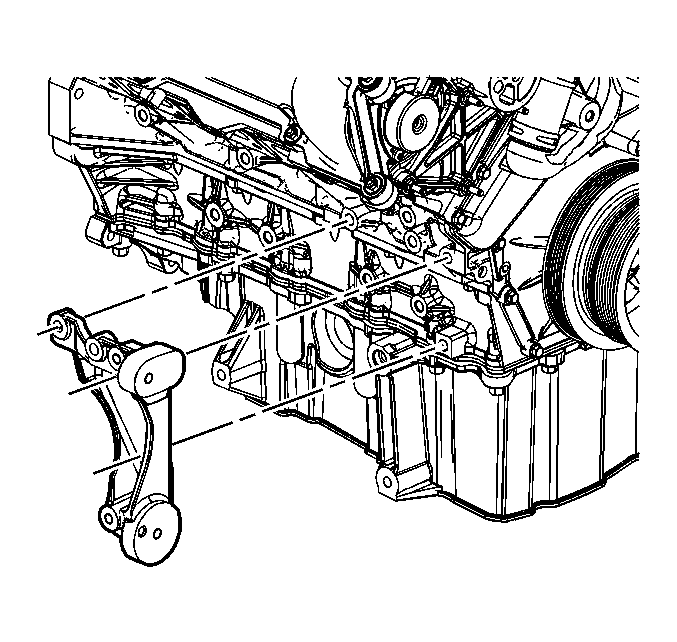

    4. Fig 4: Generator Bracket
    GM1686850Courtesy of GENERAL MOTORS CORP.
  4. Remove the generator bracket.
