Exhaust Manifold Removal - Left Side - Off Vehicle

WARNING: This page is about a different variant/trim than selected.

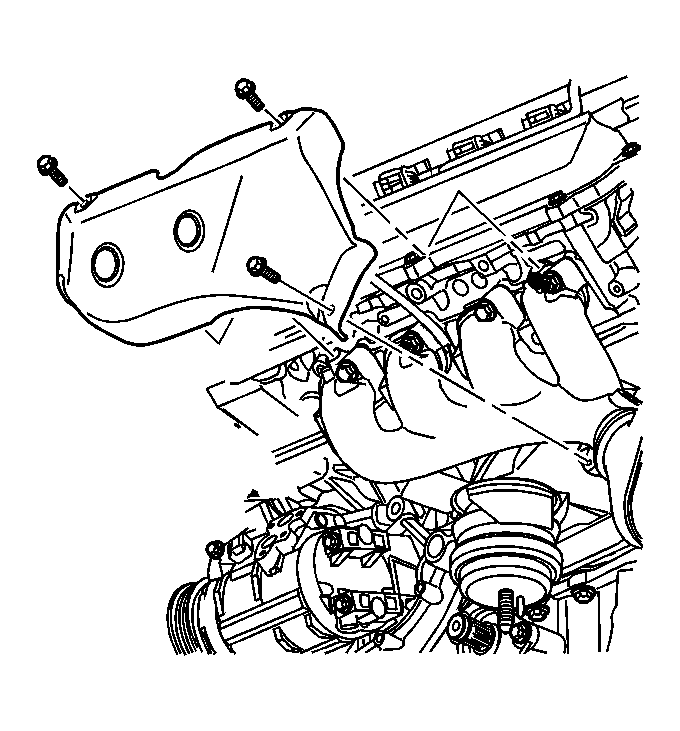

    Fig 1: View Of Left Exhaust Manifold Heat Shield
    GM1346063Courtesy of GENERAL MOTORS CORP.
  1. Remove the left exhaust manifold heat shield bolts.
  2. Remove the left exhaust manifold heat shield.

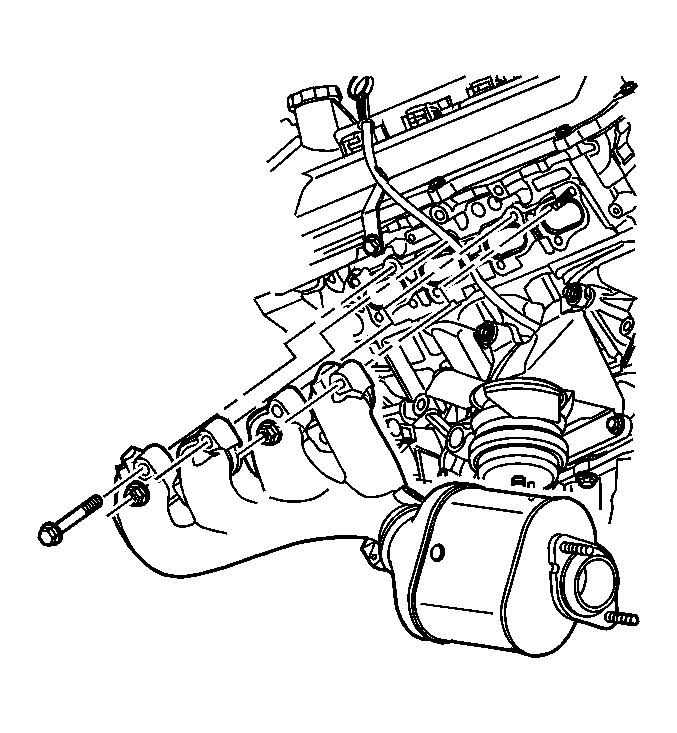

    3. Fig 2: View Of Left Exhaust Manifold
    GM1346080Courtesy of GENERAL MOTORS CORP.
  3. Remove the left exhaust manifold bolts and nuts from the left cylinder head.
  4. Remove the left exhaust manifold.

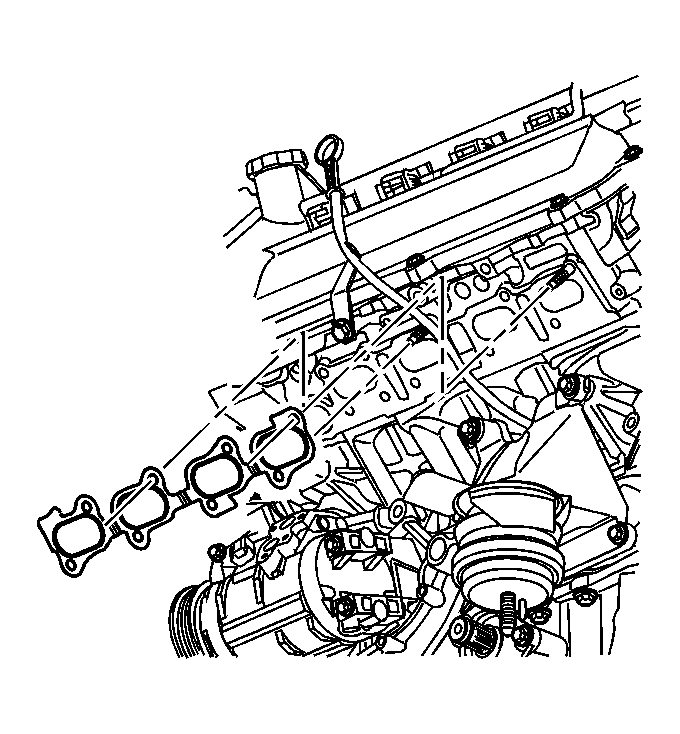

    5. Fig 3: View Of Left Exhaust Manifold Gasket
    GM1346088Courtesy of GENERAL MOTORS CORP.
  5. Remove the left exhaust manifold gasket.

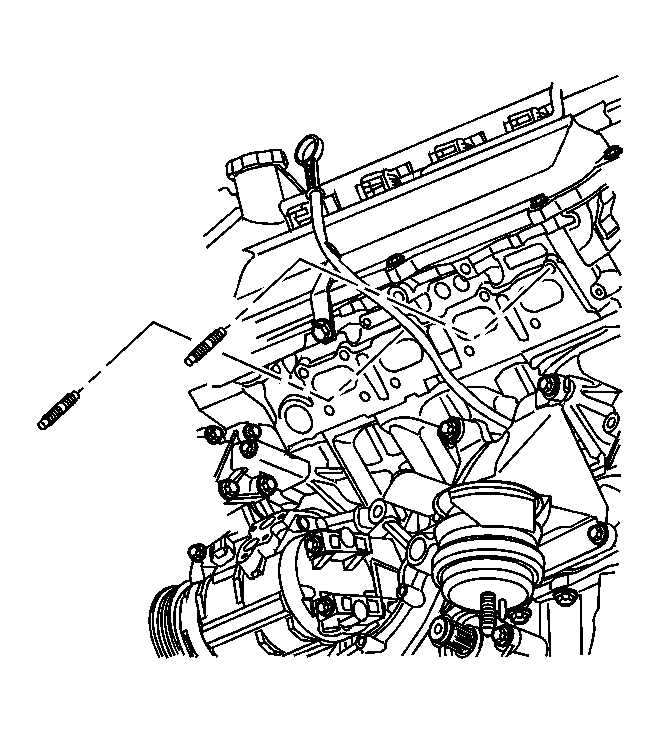

    6. Fig 4: View Of Left Exhaust Manifold Studs
    GM1346089Courtesy of GENERAL MOTORS CORP.
  6. Remove the left exhaust manifold studs from the left cylinder head.

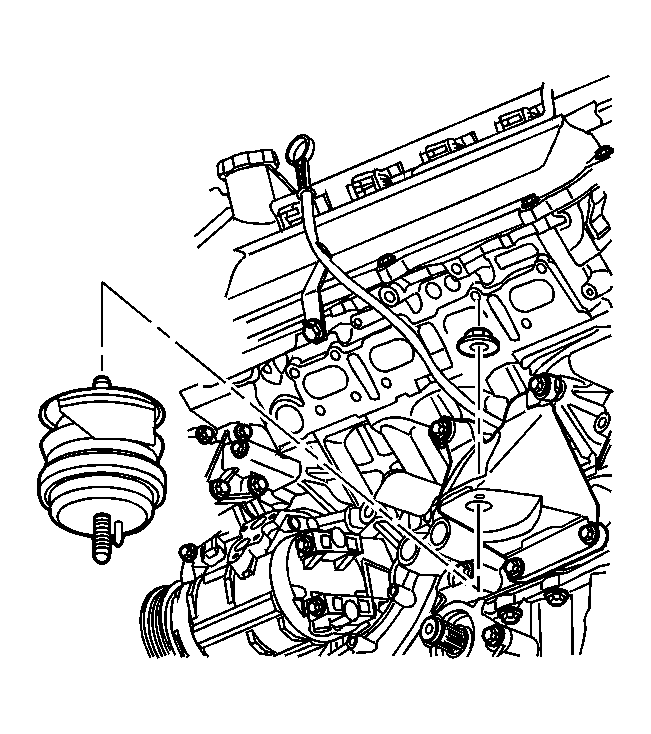

    7. Fig 5: View Of Left Engine Mount
    GM1346090Courtesy of GENERAL MOTORS CORP.
  7. Remove the left engine mount upper nut.
  8. Remove the left engine mount.

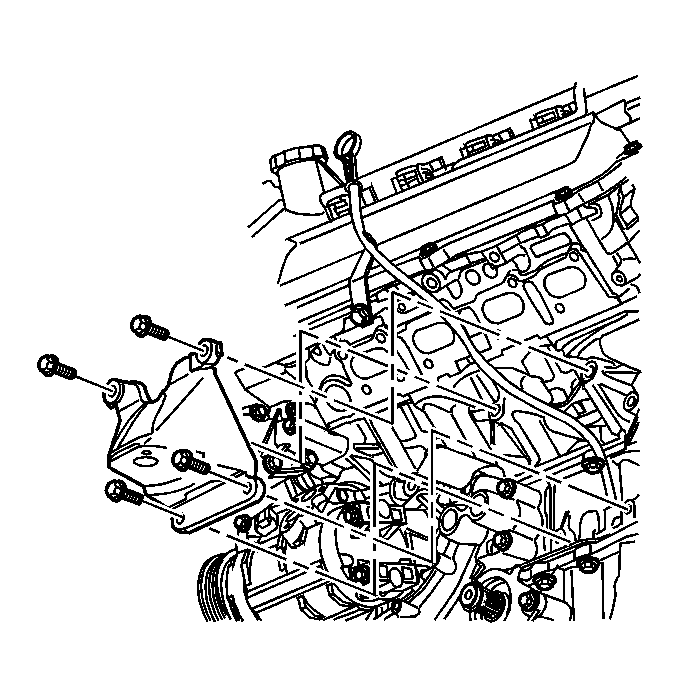

    9. Fig 6: View Of Left Engine Mount Bracket
    GM1346091Courtesy of GENERAL MOTORS CORP.
  9. Remove the left engine mount bracket bolts.
  10. Remove the left engine mount bracket.

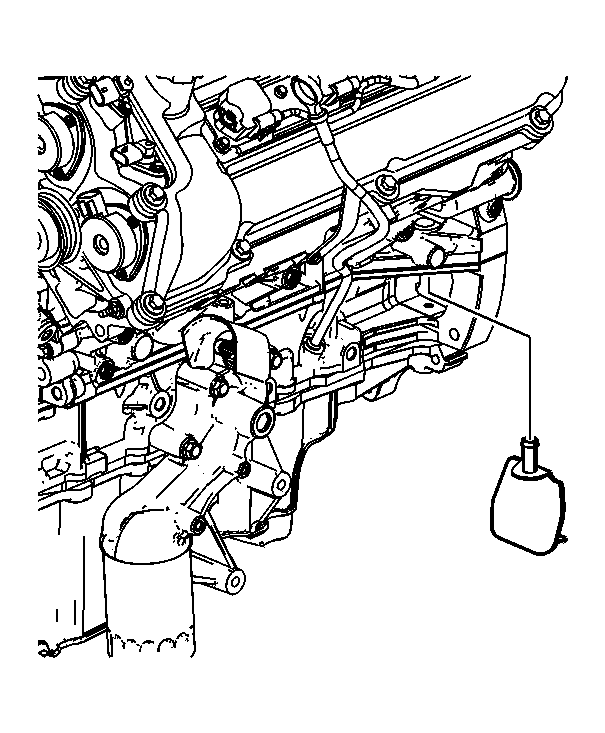

    11. Fig 7: View Of Engine Flywheel Housing Left Cover
    GM1346143Courtesy of GENERAL MOTORS CORP.
  11. Remove the engine flywheel housing left cover.
