Right Side Harness Connections

WARNING: This page is about a different variant/trim than selected.

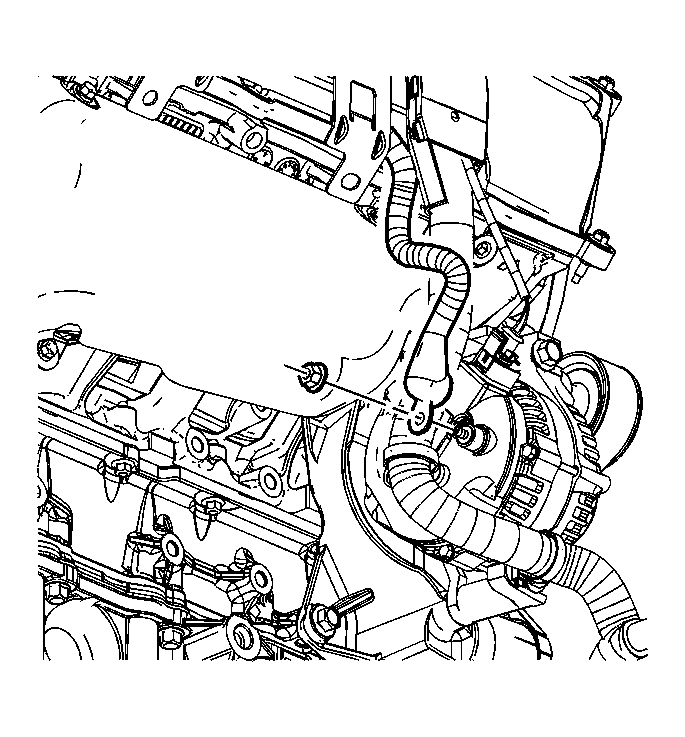

    Fig 1: Generator Positive Battery Cable Nut
    GM1690273Courtesy of GENERAL MOTORS CORP.
  1. Remove the generator positive battery cable nut.
  2. Remove the generator positive battery cable.

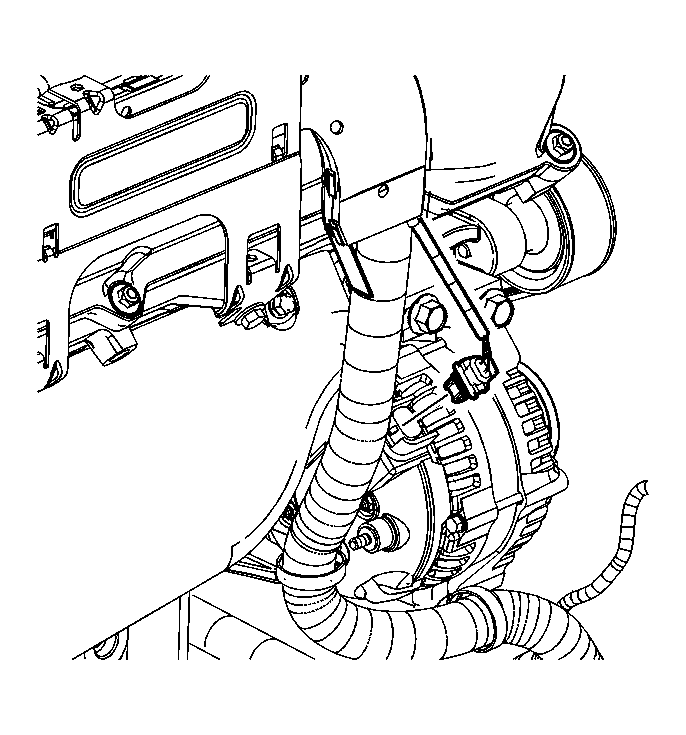

  3. Fig 2: Generator Wiring Harness
    GM1690271Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the engine wiring harness from the generator.

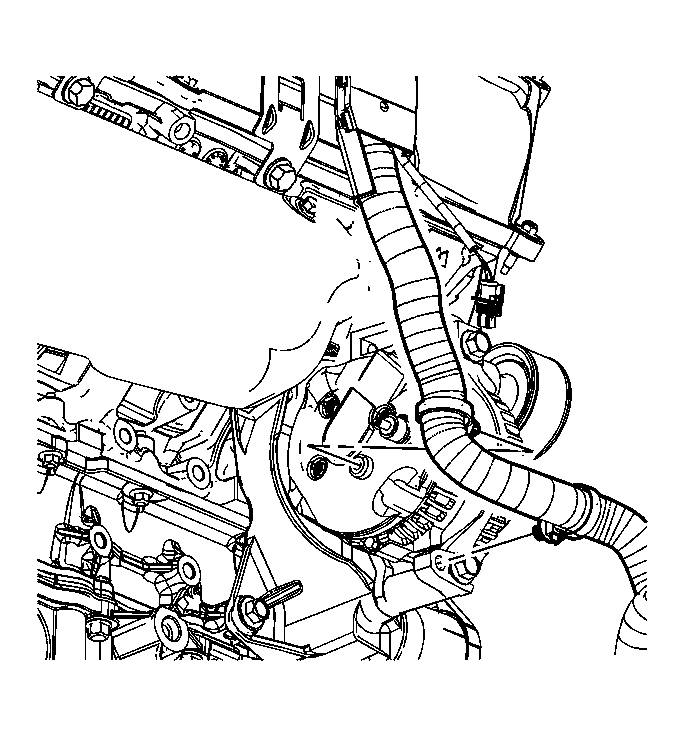

  5. Fig 3: Engine Wiring Harness Clips From Generator
    GM1699249Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the engine wiring harness clips from the generator.

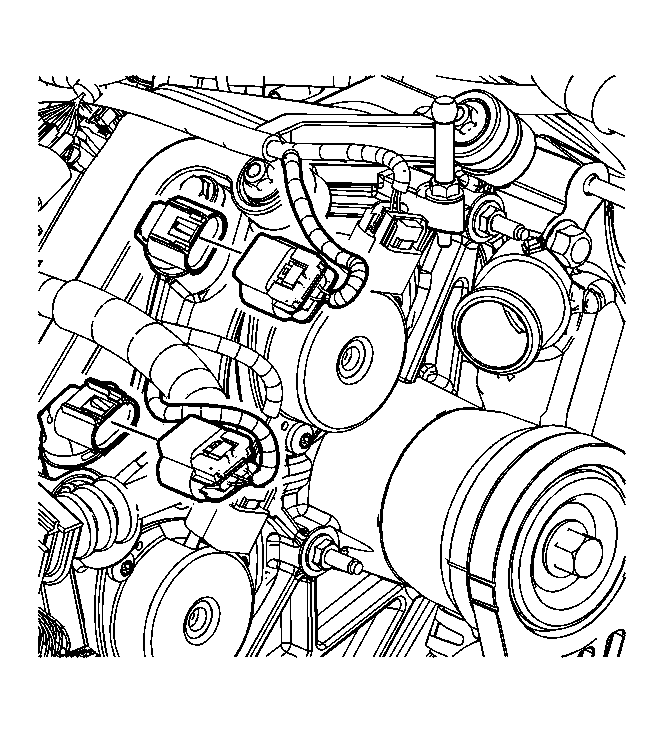

  7. Fig 4: Right Camshaft Position Sensor Wiring Harness
    GM1690256Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the engine wiring harness from the right camshaft position sensors.

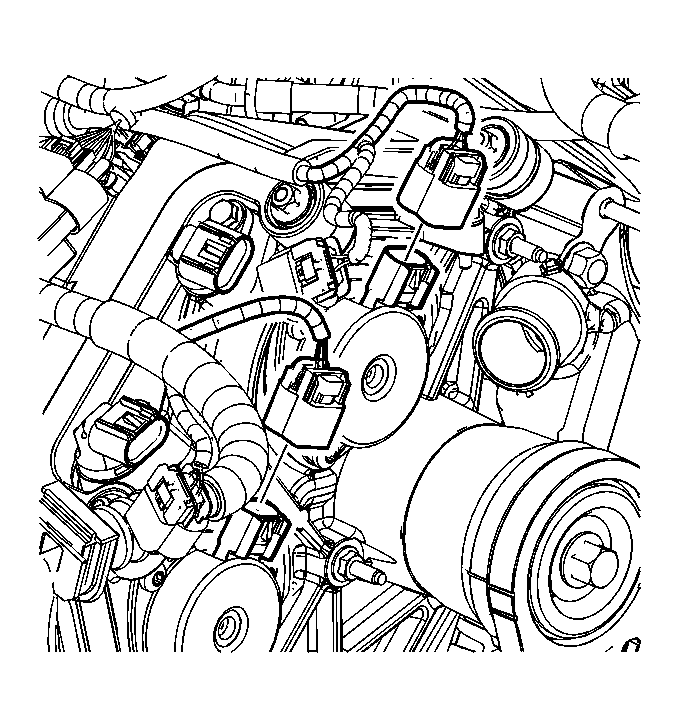

  9. Fig 5: Right Camshaft Position Actuator Wiring Harness
    GM1690255Courtesy of GENERAL MOTORS CORP.
  10. Disconnect the engine wiring harness from the right camshaft position actuators.

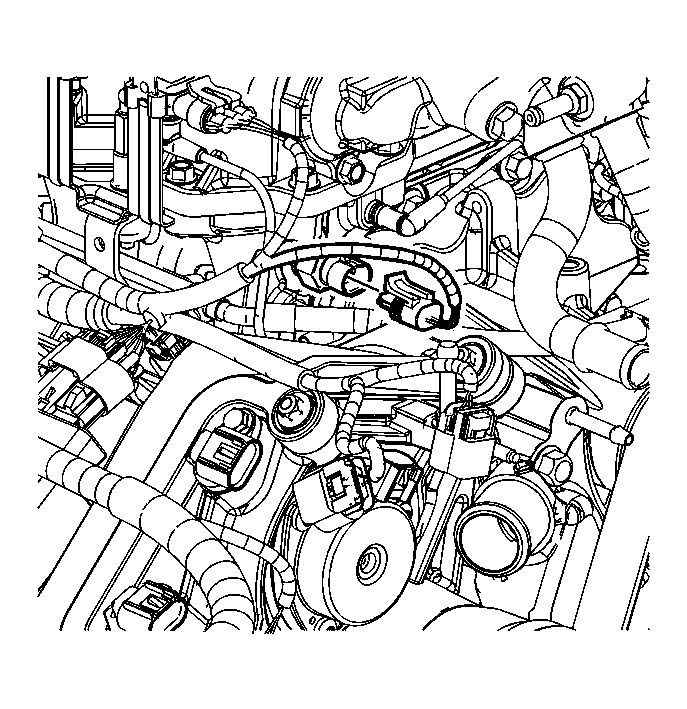

  11. Fig 6: IAT Sensor Wiring Harness
    GM1690266Courtesy of GENERAL MOTORS CORP.
  12. Disconnect the engine wiring harness from the intake air temperature (IAT) sensor 2.

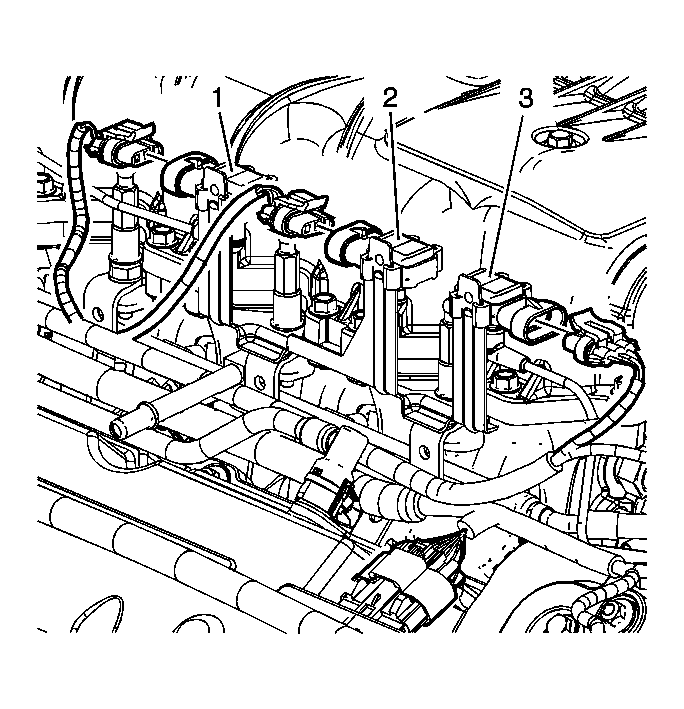

  13. Fig 7: MAP, BARO & Supercharger Inlet Absolute Pressure Sensor Wiring Harness
    GM1690263Courtesy of GENERAL MOTORS CORP.
  14. Disconnect the engine wiring harness from the (1) supercharger inlet absolute pressure sensor, (2) barometric pressure (BARO) sensor, (3) manifold absolute pressure (MAP) sensor.

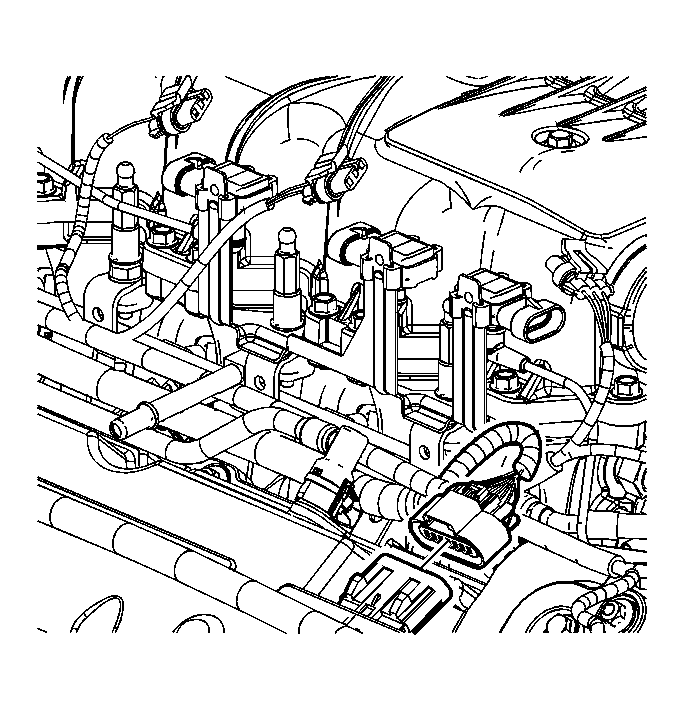

  15. Fig 8: Right Coil Assembly Harness
    GM1690254Courtesy of GENERAL MOTORS CORP.
  16. Disconnect the engine wiring harness from the right coil assembly harness.

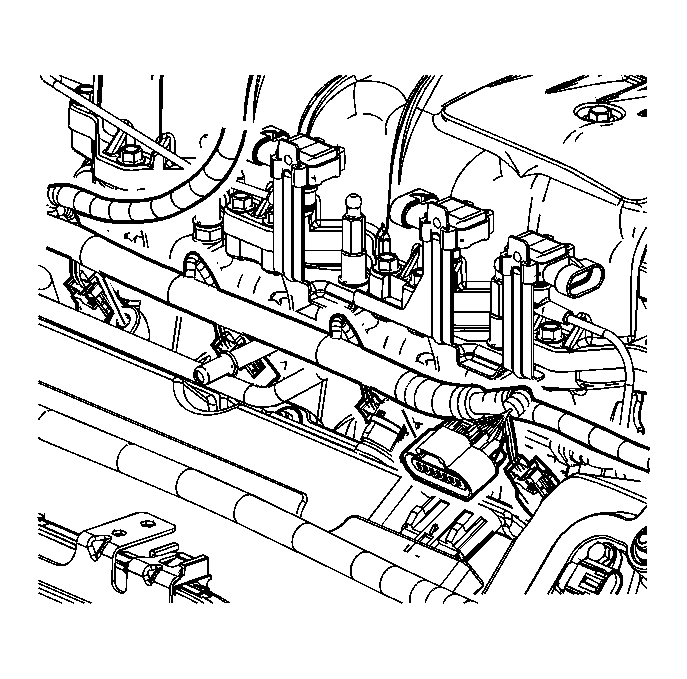

  17. Fig 9: Right Camshaft Cover Wiring Harness
    GM1699251Courtesy of GENERAL MOTORS CORP.
  18. Disconnect the engine wiring harness from the right camshaft cover.

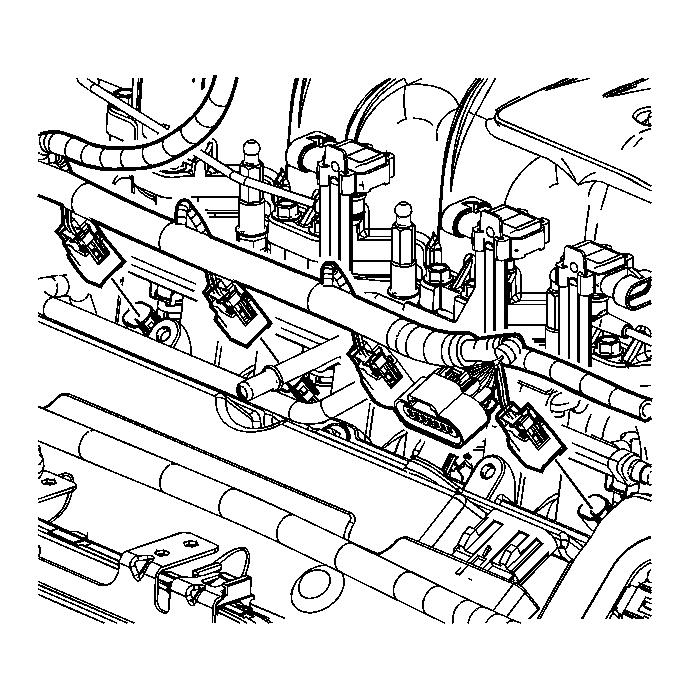

  19. Fig 10: Right Side Fuel Injectors Wiring Harness
    GM1690258Courtesy of GENERAL MOTORS CORP.
  20. Disconnect the engine wiring harness from the right side fuel injectors.

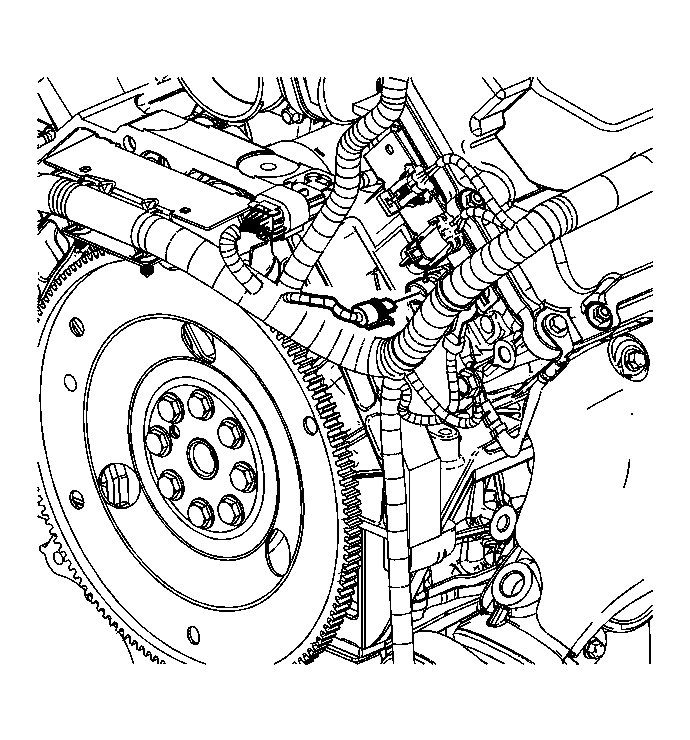

  21. Fig 11: ECT Sensor Wiring Harness
    GM1690259Courtesy of GENERAL MOTORS CORP.
  22. Disconnect the engine wiring harness from the engine coolant temperature (ECT) sensor at the rear of the right cylinder head.

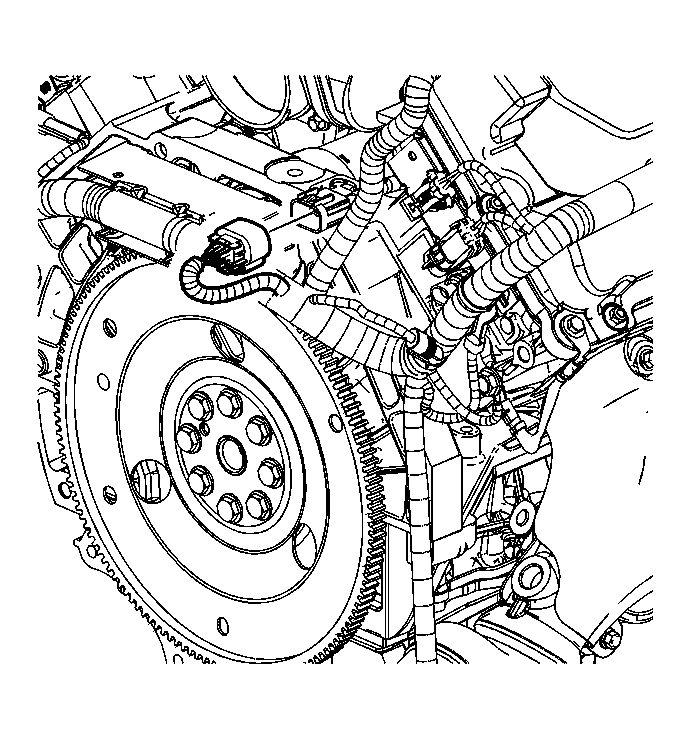

  23. Fig 12: Knock And Crankshaft Position Sensor Wiring Harness
    GM1690269Courtesy of GENERAL MOTORS CORP.
  24. Disconnect the engine wiring harness from the knock and crankshaft position sensor wiring harness.

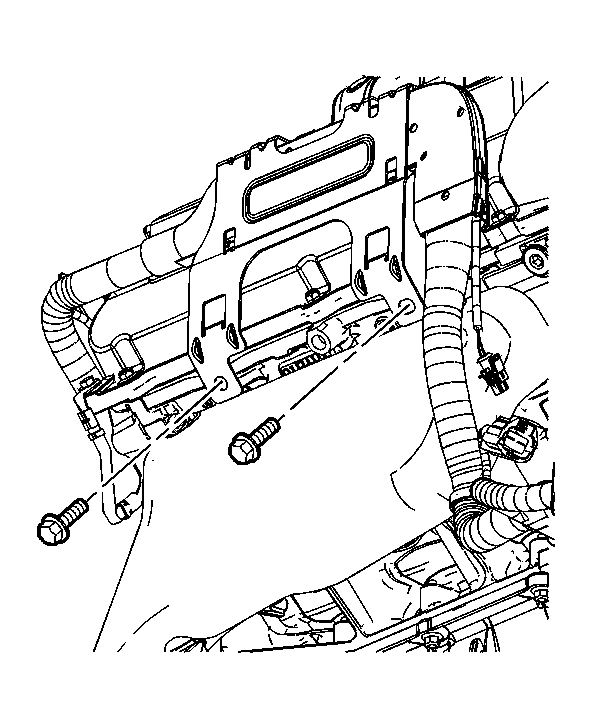

  25. Fig 13: Right Side Engine Harness Bracket Bolts
    GM1699253Courtesy of GENERAL MOTORS CORP.
  26. Remove the right side engine harness bracket bolts.

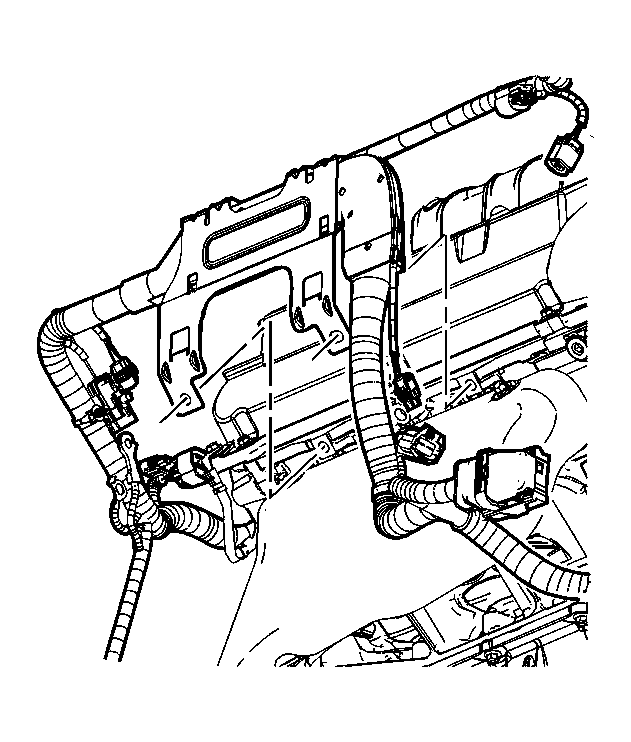

  27. Fig 14: Right Side Rear Engine Harness Bracket
    GM1690284Courtesy of GENERAL MOTORS CORP.
  28. Remove the right side rear engine harness bracket.

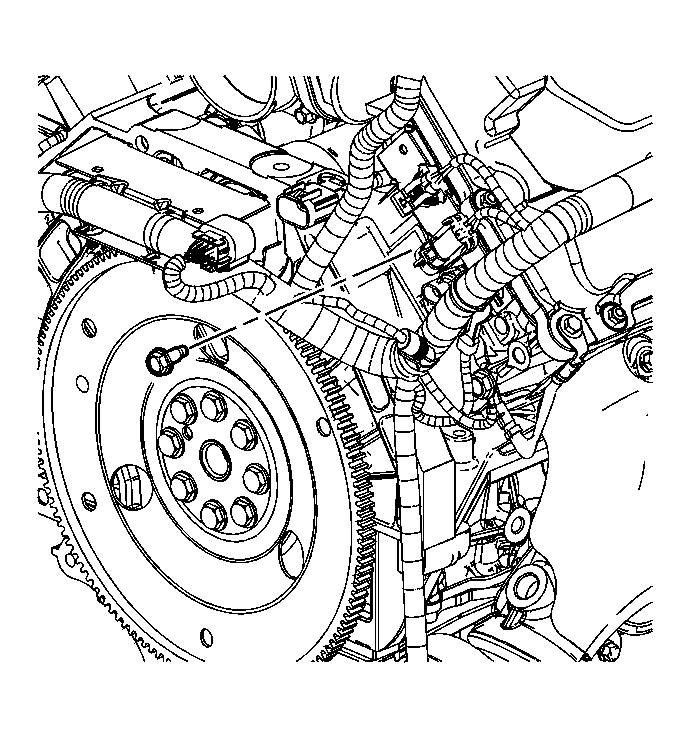

  29. Fig 15: Right Rear Engine Harness Bracket Bolt
    GM1699255Courtesy of GENERAL MOTORS CORP.
  30. Remove the right rear engine harness bracket bolt.

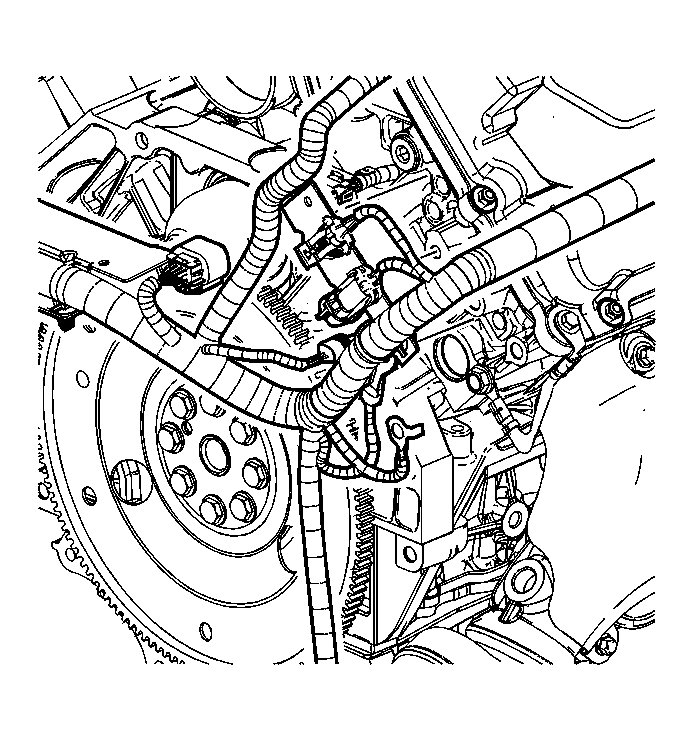

  31. Fig 16: Right Rear Engine Harness Bracket
    GM1690279Courtesy of GENERAL MOTORS CORP.
  32. Remove the right rear engine harness bracket.
  33. Fig 17: Engine Wiring Harness
    GM1690286Courtesy of GENERAL MOTORS CORP.
  34. Remove the engine wiring harness from the engine block.
