Left Side Harness Connections

WARNING: This page is about a different variant/trim than selected.

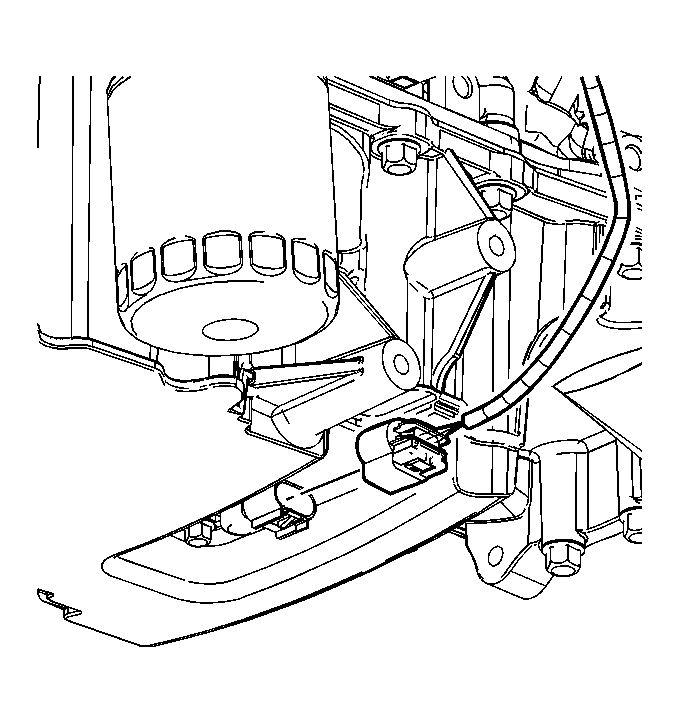

    Fig 1: Oil Level Switch/Temperature Sensor
    GM1690247Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the engine wiring harness from the oil level switch/temperature sensor.

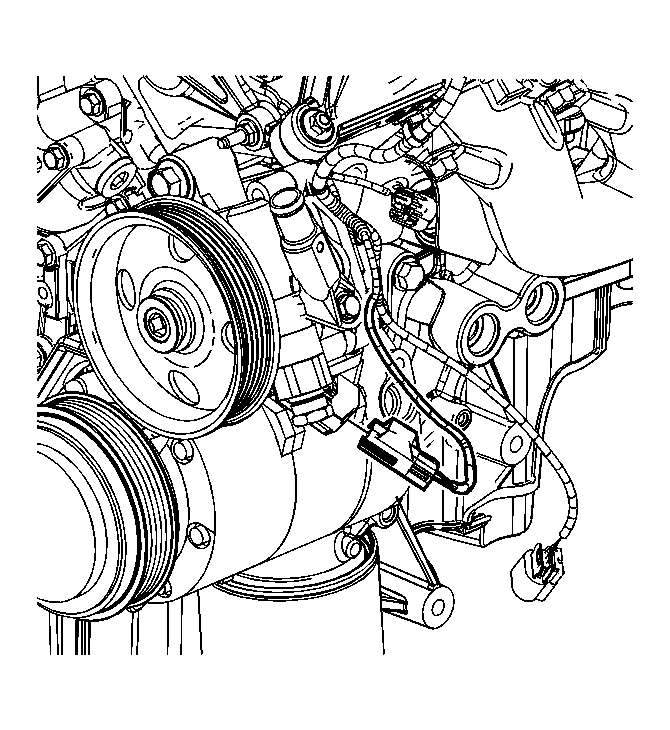

    2. Fig 2: A/C Compressor
    GM1690243Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the engine wiring harness from the air conditioner compressor.

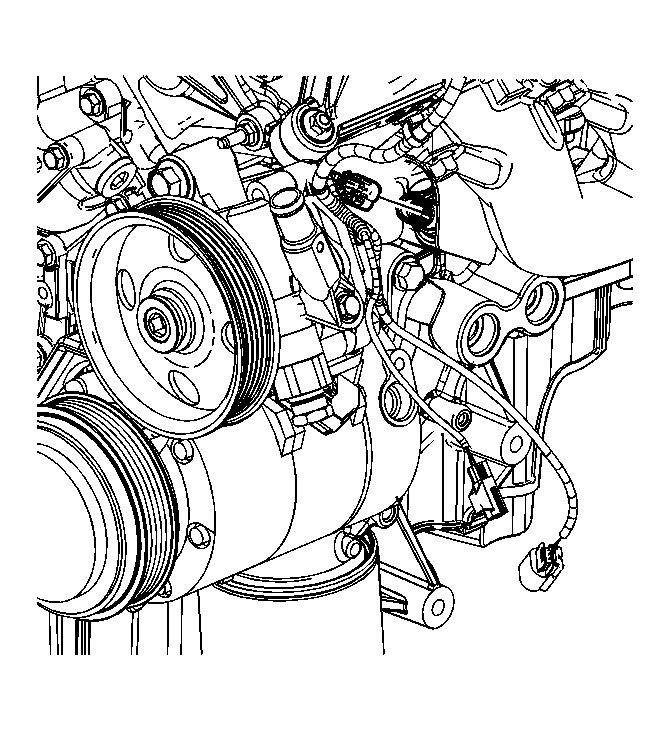

    3. Fig 3: Oil Pressure Sensor Harness
    GM1690240Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the engine wiring harness from the oil pressure sensor.

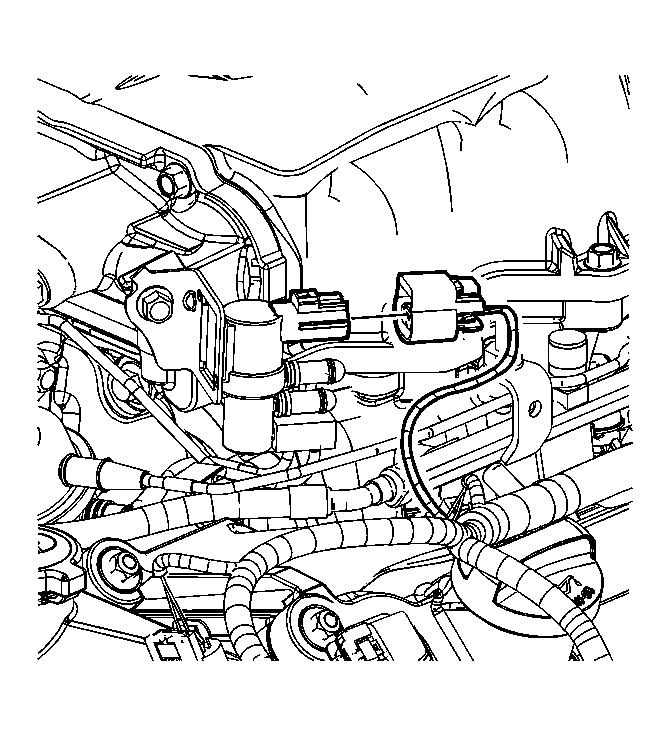

    4. Fig 4: Supercharger Charge Air Bypass Regulator Solenoid Valve Harness
    GM1690236Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the engine wiring harness from the supercharger charge air bypass regulator solenoid valve.

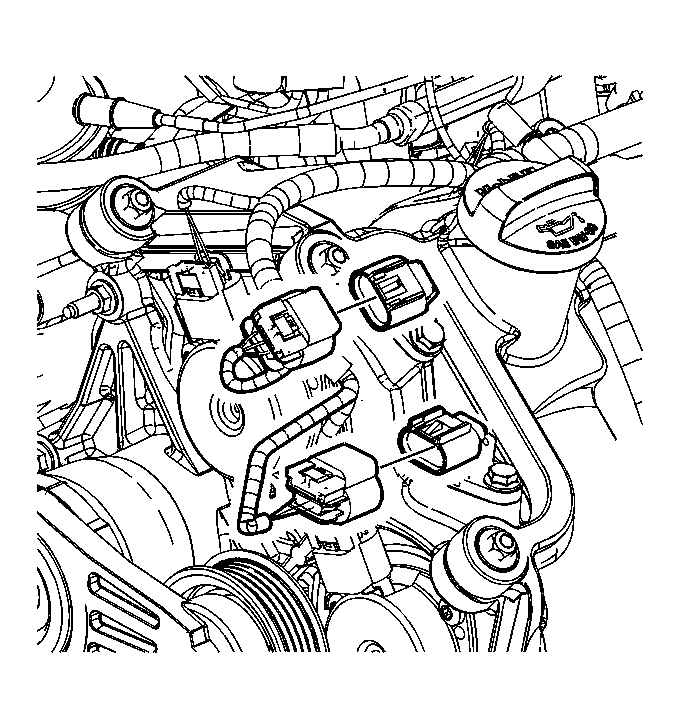

    5. Fig 5: Left Camshaft Position Sensor Harness
    GM1690225Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the engine wiring harness from the left camshaft position sensors.

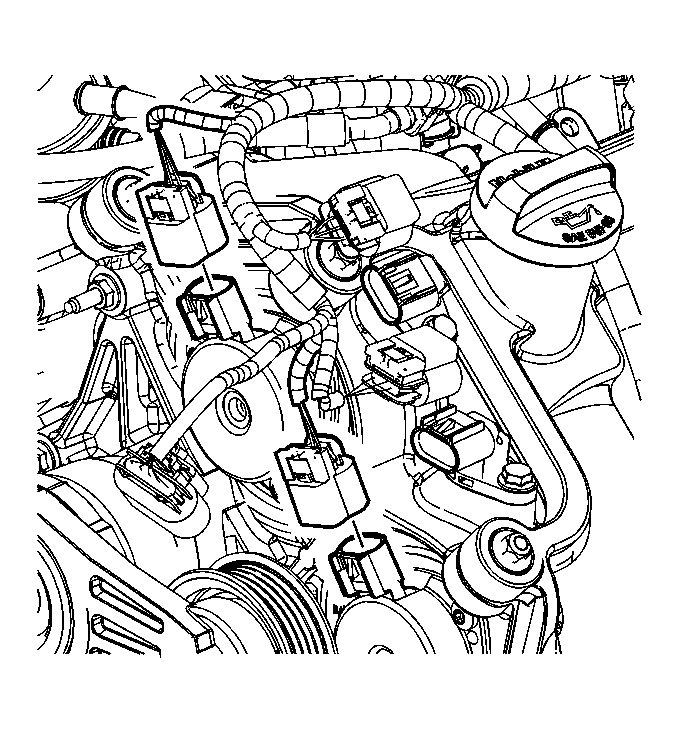

    6. Fig 6: Left Camshaft Position Actuator Harness
    GM1690221Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the engine wiring harness from the left camshaft position actuators.

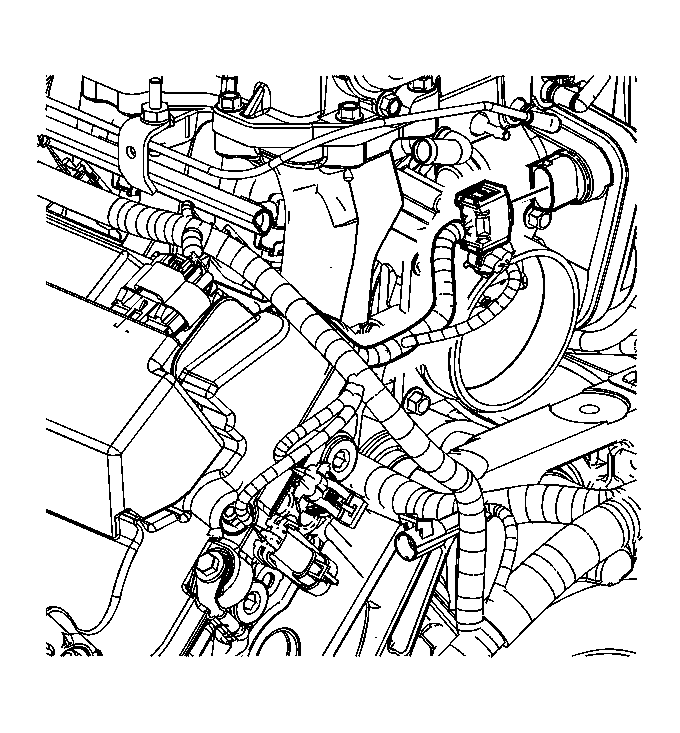

    7. Fig 7: Throttle Body Harness
    GM1690234Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the engine wiring harness from the throttle body.

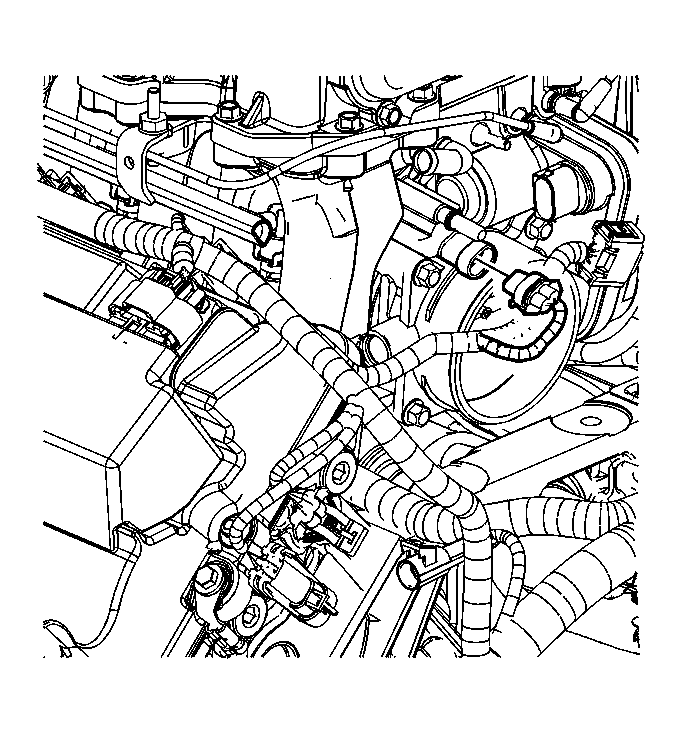

    8. Fig 8: EVAP Canister Purge Solenoid Harness
    GM1690232Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the engine wiring harness from the evaporative emissions (EVAP) canister purge solenoid.

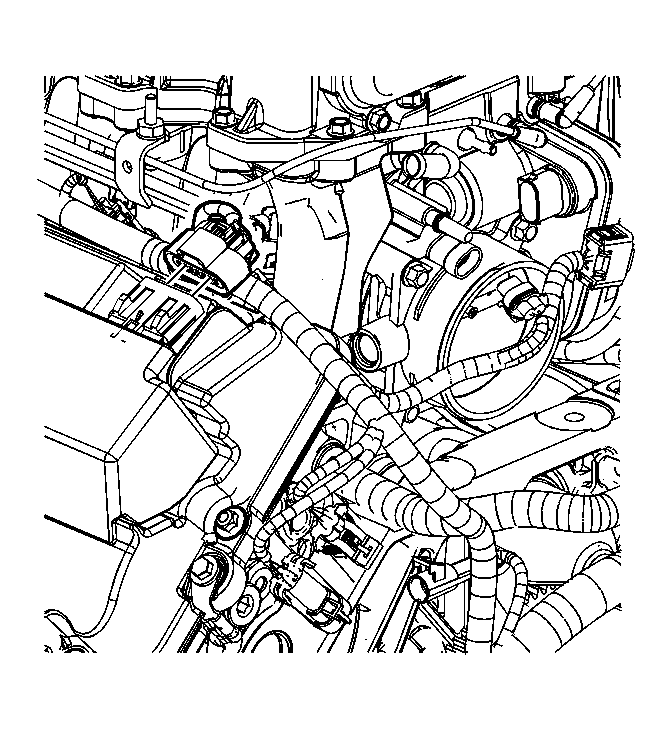

    9. Fig 9: Left Coil Assembly Harness
    GM1690220Courtesy of GENERAL MOTORS CORP.
  9. Disconnect the engine wiring harness from the left coil assembly harness.

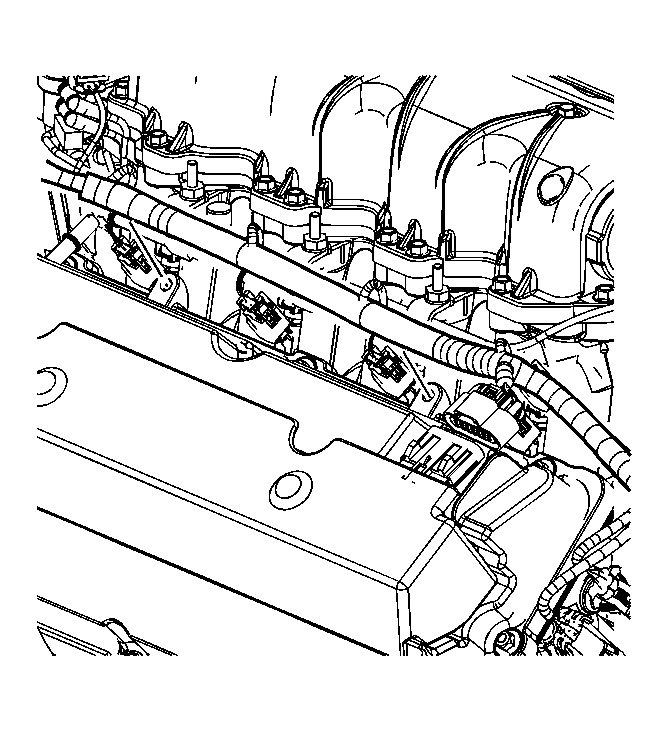

    10. Fig 10: Engine Wiring Harness
    GM1699245Courtesy of GENERAL MOTORS CORP.
  10. Disconnect the engine wiring harness from the left camshaft cover.

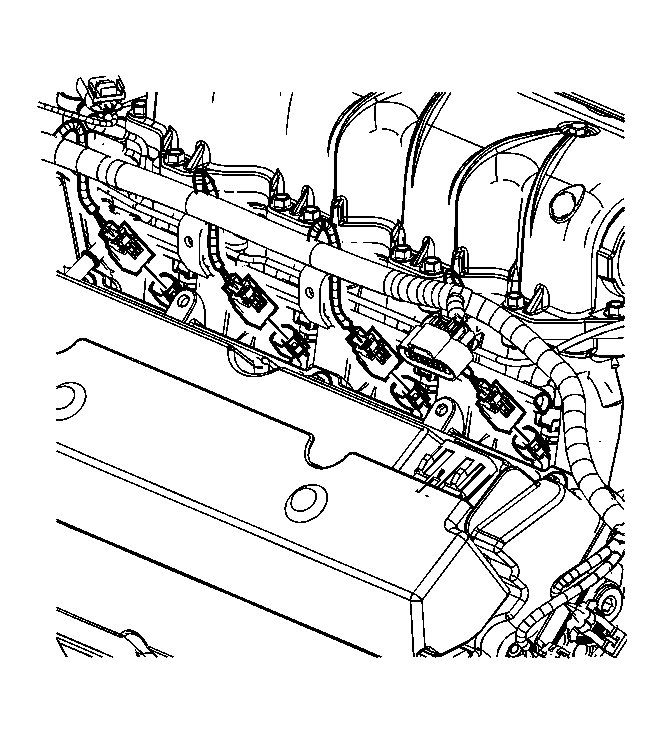

    11. Fig 11: Engine Wiring Harness
    GM1690229Courtesy of GENERAL MOTORS CORP.
  11. Disconnect the engine wiring harness from the left side fuel injectors.

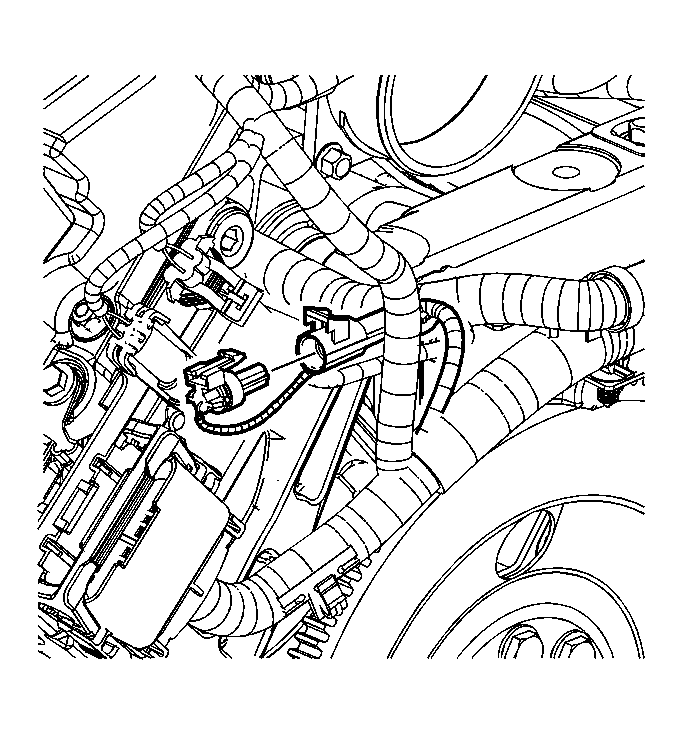

    12. Fig 12: Starter Wiring Harness
    GM1704357Courtesy of GENERAL MOTORS CORP.
  12. Disconnect the engine wiring harness starter connector from the starter wiring harness.

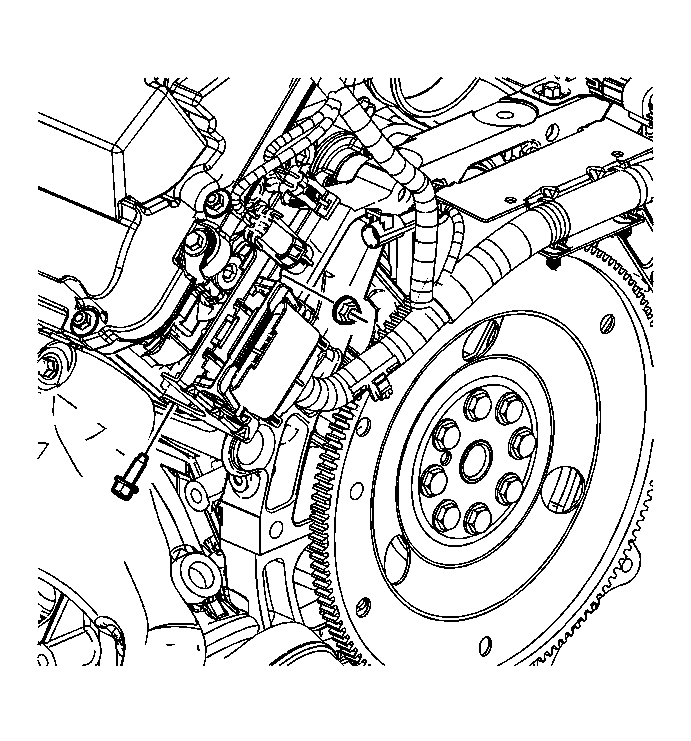

    13. Fig 13: Left Rear Engine Harness Bracket Bolt And Nut
    GM1699247Courtesy of GENERAL MOTORS CORP.
  13. Remove the left rear engine harness bracket bolt and nut.

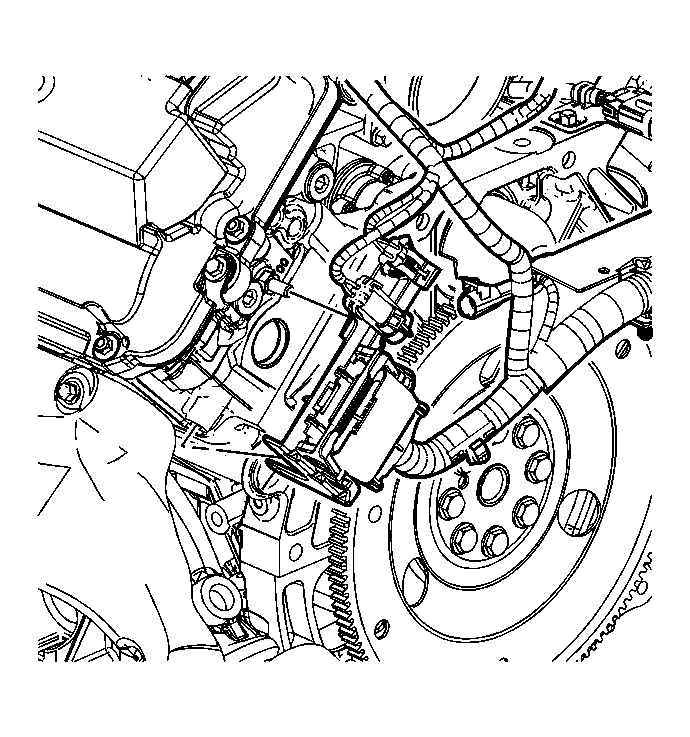

    14. Fig 14: Left Rear Engine Harness Bracket
    GM1690276Courtesy of GENERAL MOTORS CORP.
  14. Remove the left rear engine harness bracket.
