Inner Drive Belt Tensioner - Generator

WARNING: This page is about a different variant/trim than selected.

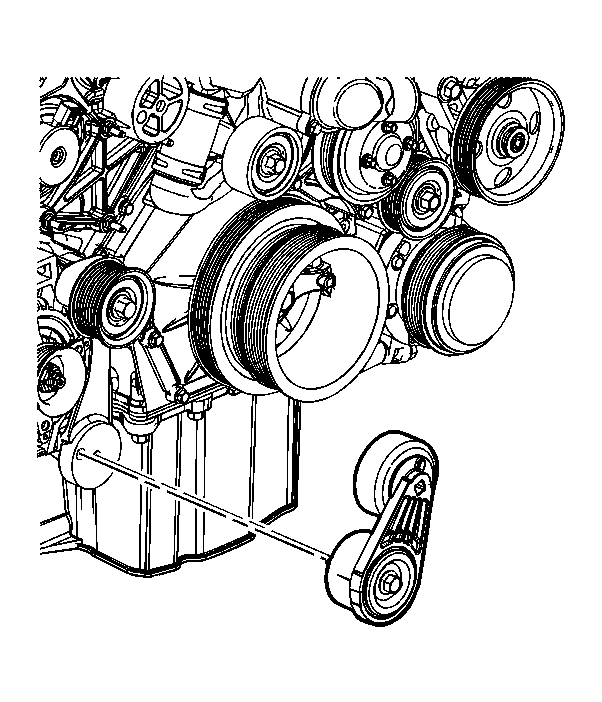

    Fig 1: Inner Drive Belt Tensioner
    GM1686841Courtesy of GENERAL MOTORS CORP.
  1. Remove the inner drive belt tensioner bolt.
  2. Remove the inner drive belt tensioner.
