Center Drive Belt Tensioner - A/C Compressor, Water Pump and Power Steering Pump

WARNING: This page is about a different variant/trim than selected.

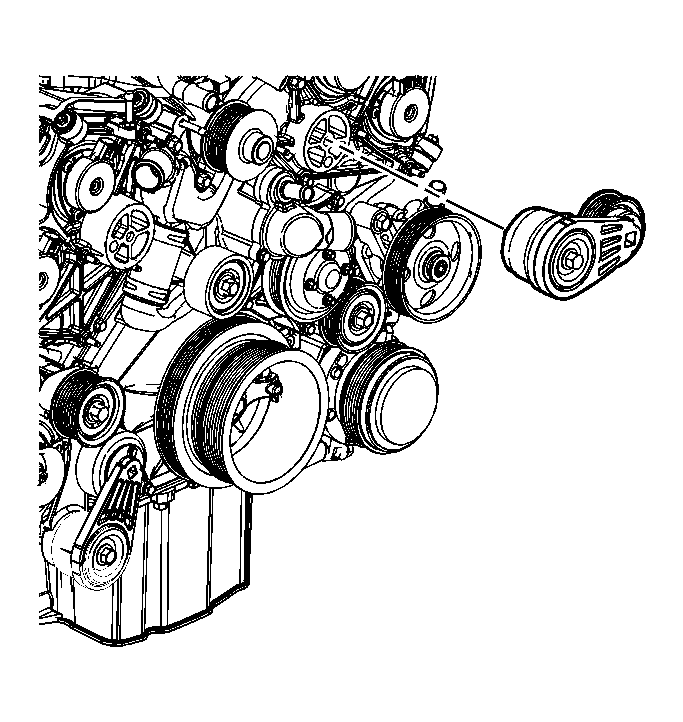

    Fig 1: Center Drive Belt Tensioner
    GM1686839Courtesy of GENERAL MOTORS CORP.
  1. Remove the center drive belt tensioner bolt.
  2. Remove the center drive belt tensioner.
