Outer Drive Belt - Supercharger

WARNING: This page is about a different variant/trim than selected.

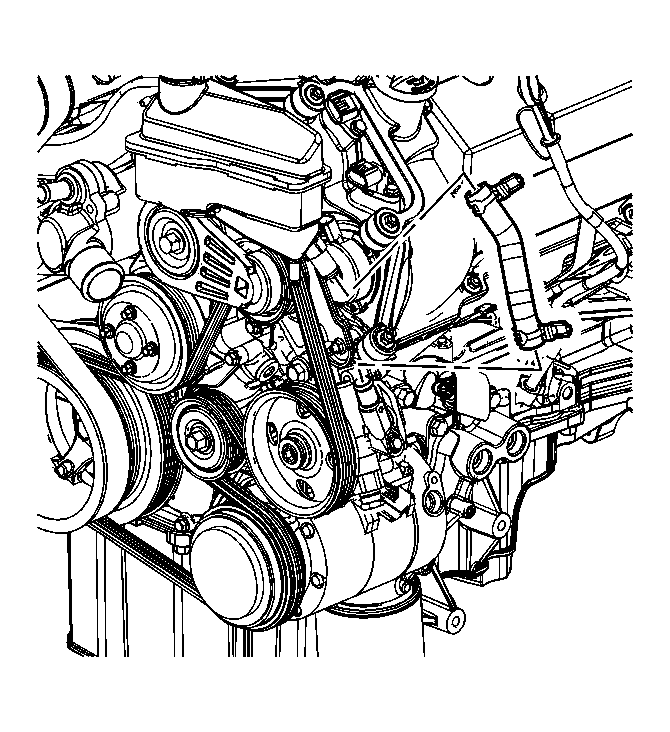

    Fig 1: Power Steering Reservoir
    GM1686824Courtesy of GENERAL MOTORS CORP.
  1. Remove any fluid from the power steering reservoir into an appropriate container for disposal.
  2. Remove the power steering reservoir hose.

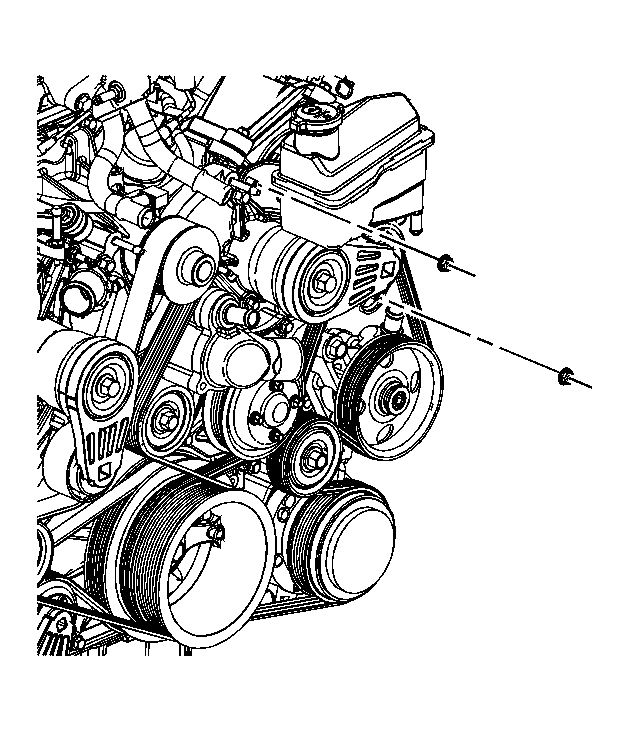

    3. Fig 2: Power Steering Reservoir Bracket Nuts
    GM1686825Courtesy of GENERAL MOTORS CORP.
  3. Remove the power steering reservoir bracket nuts.

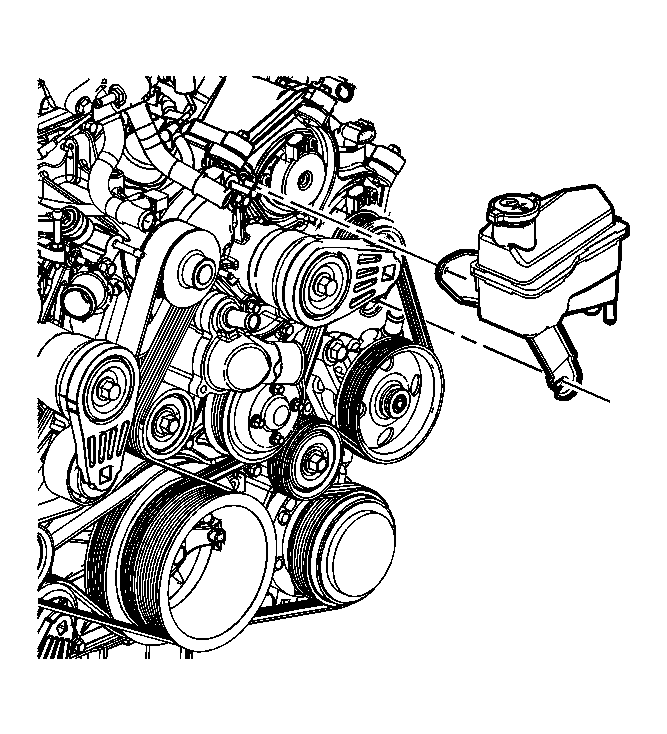

    4. Fig 3: Power Steering Reservoir
    GM1686826Courtesy of GENERAL MOTORS CORP.
  4. Remove the power steering reservoir.

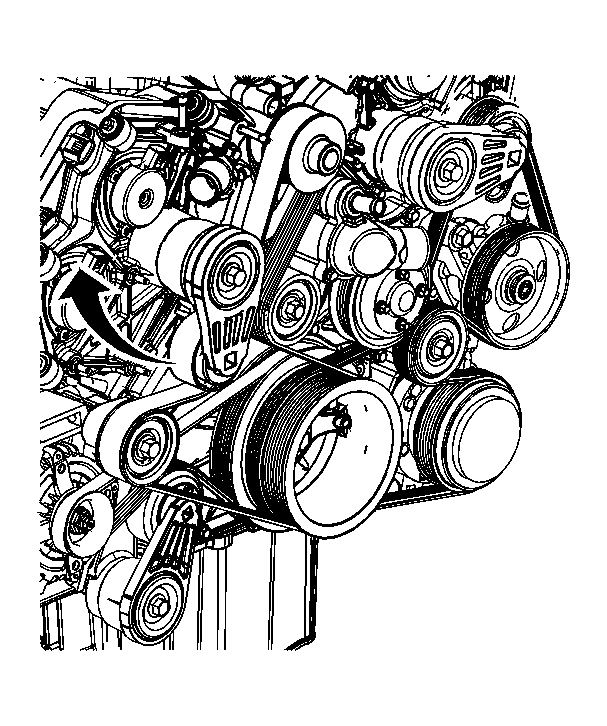

    5. Fig 4: Outer Drive Belt Tensioner
    GM1686827Courtesy of GENERAL MOTORS CORP.
  5. Insert the EN-47913  or a 1/2-inch drive breaker bar into the outer drive belt tensioner. See Special Tools .
  6. Push down on the EN-47913  or the breaker bar clockwise to release the tension. See Special Tools .
  7. Remove the outer drive belt from the supercharger pulley.
  8. Slowly return the outer drive belt tensioner to the original position.

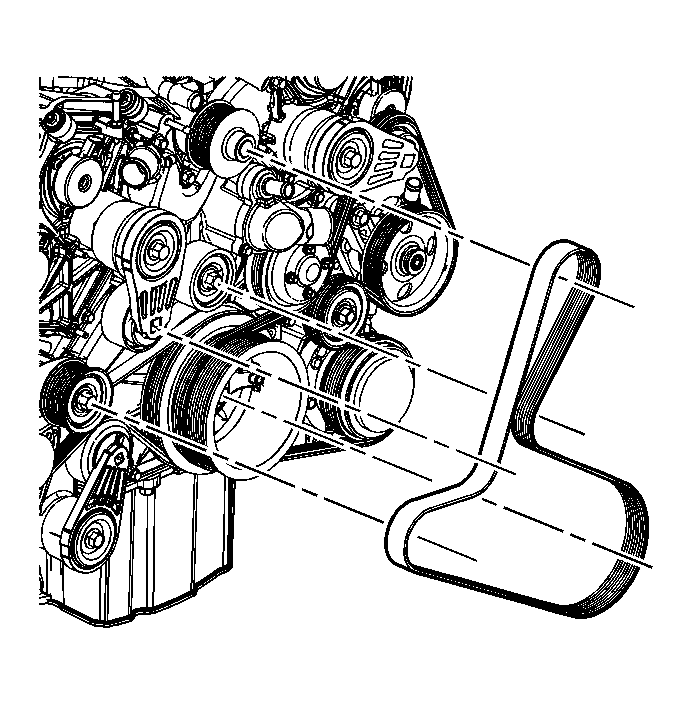

    9. Fig 5: Outer Drive Belt
    GM1686828Courtesy of GENERAL MOTORS CORP.
  9. Remove the outer drive belt.
