Inner Drive Belt - Generator

WARNING: This page is about a different variant/trim than selected.

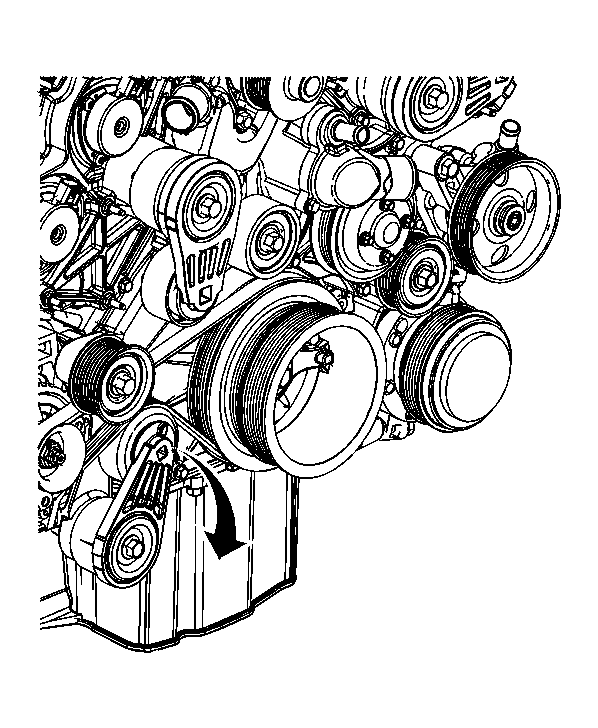

    Fig 1: Inner Drive Belt Tensioner
    GM1686833Courtesy of GENERAL MOTORS CORP.
  1. Insert the EN-47913  or a 1/2-inch drive breaker bar into the inner drive belt tensioner. See Special Tools .
  2. Push down on the EN-47913  or the breaker bar clockwise to release the tension. See Special Tools .
  3. Remove the inner drive belt from the generator pulley.
  4. Slowly return the inner drive belt tensioner to the original position.

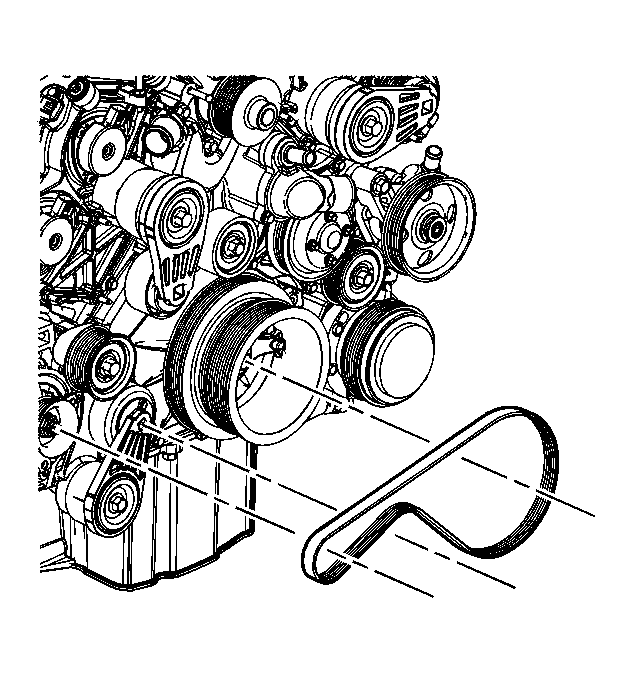

    5. Fig 2: Inner Drive Belt
    GM1686834Courtesy of GENERAL MOTORS CORP.
  5. Remove the inner drive belt.
