Center Drive Belt - A/C Compressor, Water Pump and Power Steering Pump

WARNING: This page is about a different variant/trim than selected.

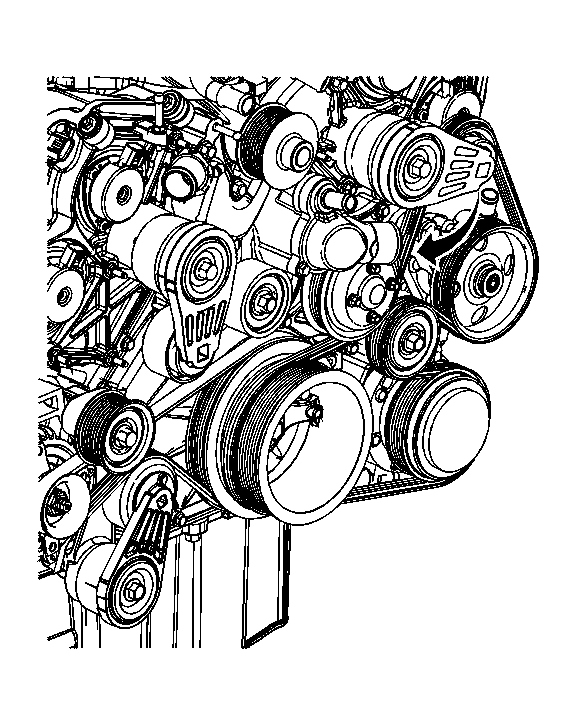

Fig 1: Center Drive Belt Tensioner

Courtesy of GENERAL MOTORS CORP.

Insert the EN-47913 or a 1/2-inch drive breaker bar into the center drive belt tensioner. See Special Tools .
Push down on the EN-47913 or the breaker bar clockwise to release the tension. See Special Tools .
Remove the center drive belt from the power steering pump pulley.
Slowly return the center drive belt tensioner to the original position.

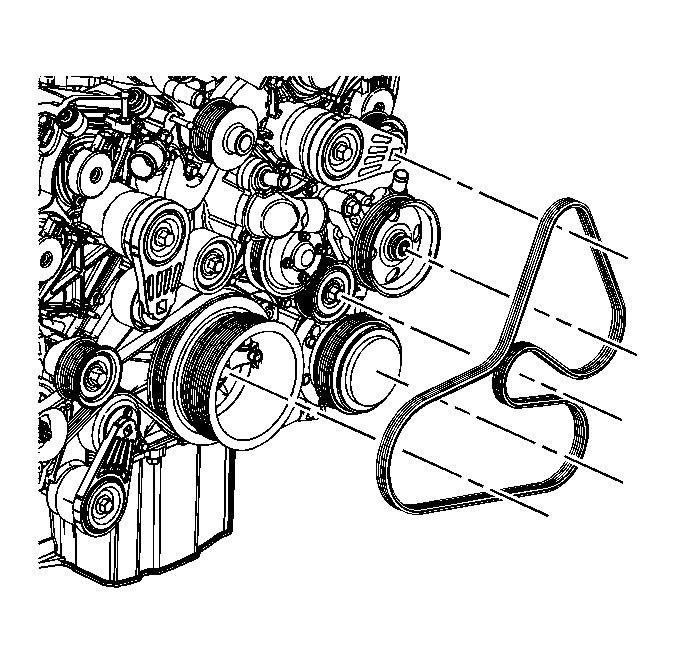

Fig 2: Center Drive Belt

Courtesy of GENERAL MOTORS CORP.
