Outer Drive Belt Idler Pulley - Supercharger

WARNING: This page is about a different variant/trim than selected.

Upper

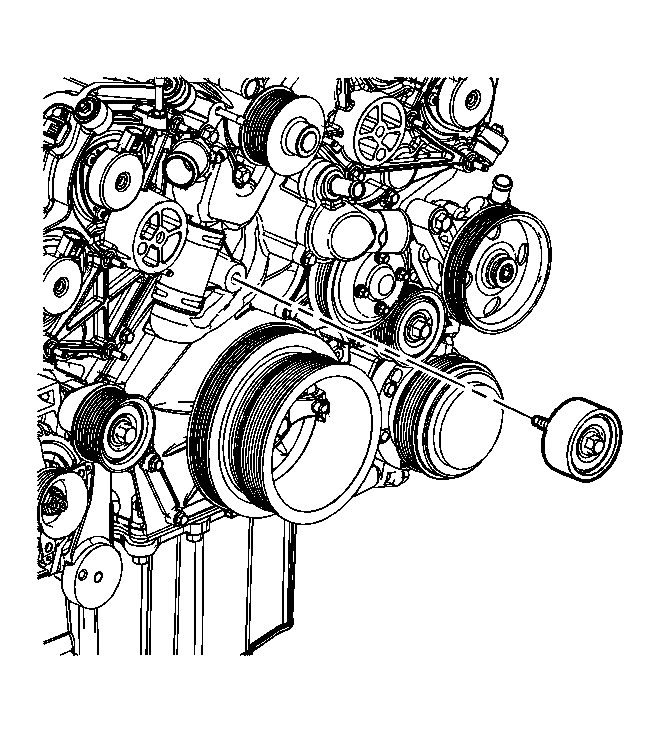

    Fig 1: Upper Outer Drive Belt Idler Pulley
    GM1686844Courtesy of GENERAL MOTORS CORP.
  1. Loosen the upper outer drive belt idler pulley bolt.
  2. Remove the upper outer drive belt idler pulley.

Lower

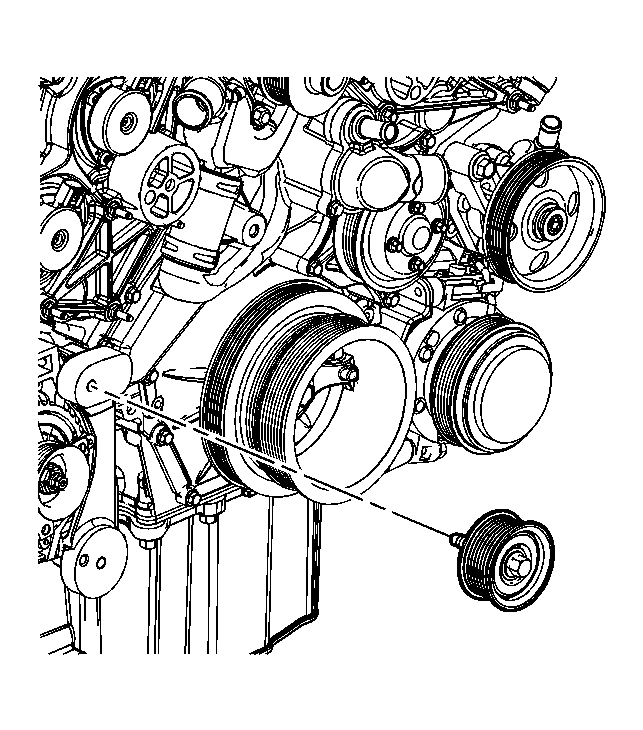

    Fig 2: Lower Outer Drive Belt Idler Pulley
    GM1686846Courtesy of GENERAL MOTORS CORP.
  1. Loosen the lower outer drive belt idler pulley bolt.
  2. Remove the lower outer drive belt idler pulley.
