Crankshaft Balancer Removal - Off Vehicle

Tools Required

• EN 46326  Flywheel Holding Tool. See Special Tools .
• J 38416-2  Crankshaft Button
• J 41816  Crankshaft Balancer Remover. See Special Tools .

Fig 1: View Of Flywheel Holder
Courtesy of GENERAL MOTORS CORP.
1. Install the EN 46326  . See Special Tools .
Fig 2: Crankshaft Balancer Bolt
Courtesy of GENERAL MOTORS CORP.
2. Remove the crankshaft balancer bolt.
Fig 3: J 38416-2
Courtesy of GENERAL MOTORS CORP.
3. Place the J 38416-2  into the end of the crankshaft.
4. Install the J 41816  on the crankshaft balancer. See Special Tools .

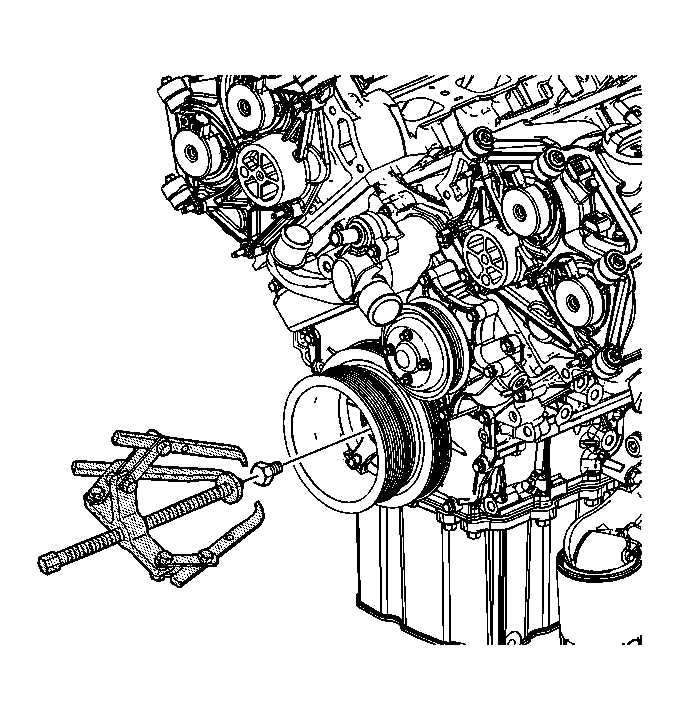

Fig 4: Crankshaft Balancer
Courtesy of GENERAL MOTORS CORP.
5. Remove the crankshaft balancer using the J 41816  . See Special Tools .
