Air Conditioning (A/C) Compressor Removal - Off Vehicle

WARNING: This page is about a different variant/trim than selected.

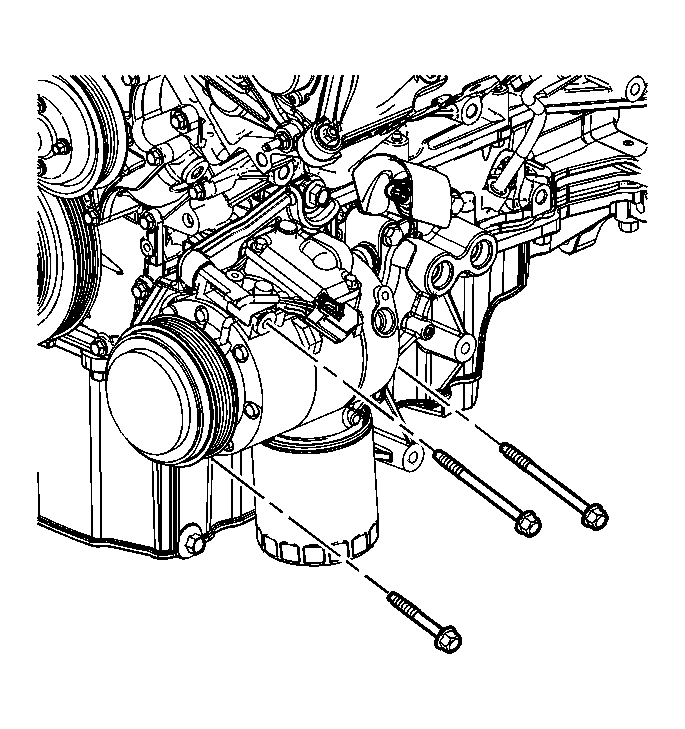

    Fig 1: A/C Compressor Bolts
    GM1686853Courtesy of GENERAL MOTORS CORP.
  1. Remove the A/C compressor bolts.

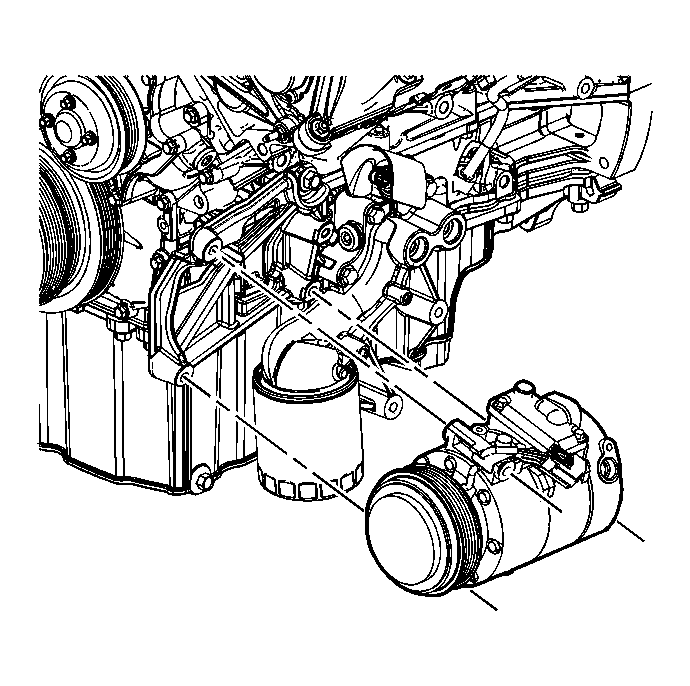

    2. Fig 2: A/C Compressor
    GM1686854Courtesy of GENERAL MOTORS CORP.
  2. Remove the A/C compressor.

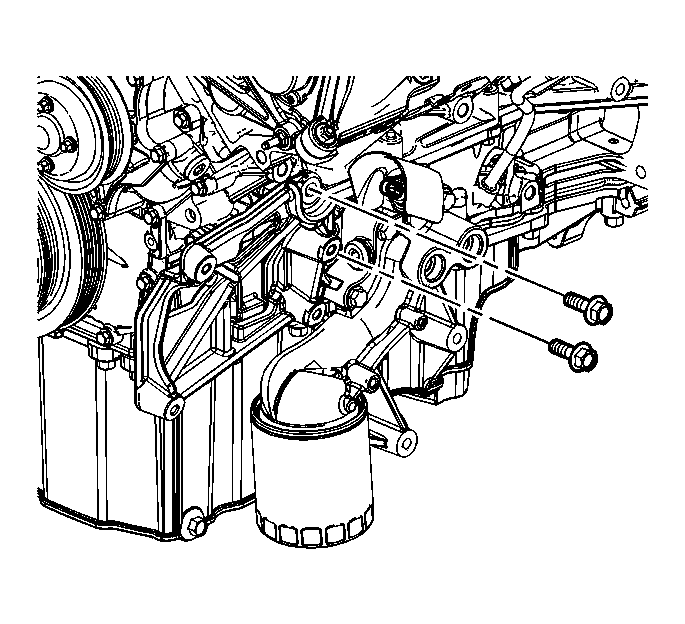

    3. Fig 3: A/C Compressor Bracket Side Bolts
    GM1686855Courtesy of GENERAL MOTORS CORP.
  3. Remove the A/C compressor bracket side bolts.

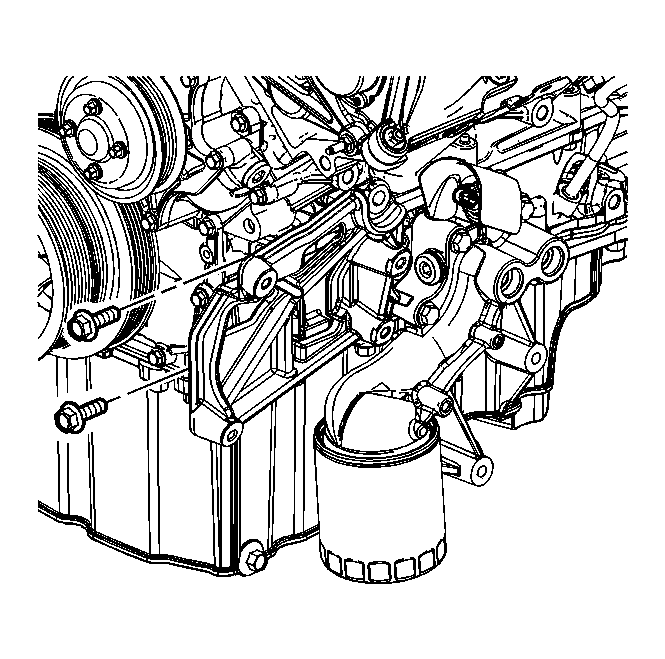

    4. Fig 4: A/C Compressor Bracket Front Bolts
    GM1686856Courtesy of GENERAL MOTORS CORP.
  4. Remove the A/C compressor bracket front bolts.

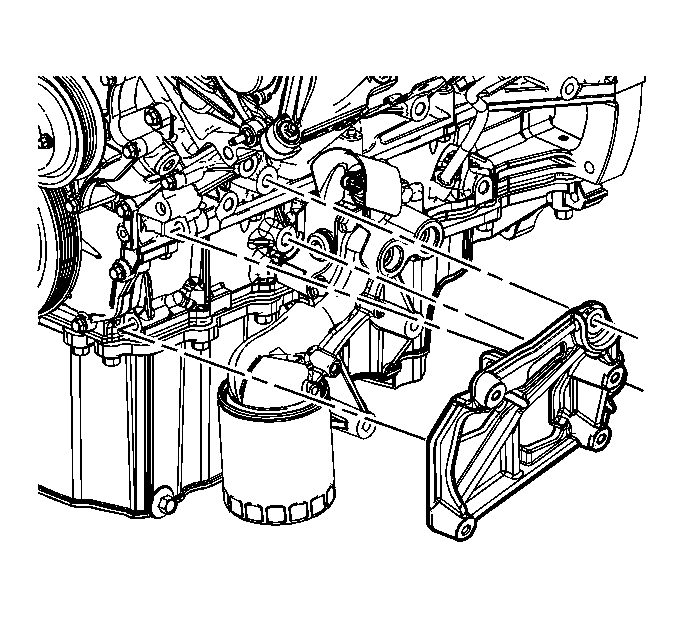

    5. Fig 5: A/C Compressor Bracket
    GM1686857Courtesy of GENERAL MOTORS CORP.
  5. Remove the A/C compressor bracket.
