Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the flywheel. Refer to Engine Flywheel Replacement .

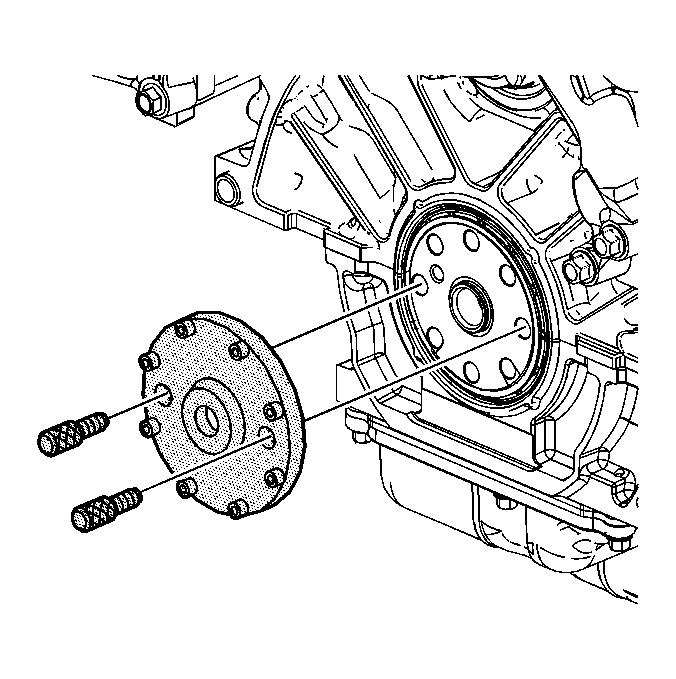

    2. Fig 1: View Of J 42841 Removing The Rear Crankshaft Oil Seal
    GM548455Courtesy of GENERAL MOTORS CORP.
  2. Using the J 42841-A  remove the rear crankshaft oil seal. Refer to Crankshaft Rear Oil Seal Removal .
