Water Outlet Housing Removal - Off Vehicle

WARNING: This page is about a different variant/trim than selected.

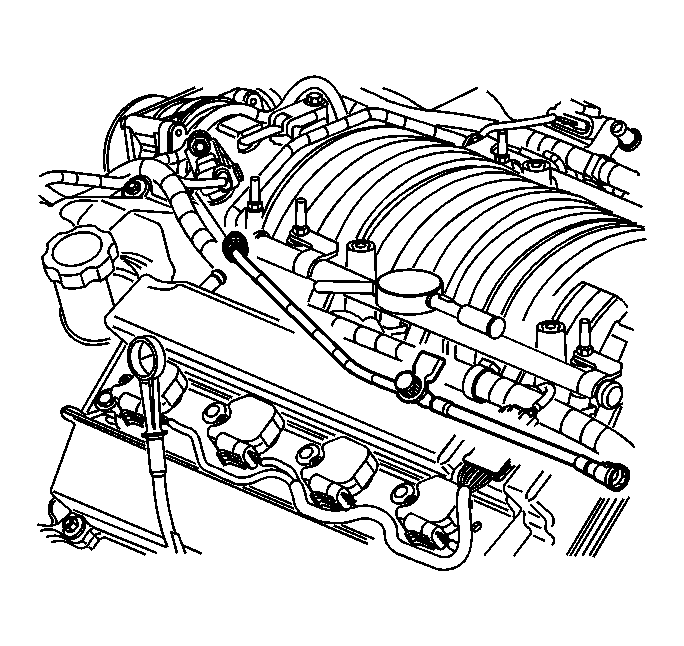

    Fig 1: View Of EVAP Purge Valve Tube
    GM1254494Courtesy of GENERAL MOTORS CORP.
  1. Remove the EVAP purge valve tube from the EVAP purge valve.
    2. Fig 2: View Of Throttle Body Assembly
    GM927998Courtesy of GENERAL MOTORS CORP.
  2. Remove the throttle body bolts.
  3. Remove the throttle body from the water outlet.
    4. Fig 3: View Of Throttle Body Gasket
    GM1510042Courtesy of GENERAL MOTORS CORP.
  4. Remove and discard the throttle body gasket.
    5. Fig 4: Locating Intake Manifold Plenum Duct Clamp
    GM948138Courtesy of GENERAL MOTORS CORP.
  5. Loosen the clamp (1) on the intake manifold plenum duct.
    6. Fig 5: View Of Water Outlet Housing
    GM928004Courtesy of GENERAL MOTORS CORP.
  6. Remove the water outlet housing bolts.
  7. Remove the water outlet housing.
