Power Steering Pump Removal - Off Vehicle

WARNING: This page is about a different variant/trim than selected.

Tools Required

J 25034-C  Pulley Remover

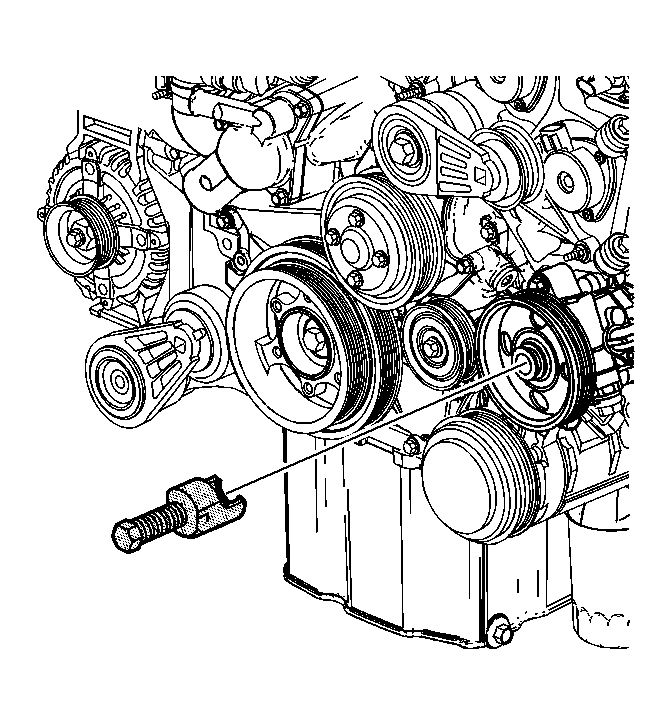

    Fig 1: Removing The Power Steering Pump Pulley Using J 25034-C
    GM1400635Courtesy of GENERAL MOTORS CORP.
  1. If necessary, using the J 25034-C  , remove the power steering pump pulley in order to access the power steering pump mounting bolts.
    2. Fig 2: View Of Power Steering Pump Front Mounting Bolt
    GM1346186Courtesy of GENERAL MOTORS CORP.
  2. Remove the power steering pump front mounting bolt.
    3. Fig 3: View Of Power Steering Pump
    GM1346187Courtesy of GENERAL MOTORS CORP.
  3. Remove the power steering pump side mounting bolt.
  4. Remove the power steering pump.
