Exhaust Manifold Removal - Right Side (AWD) - Off Vehicle

WARNING: This page is about a different variant/trim than selected.

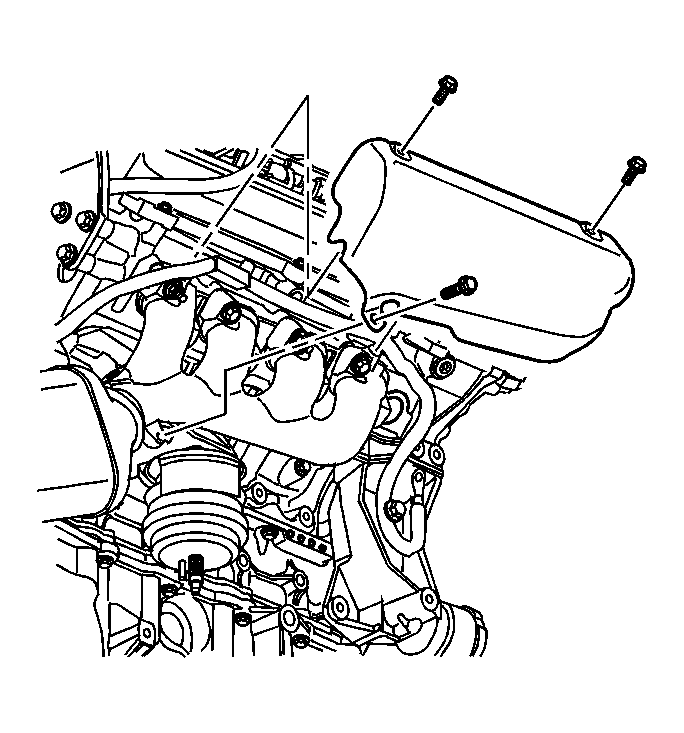

    Fig 1: View Of Right Exhaust Manifold Heat Shield
    GM1346093Courtesy of GENERAL MOTORS CORP.
  1. Remove the right exhaust manifold heat shield bolts.
  2. Remove the right exhaust manifold heat shield.

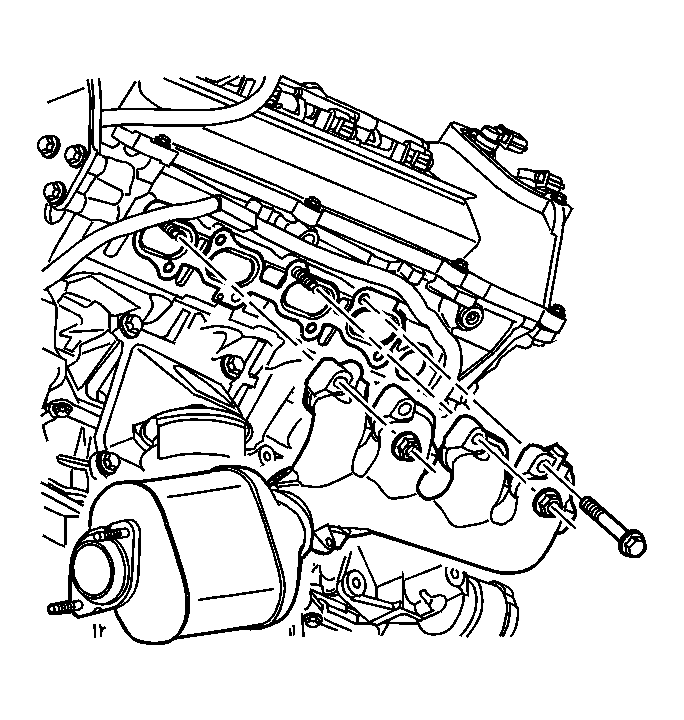

    3. Fig 2: View Of Right Exhaust Manifold
    GM1346095Courtesy of GENERAL MOTORS CORP.
  3. Remove the right exhaust manifold bolts from the right cylinder head and bell housing.
  4. Remove the right exhaust manifold.

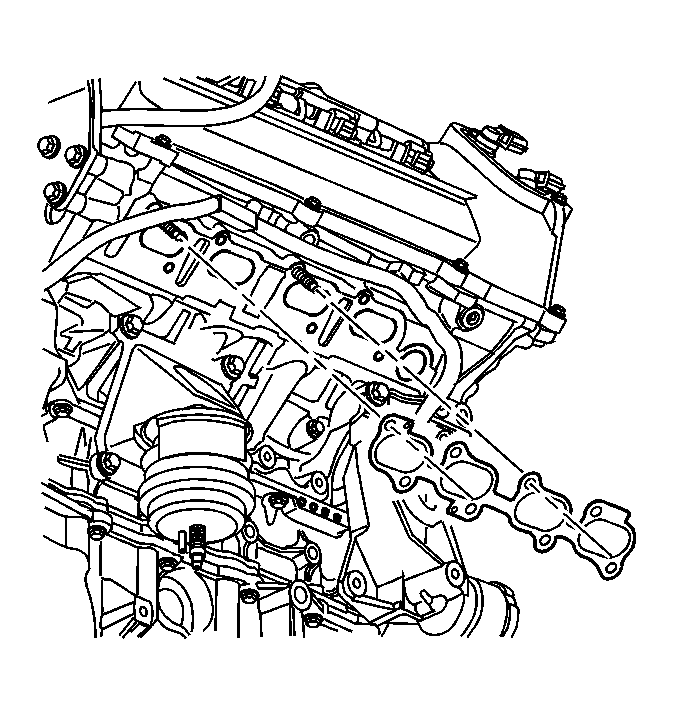

    5. Fig 3: View Of Right Exhaust Manifold Gasket
    GM1346096Courtesy of GENERAL MOTORS CORP.
  5. Remove the right exhaust manifold gasket.

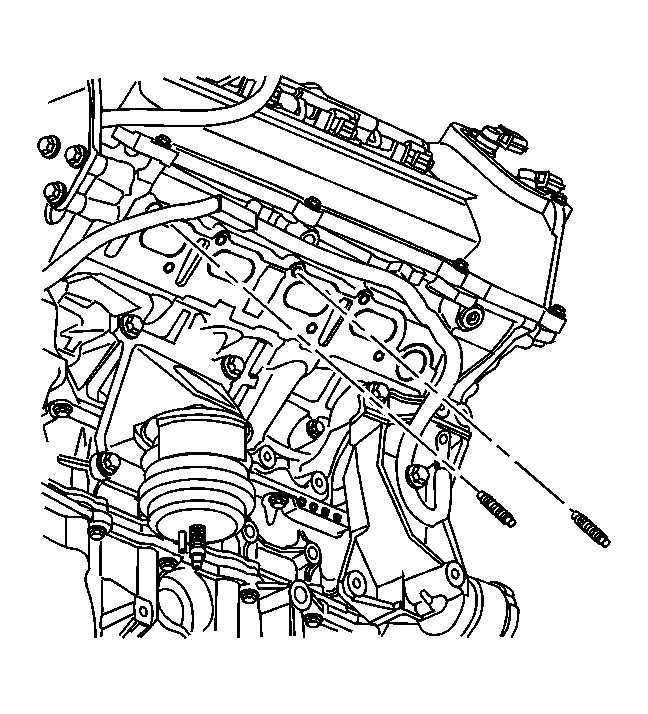

    6. Fig 4: View Of Right Exhaust Manifold Studs
    GM1346105Courtesy of GENERAL MOTORS CORP.
  6. Remove the right exhaust manifold studs from the right cylinder head.

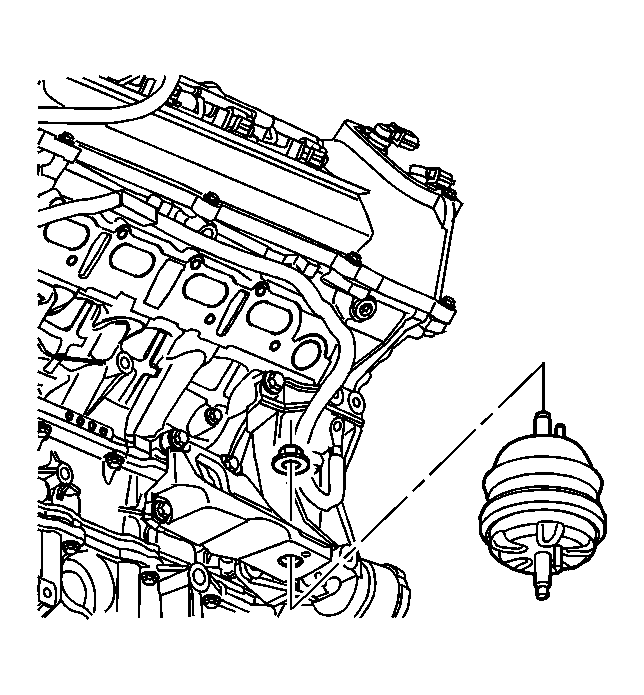

    7. Fig 5: View Of Right Engine Mount - AWD
    GM1346158Courtesy of GENERAL MOTORS CORP.
  7. Remove the right engine mount upper nut.
  8. Remove the right engine mount.

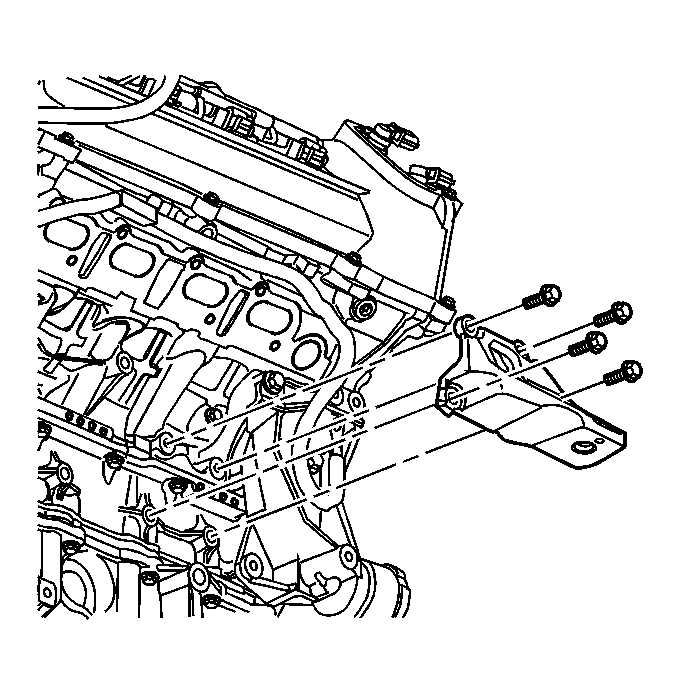

    9. Fig 6: View Of Right Engine Mount Bracket - AWD
    GM1346178Courtesy of GENERAL MOTORS CORP.
  9. Remove the right engine mount bracket bolts.
  10. Remove the right engine mount bracket.
