Right Side Harness Connections

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Right Side Fuel Injectors Engine Wiring Harness Connectors
    GM927838Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the engine wiring harness from the right side fuel injectors.

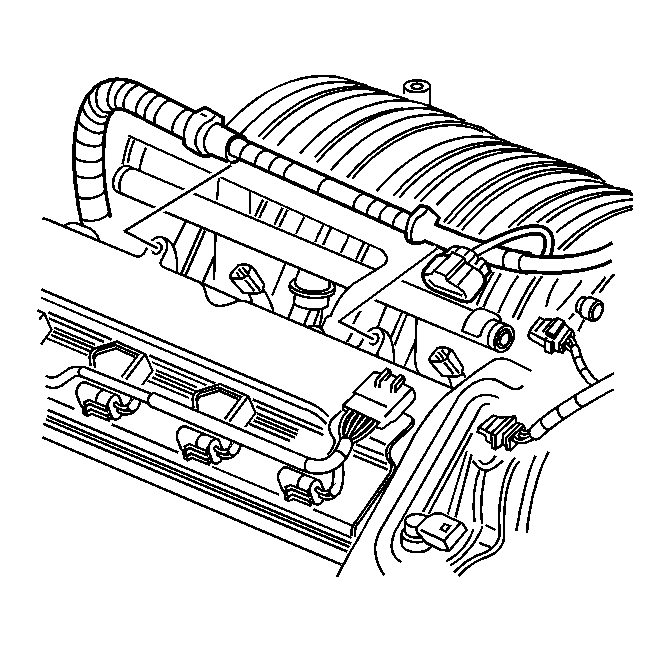

    2. Fig 2: View Of Right Camshaft Cover Engine Wiring Harness Connectors
    GM927778Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the engine wiring harness from the right camshaft cover.
    3. Fig 3: View Of Engine Wiring Harness & Right Ignition Coil Harness
    GM927822Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the engine wiring harness from right coil assembly harness.

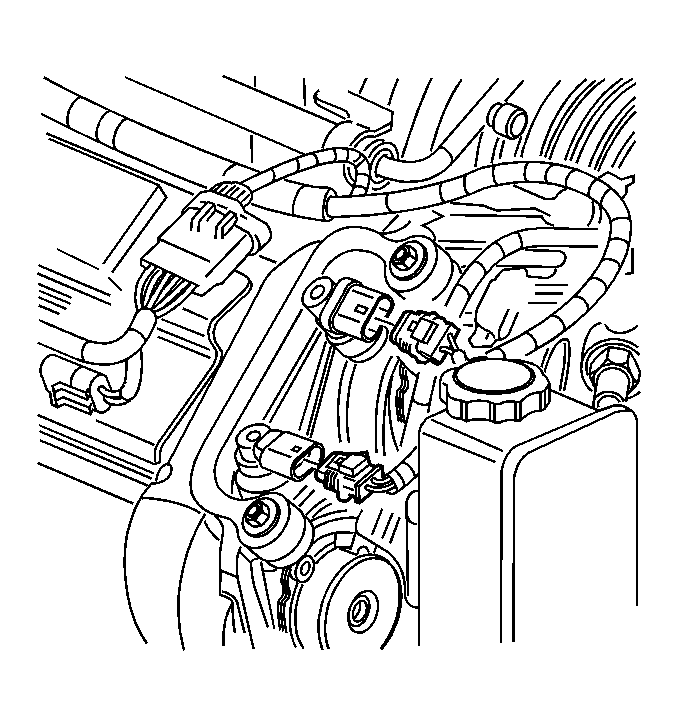

    4. Fig 4: View Of Right Camshaft Position Sensors Engine Wiring Harness Connectors
    GM927790Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the engine wiring harness from right camshaft position sensors.
    5. Fig 5: View Of Intake Manifold Stud Engine Wiring Harness Ground
    GM927871Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the engine wiring harness ground from the intake manifold stud.
    6. Fig 6: View Of ECT Engine Wiring Harness Connectors
    GM927819Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the engine wiring harness from the ECT sensor at the rear of the right cylinder head.

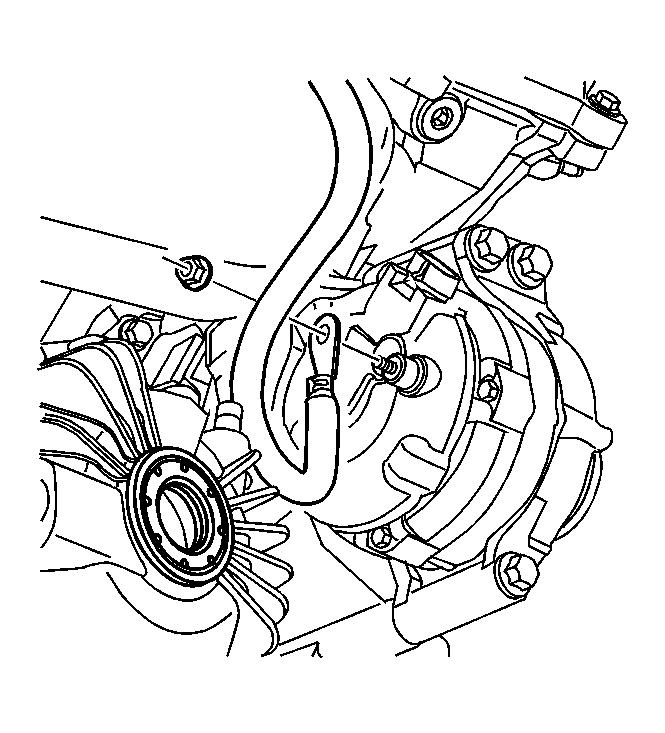

    7. Fig 7: View Of Generator Starter Motor Wiring Harness Connector
    GM1346047Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the starter motor wiring harness from the generator.

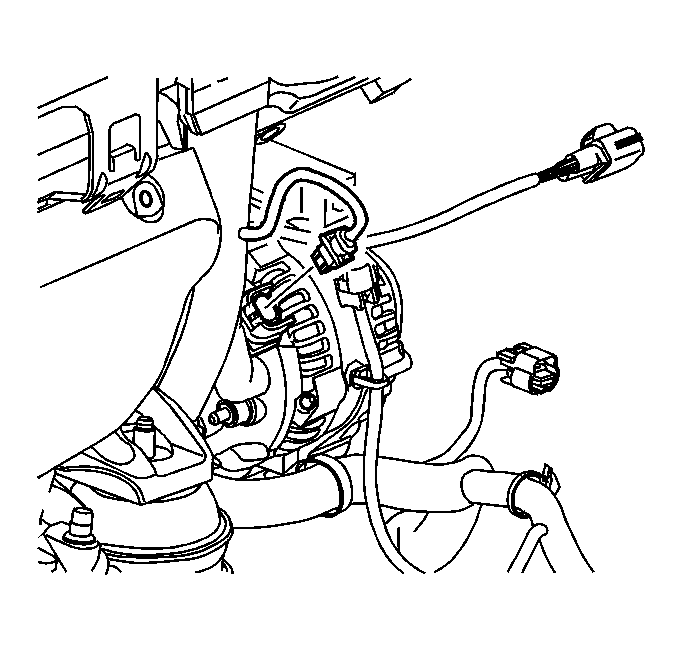

    8. Fig 8: View Of Generator Engine Wiring Harness Connectors
    GM1346050Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the engine wiring harness from the generator.
    9. Fig 9: View Of MAP Sensor Engine Wiring Harness Connector
    GM927850Courtesy of GENERAL MOTORS CORP.
  9. Disconnect the engine wiring harness from the MAP sensor.

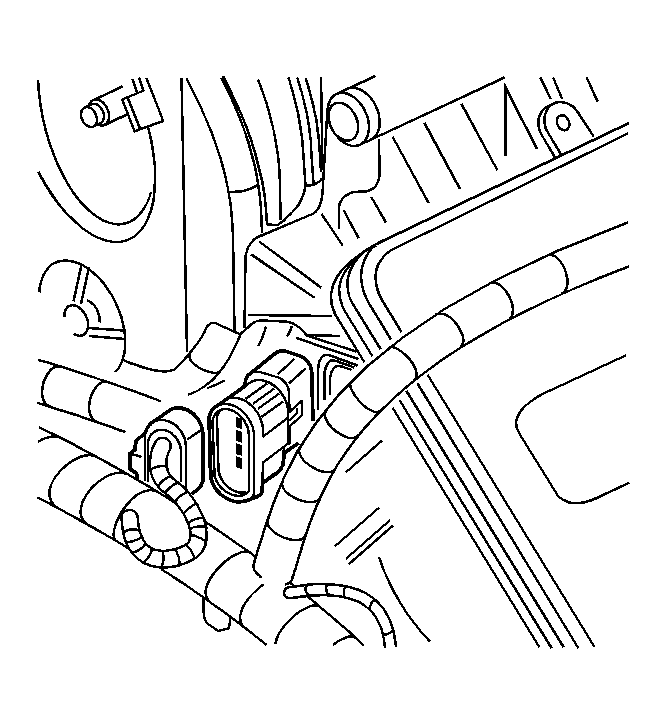

    10. Fig 10: View Of Knock & Crankshaft Position Sensor Wiring Harness Engine Wiring Harness Connector
    GM927798Courtesy of GENERAL MOTORS CORP.
  10. Disconnect the engine wiring harness from the knock and crankshaft position sensor wiring harness.

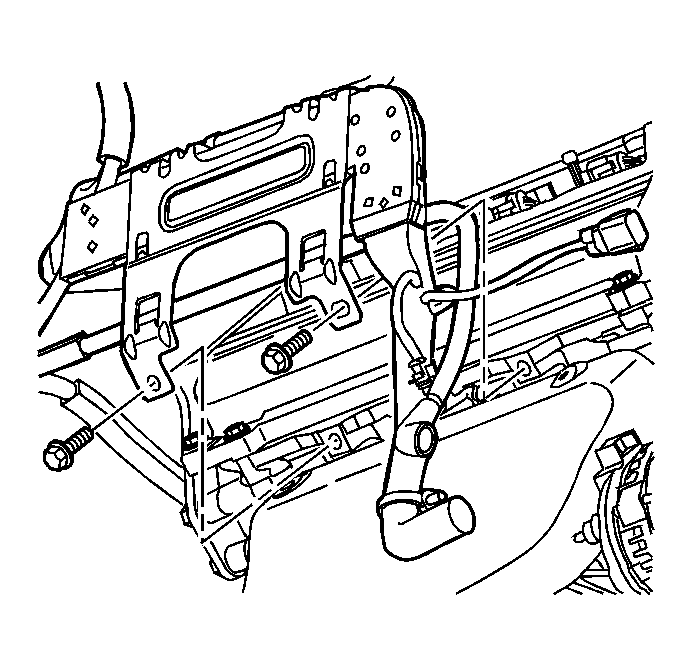

    11. Fig 11: View Of Engine Block Engine Wiring Harness Connector
    GM1346053Courtesy of GENERAL MOTORS CORP.
  11. Remove the engine wiring harness bracket from the engine block.
