Left Side Harness Connections

WARNING: This page is about a different variant/trim than selected.

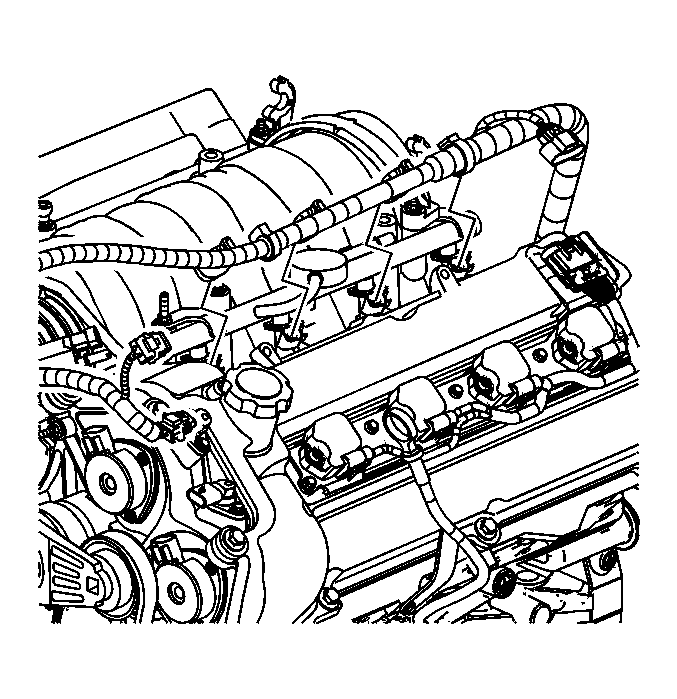

    Fig 1: View Of Left Side Fuel Injectors Engine Wiring Harness Connectors
    GM927839Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the engine wiring harness from the left side fuel injectors.

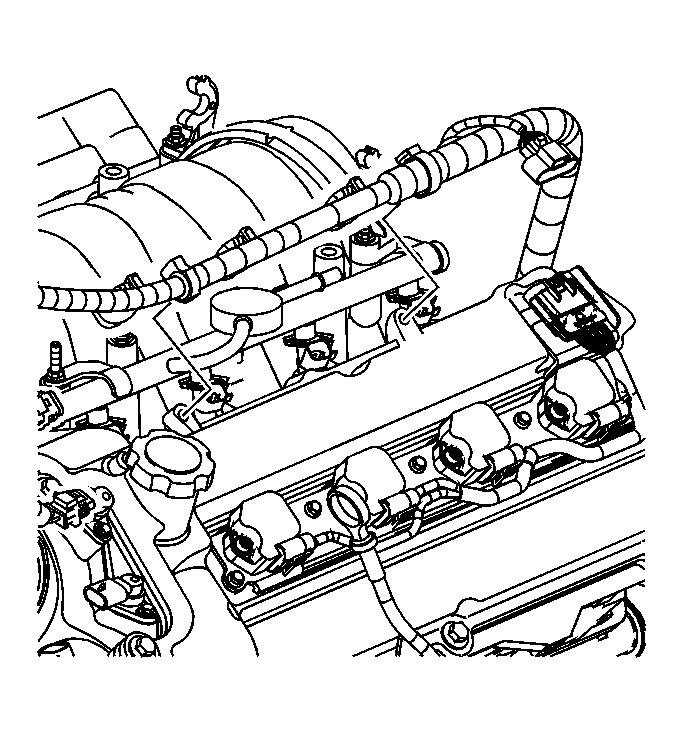

    2. Fig 2: View Of Left Camshaft Cover Engine Wiring Harness Connectors
    GM927781Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the engine wiring harness from the left camshaft cover.

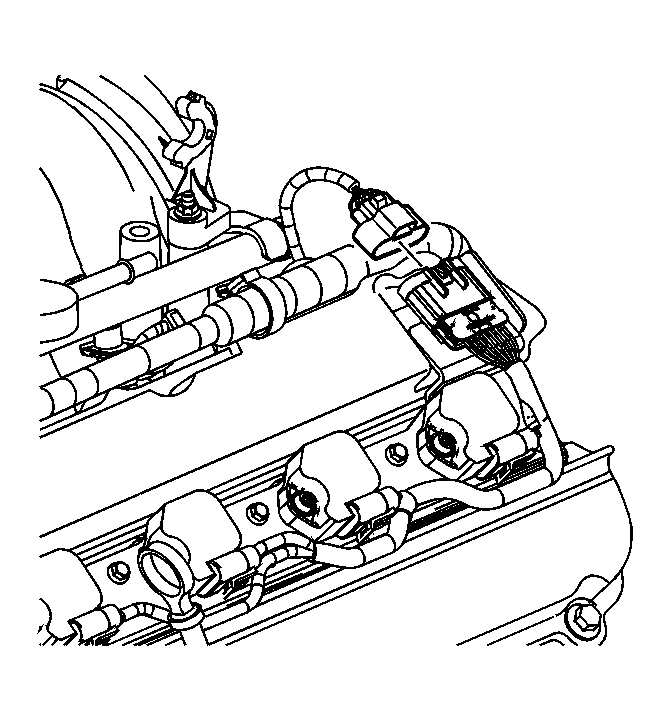

    3. Fig 3: View Of Left Coil Assembly Harness Engine Wiring Harness Connector
    GM927828Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the engine wiring harness from the left coil assembly harness.

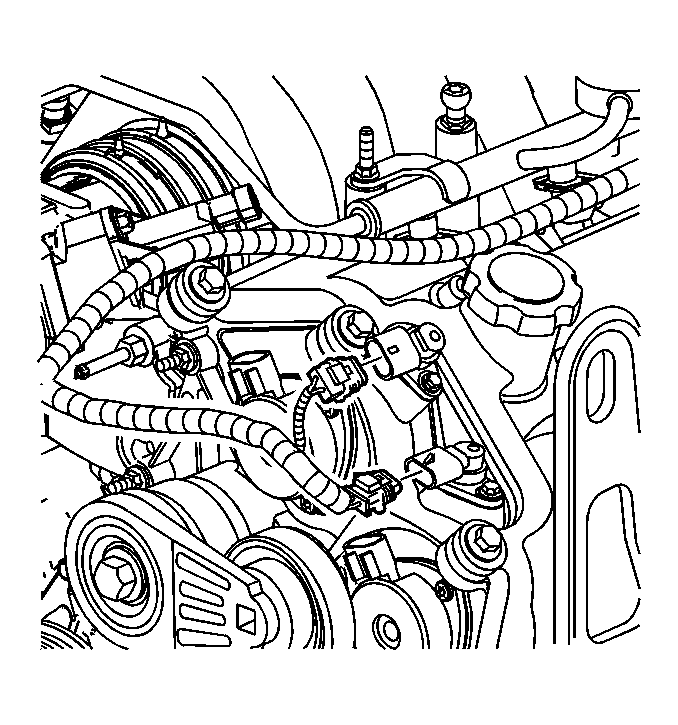

    4. Fig 4: View Of Left Camshaft Position Sensors Engine Wiring Harness Connectors
    GM927792Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the engine wiring harness from the left camshaft position sensors.

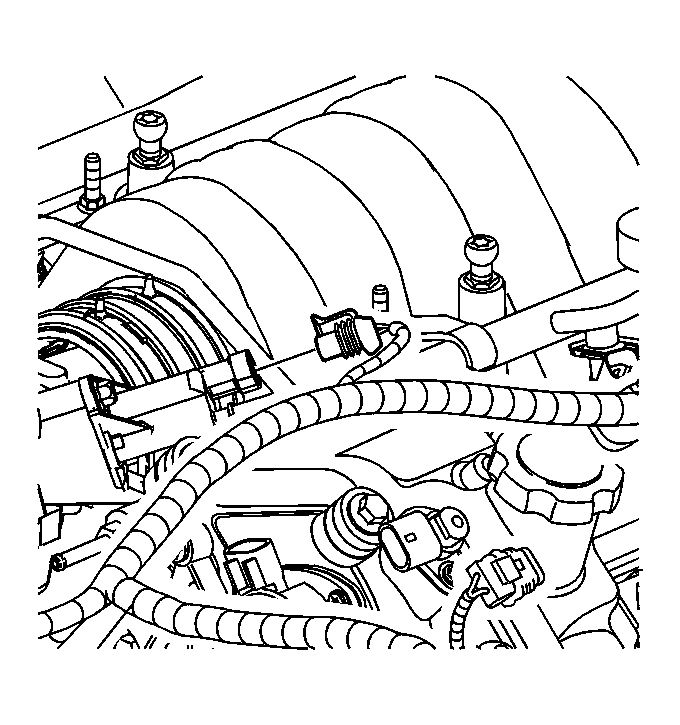

    5. Fig 5: View Of EVAP Purge Solenoid Engine Wiring Harness Connector
    GM927862Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the engine wiring harness from the EVAP purge solenoid.

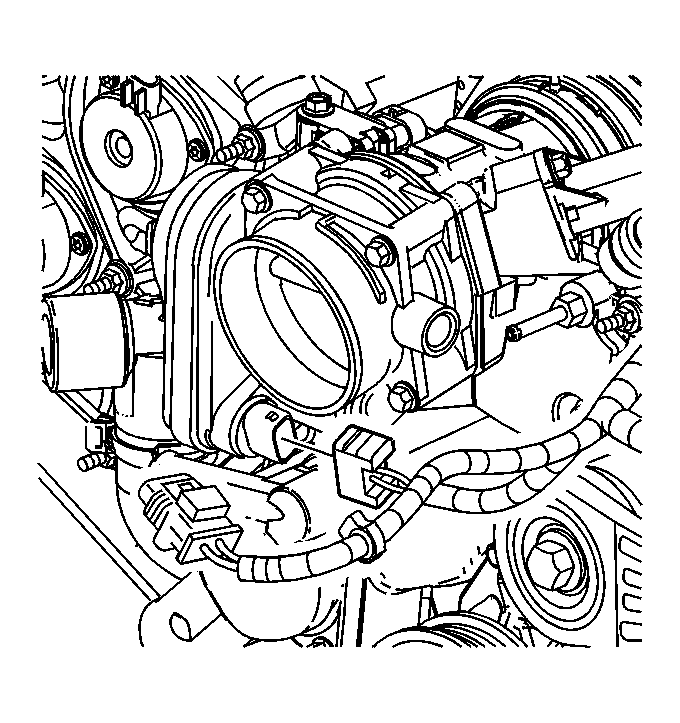

    6. Fig 6: View Of Throttle Position Sensor Engine Wiring Harness Connector
    GM927869Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the engine wiring harness from the throttle position sensor on the throttle body.

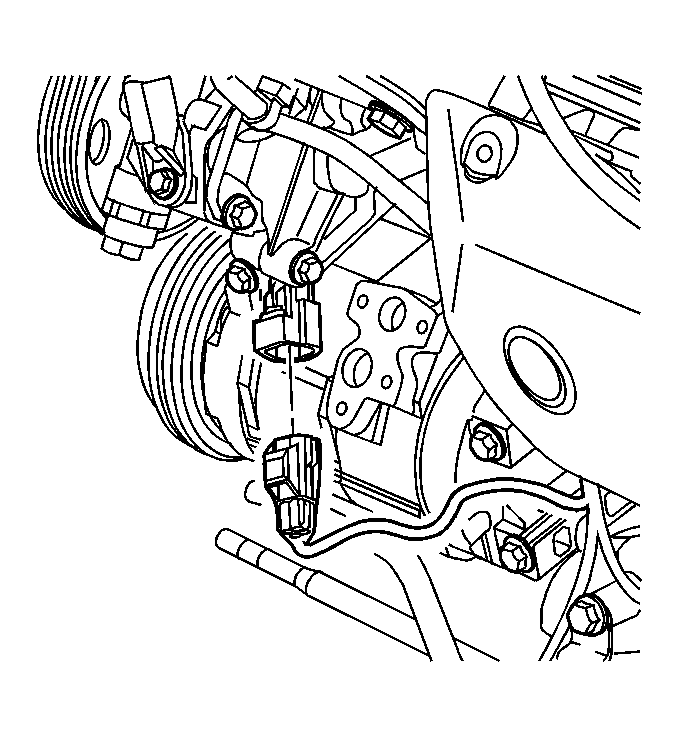

    7. Fig 7: View Of A/C Compressor Engine Wiring Harness Connector
    GM1346039Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the engine wiring harness from the air conditioner compressor.

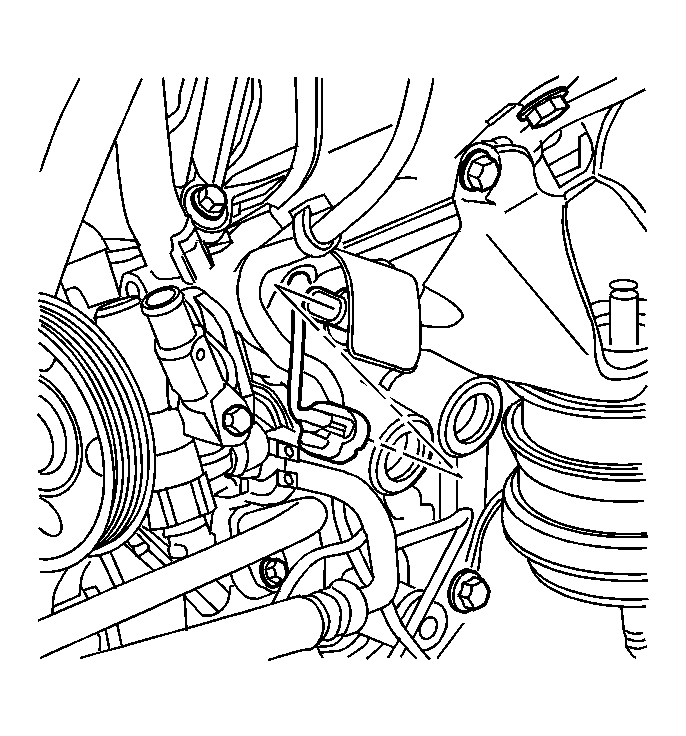

    8. Fig 8: View Of Oil Pressure Sensor Engine Wiring Harness Connector
    GM1346041Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the engine wiring harness from the oil pressure sensor.
    9. Fig 9: View Of Oil Level Oil Switch Engine Wiring Harness Connector
    GM1346043Courtesy of GENERAL MOTORS CORP.
  9. Disconnect the engine wiring harness from the oil level oil switch.
