P/S Pump and A/C Compressor Drive Belt Tensioner

WARNING: This page is about a different variant/trim than selected.

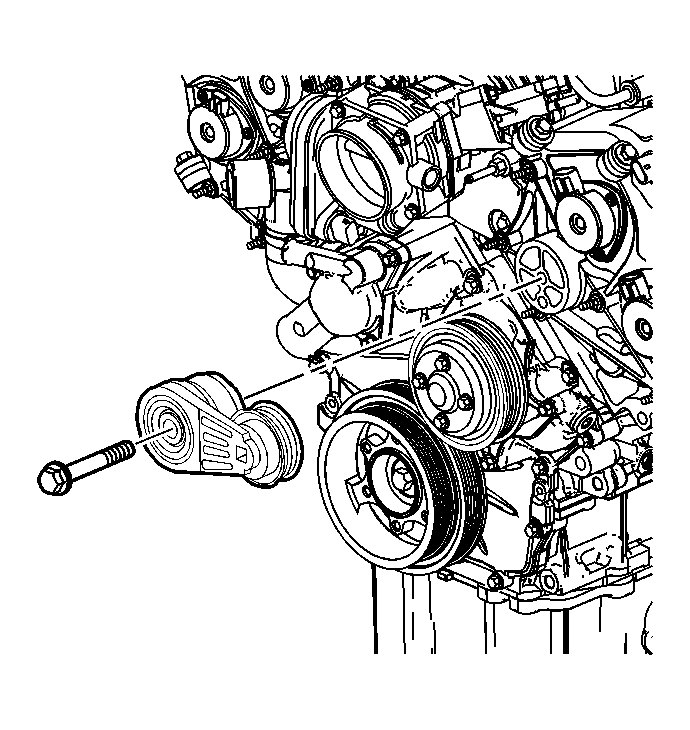

    Fig 1: View Of P/S Pump & A/C Compressor Drive Belt Tensioner
    GM1346197Courtesy of GENERAL MOTORS CORP.
  1. Remove the P/S pump and A/C compressor drive belt tensioner bolt.
  2. Remove the P/S pump and A/C compressor drive belt tensioner.
