Inner Drive Belt

WARNING: This page is about a different variant/trim than selected.

Fig 1: View Of Drive Belt Tensioner & Pulleys

GM284263

Courtesy of GENERAL MOTORS CORP.

Insert a 1/2-inch drive extension into the drive belt tensioner.
Push down on the extension to release tension.
Remove the drive belt from the generator.
Slowly return the drive belt tensioner to the original position.

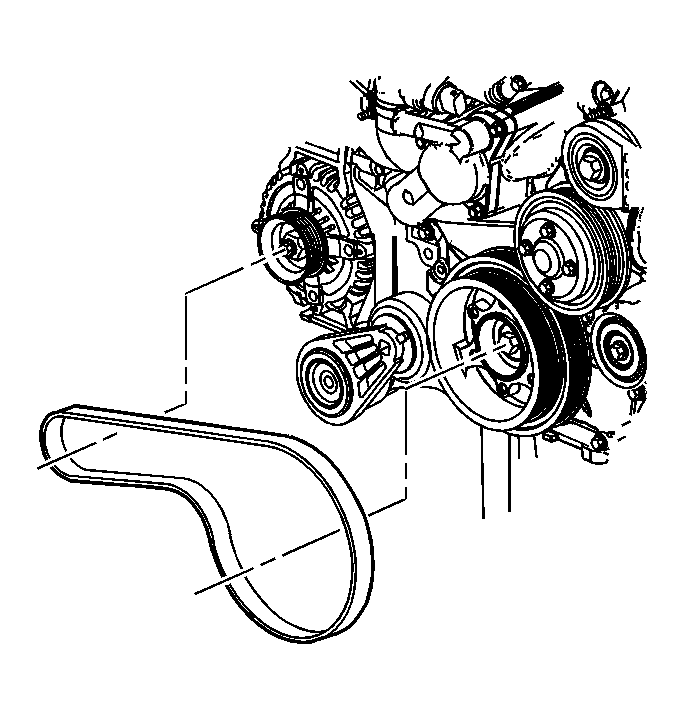

Fig 2: View Of Inner Drive Belt

GM1346183

Courtesy of GENERAL MOTORS CORP.

Remove the inner drive belt.
