Drive Belt Idler Pulley Removal - Off Vehicle

WARNING: This page is about a different variant/trim than selected.

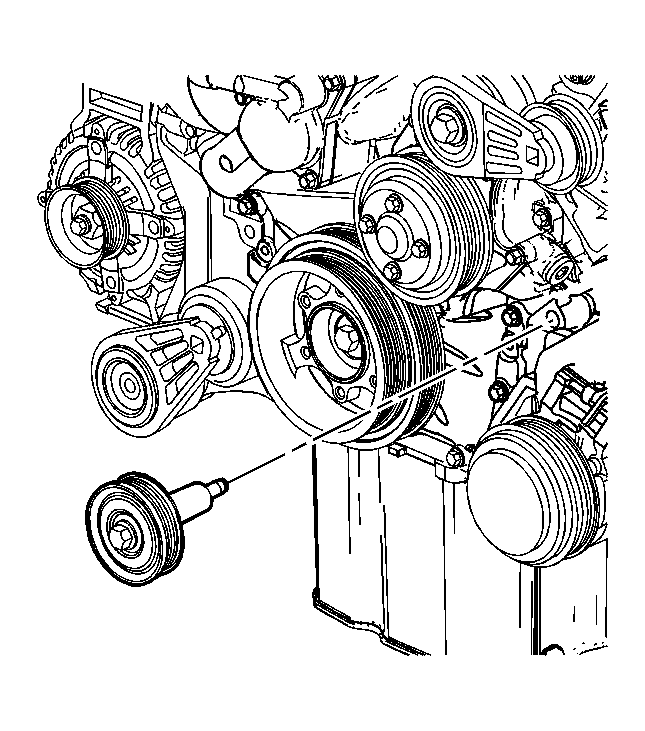

    Fig 1: View Of Drive Belt Idler Pulley
    GM1346188Courtesy of GENERAL MOTORS CORP.
  1. Loosen the drive belt idler pulley bolt.
  2. Remove the drive belt idler pulley.
