Supercharger Identification

WARNING: This page is about a different variant/trim than selected.

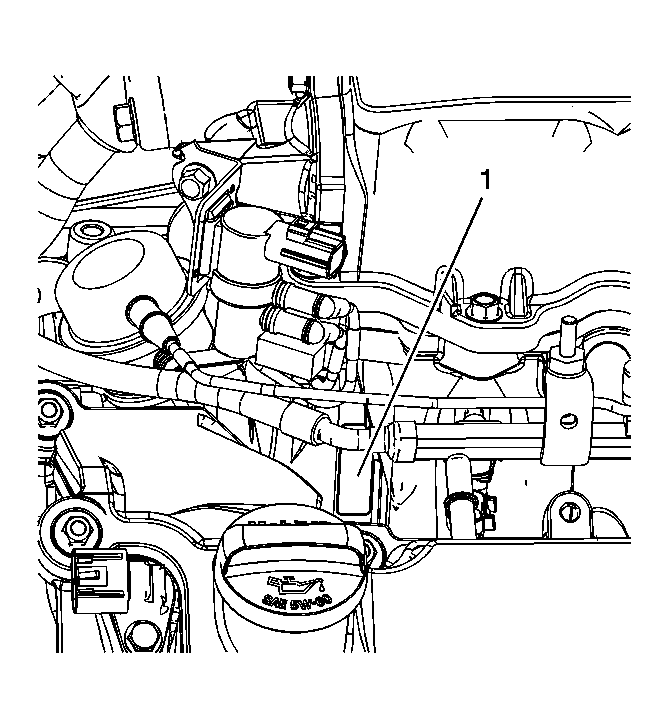

Fig 1: Locating Supercharger Identification Label
GM1761751Courtesy of GENERAL MOTORS CORP.

The supercharger identification label (1) is located on the left side of the supercharger unit. It is attached to the bearing plate that is between the front housing and the supercharger base. The following information is printed on the label:
