Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine oil pump. Refer to Oil Pump Replacement .
    2. Fig 1: Identifying Primary Timing Gear Alignment Marks
    GM517185Courtesy of GENERAL MOTORS CORP.
  2. Align the primary timing marks (1) using the J 39946  . See Special Tools .

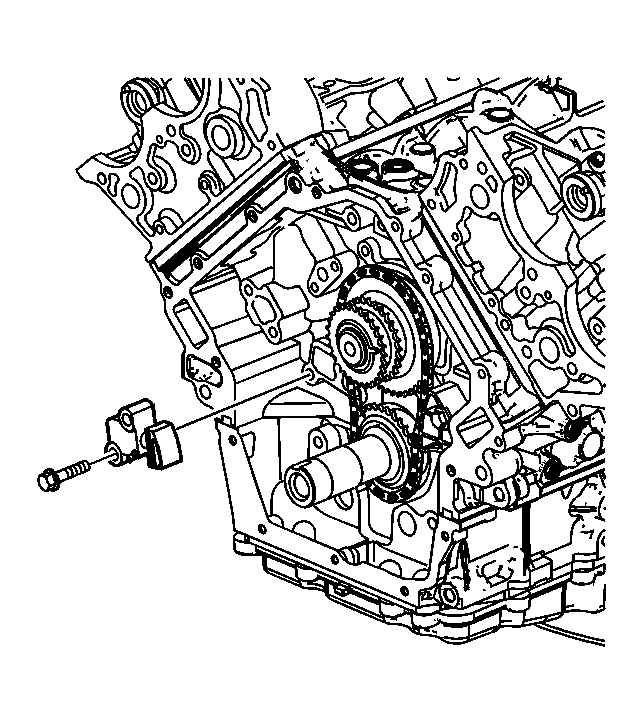

    3. Fig 2: View Of Primary Camshaft Drive Chain Tensioner
    GM928392Courtesy of GENERAL MOTORS CORP.
  3. Remove the 2 bolts attaching the primary camshaft drive chain tensioner to the engine block.
  4. Remove the primary camshaft drive chain tensioner, allowing the tensioner to expand as you remove it.
  5. Clean and inspect the camshaft timing drive components. Refer to Camshaft Timing Drive Components Cleaning and Inspection .
