Installation Procedure

WARNING: This page is about a different variant/trim than selected.

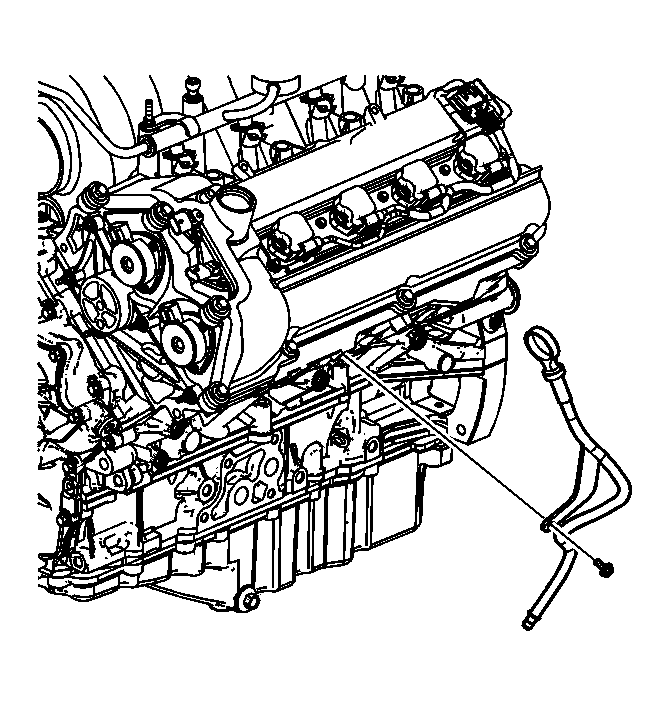

    Fig 1: View Of Oil Level Indicator Tube
    GM928132Courtesy of GENERAL MOTORS CORP.
  1. Replace the oil level indicator tube O-ring.
  2. Install the oil level indicator tube.
    3. NOTE: Refer to Fastener Notice .
  3. Install the oil level indicator tube bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  4. Install the oil level indicator.
  5. Install the front compartment sight shield as necessary. Refer to Front Compartment Sight Shields Replacement .
