Removal Procedure

WARNING: This page is about a different variant/trim than selected.

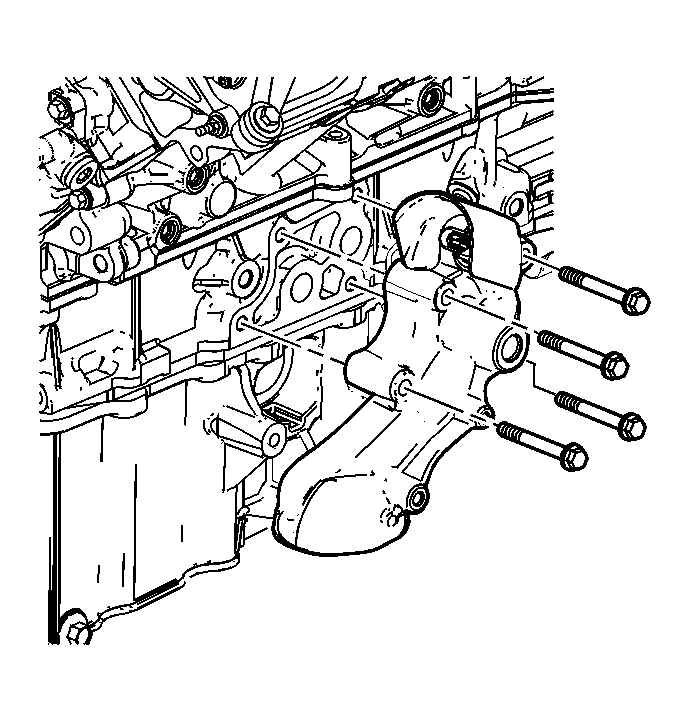

    Fig 1: View Of Oil Filter Adapter
    GM1346212Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil filter adapter. Refer to Oil Filter Adapter Replacement .
  2. Remove the oil pressure sensor and/or switch from the oil filter adapter.
  3. Clean and inspect the oil filter adapter. Refer to Oil Filter Adapter Cleaning and Inspection .
