Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Fig 1: View Of Camshaft Oil Control Valve

Courtesy of GENERAL MOTORS CORP.

Install the oil control valve through the opening in the left intake camshaft position actuator and thread it into the left intake camshaft.

Fig 2: Aligning Camshaft Sprocket & Timing Chain Paint Marks

Courtesy of GENERAL MOTORS CORP.

Ensure both camshaft actuator timing marks (1, 3) are aligned with the paint marks on the secondary timing chain previously created.

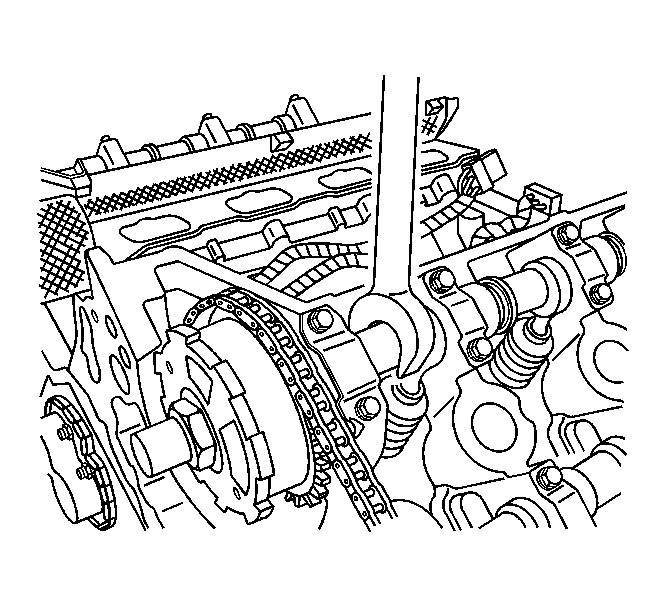

Fig 3: Holding Camshaft

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Use an open end wrench on the hex cast into the left intake camshaft to prevent the camshaft from rotating when tightening the camshaft oil control valve.
Tighten: Tighten the camshaft oil control valve to 120 N.m (89 lb ft).

Fig 4: Identifying Timing Chain Retention Tool Components

Courtesy of GENERAL MOTORS CORP.

Fig 5: View Of Special Tool & Camshafts (Rear Of Head)

Courtesy of GENERAL MOTORS CORP.

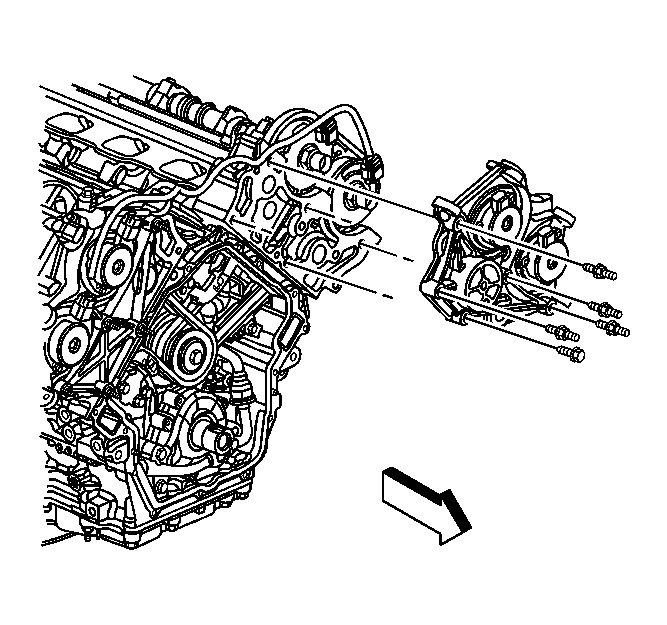

Fig 6: View Of Left Camshaft Position Actuator Housing

Courtesy of GENERAL MOTORS CORP.

Install the left camshaft actuator housing. Refer to Camshaft Position Actuator Housing Replacement - Left Side .
