Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the camshaft intermediate drive shaft sprocket. Refer to Primary Camshaft Drive Chain and Sprockets Replacement .

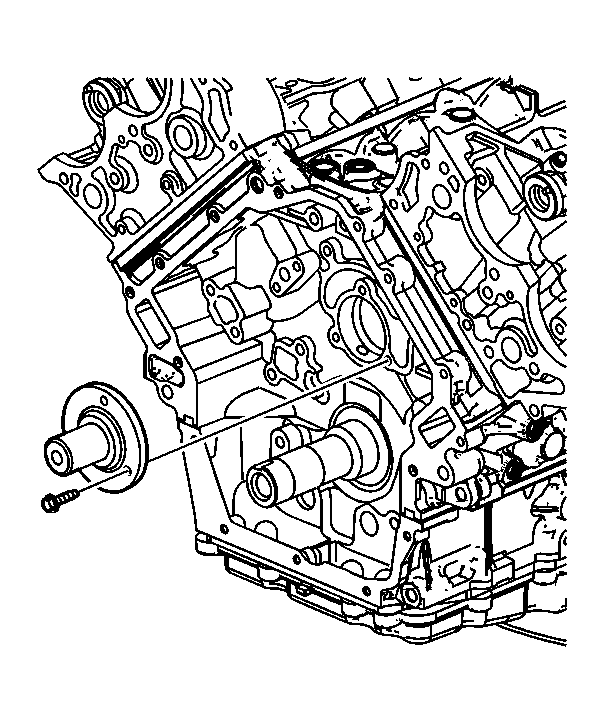

    2. Fig 1: View Of Intermediate Sprocket Shaft & Bolts
    GM928403Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The camshaft intermediate drive shaft should not be removed unless wear is evident.
  2. Remove the camshaft intermediate drive shaft retaining bolts.
  3. Remove the camshaft intermediate drive shaft from the engine.
  4. Clean and inspect the camshaft intermediate driveshaft. Refer to Camshaft Timing Drive Components Cleaning and Inspection .
