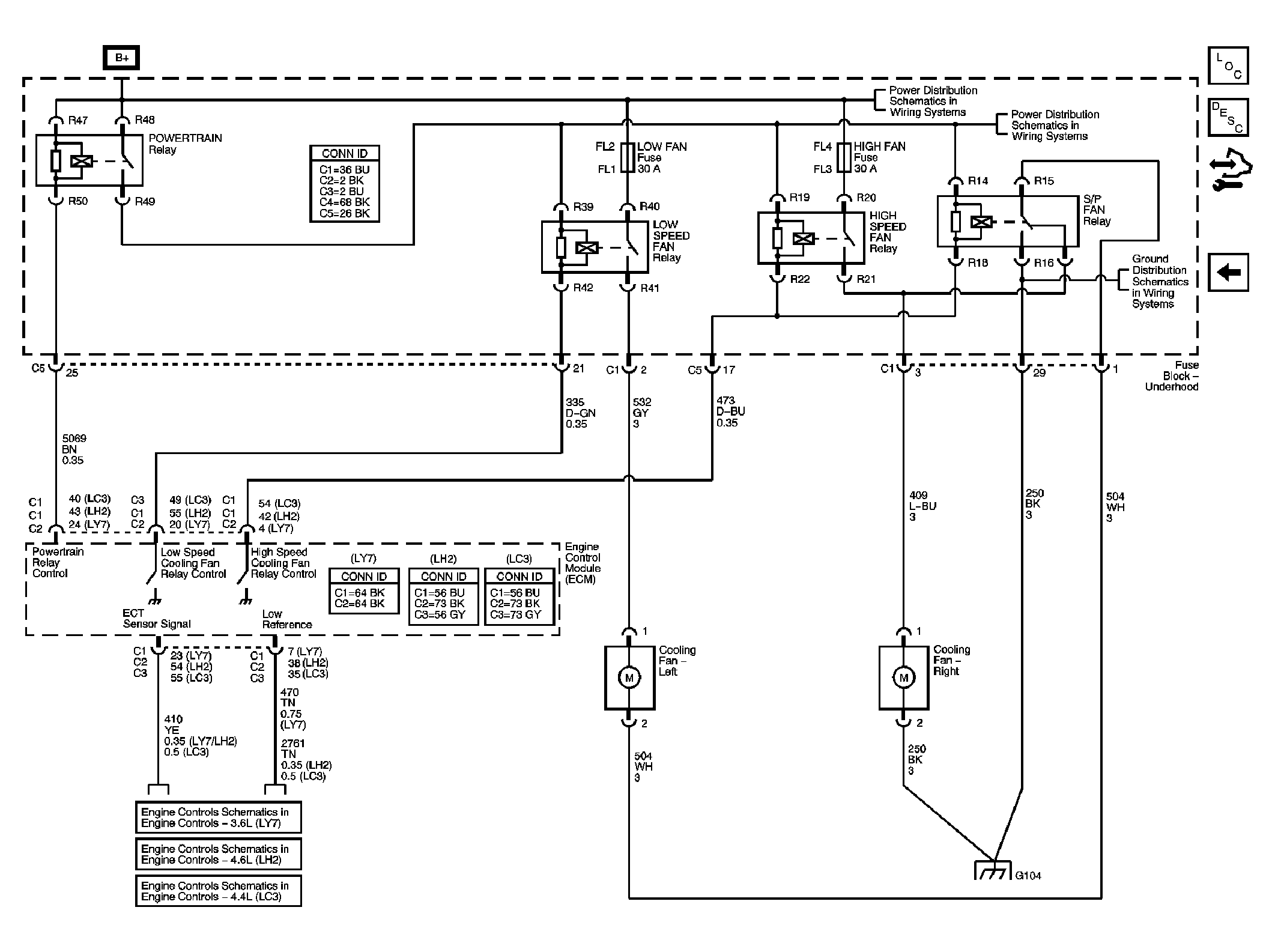

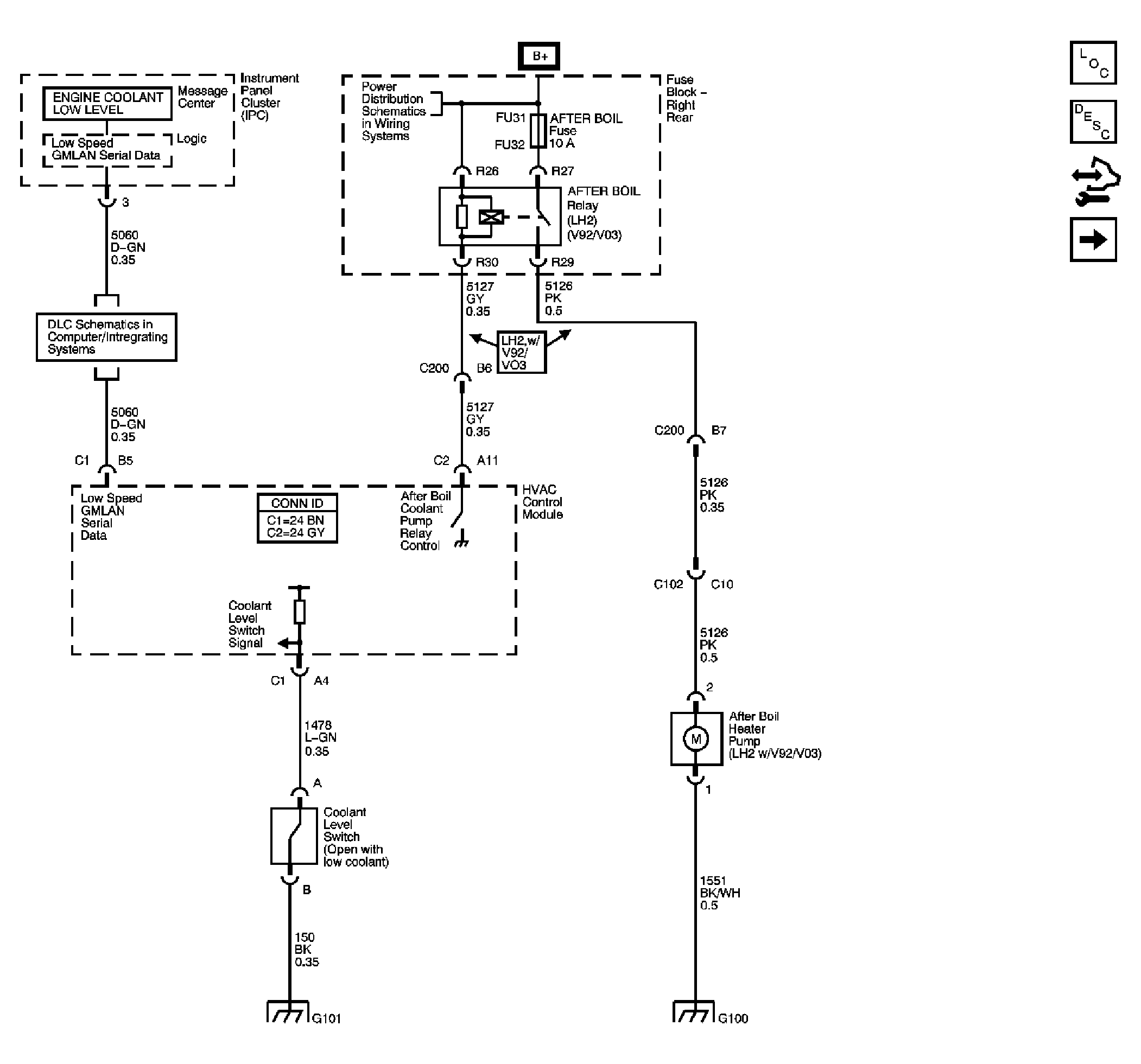

Home >> Cadillac >> 2006 >> STS Base, 3.6 7, RWD >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Schematic and Routing Diagrams >> Engine Cooling Schematics
