Engine Oil Cooler Hose/Pipe Replacement

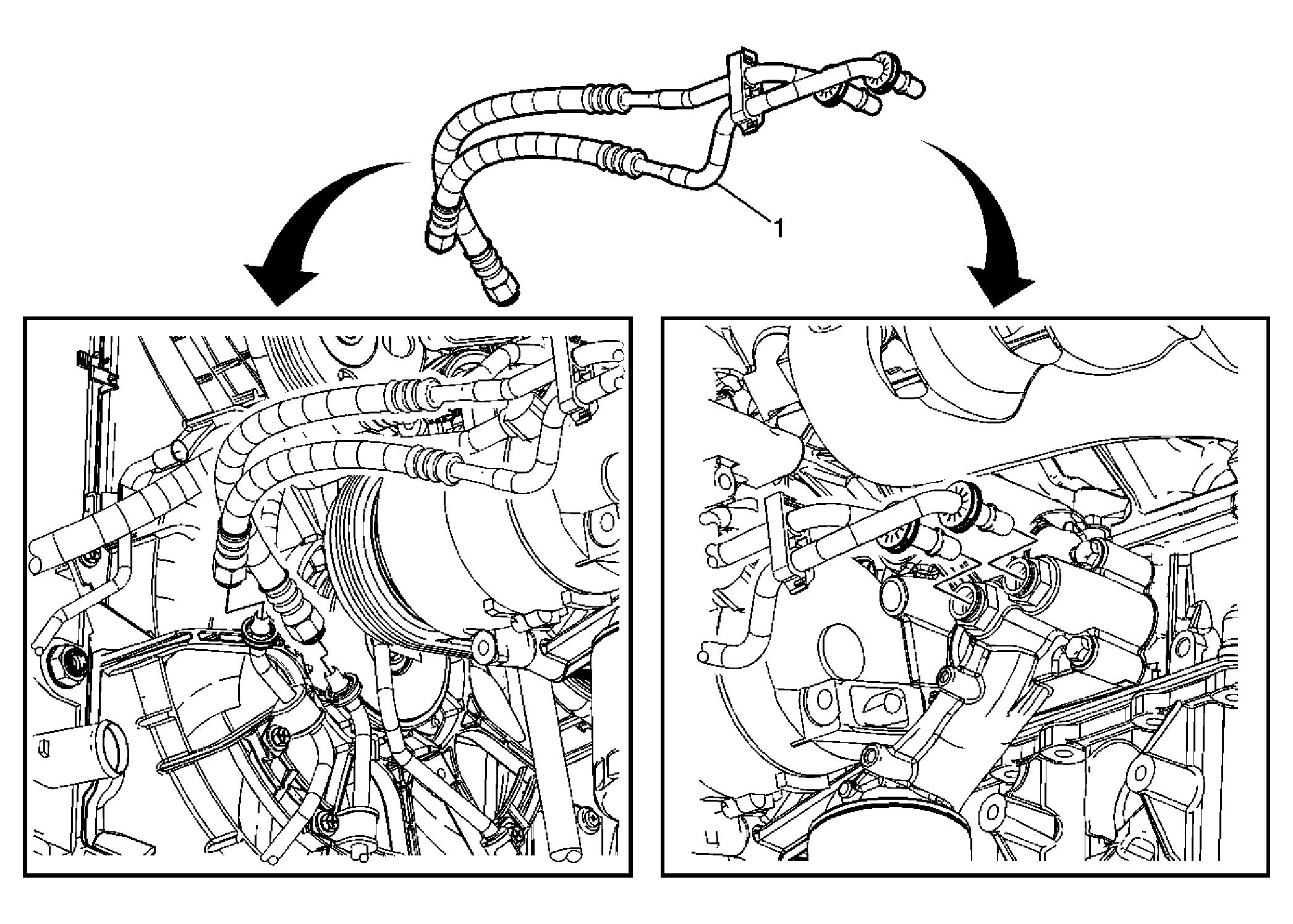

Fig 1: Engine Oil Cooler Hose/Pipe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front air deflector. Refer to Front Air Deflector Replacement . Remove the LH front wheel. Refer to Tire and Wheel Removal and Installation . Remove the LH front splash shield. Refer to Engine Oil Cooler Pipe/Hose Quick Connect Fitting .
1	Engine Oil Cooler Inlet Hose Tip: Disconnect the engine oil cooler hose/pipe quick connect fitting. Refer to Engine Oil Cooler Pipe/Hose Quick Connect Fitting .

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front air deflector. Refer to Front Air Deflector Replacement .
Remove the LH front wheel. Refer to Tire and Wheel Removal and Installation .
Remove the LH front splash shield. Refer to Engine Oil Cooler Pipe/Hose Quick Connect Fitting .

Engine Oil Cooler Inlet Hose
Tip: Disconnect the engine oil cooler hose/pipe quick connect fitting. Refer to Engine Oil Cooler Pipe/Hose Quick Connect Fitting .
