Power Distribution Schematics

Fig 1: Fuse Block - Underhood Bussing

Courtesy of GENERAL MOTORS CORP.

Fig 2: Fuse Block - Left Rear Bussing

Courtesy of GENERAL MOTORS CORP.

Fig 3: Fuse Block - Right Rear Bussing

Courtesy of GENERAL MOTORS CORP.

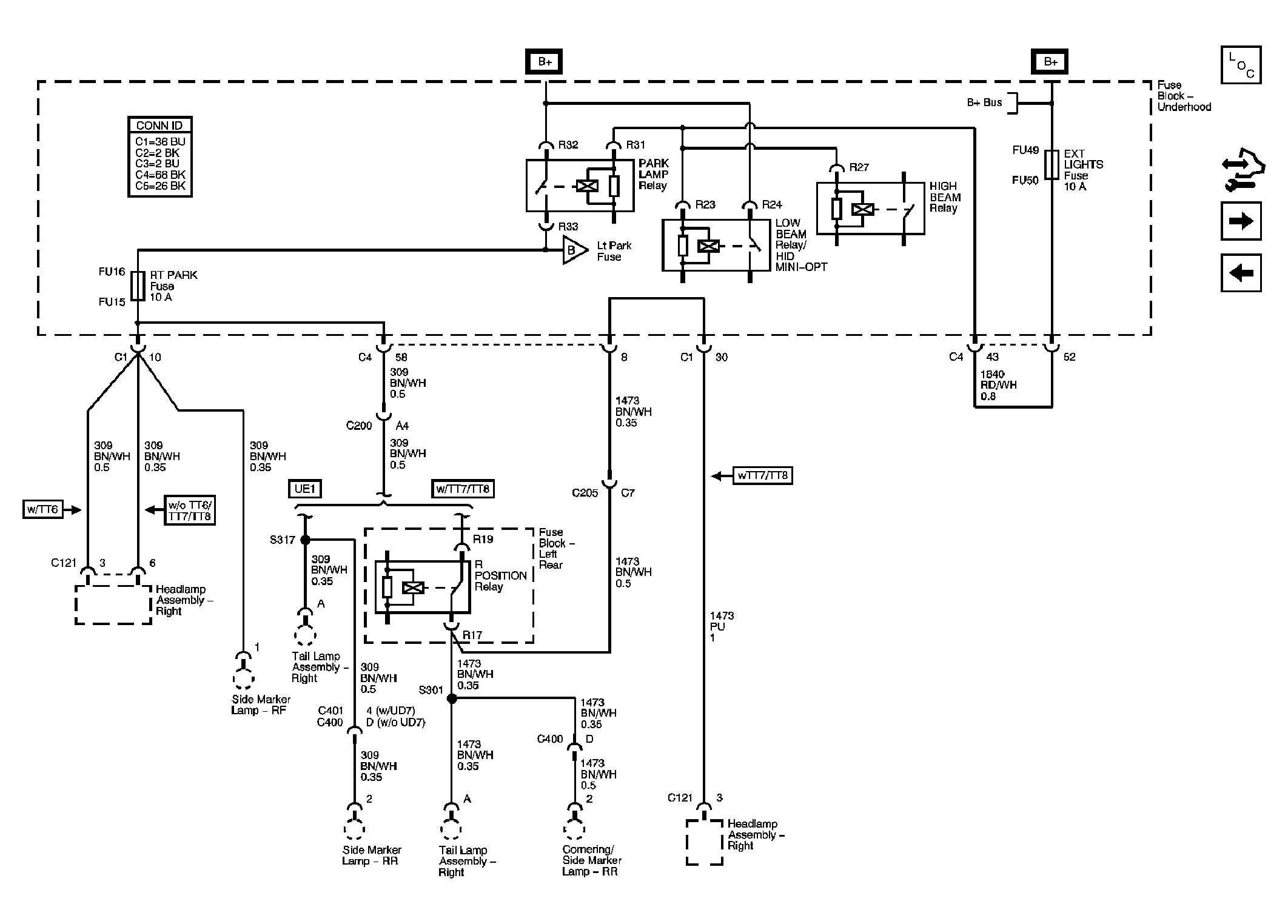

Fig 4: Fuse Block - Underhood Relay/Fuses: Park Lamp Relay, Rt Park Fuse, Tilt/Lk/Lmp/Clm Relay Coils Fuse

Courtesy of GENERAL MOTORS CORP.

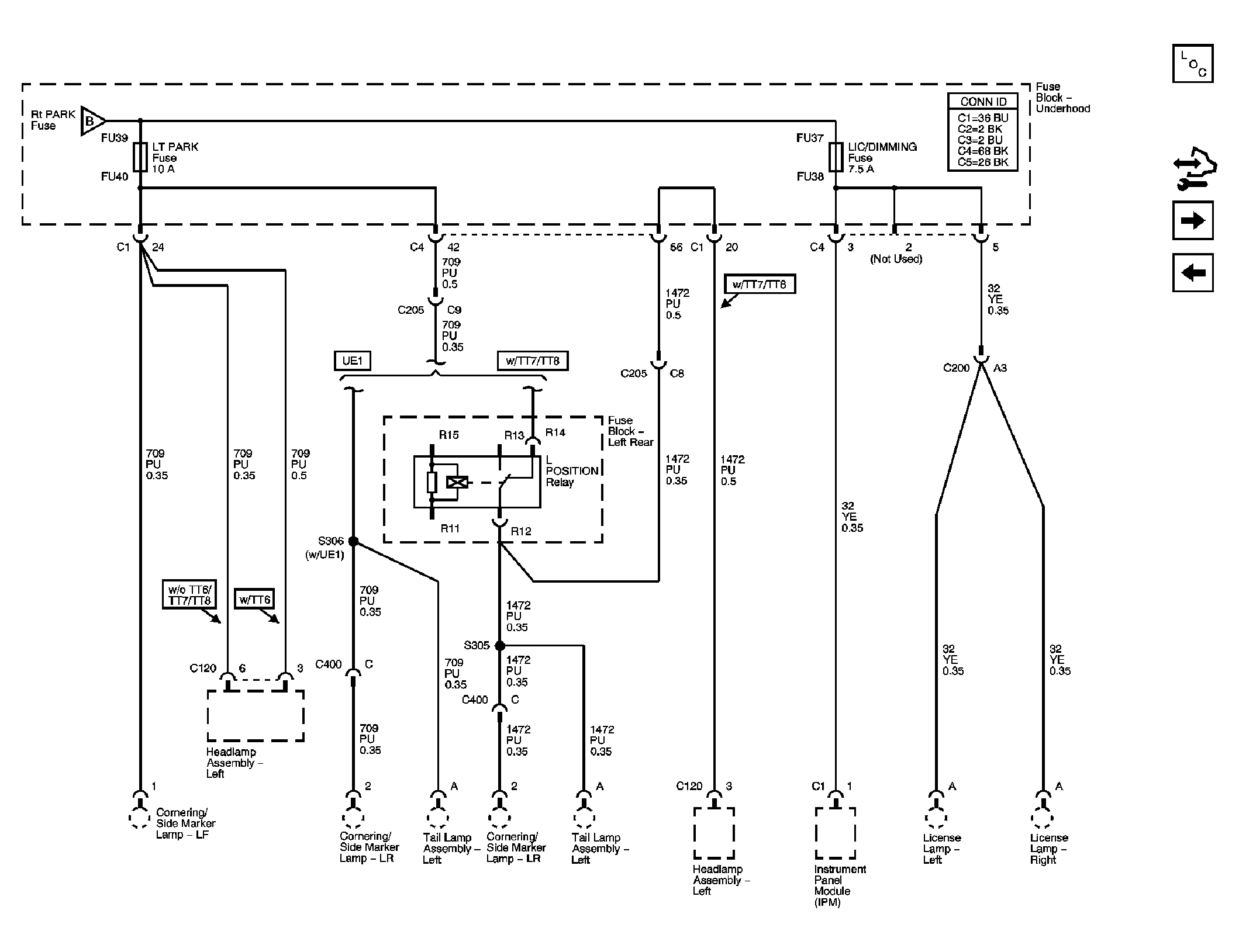

Fig 5: Fuse Block - Underhood Fuses: Lt Park Fuse, License/Dimming Fuse

Courtesy of GENERAL MOTORS CORP.

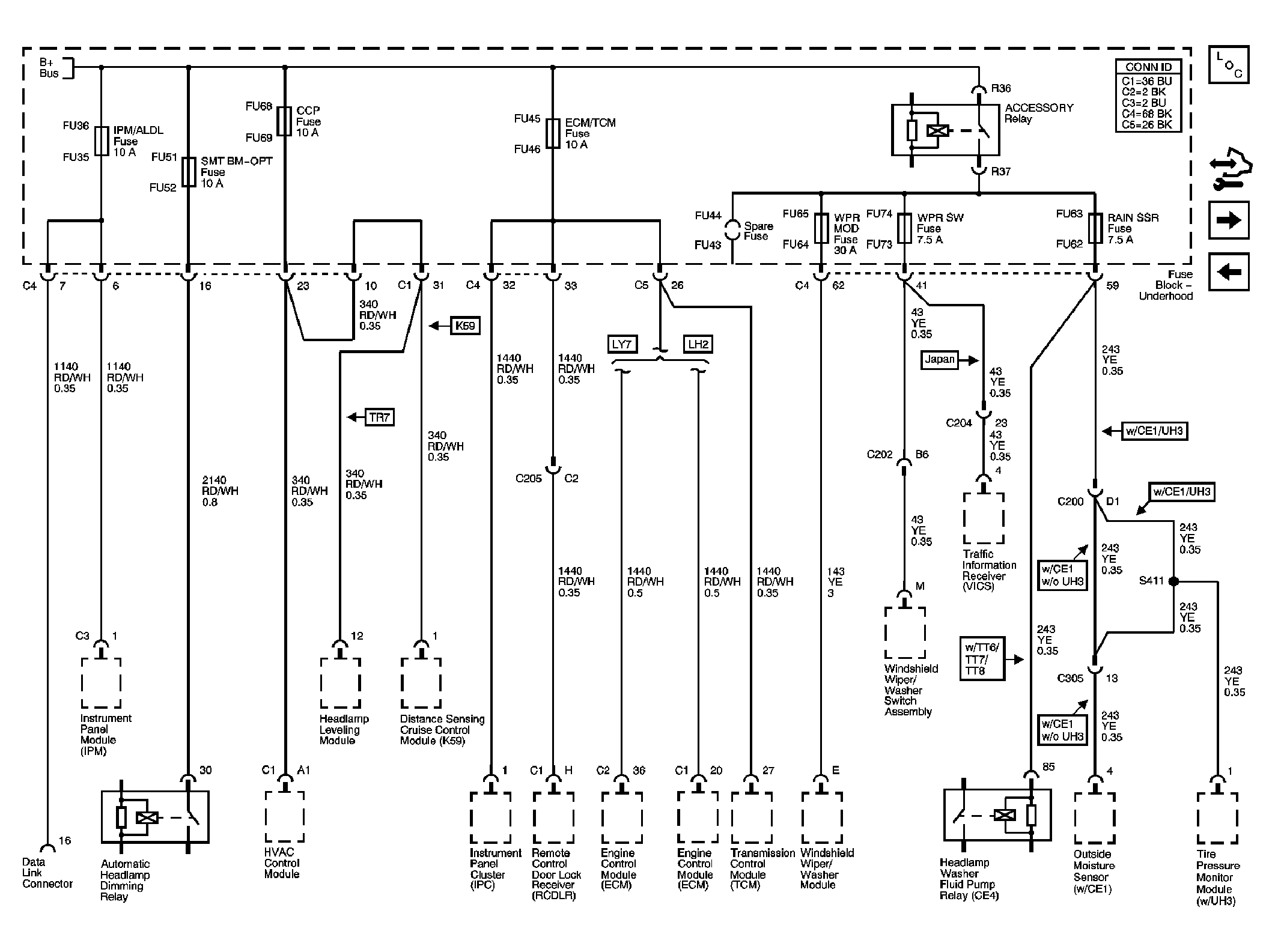

Fig 6: Fuse Block - Underhood Fuses/Relay: IPM/ALDL, Smart Beam, CCP, ECM/TCM, Wpr Mod, Wpr Sw/Vics And Rain Sensor/Hdlp Wash Fuses, Accessory Relay

Courtesy of GENERAL MOTORS CORP.

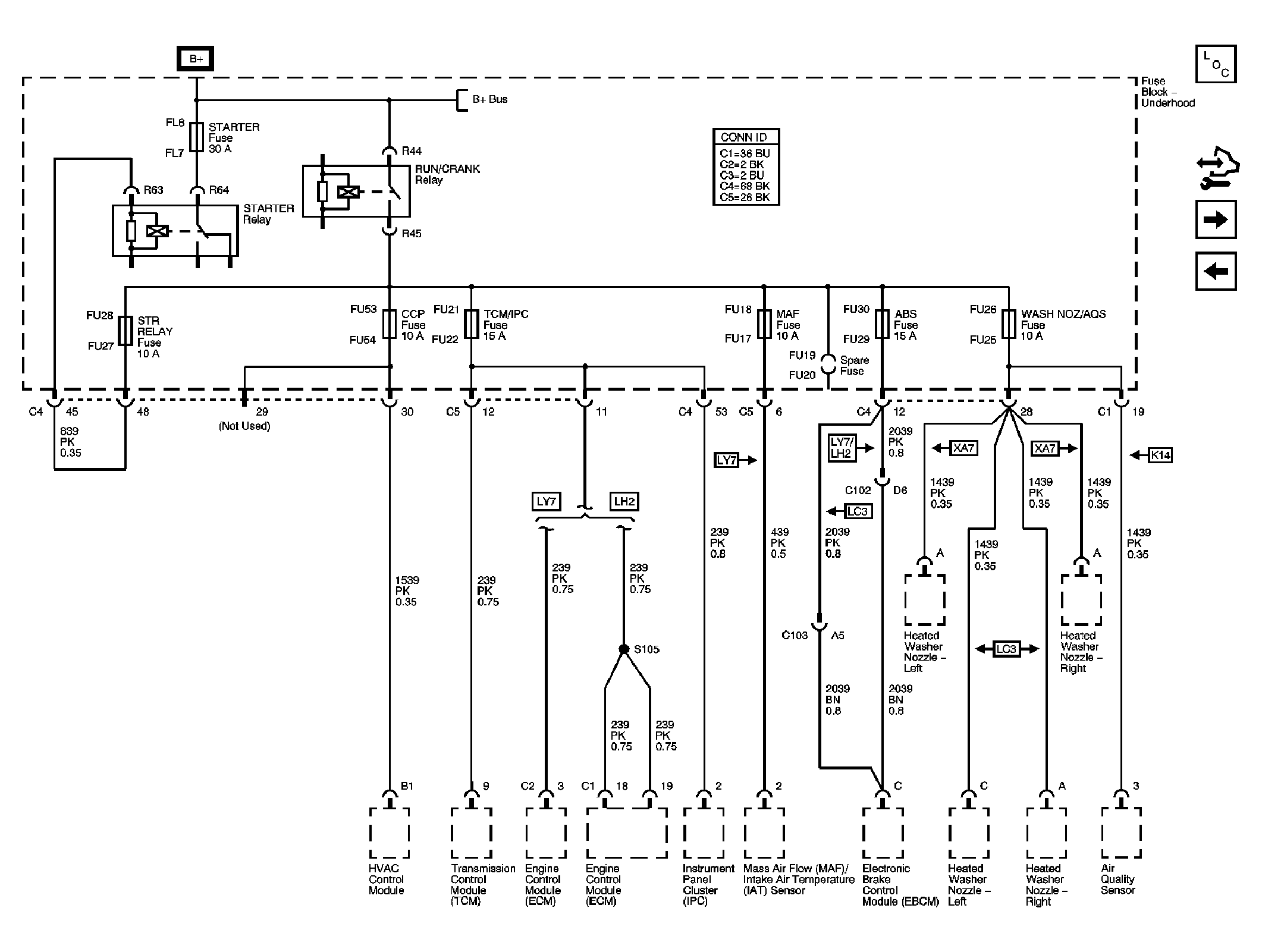

Fig 7: Fuse Block - Underhood: Starter, Ign 1 Relays, Starter, Starter Relay, CCP, TCM/IPM/ECM, MAF, ABS And Washer Nozzle/ACC Fuses

Courtesy of GENERAL MOTORS CORP.

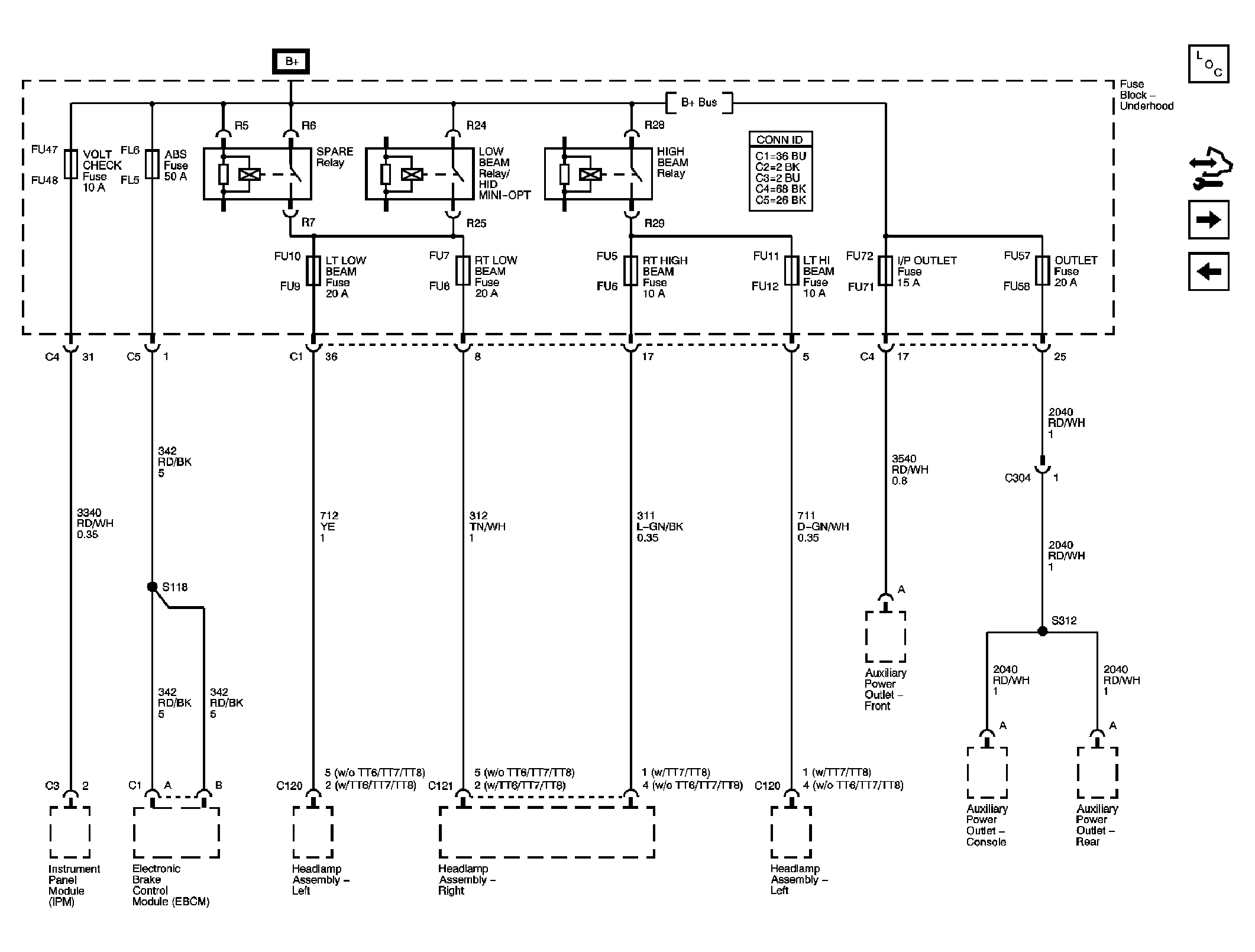

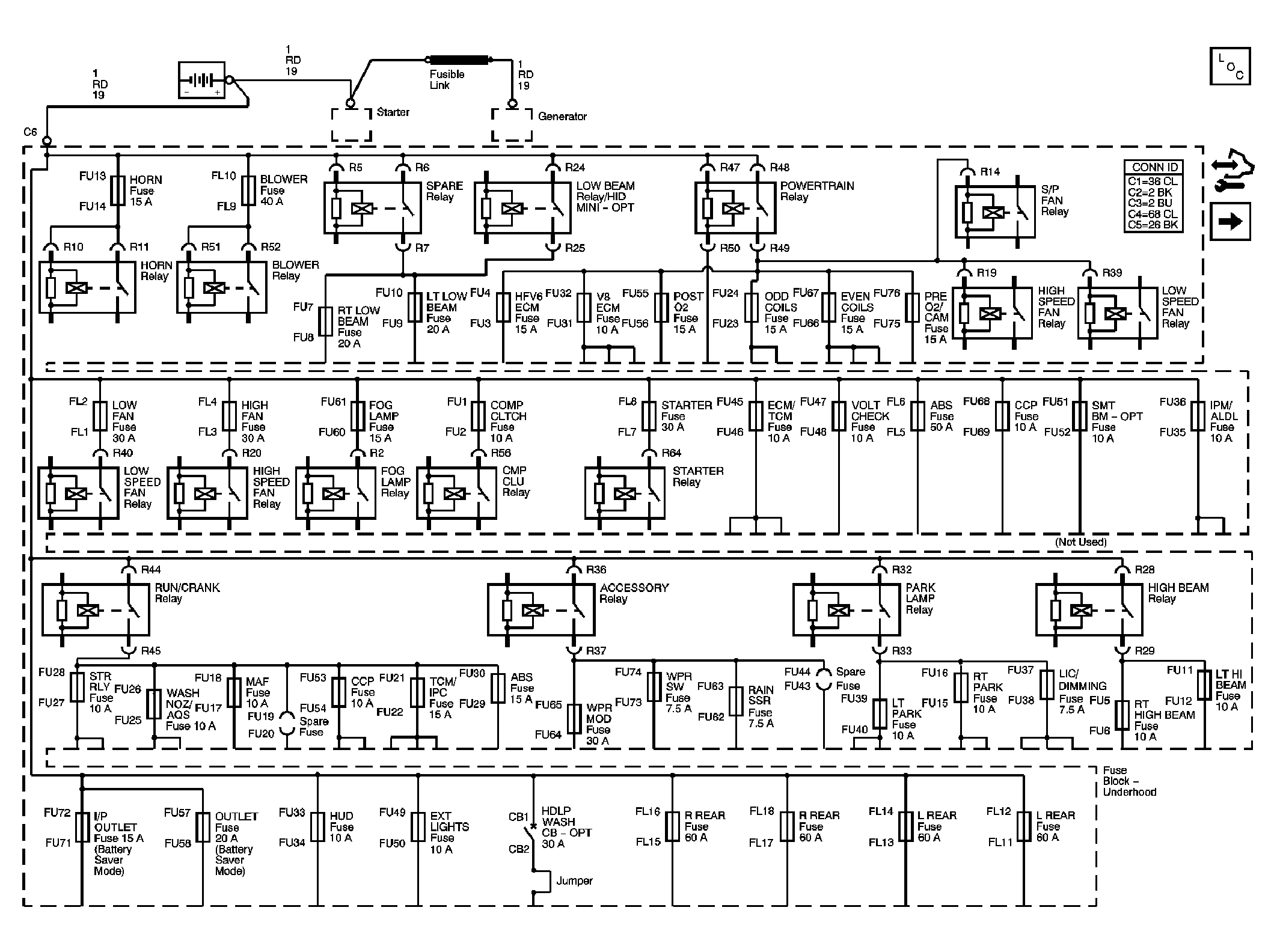

Fig 8: Fuse Block - Underhood: Lo Beam, Hi Beam, Power Outlet And Spare Relays, Volt Check, EBCM, Lt Lo Beam, Rt Lo Bm, Rt Hi Bm, Lt Hi Bm, I/P Outlet And Outlet Fuses

Courtesy of GENERAL MOTORS CORP.

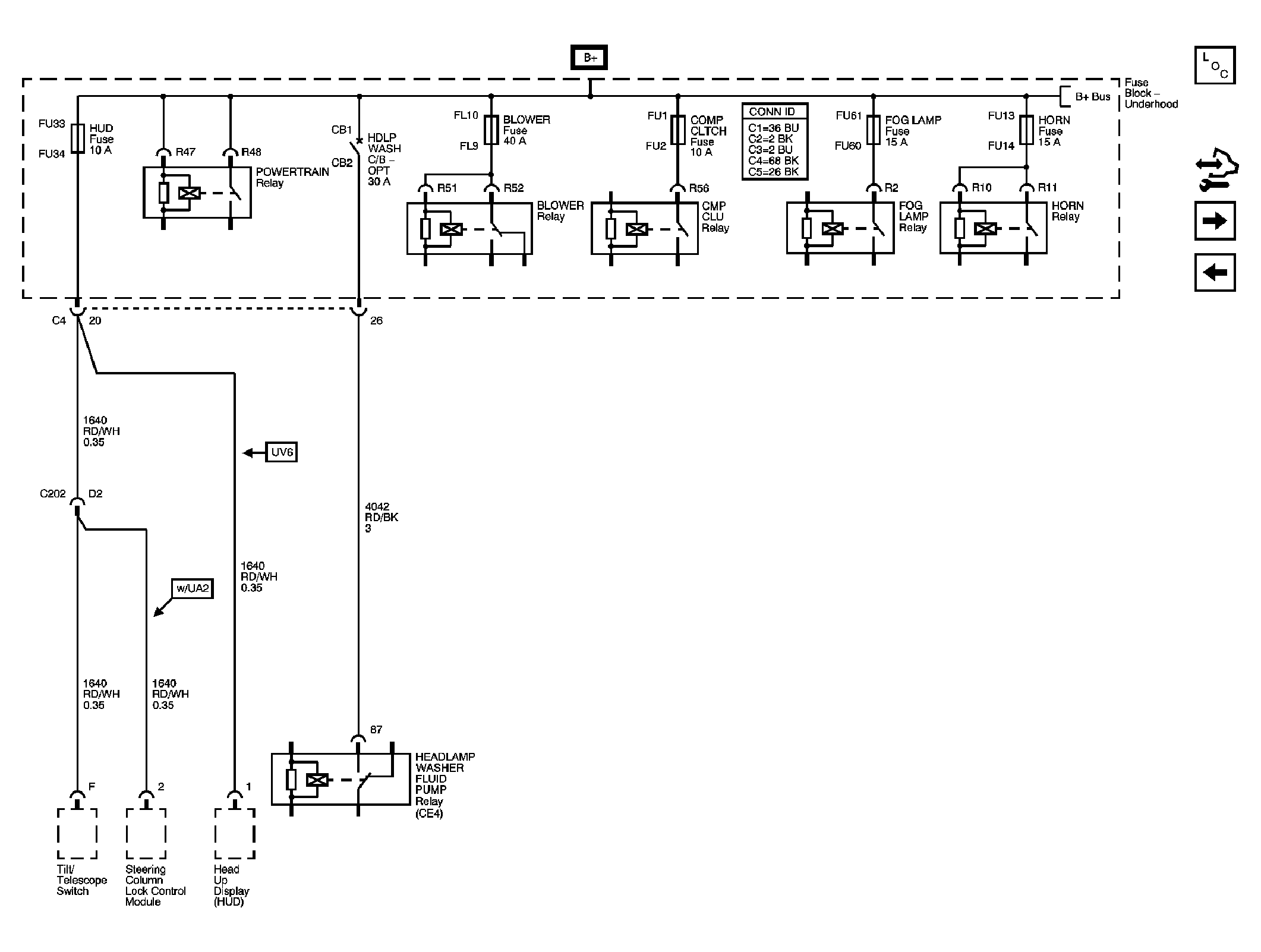

Fig 9: Fuse Block - Underhood: HUD, Front Blower, Comp Cltch, Fog Lamp, Horn Fuses, HDLP Washer Circuit Breaker, Main Relay

Courtesy of GENERAL MOTORS CORP.

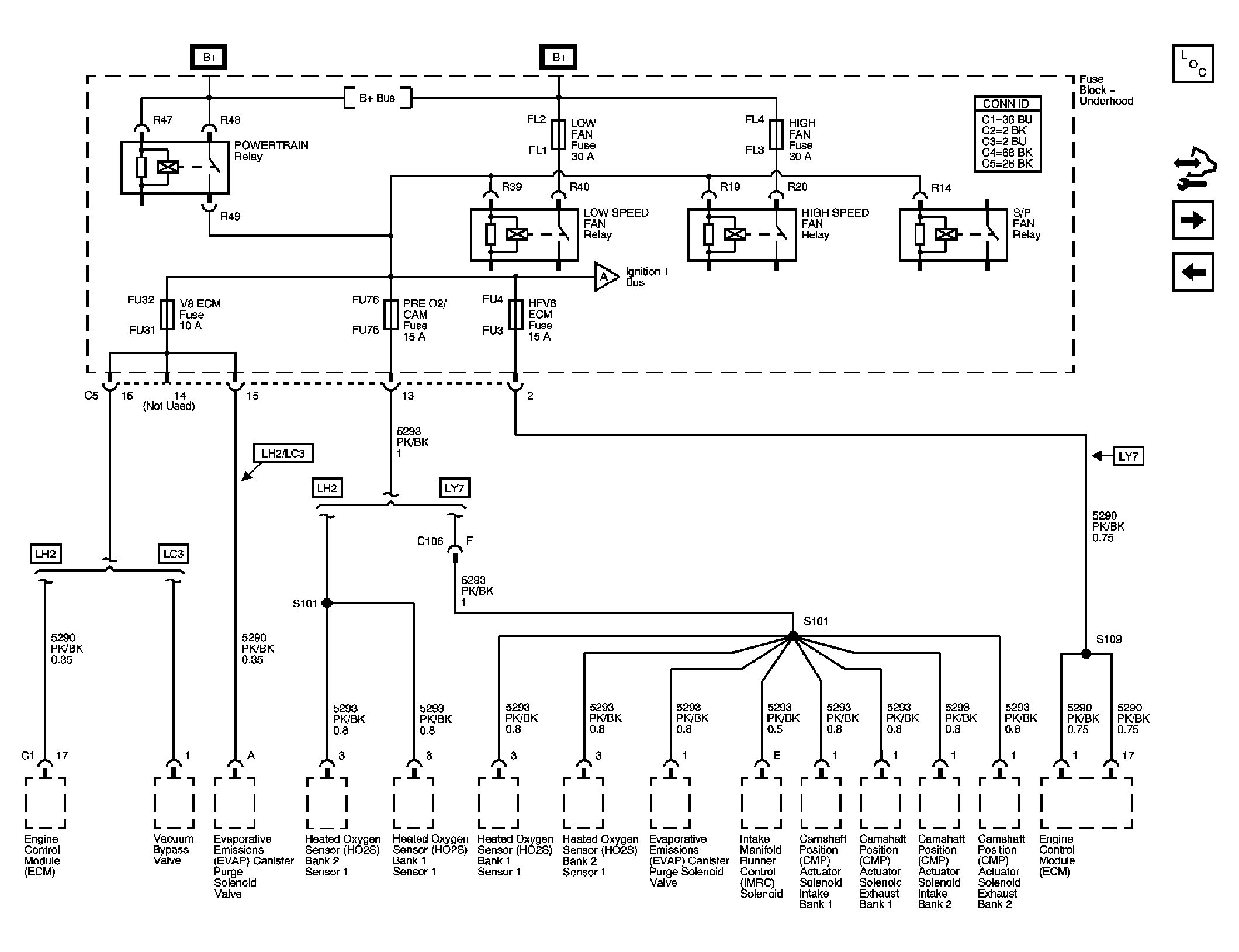

Fig 10: Fuse Block - Underhood: Main, Low Speed, Hi Speed And S/P Fan Relays; V8 ECM, Pre O2/Cam, HFV6 ECM, Low Speed Fan And Hi Speed Fan Fuses

Courtesy of GENERAL MOTORS CORP.

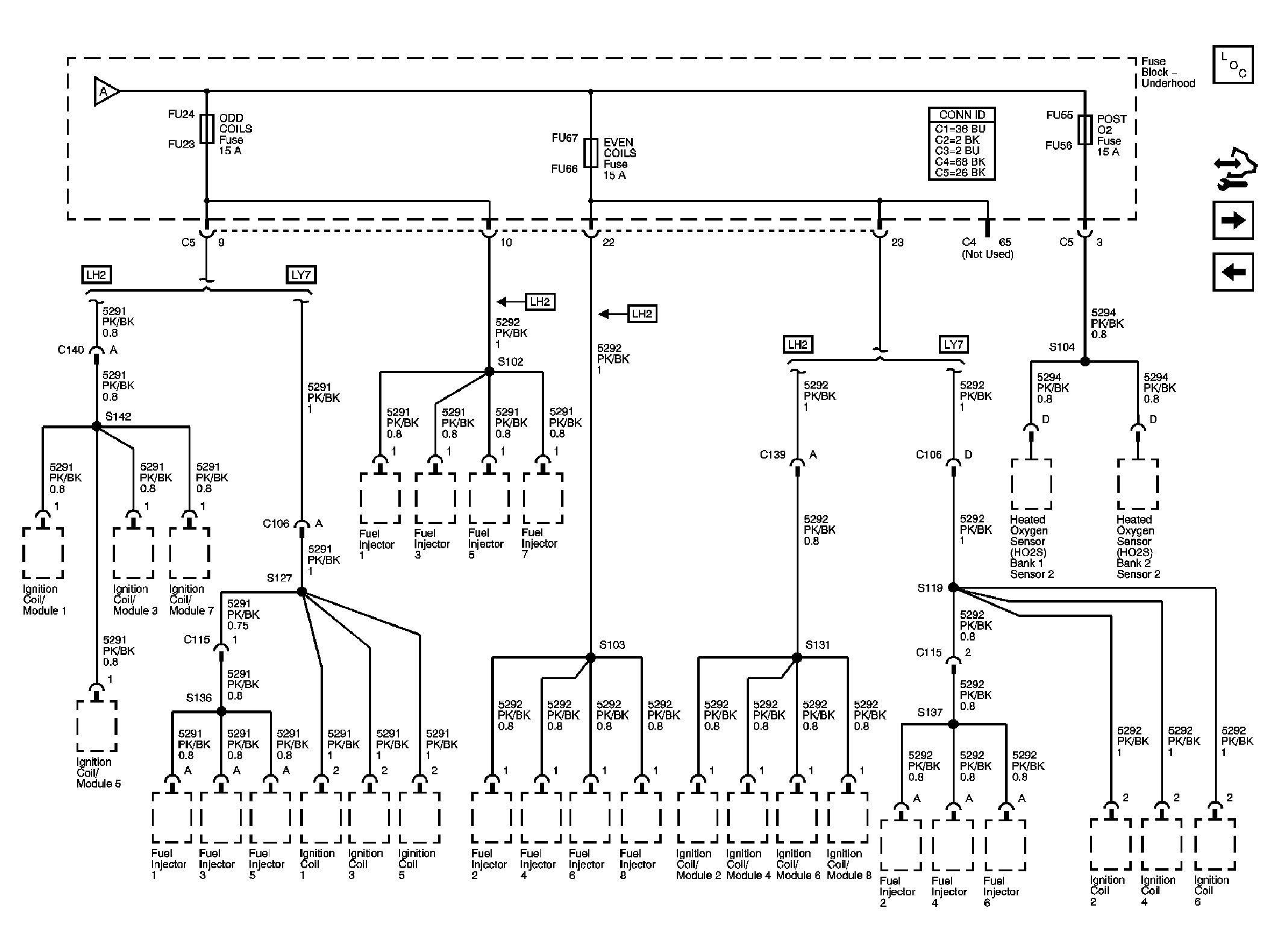

Fig 11: Fuse Block - Underhood: Odd Inj/Coils, Even Inj/Coils And Post O2 Fuses

Courtesy of GENERAL MOTORS CORP.

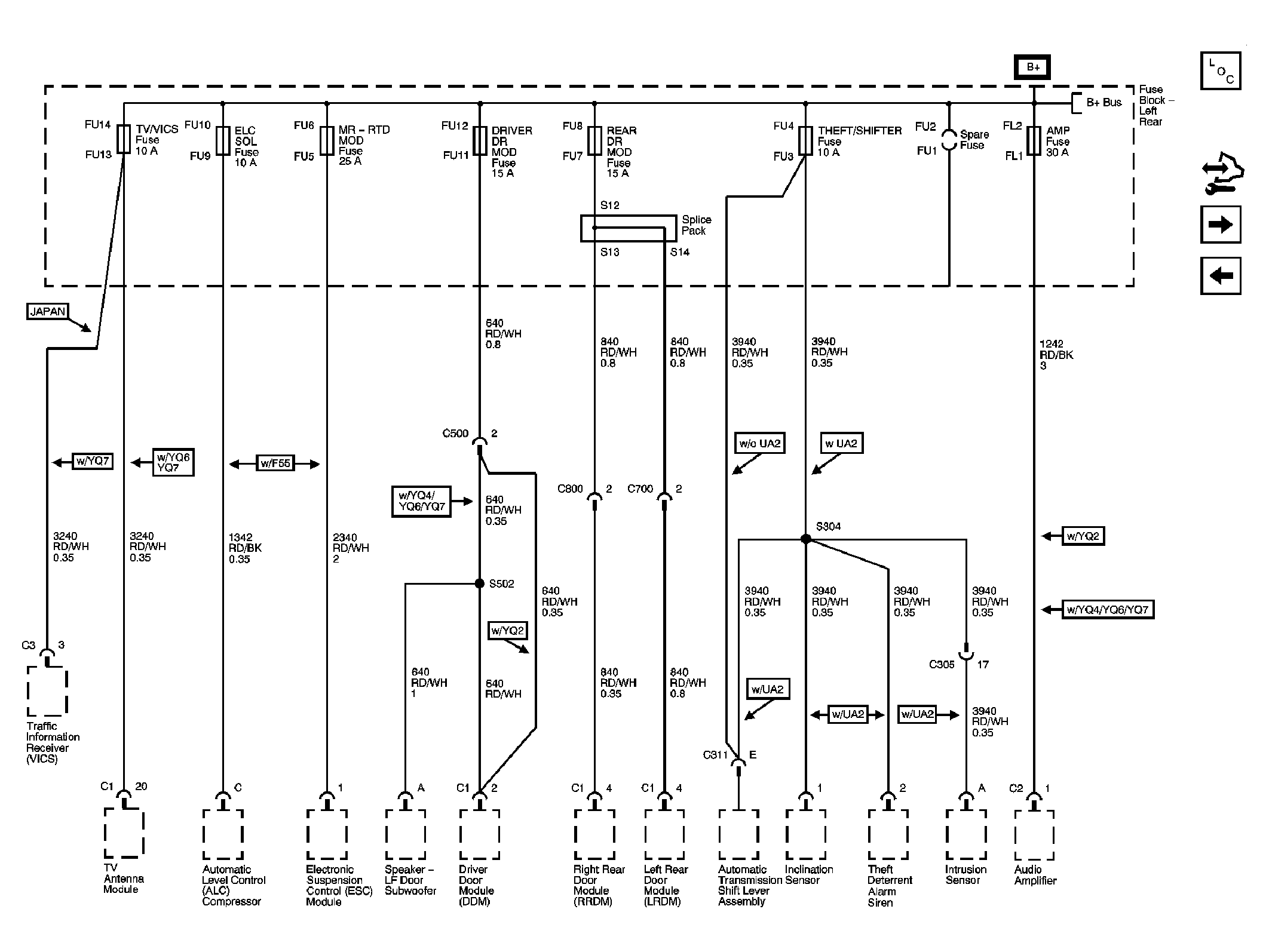

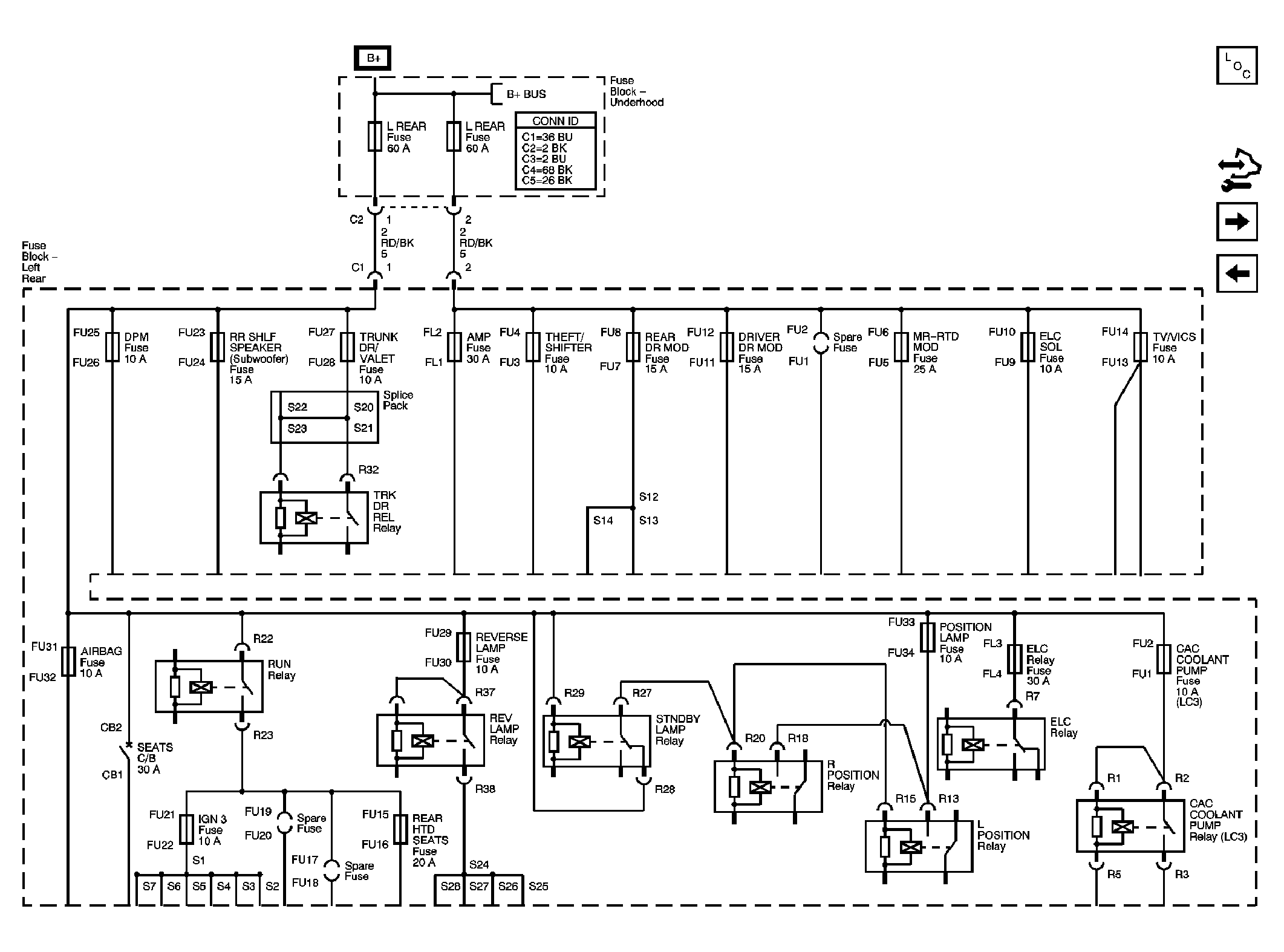

Fig 12: Fuse Block - Left Rear: TV/Vics, Elc Sol, Esc Module, DVR Dr Module, Rear Door Module, Theft/Shifter And Amp Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 13: Fuse Block - Left Rear: Seats Circuit Breaker

Courtesy of GENERAL MOTORS CORP.

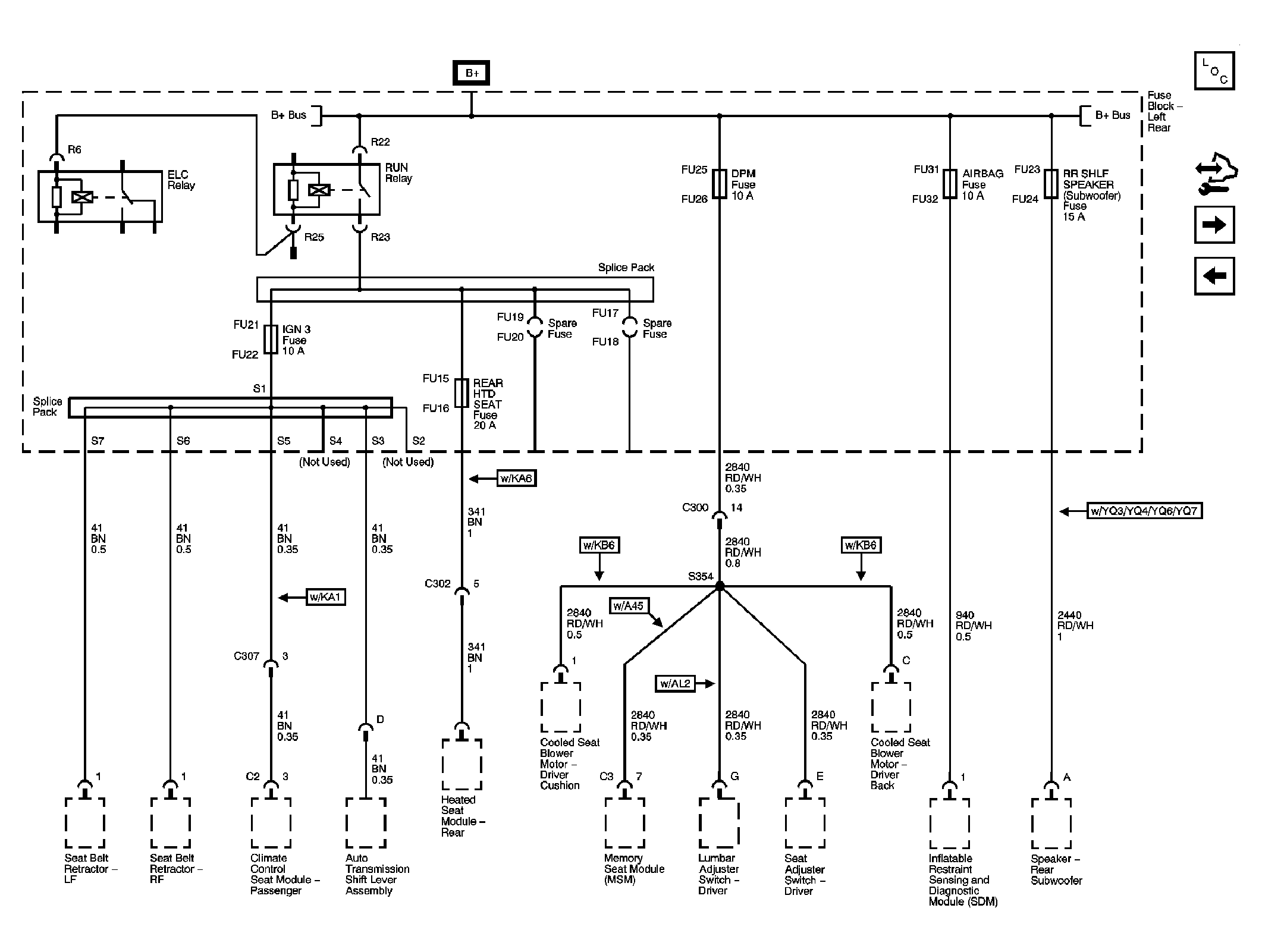

Fig 14: Fuse Block - Left Rear: IGN 3 Relay, IGN 3, Rear Heated Seat, Memory, Airbag And Rear Shelf Speaker Fuses

Courtesy of GENERAL MOTORS CORP.

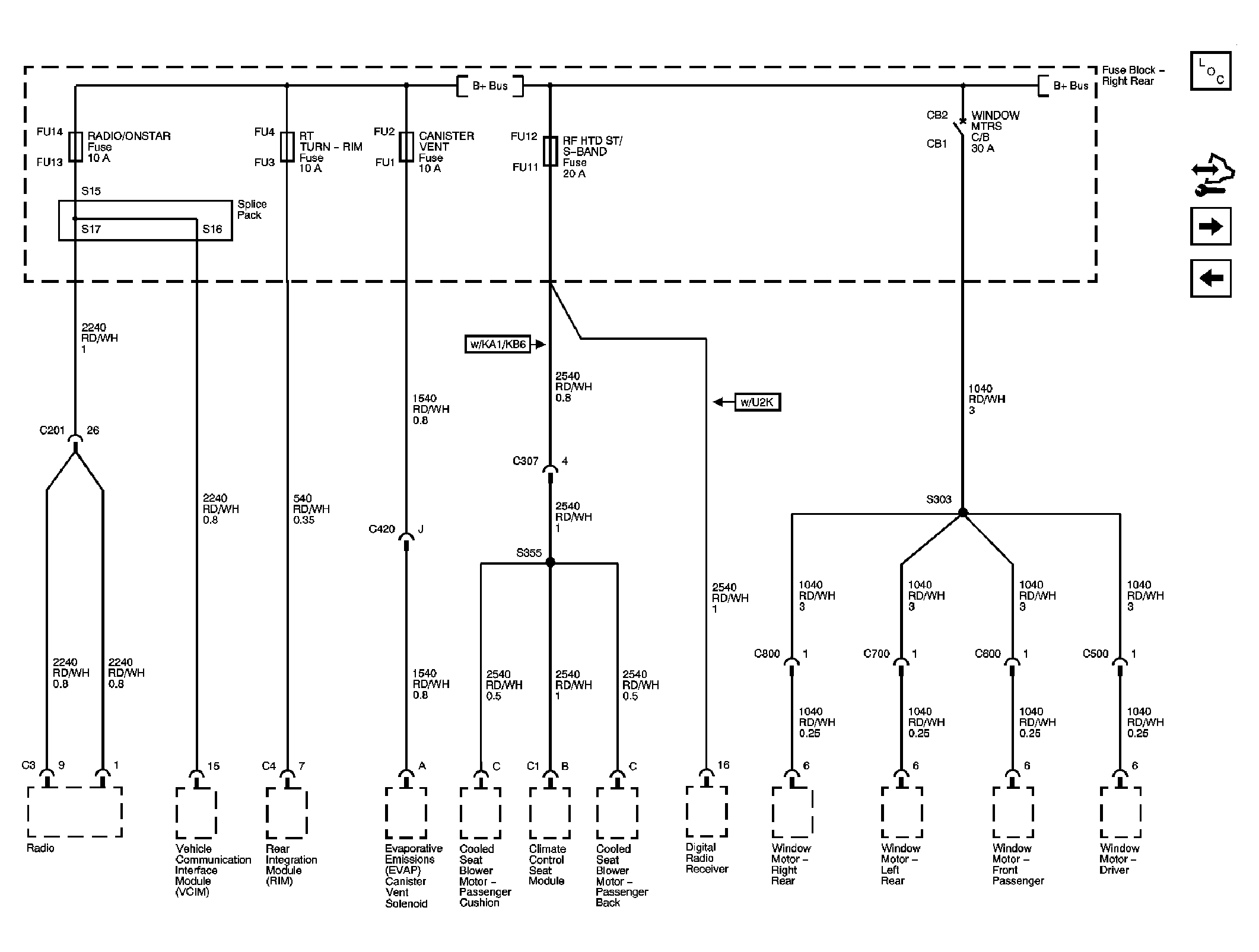

Fig 15: Fuse Block - Right Rear: Radio/Onstar, Rt Turn Signal, Canister Vent And RF Heated/Vented Seat Fuses, Window Motors Circuit Breaker

Courtesy of GENERAL MOTORS CORP.

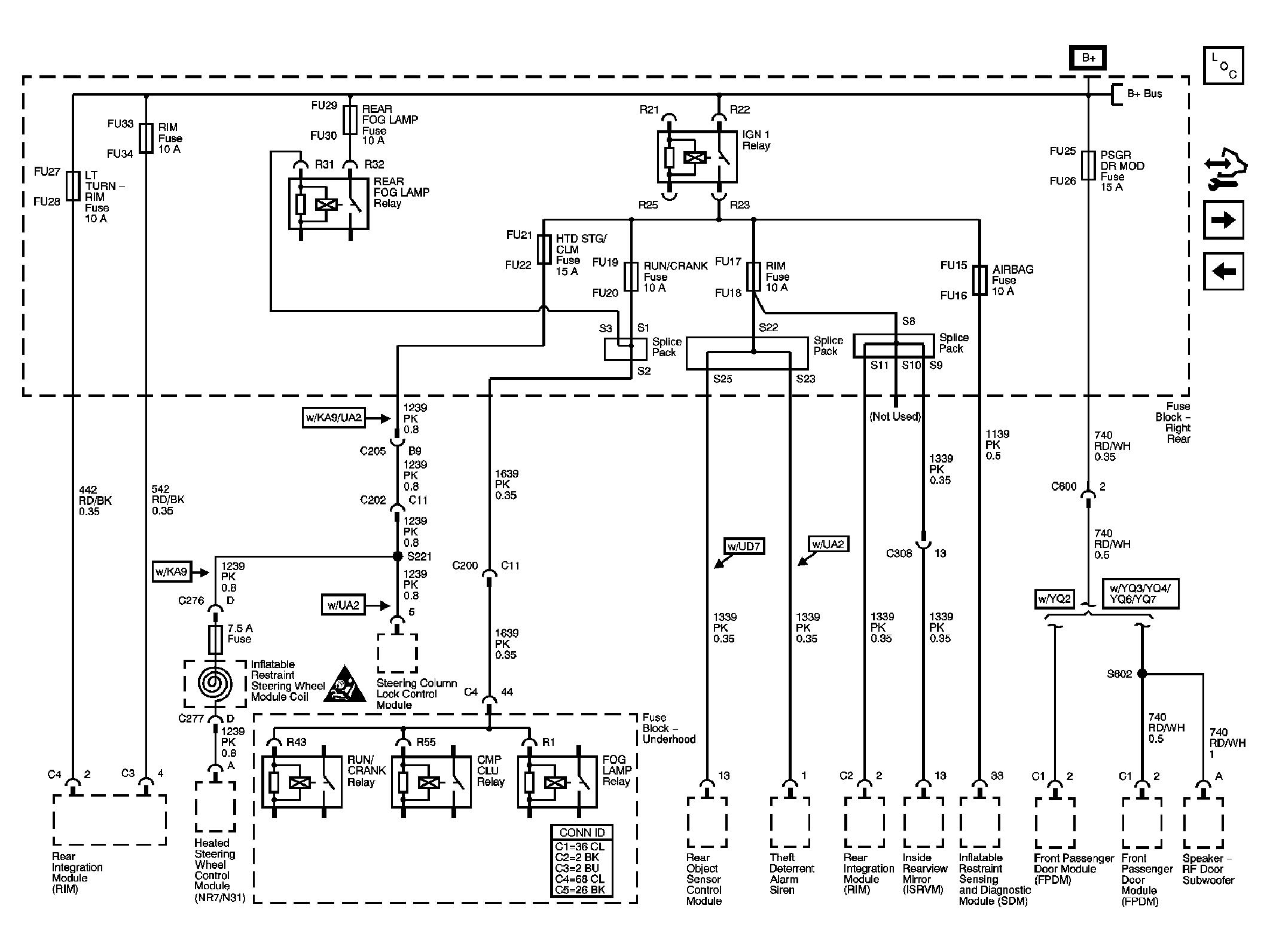

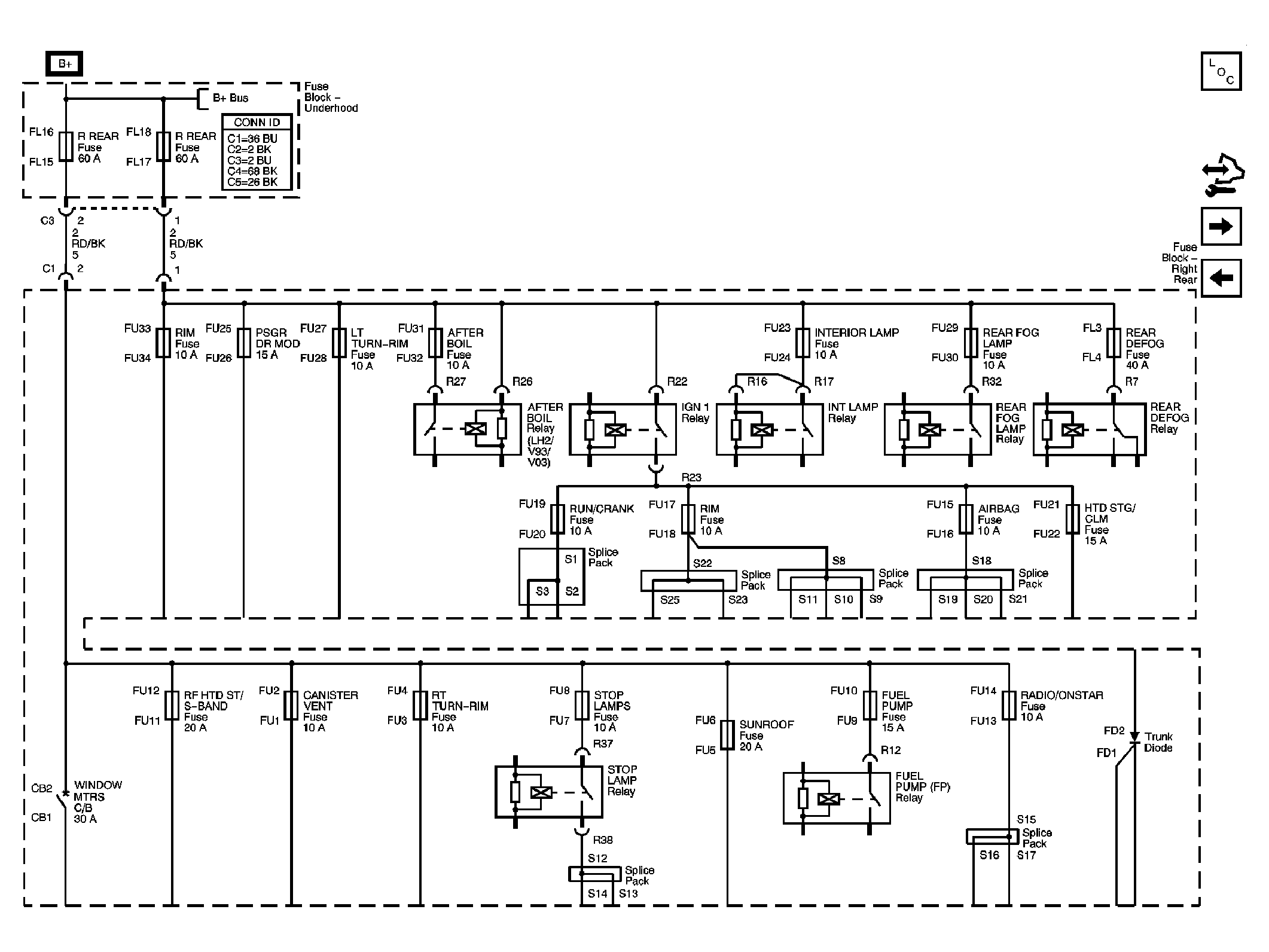

Fig 16: Fuse Block - Right Rear: Lt Turn Signal, Rim (1), Rear Fog Lamp, Ft Pass. Door Module, Htd Stg Clm, Ign 1, Rim (2) And Airbag Fuses, Rear Fog Lamp And Ign 1 Relays

Courtesy of GENERAL MOTORS CORP.

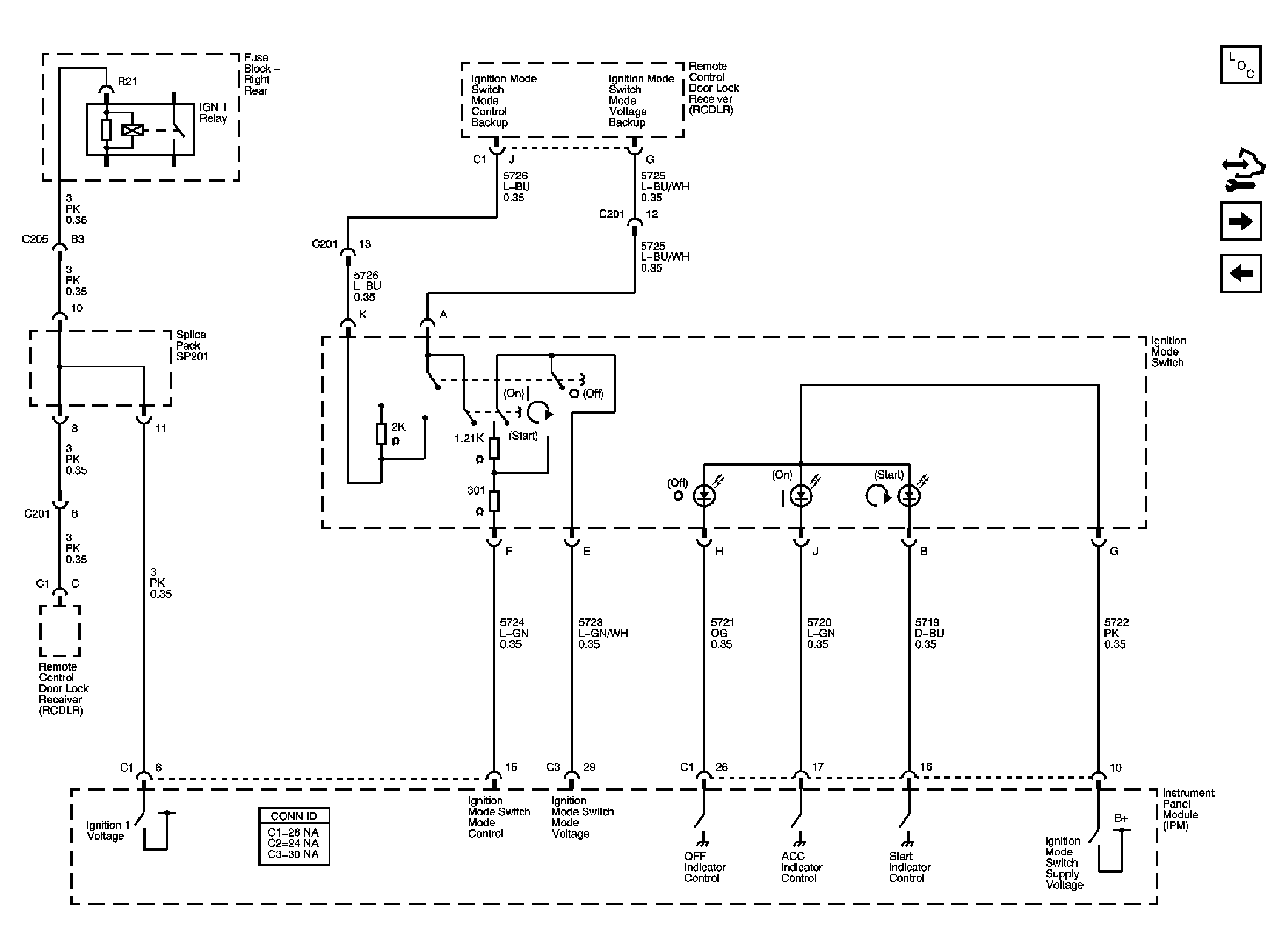

Fig 17: Ignition Mode Switch

Courtesy of GENERAL MOTORS CORP.

Fig 18: Power Modes

Courtesy of GENERAL MOTORS CORP.
