Ground Distribution Schematics

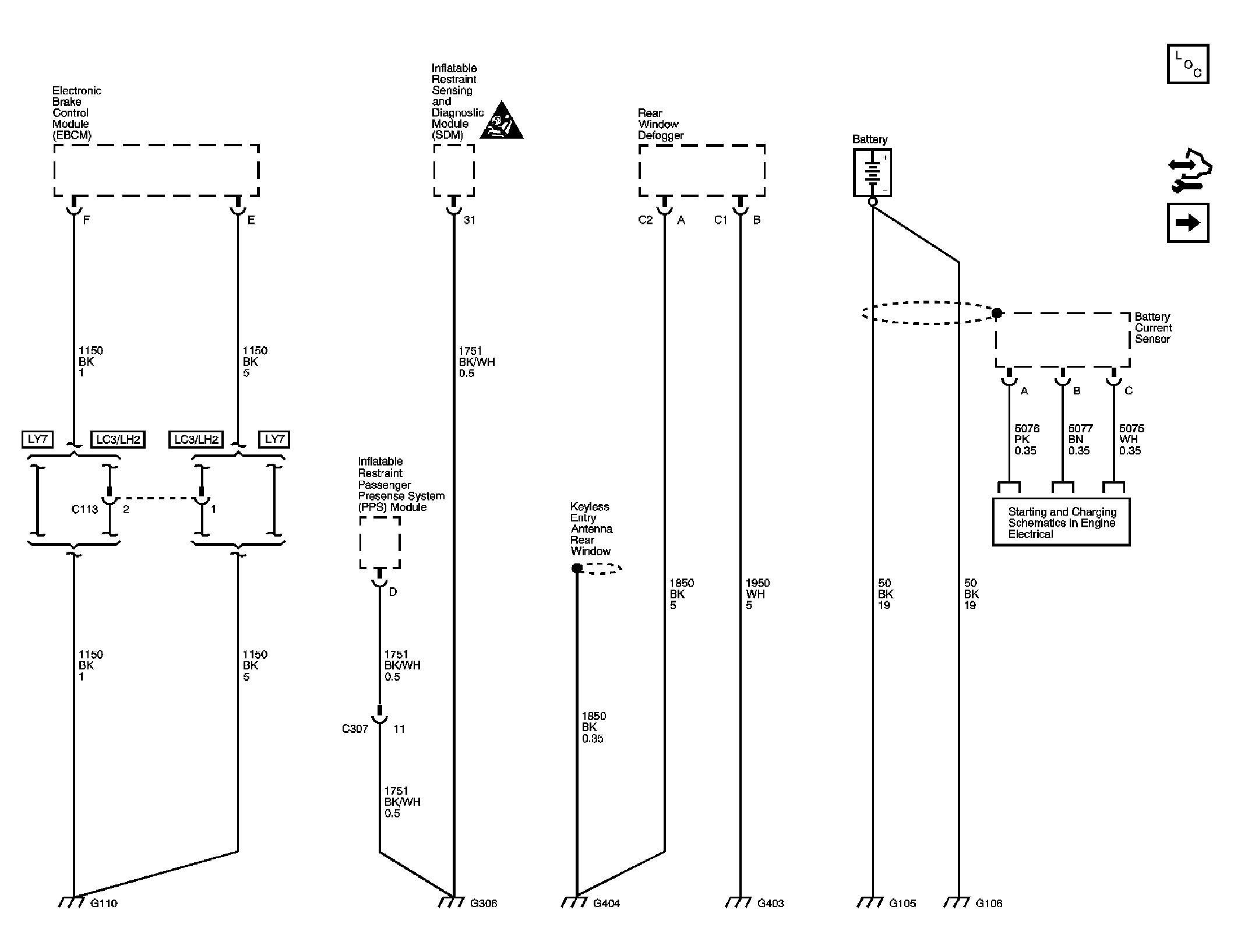

Fig 1: G105, G106, G110, G306, G403 and G404

GM1619072

Courtesy of GENERAL MOTORS CORP.

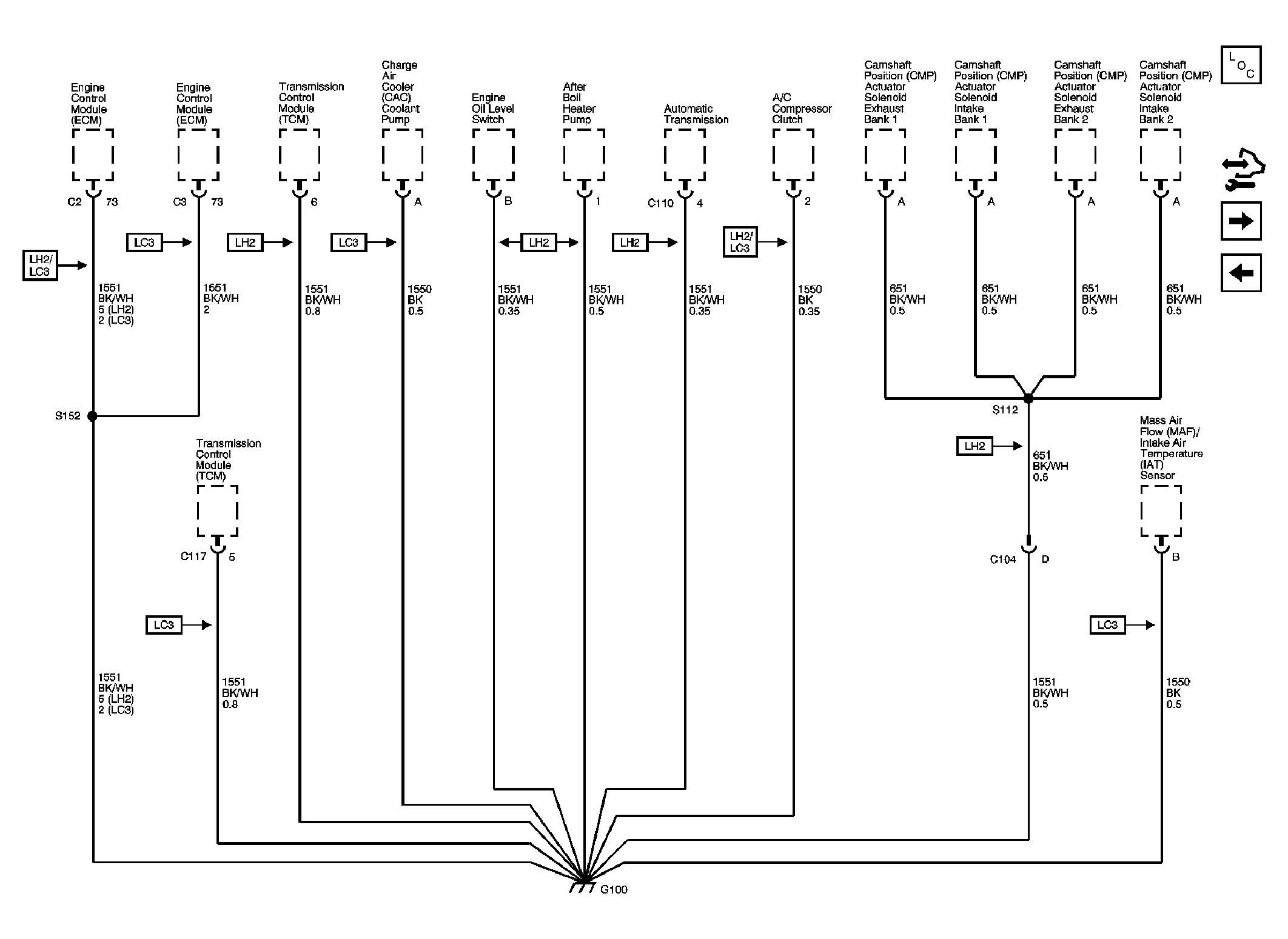

Fig 2: G100 (LH2)

GM1619034

Courtesy of GENERAL MOTORS CORP.

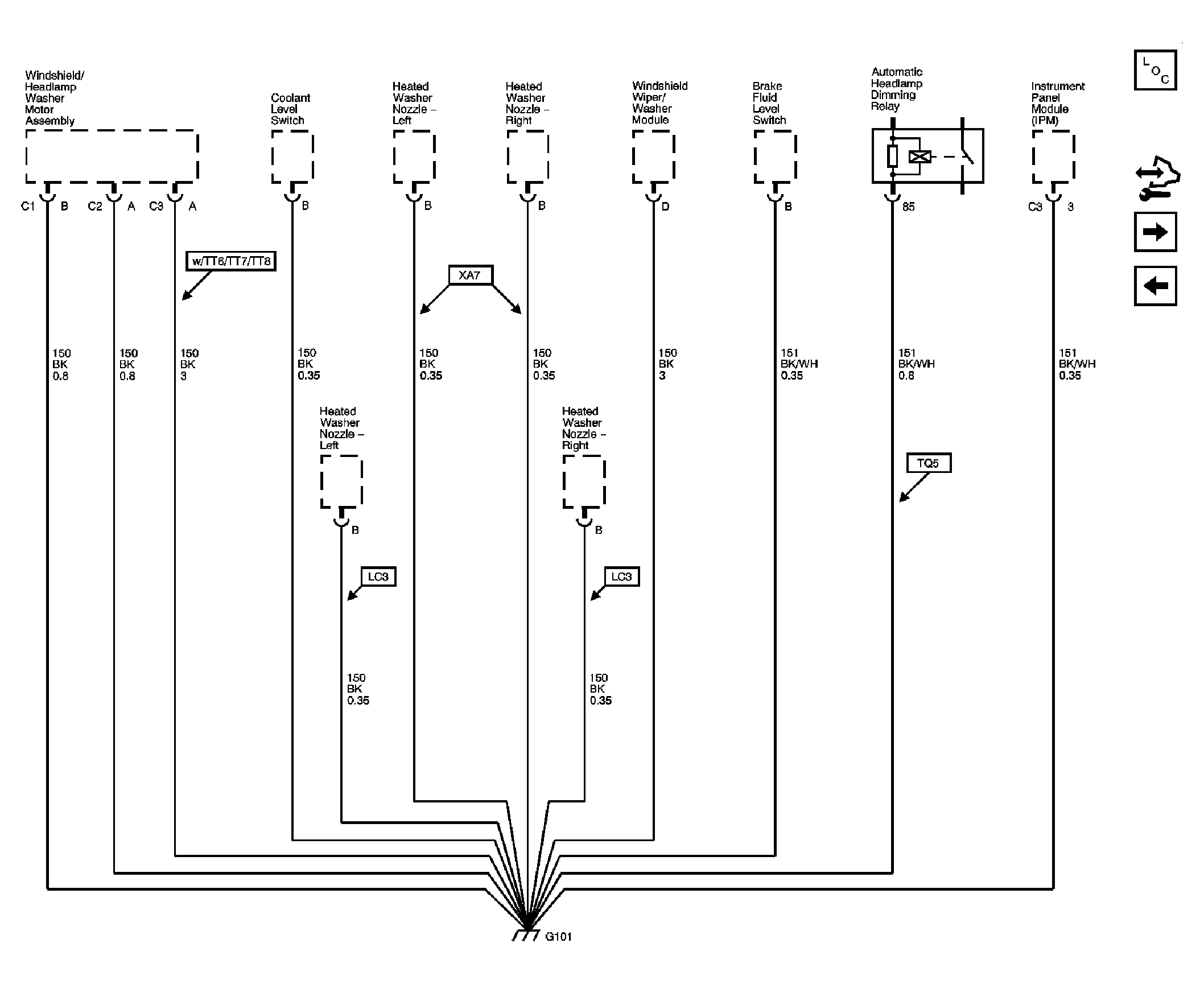

Fig 3: G101

GM1619037

Courtesy of GENERAL MOTORS CORP.

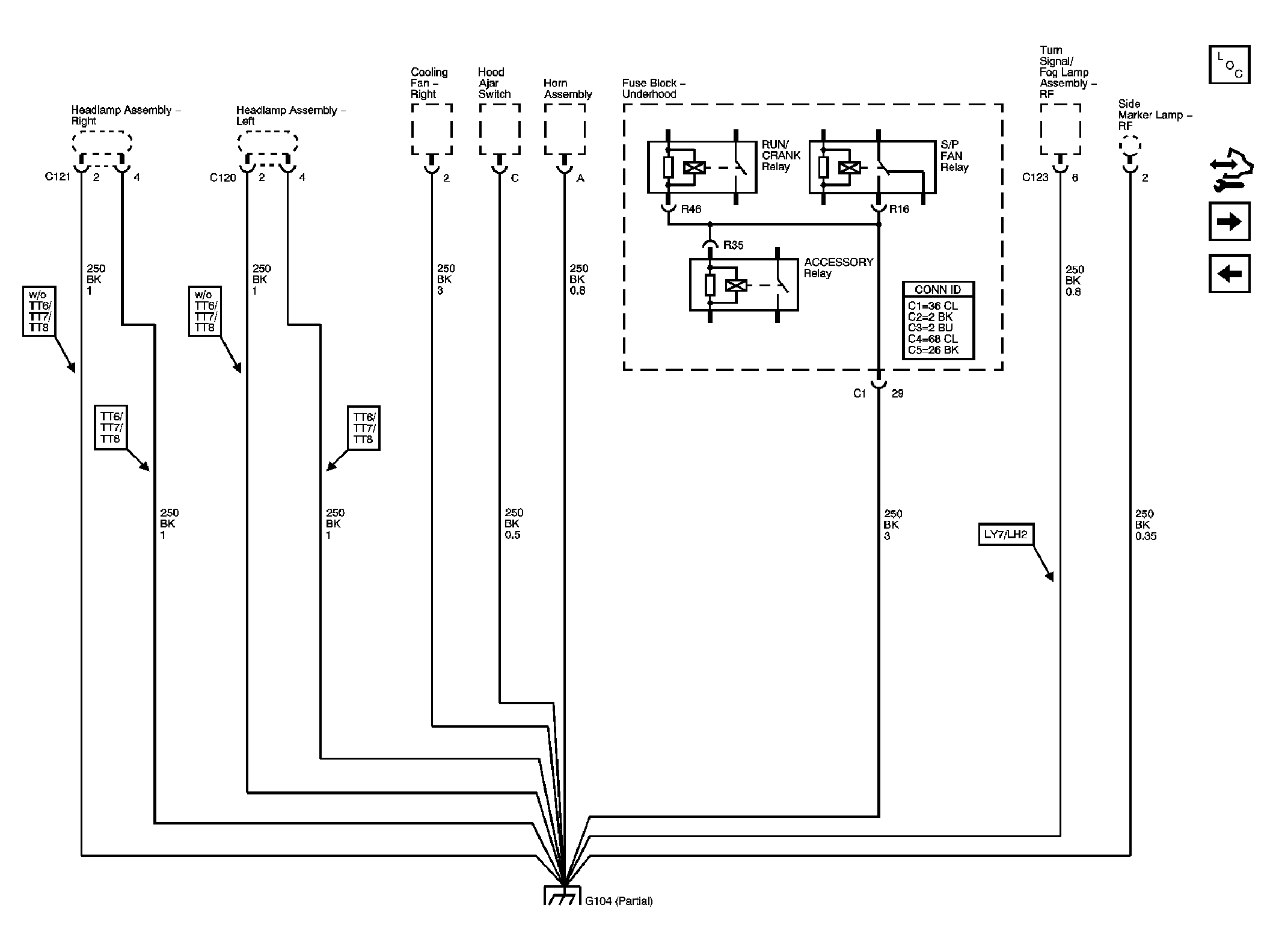

Fig 4: G104 (1 Of 2)

GM1619068

Courtesy of GENERAL MOTORS CORP.

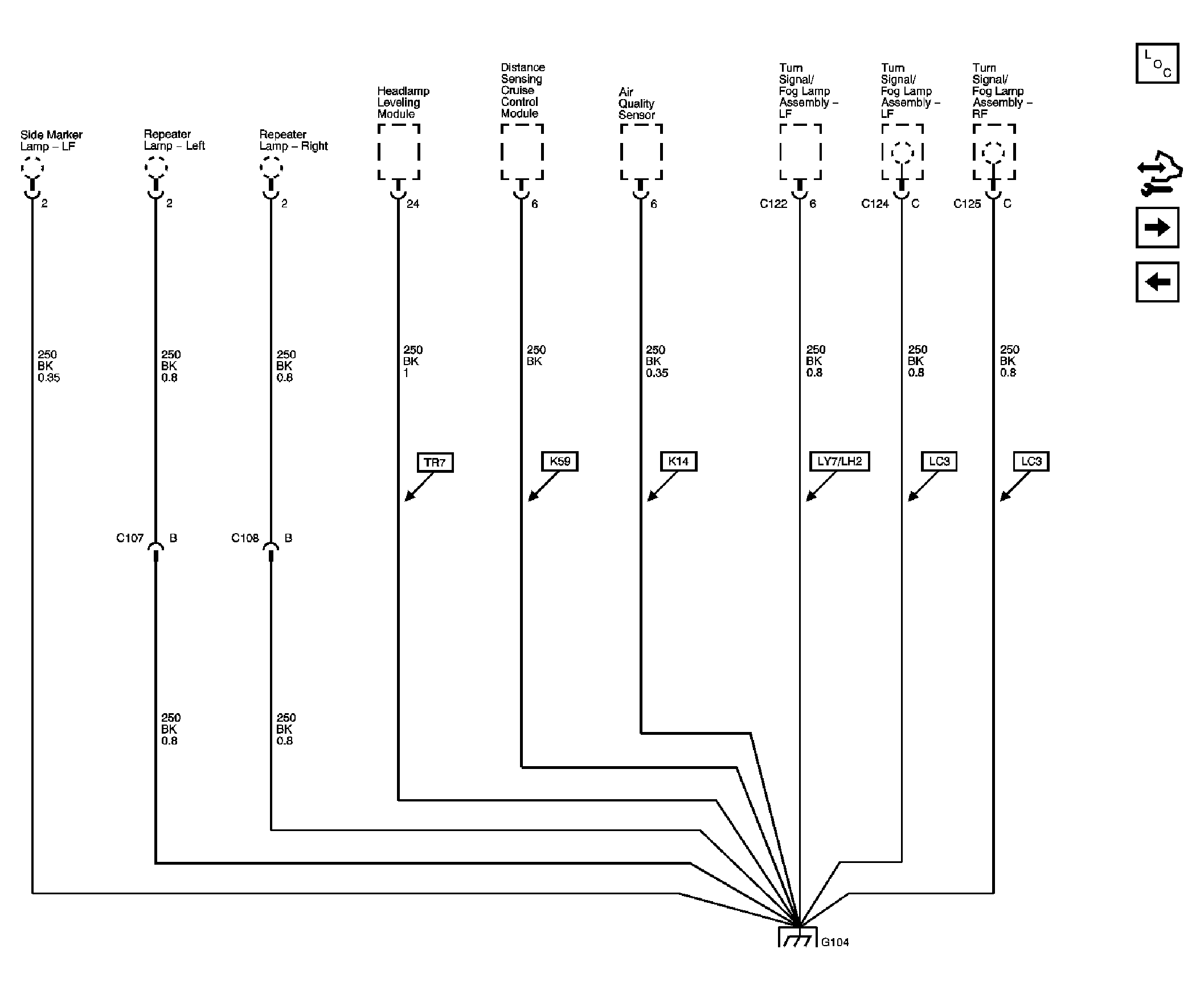

Fig 5: G104 (2 Of 2)

GM1619069

Courtesy of GENERAL MOTORS CORP.

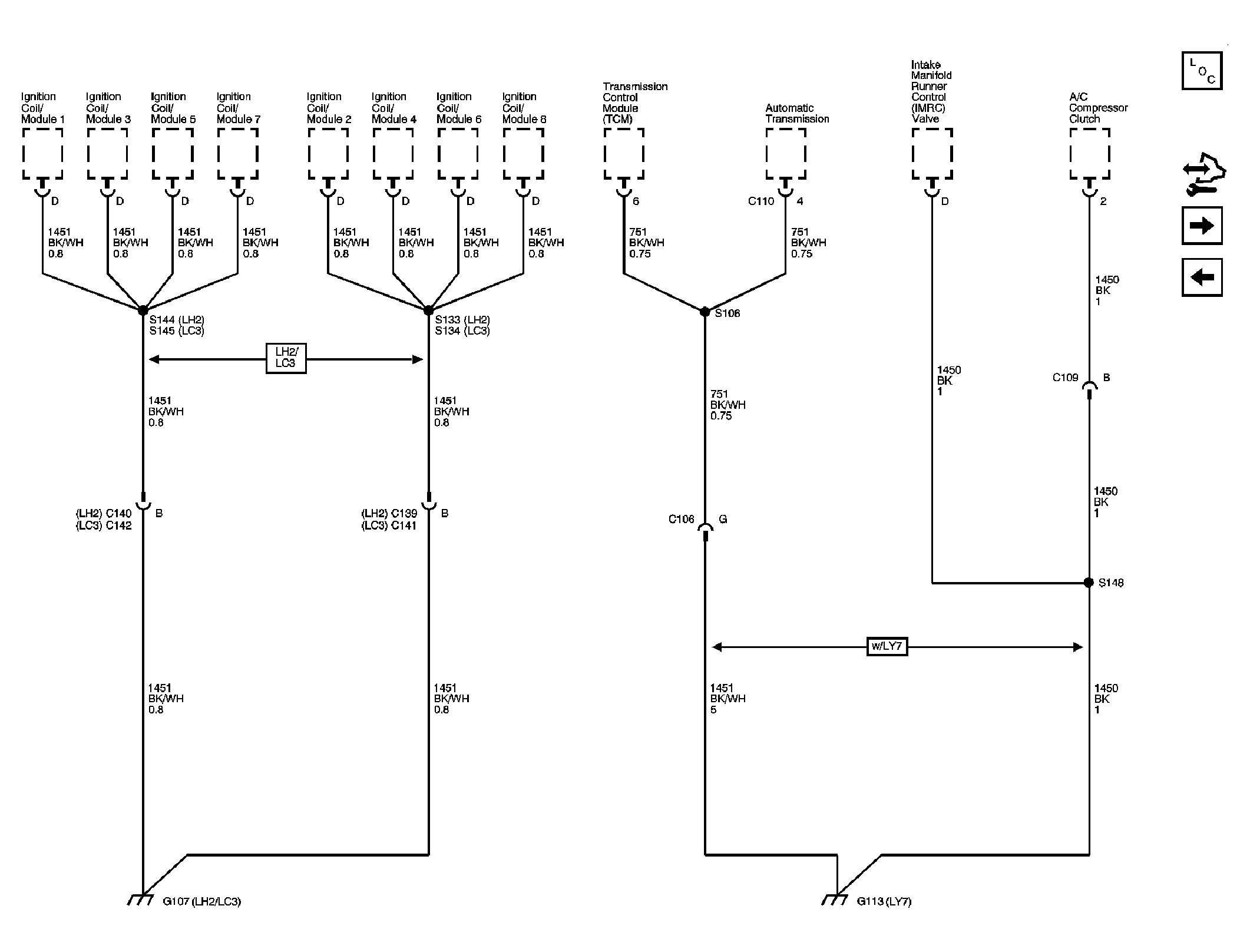

Fig 6: G107 (LH2), G113 (LY7)

GM1619070

Courtesy of GENERAL MOTORS CORP.

Fig 7: G103 (LY7), G109 (LY7), G112 (LY7)

GM1619071

Courtesy of GENERAL MOTORS CORP.

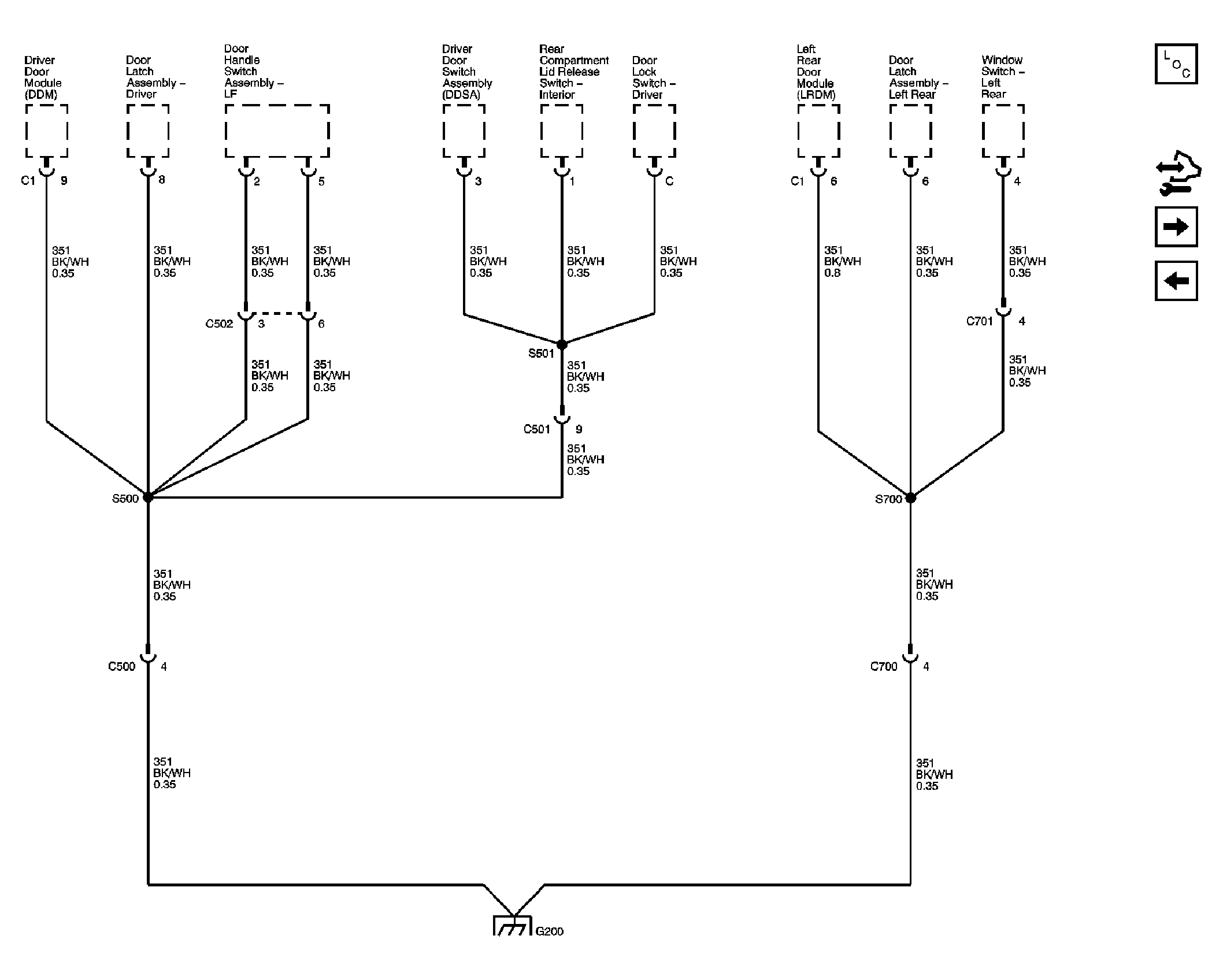

Fig 8: G200 (1 Of 2)

GM1619073

Courtesy of GENERAL MOTORS CORP.

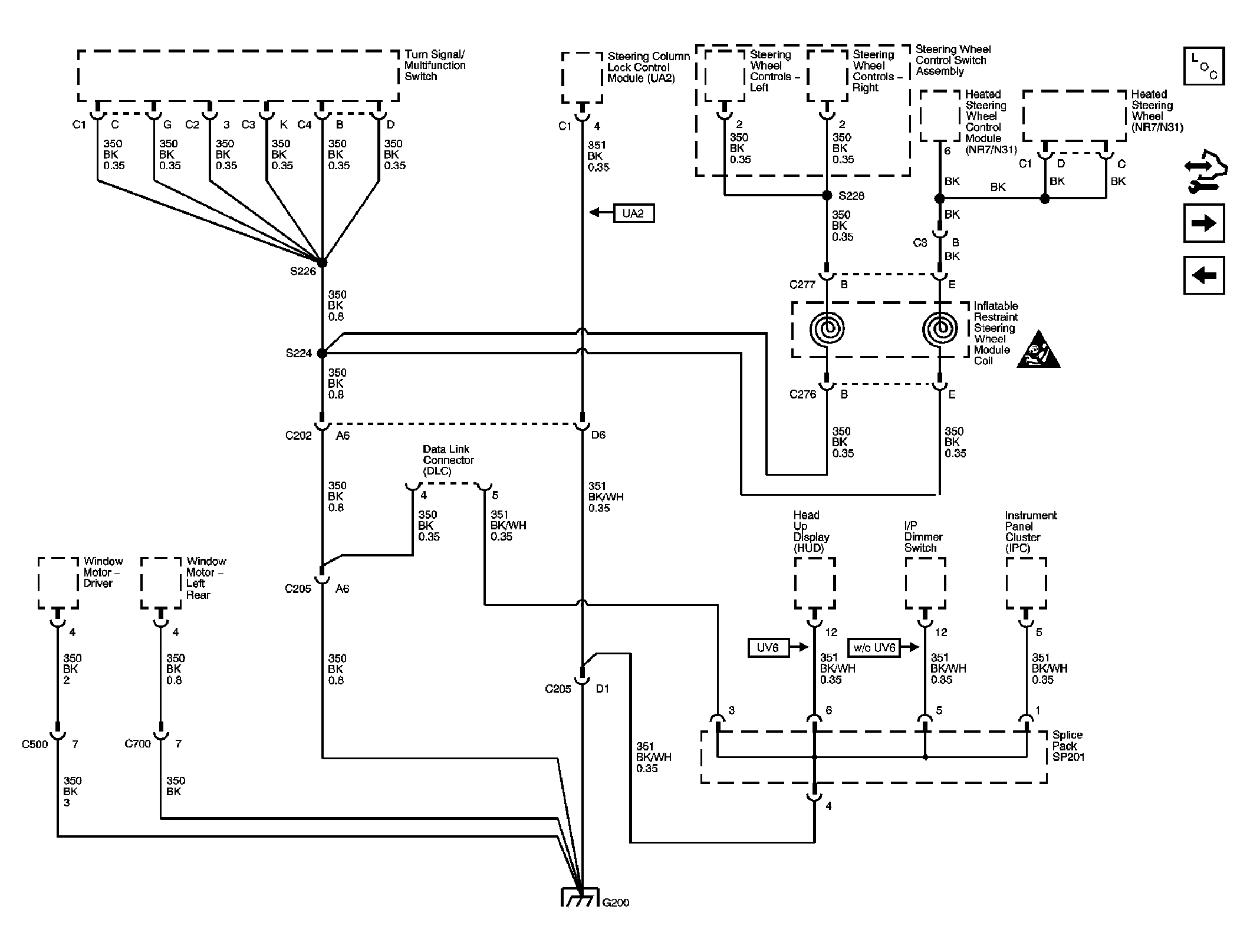

Fig 9: G200 (2 Of 2)

GM1619074

Courtesy of GENERAL MOTORS CORP.

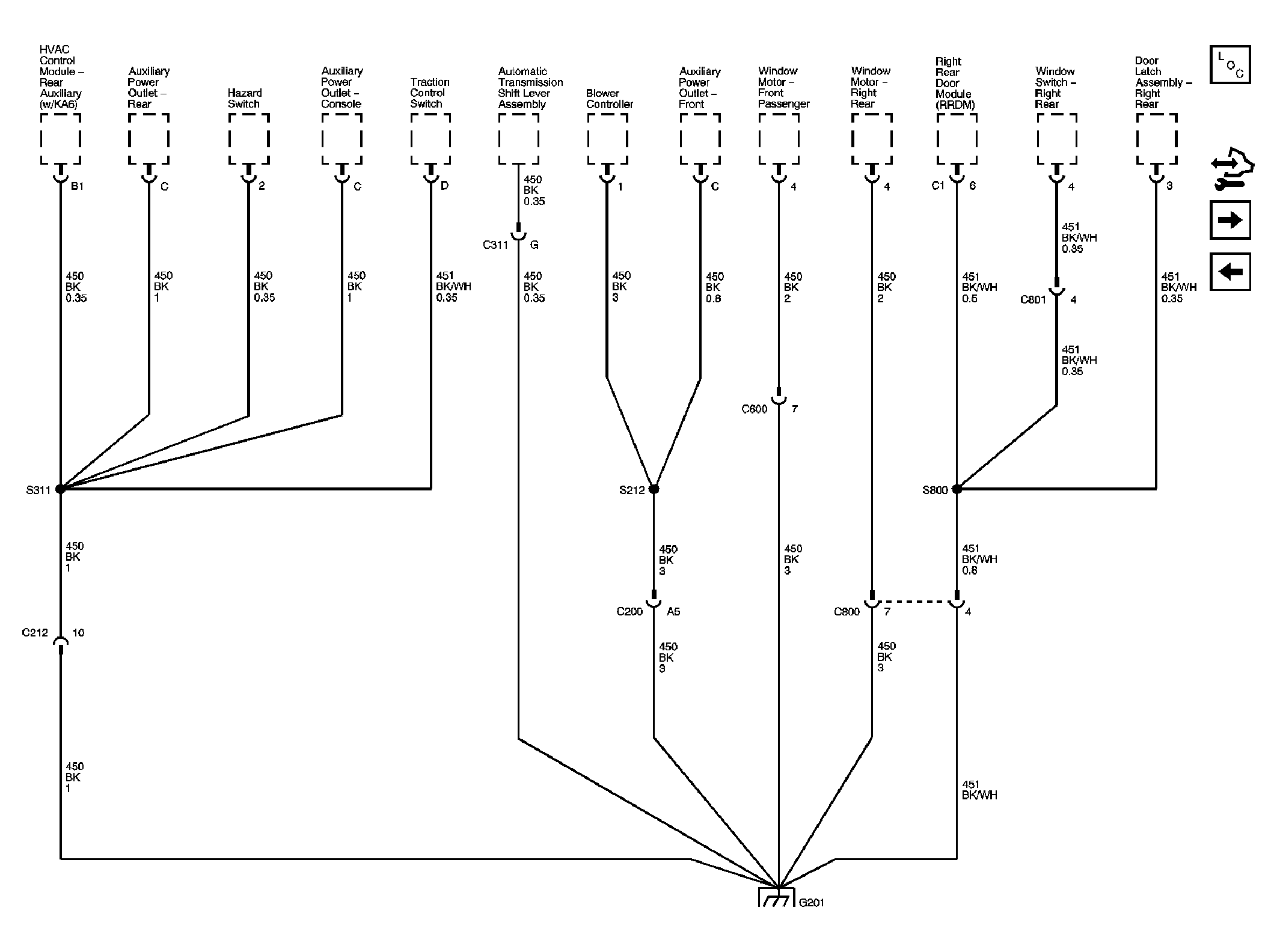

Fig 10: G201 (1 Of 2)

GM1619075

Courtesy of GENERAL MOTORS CORP.

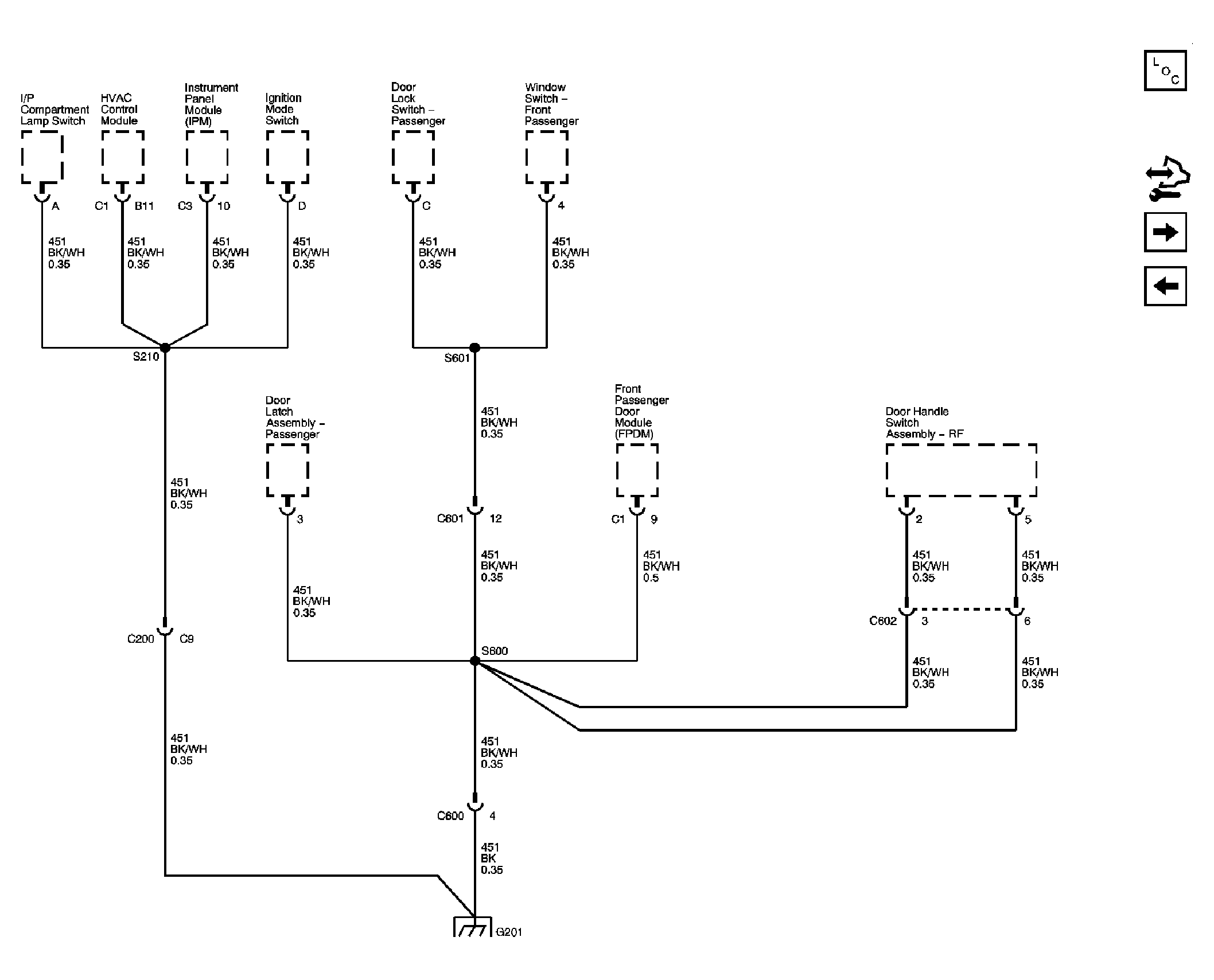

Fig 11: G201 (2 Of 2)

GM1619076

Courtesy of GENERAL MOTORS CORP.

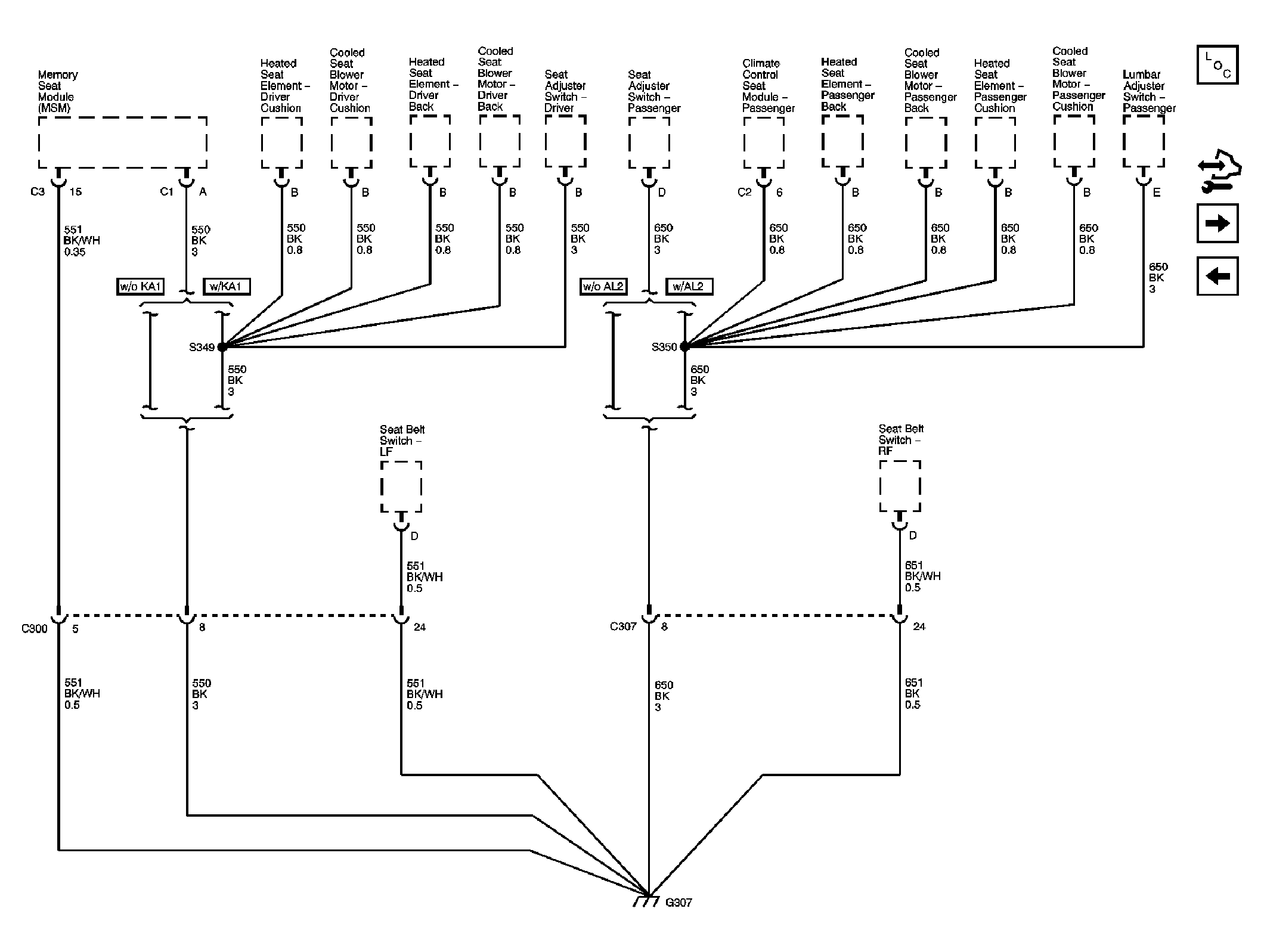

Fig 12: G307 (LHD)

GM1619088

Courtesy of GENERAL MOTORS CORP.

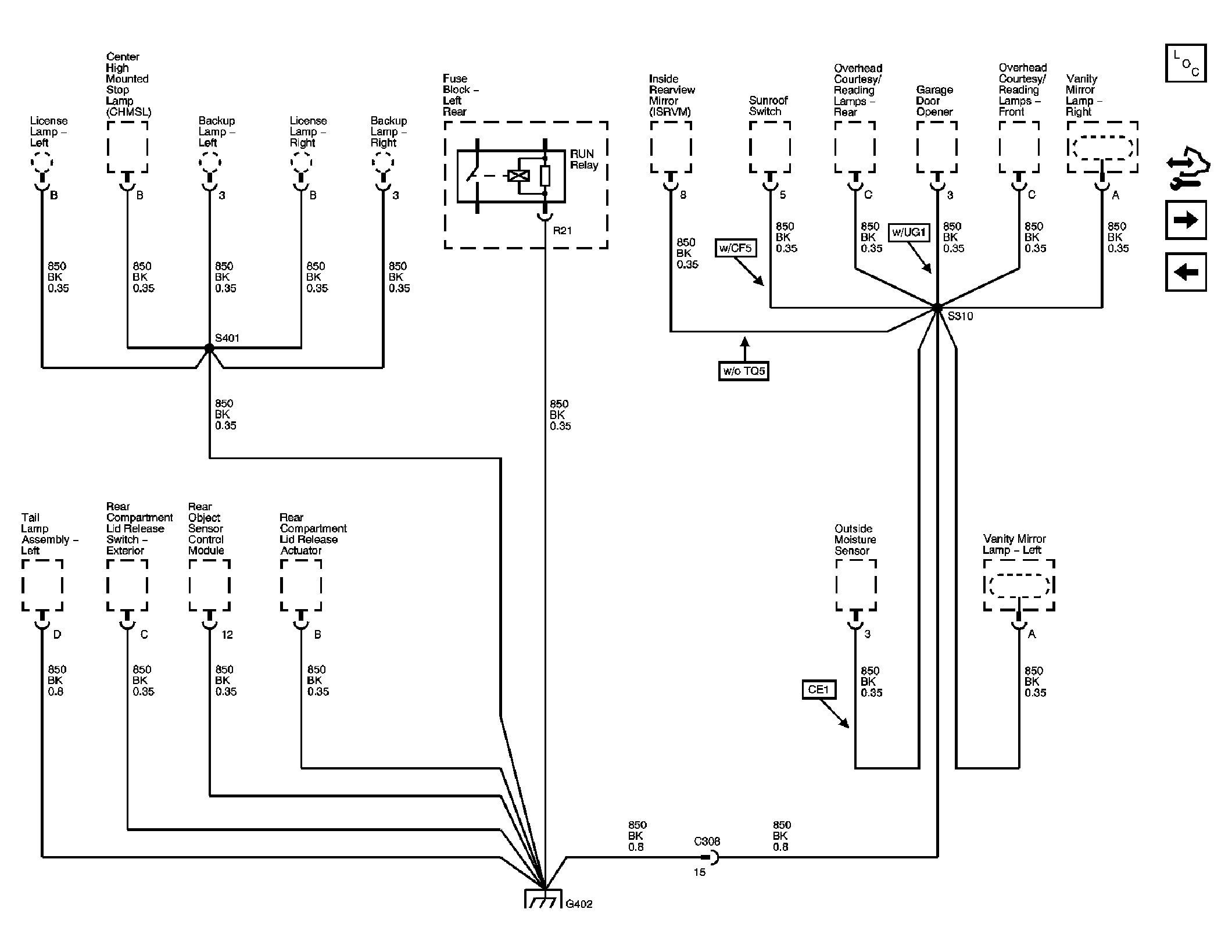

Fig 13: G401 (1 Of 2)

GM1619091

Courtesy of GENERAL MOTORS CORP.

Fig 14: G401 (2 Of 2)

GM1619098

Courtesy of GENERAL MOTORS CORP.

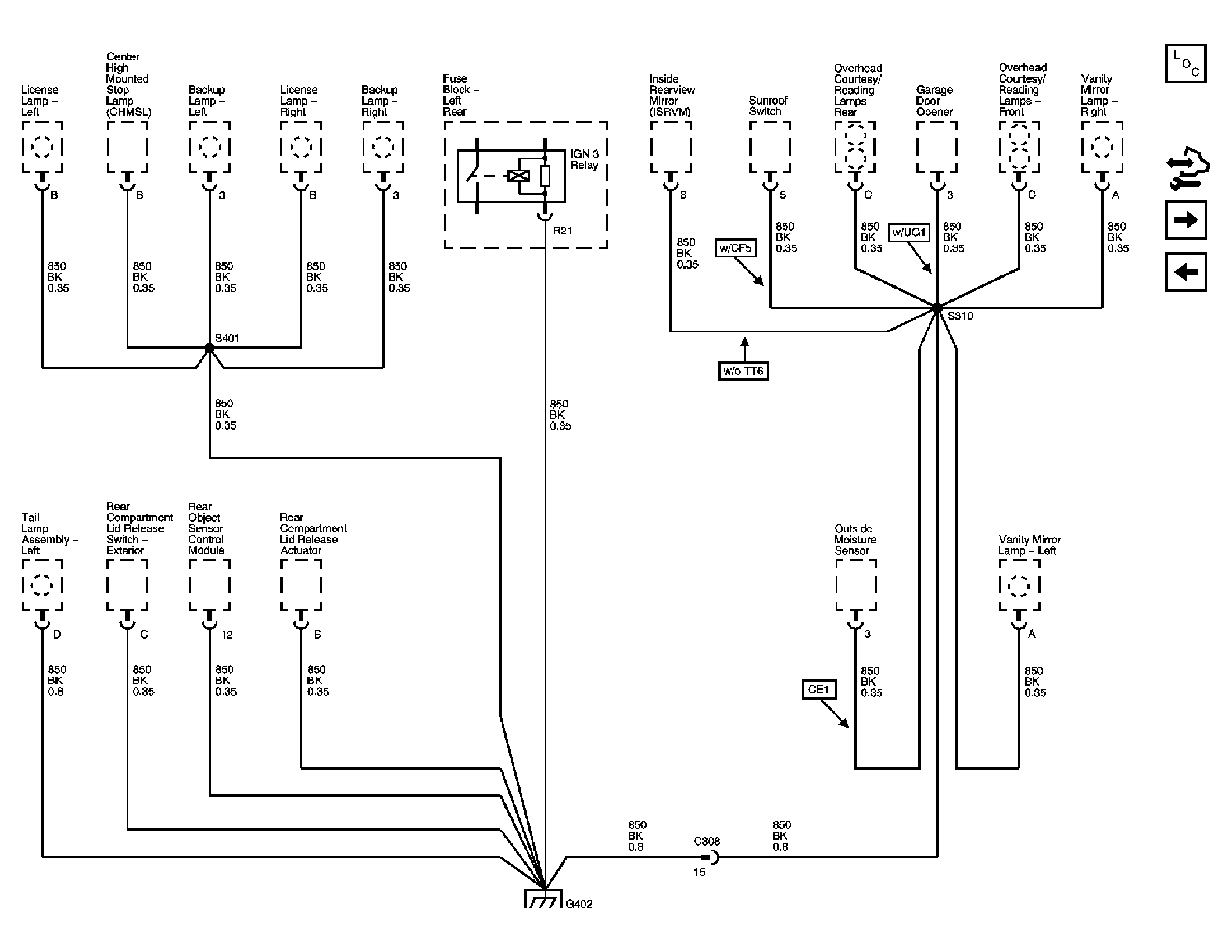

Fig 15: G402 (1 Of 2)

GM1619099

Courtesy of GENERAL MOTORS CORP.

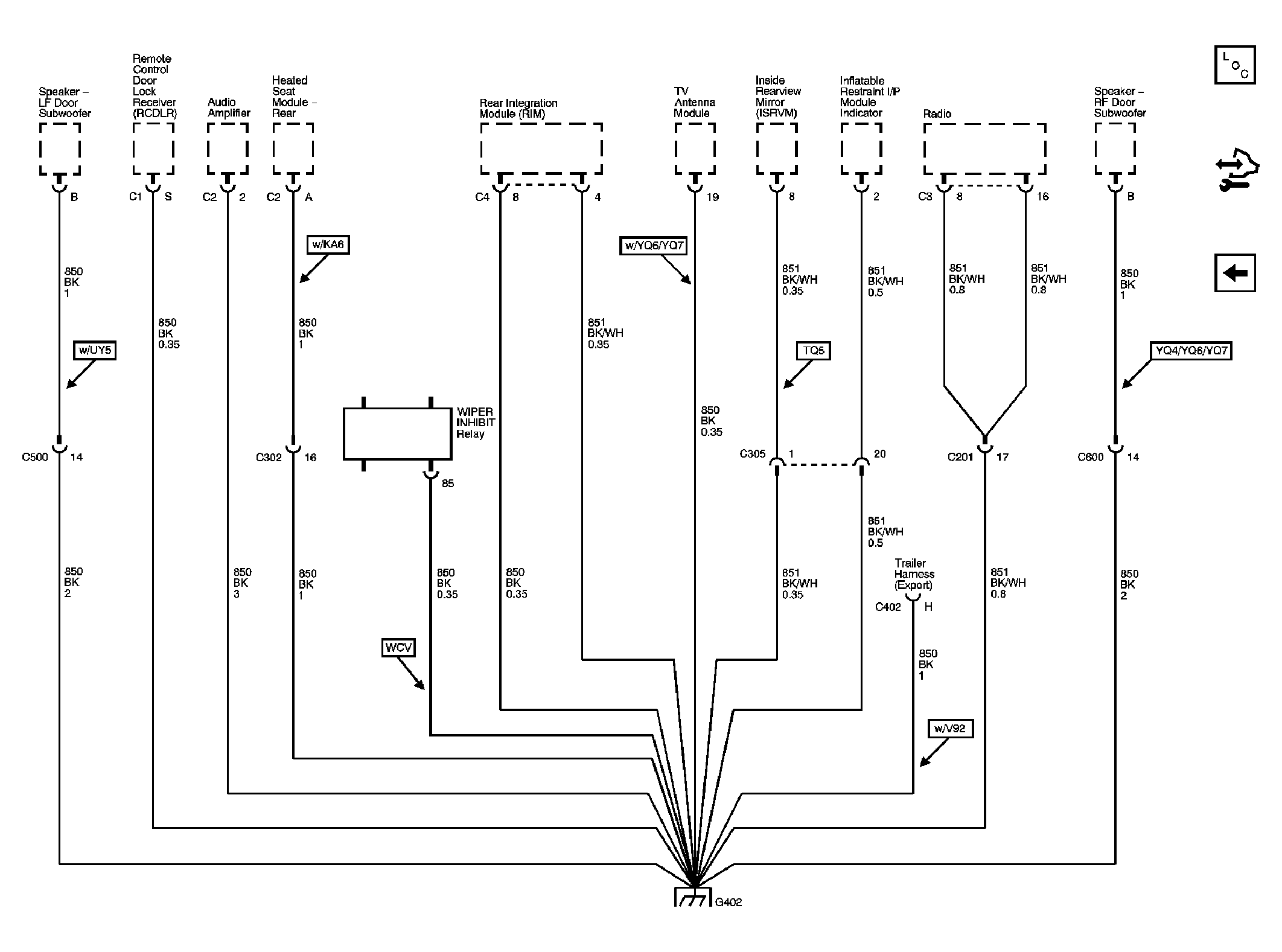

Fig 16: G402 (2 Of 2)

GM1619100

Courtesy of GENERAL MOTORS CORP.
