Inside Rearview Mirror Schematics

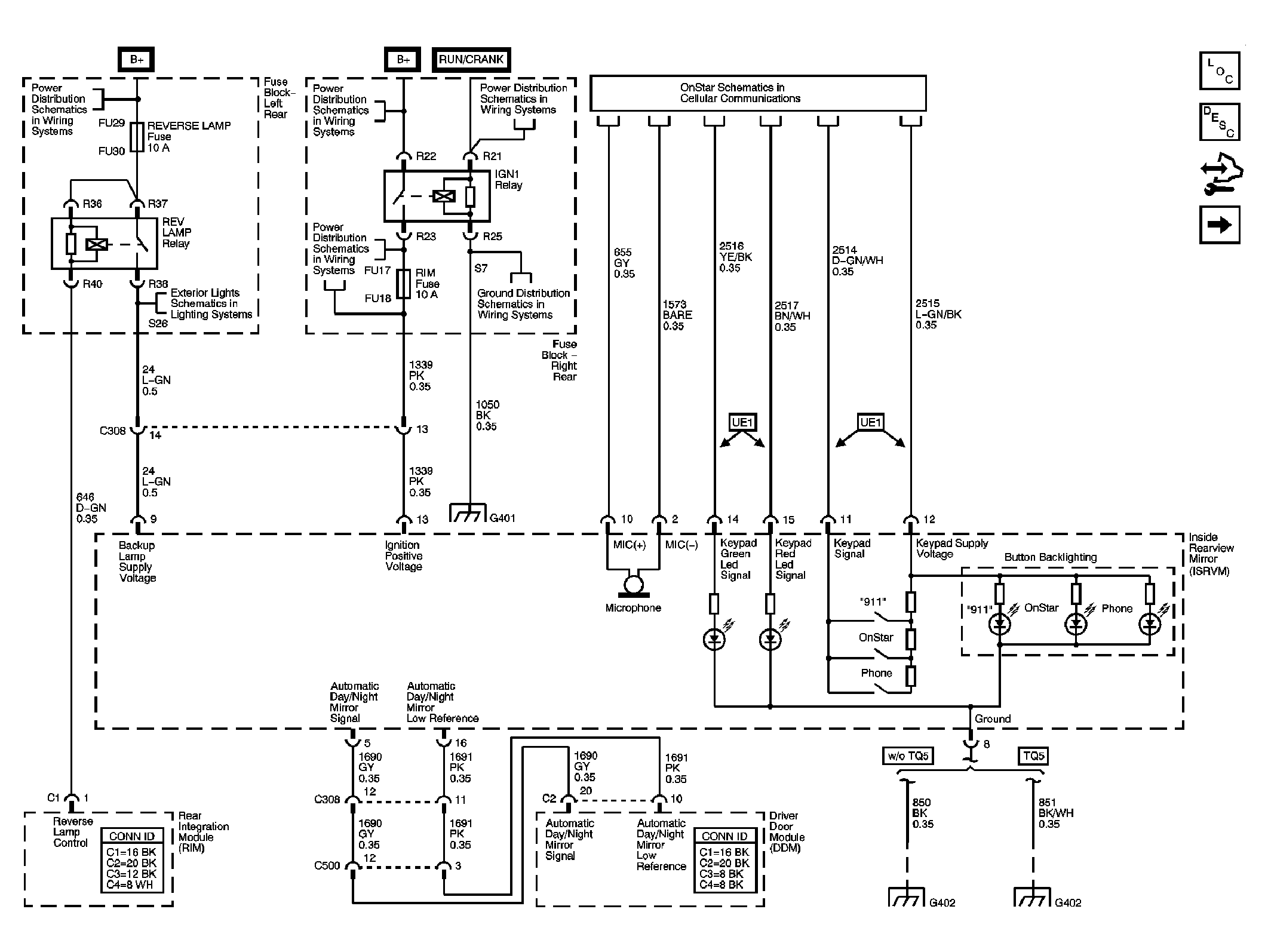

Fig 1: Inside Rearview Mirror (ISRVM), Power and Ground
GM1618951Courtesy of GENERAL MOTORS CORP.

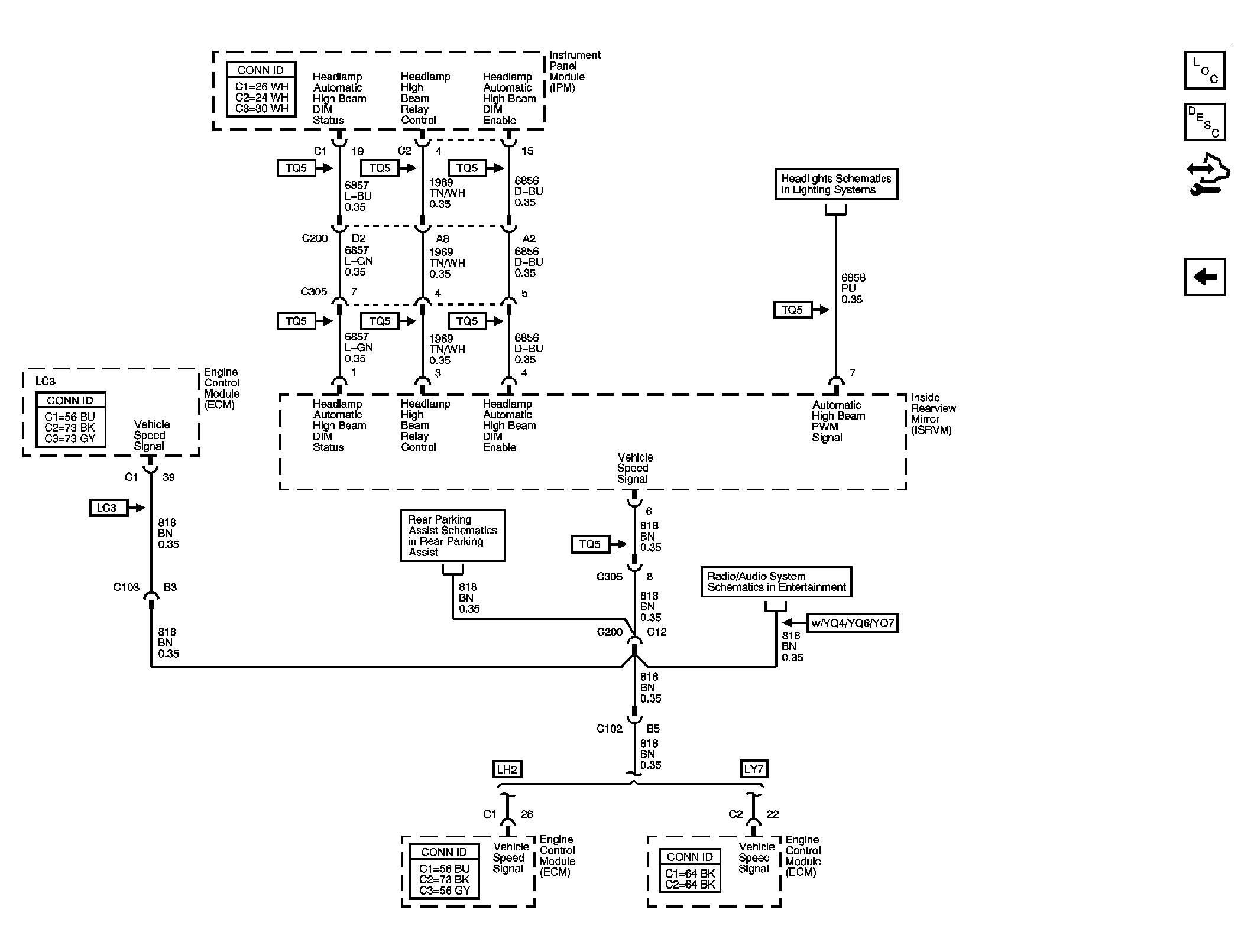

Fig 2: Inside Rearview Mirror (ISRVM): Automatic Headlamp Dimming Signals
GM1618950Courtesy of GENERAL MOTORS CORP.
