Rear Seat Schematics

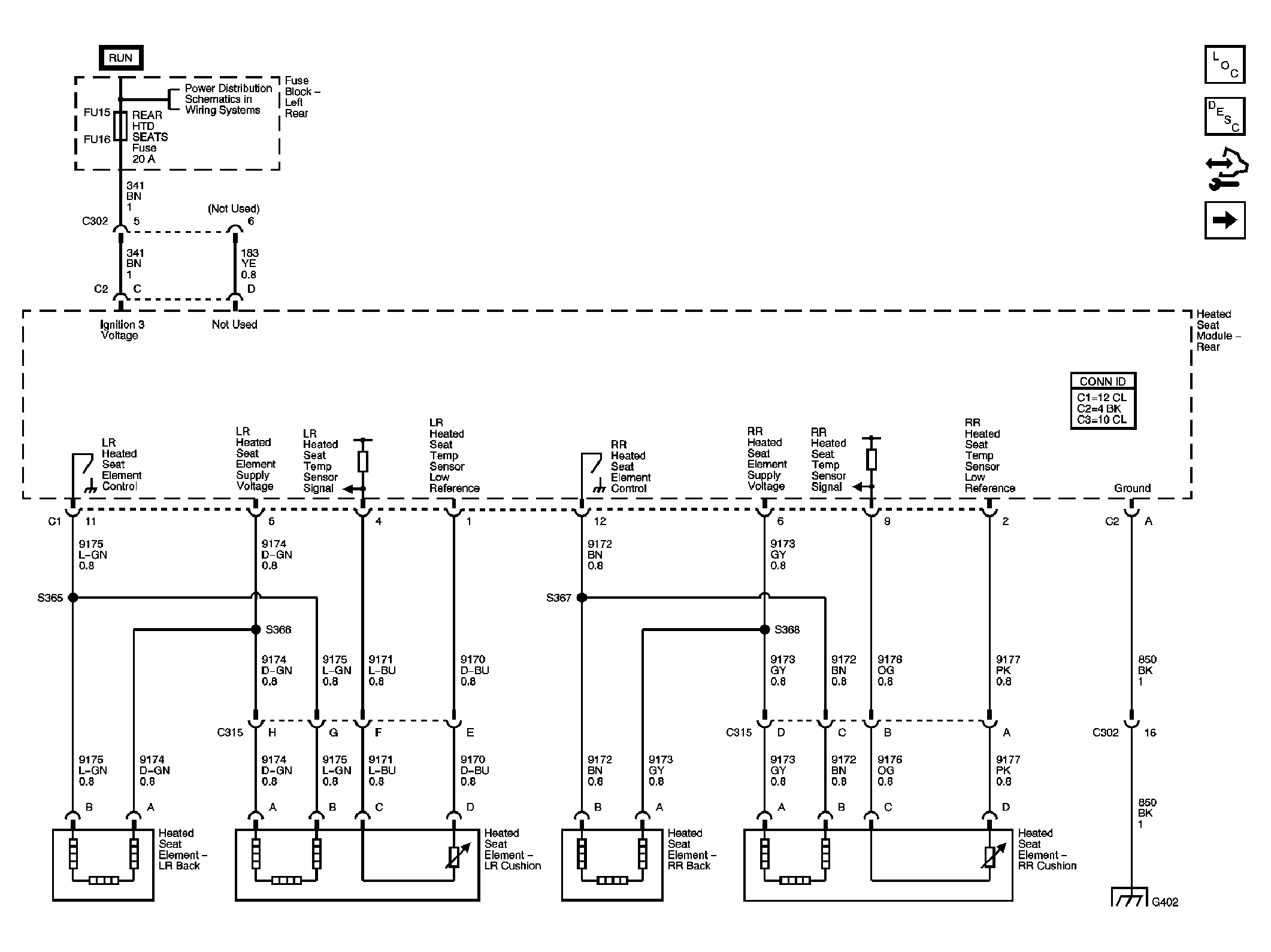

Fig 1: Rear Heated Seat Elements Schematic

GM1618937

Courtesy of GENERAL MOTORS CORP.

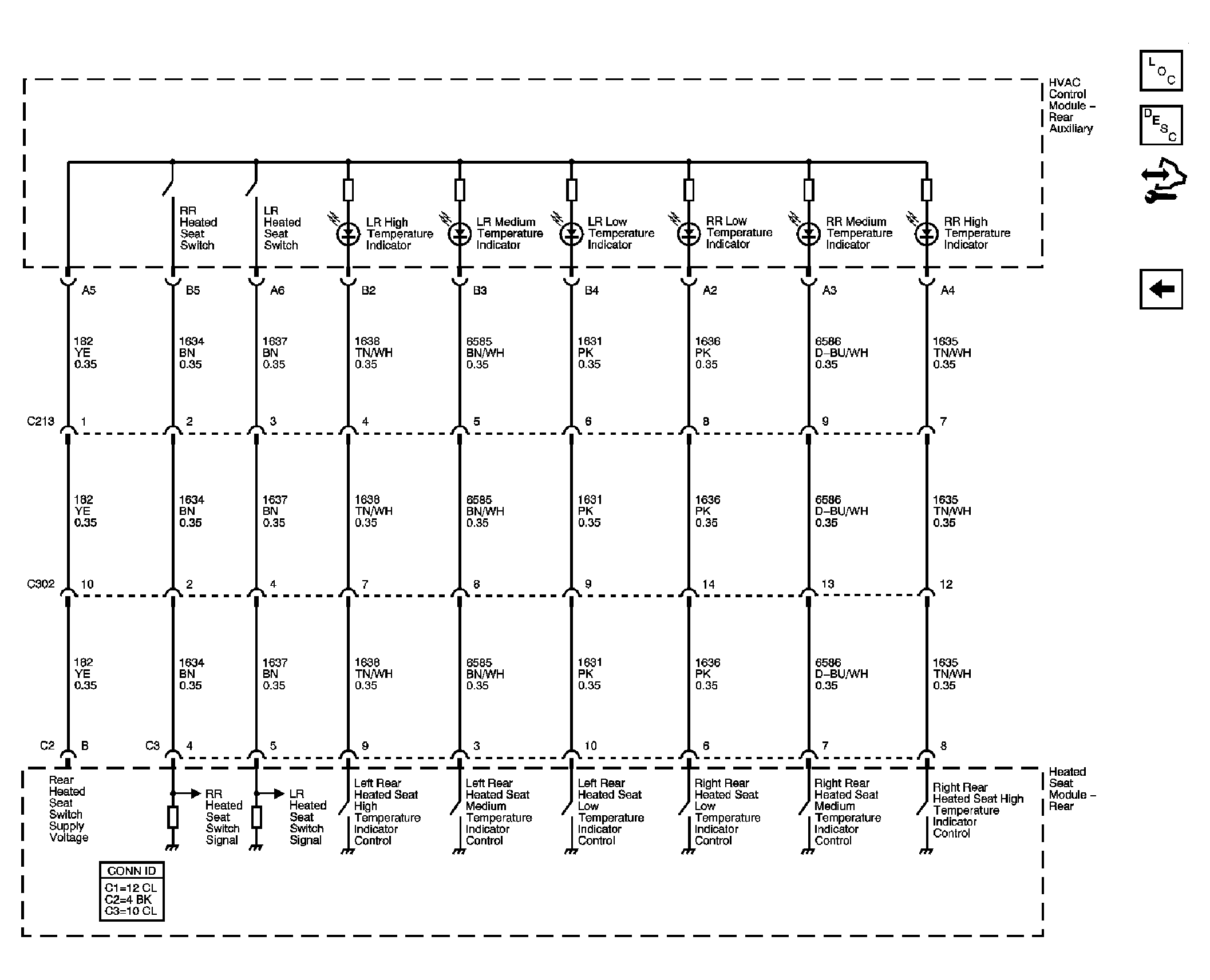

Fig 2: Rear Heated Seat Controls Schematic

GM1618935

Courtesy of GENERAL MOTORS CORP.
