Passenger Seat Schematics

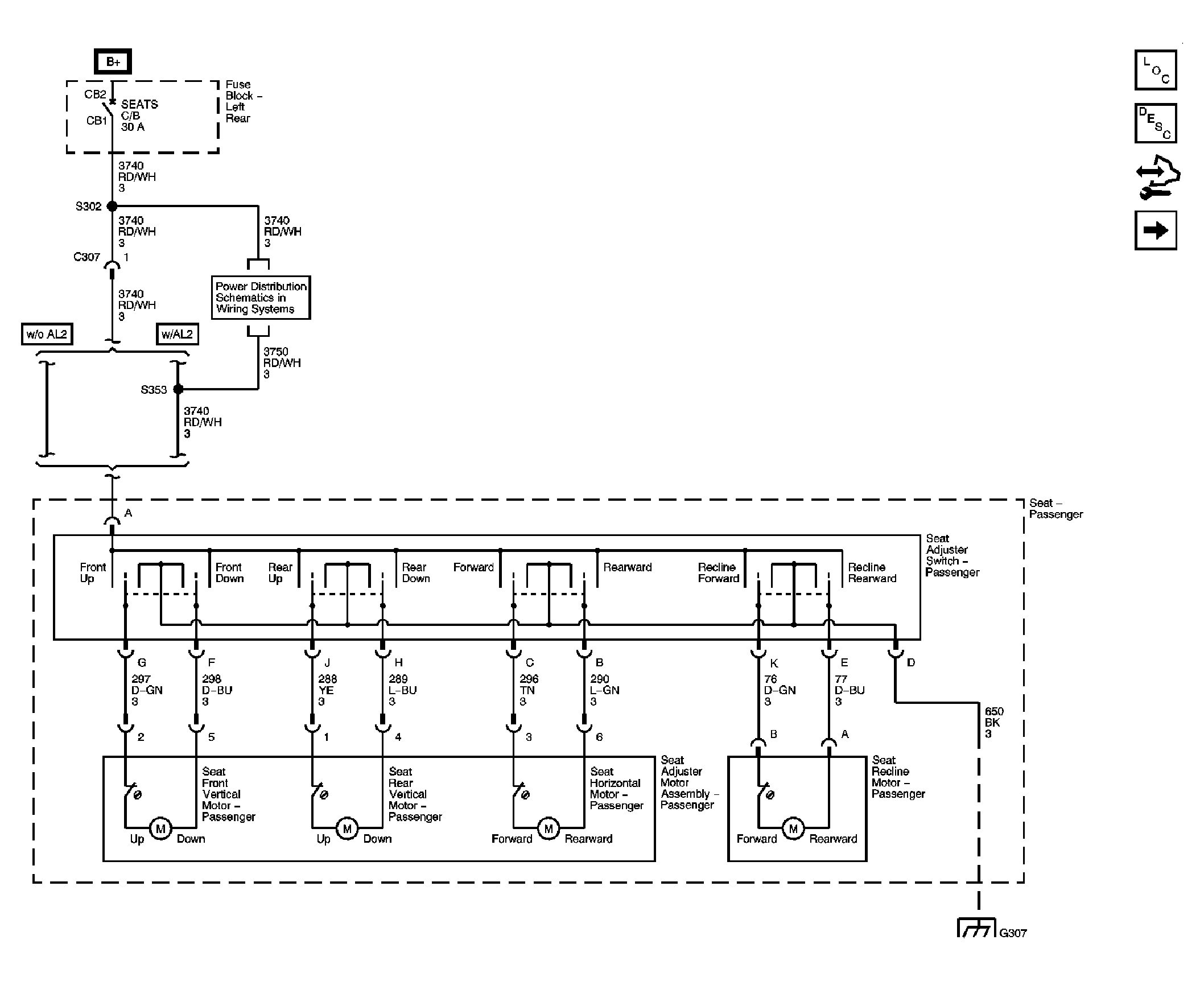

Fig 1: Power Seat Schematic
GM1618934Courtesy of GENERAL MOTORS CORP.

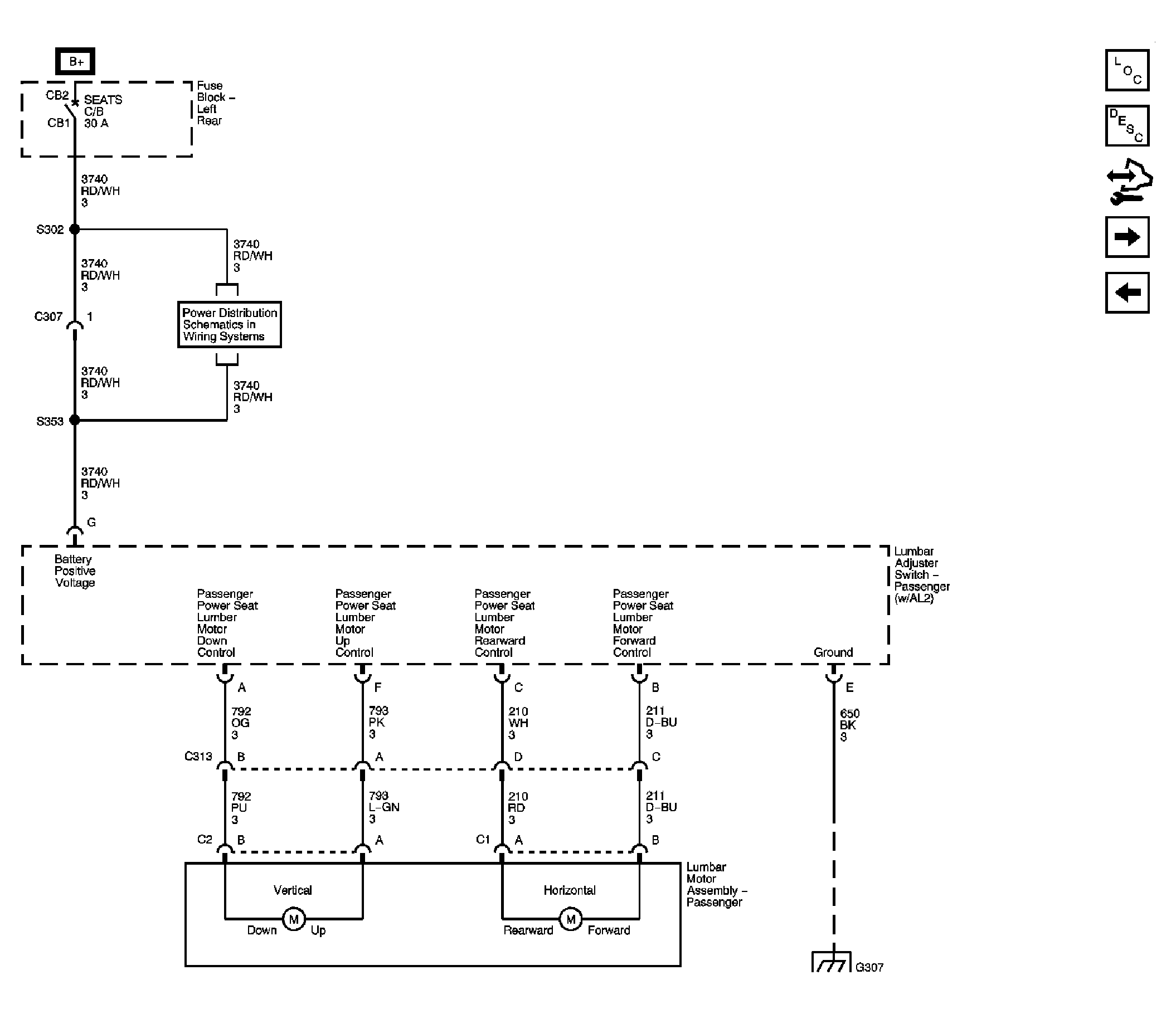

Fig 2: Lumbar Switch and Motors Schematic
GM1618924Courtesy of GENERAL MOTORS CORP.

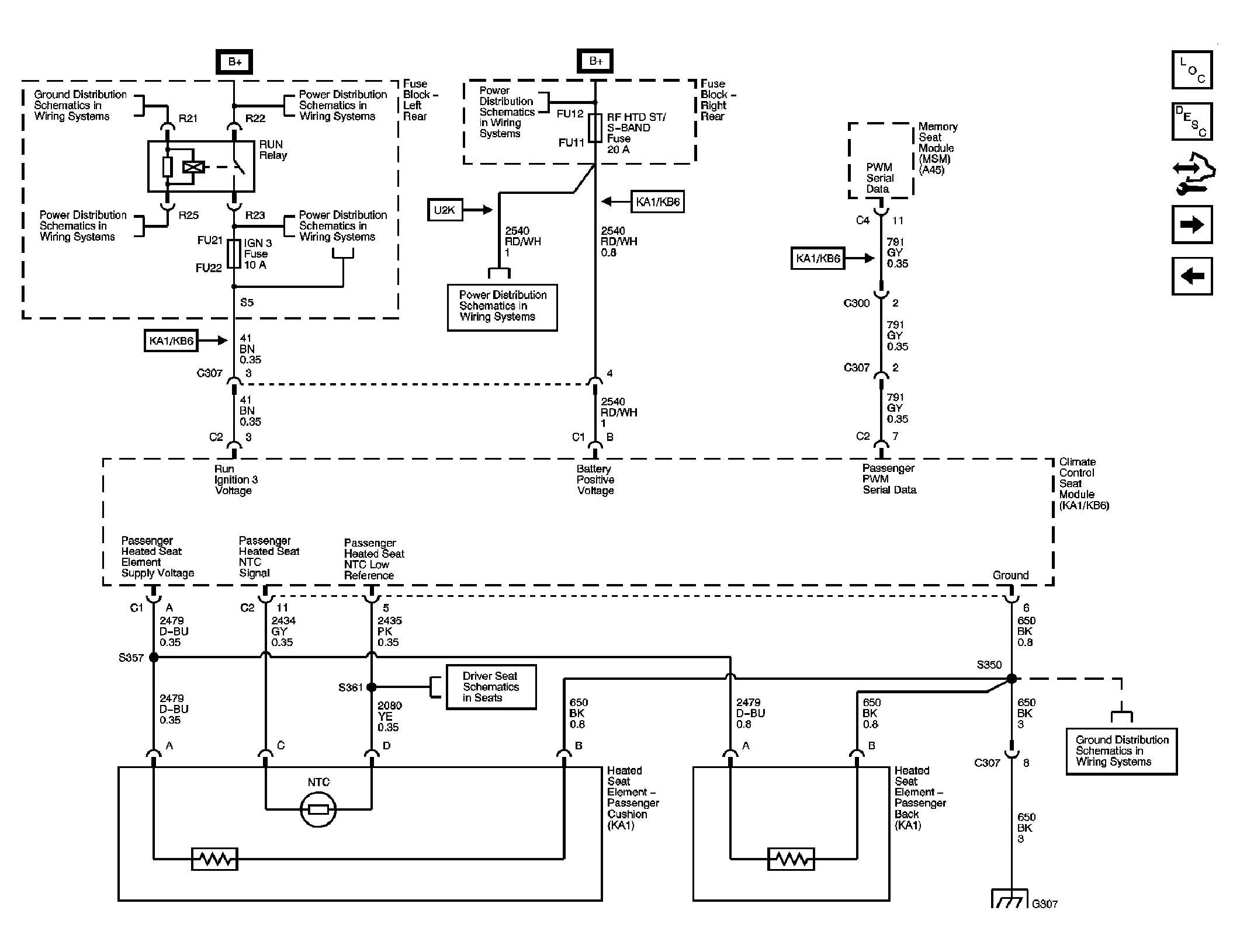

Fig 3: Heated Seat Schematic
GM1618933Courtesy of GENERAL MOTORS CORP.

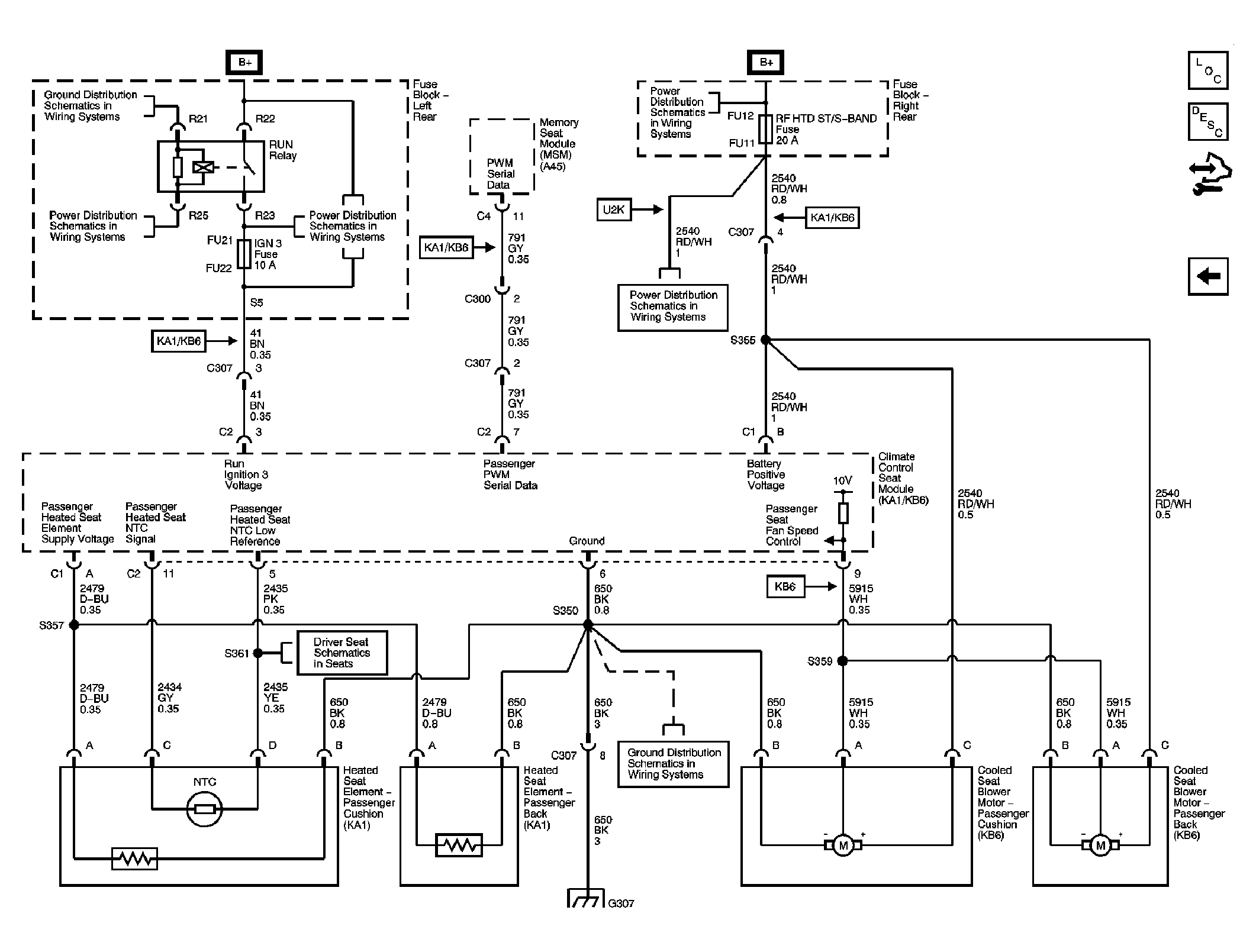

Fig 4: Heated/Cooled Seat Schematic
GM1618928Courtesy of GENERAL MOTORS CORP.
