Driver Seat Schematics

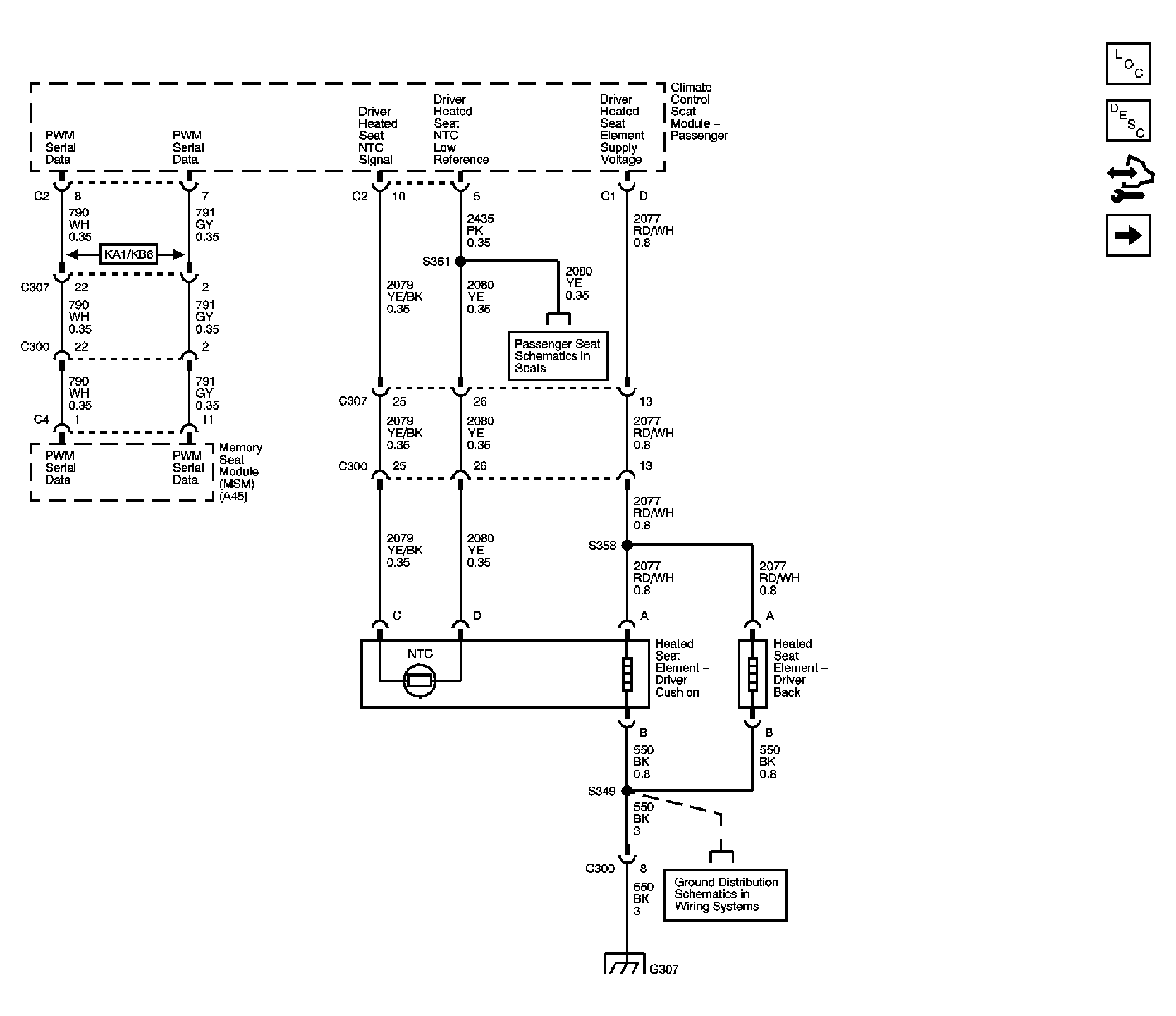

Fig 1: Heated Seat Schematic
GM1618917Courtesy of GENERAL MOTORS CORP.

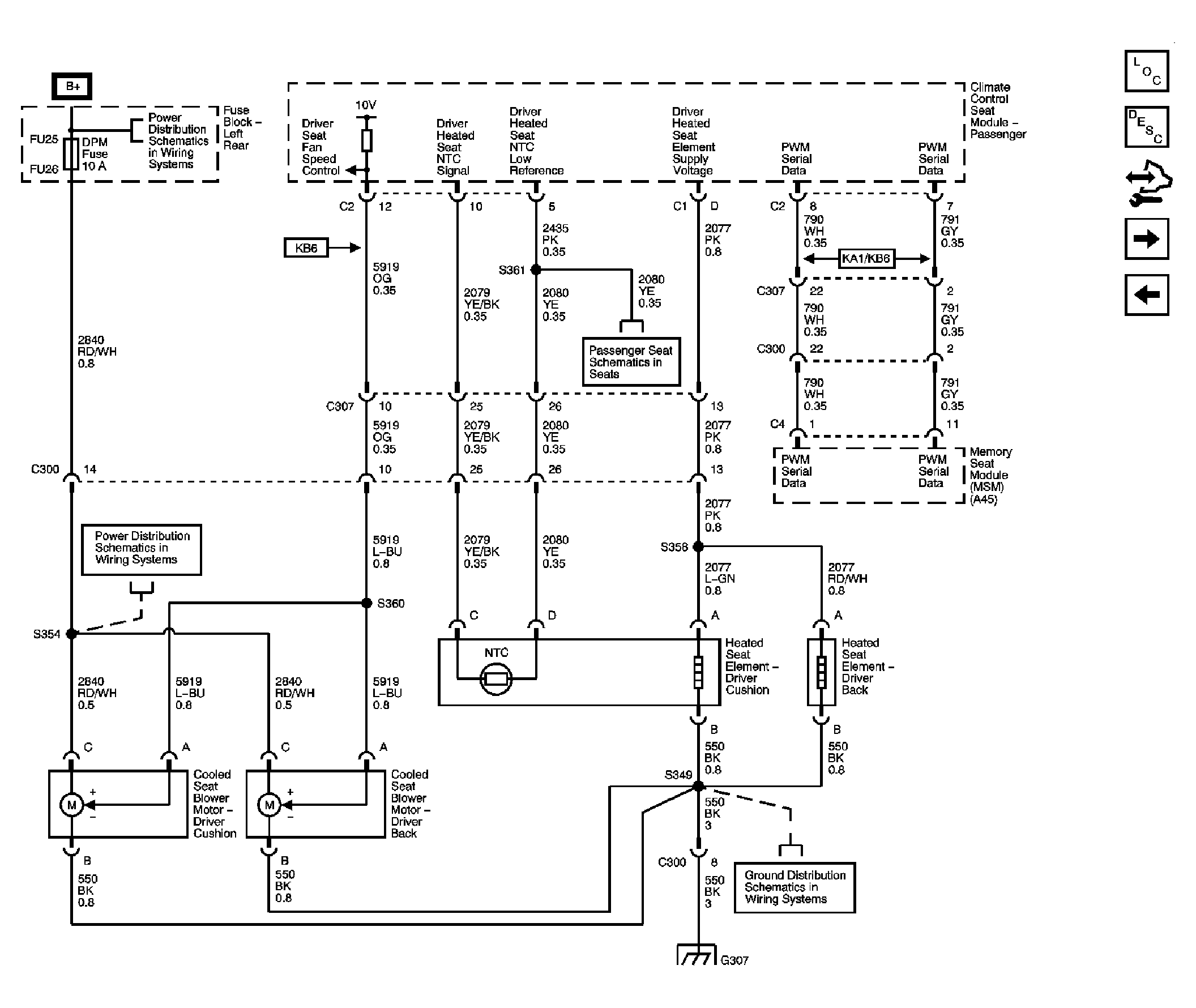

Fig 2: Heated/Cooled Seat Schematic
GM1618916Courtesy of GENERAL MOTORS CORP.

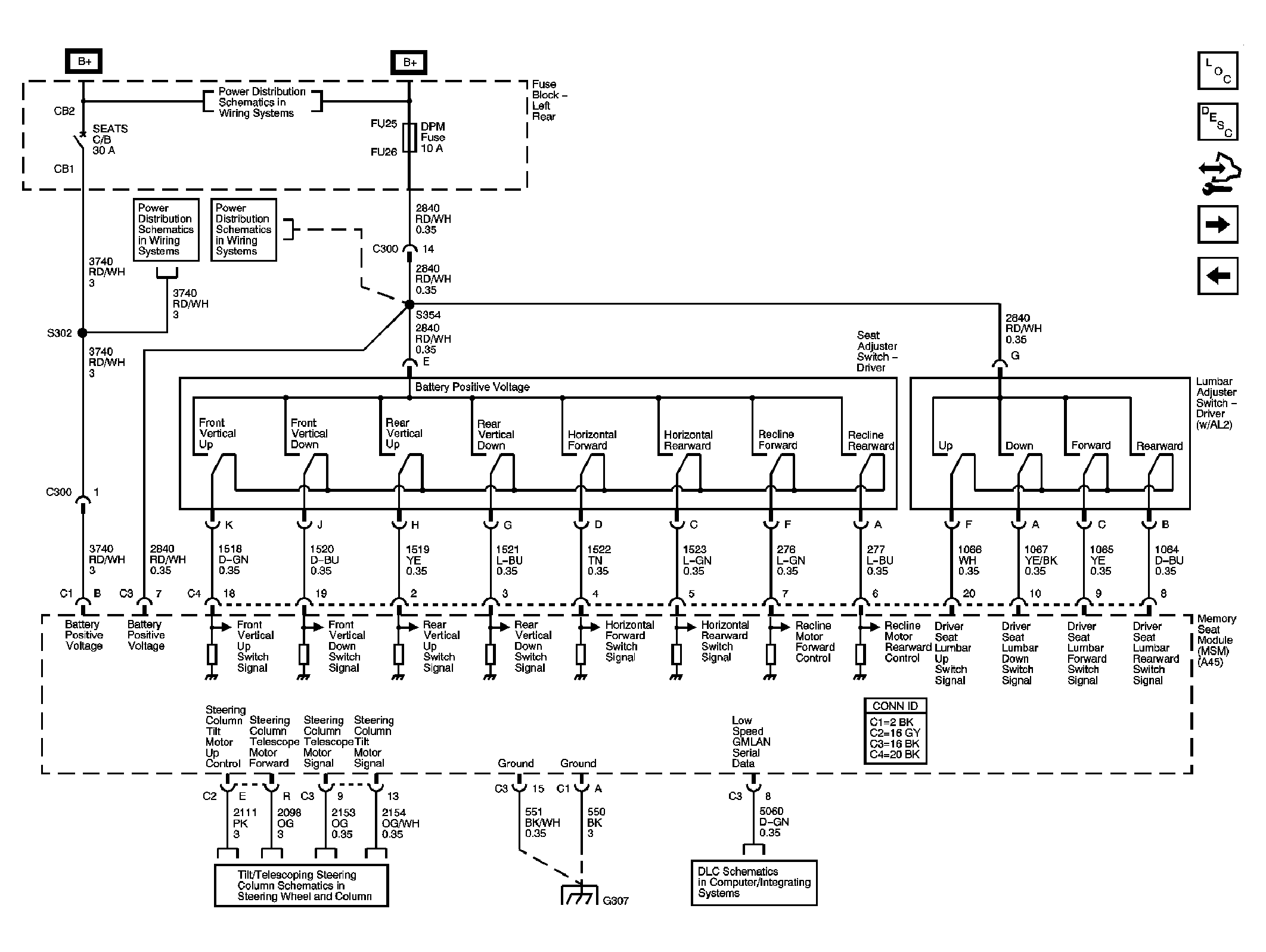

Fig 3: Memory Seat Module Power, Ground and DLC Schematic
GM1618914Courtesy of GENERAL MOTORS CORP.

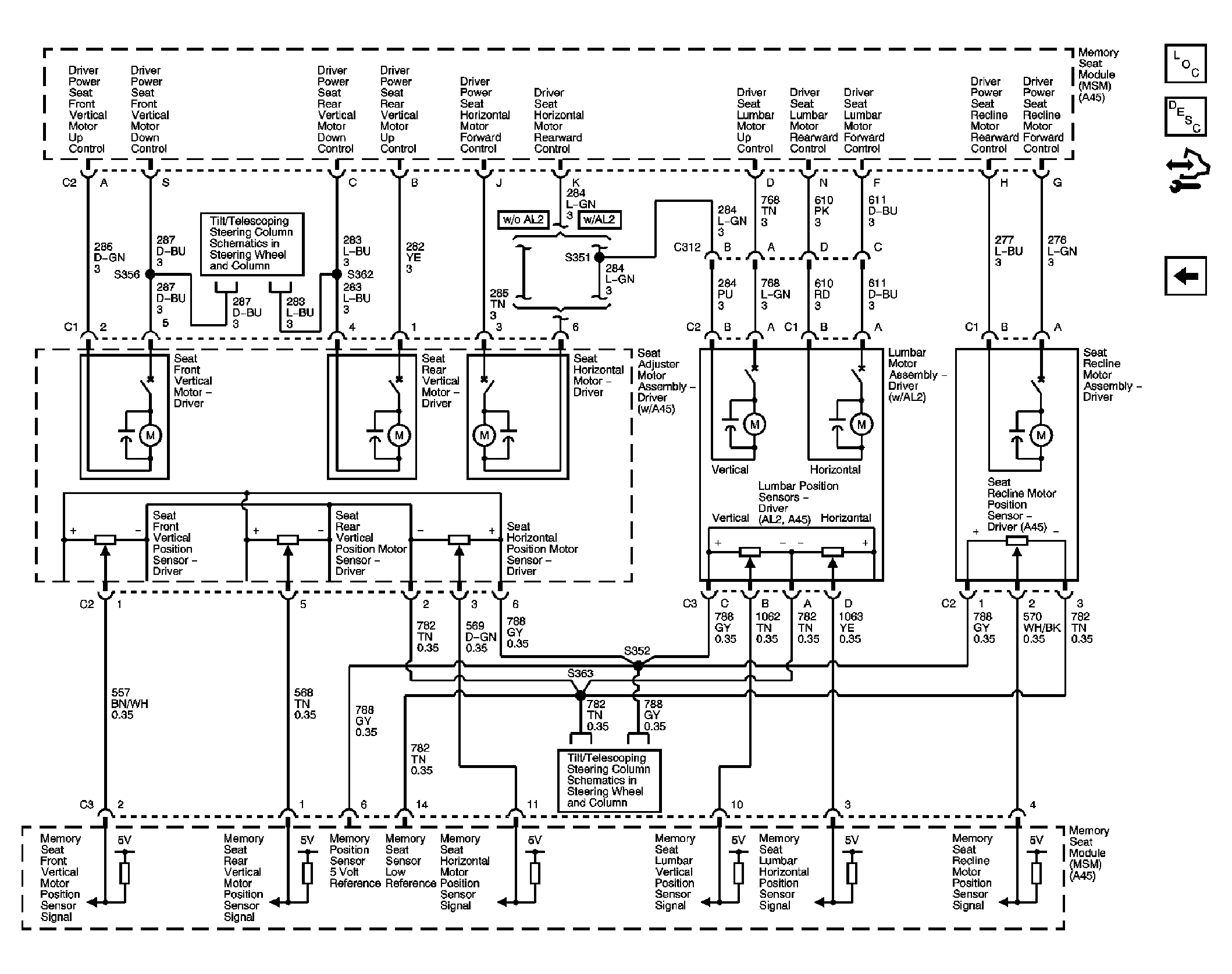

Fig 4: Position Sensors and Motors Schematic
GM1618912Courtesy of GENERAL MOTORS CORP.
