Front Seat Head Restraint Guide Replacement

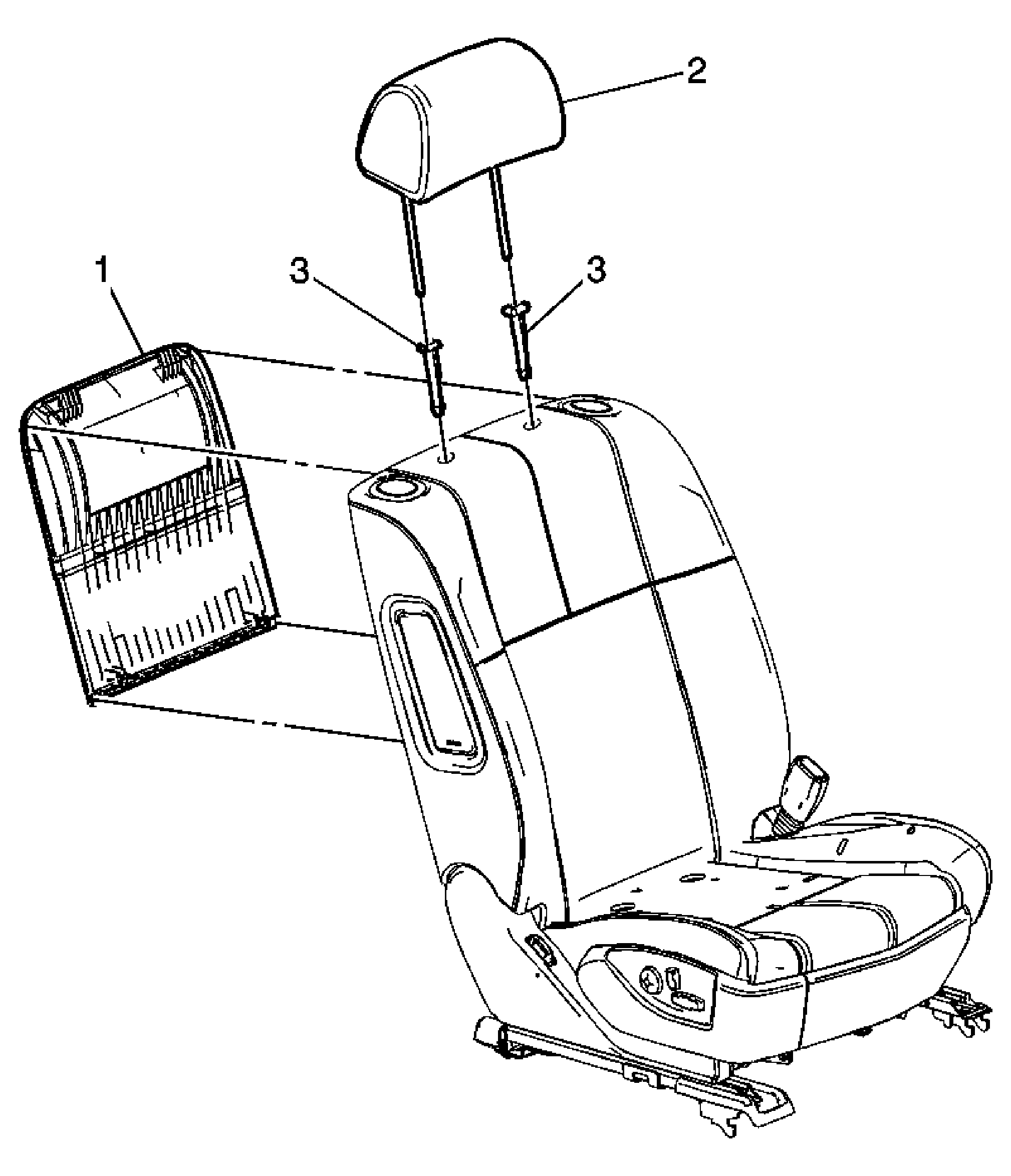

Fig 1: Front Seat Head Restraint Guide

Courtesy of GENERAL MOTORS CORP.

Front Seat Head Restraint Guide Replacement

Callout	Component Name
1	Seat Back Cushion Finish Panel Tip:  Pull rearward at the bottom of the panel to release the retainers then downward to remove the panel from the seat back.
2	Front Seat Head Restraint Refer to Front Seat Head Restraint Replacement .
3	Front Seat Head Restraint Guides Tip:  Squeeze the bottom of the guides together and push upward to remove.
