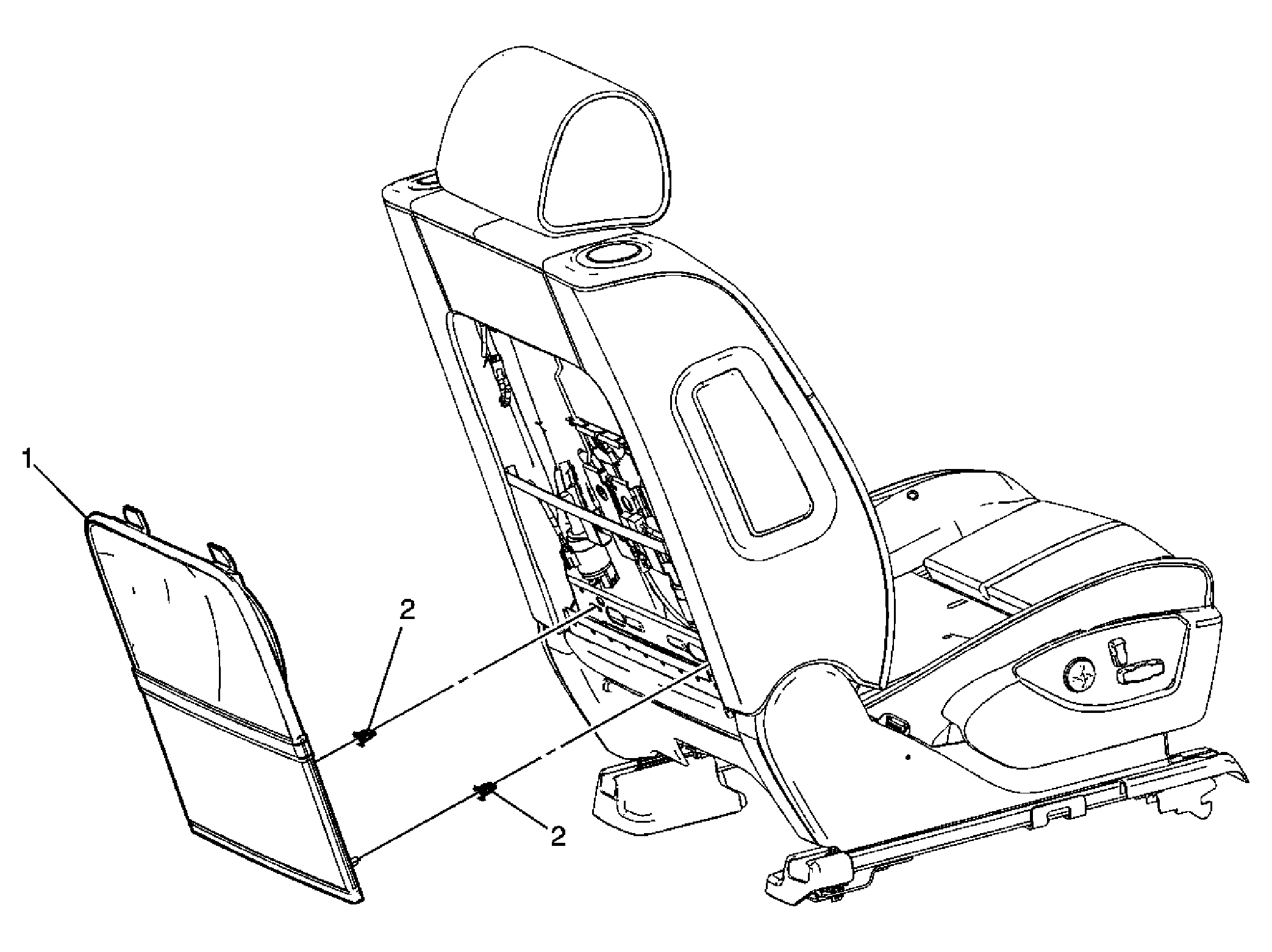

Front Seat Back Panel Replacement
Courtesy of GENERAL MOTORS CORP. Front Seat Back Panel Replacement
| Callout |
Component Name |
| 1 |
Seat Back Cushion Finish Panel
Tip:
Pull rearward at the bottom of the panel to release the retainers then downward to remove the panel from the seat back. |
| 2 |
Seat Back Cushion Finish Panel Retainer (Qty: 2) |
