Interior Lights Schematics

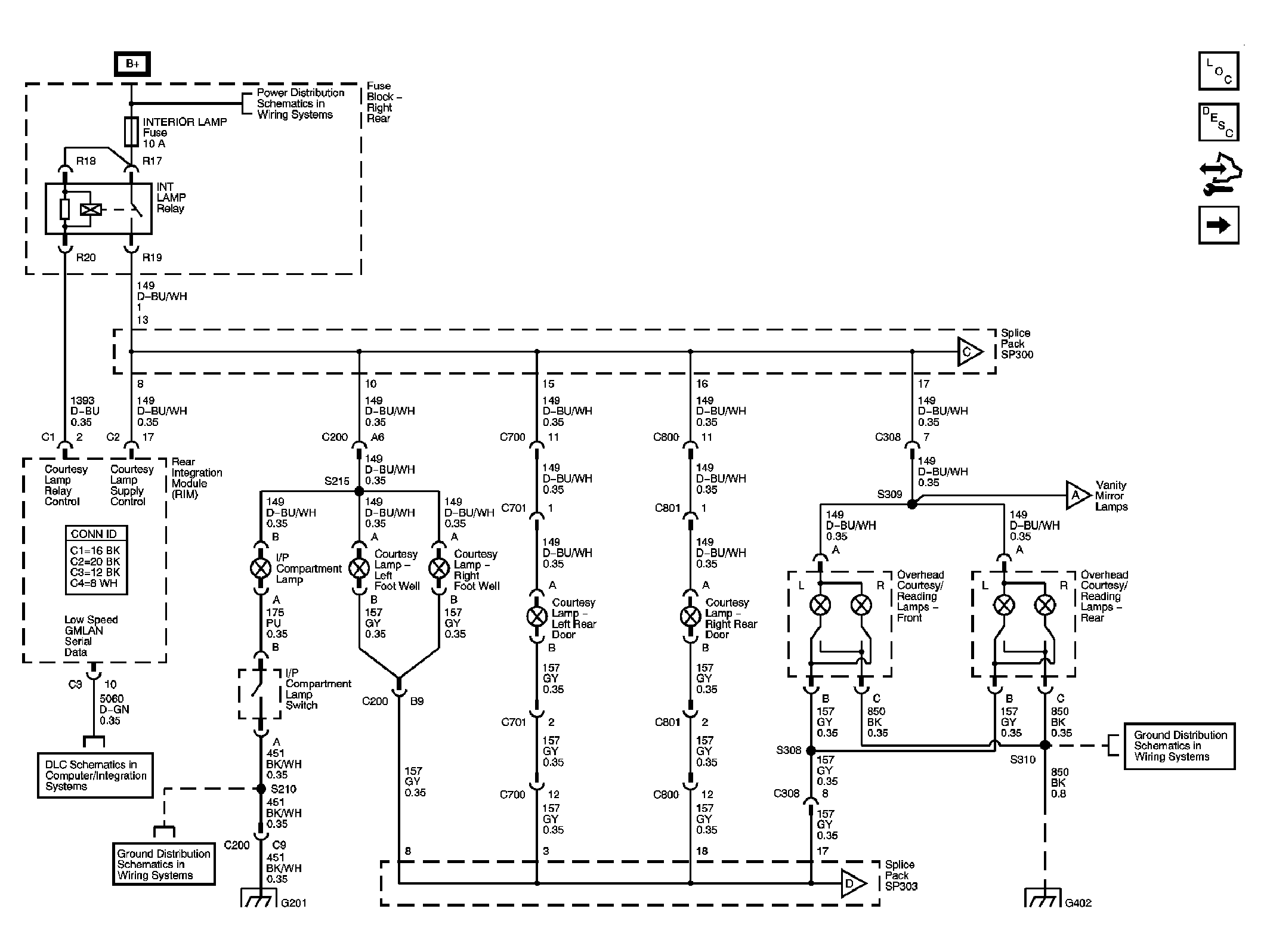

Fig 1: Courtesy Lamps
GM1618826Courtesy of GENERAL MOTORS CORP.

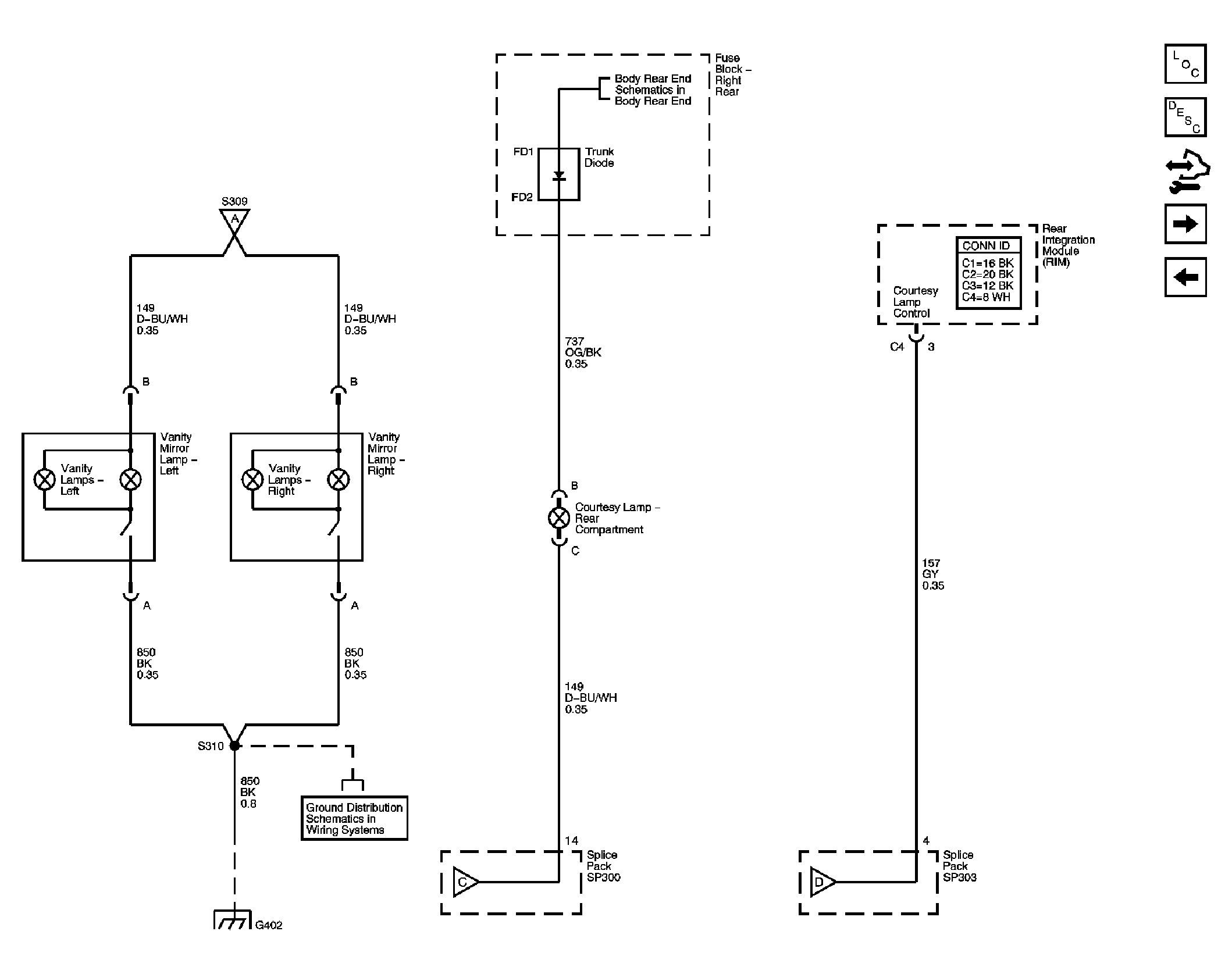

Fig 2: Vanity Mirror and Rear Compartment Lamps
GM1618825Courtesy of GENERAL MOTORS CORP.

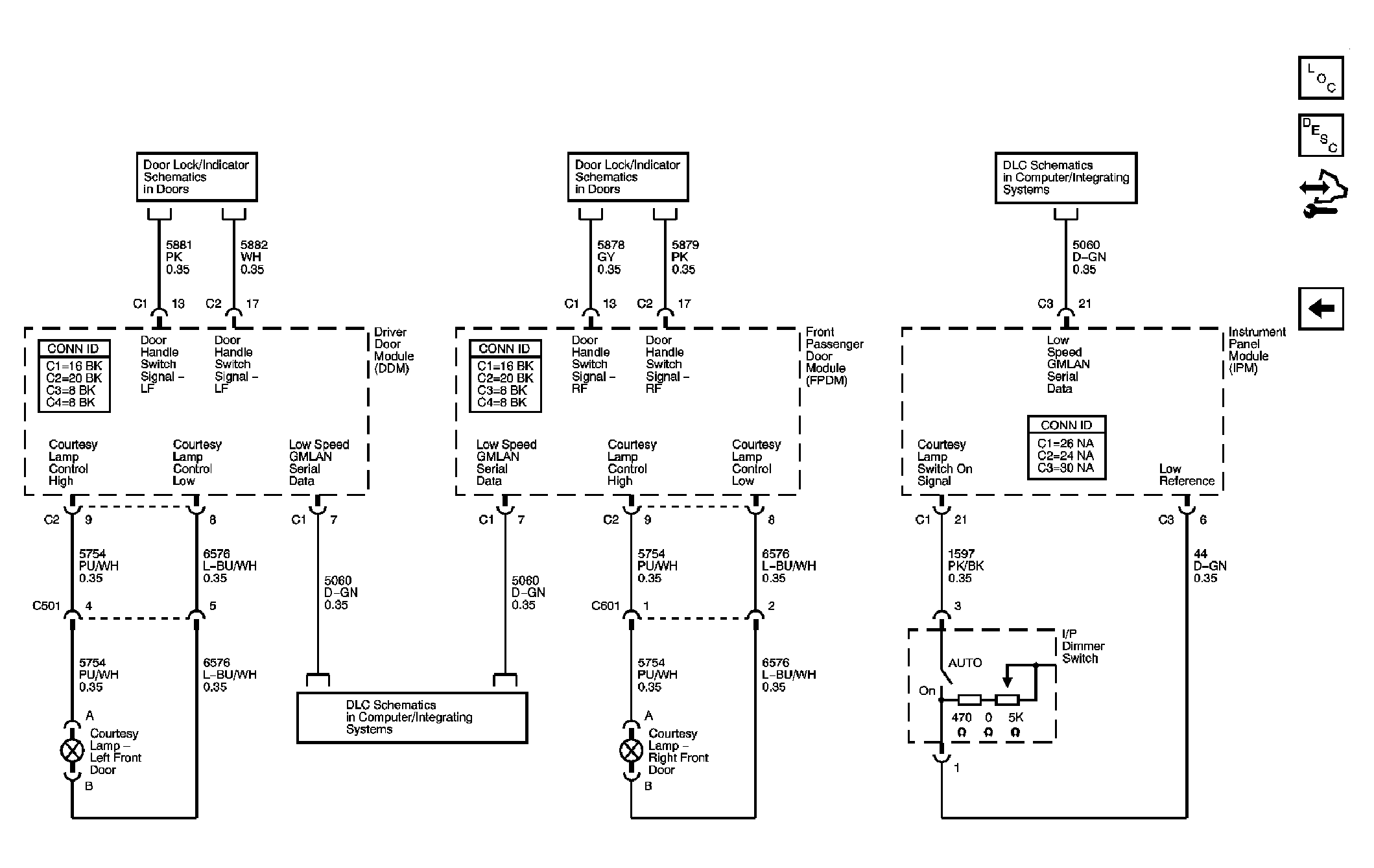

Fig 3: Front Door Puddle Lamps, DIC/Dimmer Switch
GM1618824Courtesy of GENERAL MOTORS CORP.
