Headlights/Daytime Running Lights (DRL) Schematics

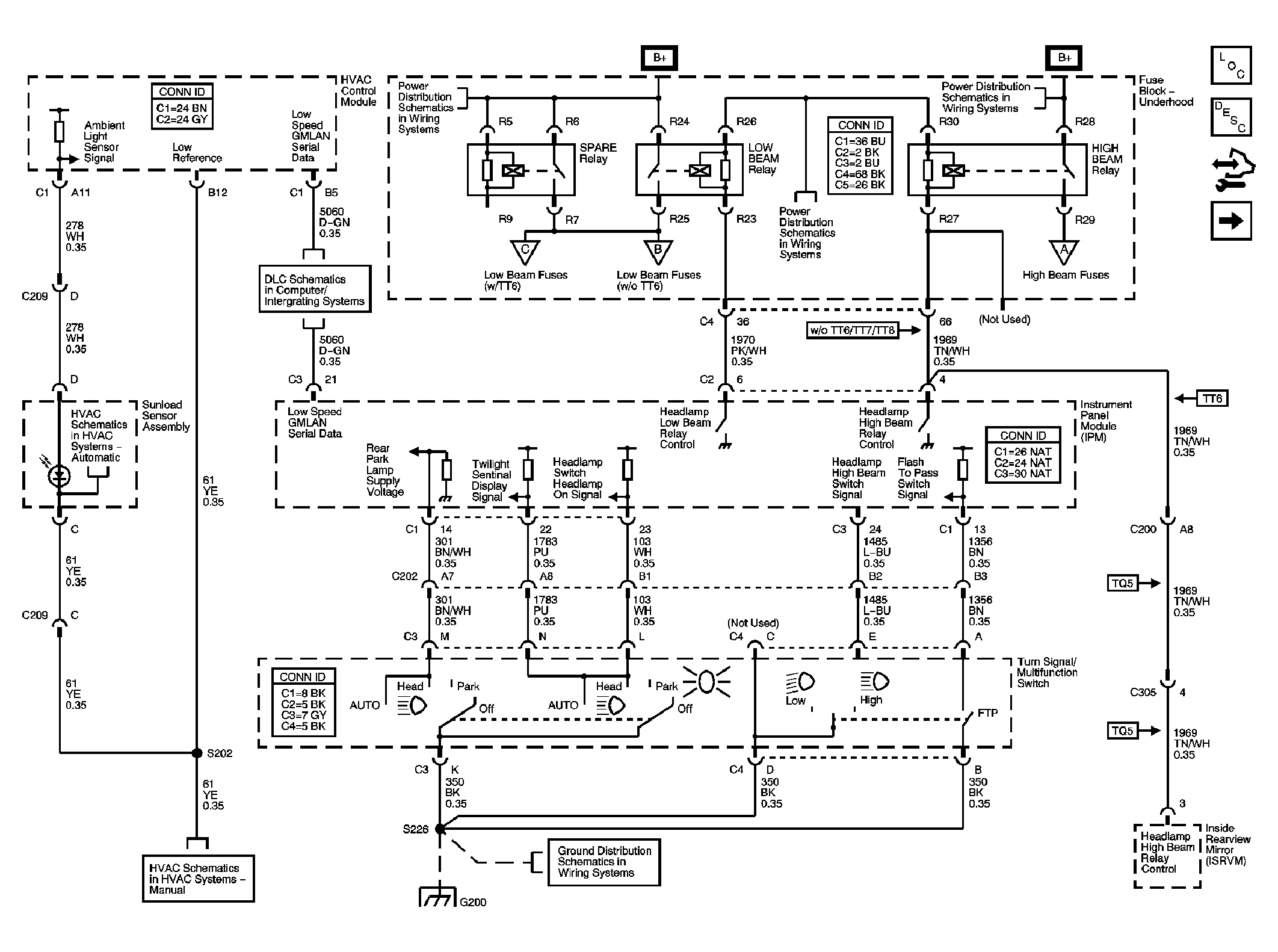

Fig 1: Headlamp Switch, Ambient Light Sensor, DLC
GM1618805Courtesy of GENERAL MOTORS CORP.

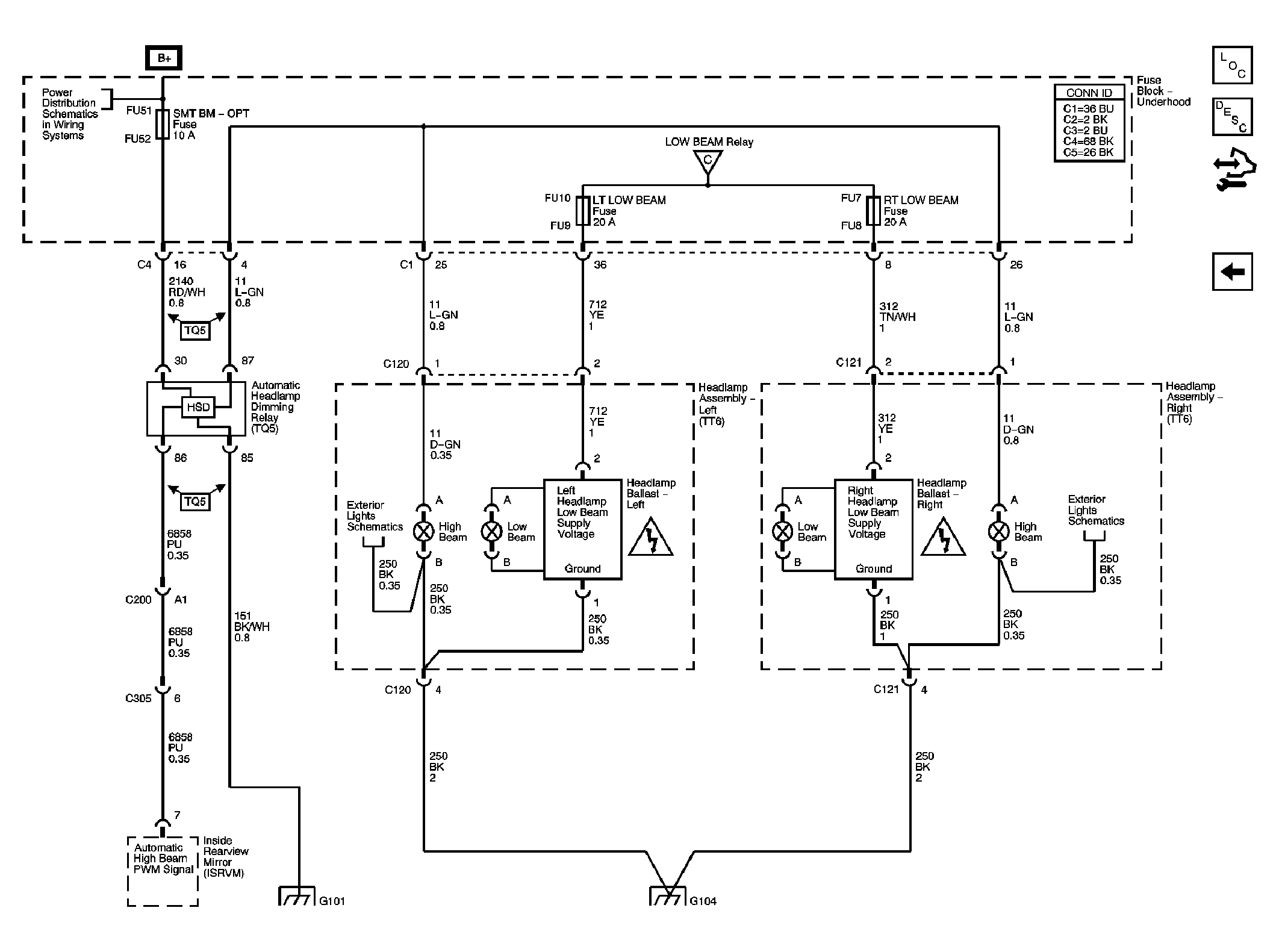

Fig 2: Automatic Headlamp Dimming Relay w/TT6, Headlamps w/TT6
GM1618803Courtesy of GENERAL MOTORS CORP.

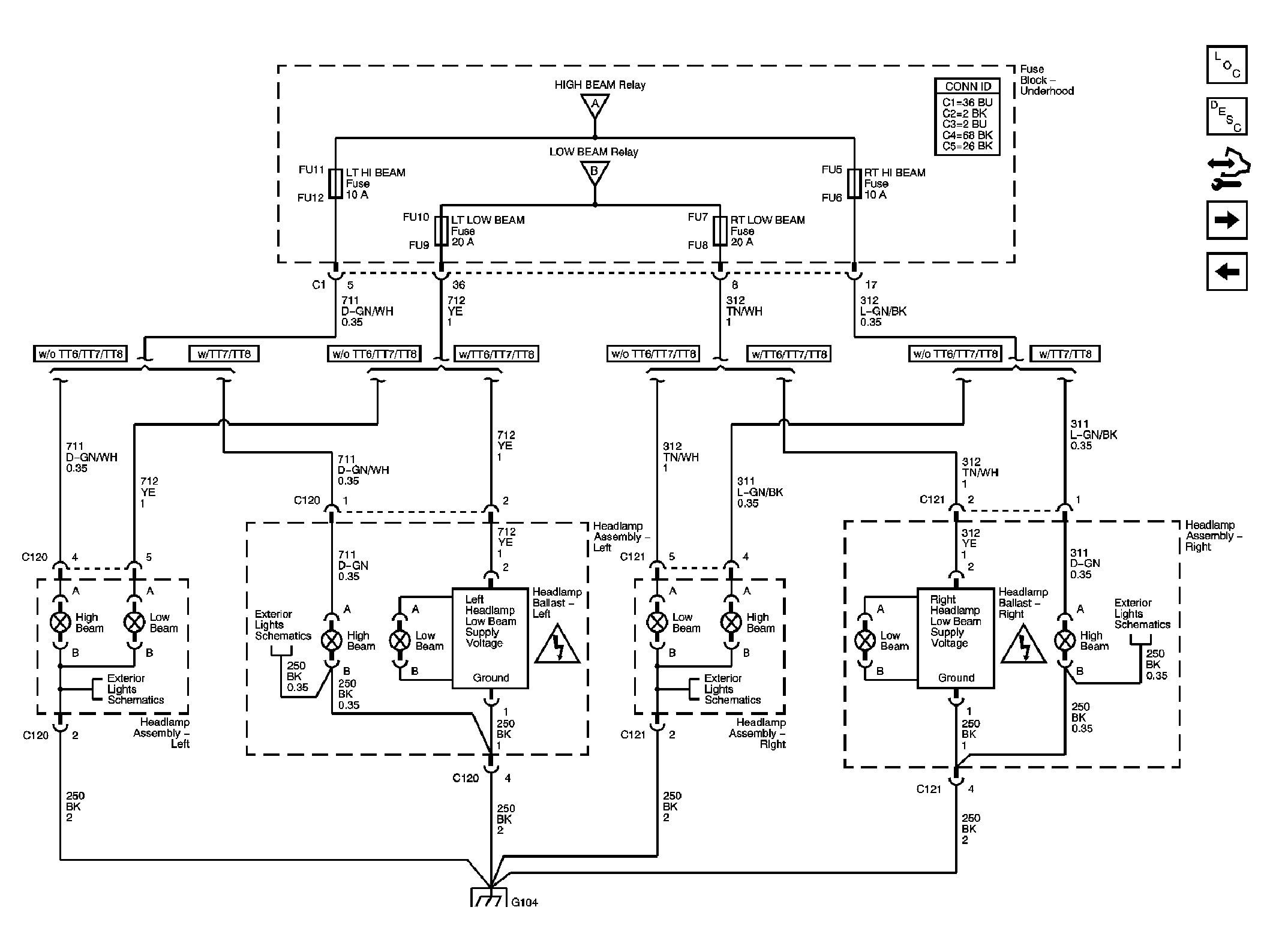

Fig 3: Power, Ground, Headlamps w/TT7/TT8 and w/o TT7/TT8
GM1618798Courtesy of GENERAL MOTORS CORP.
