Exterior Lights Schematics

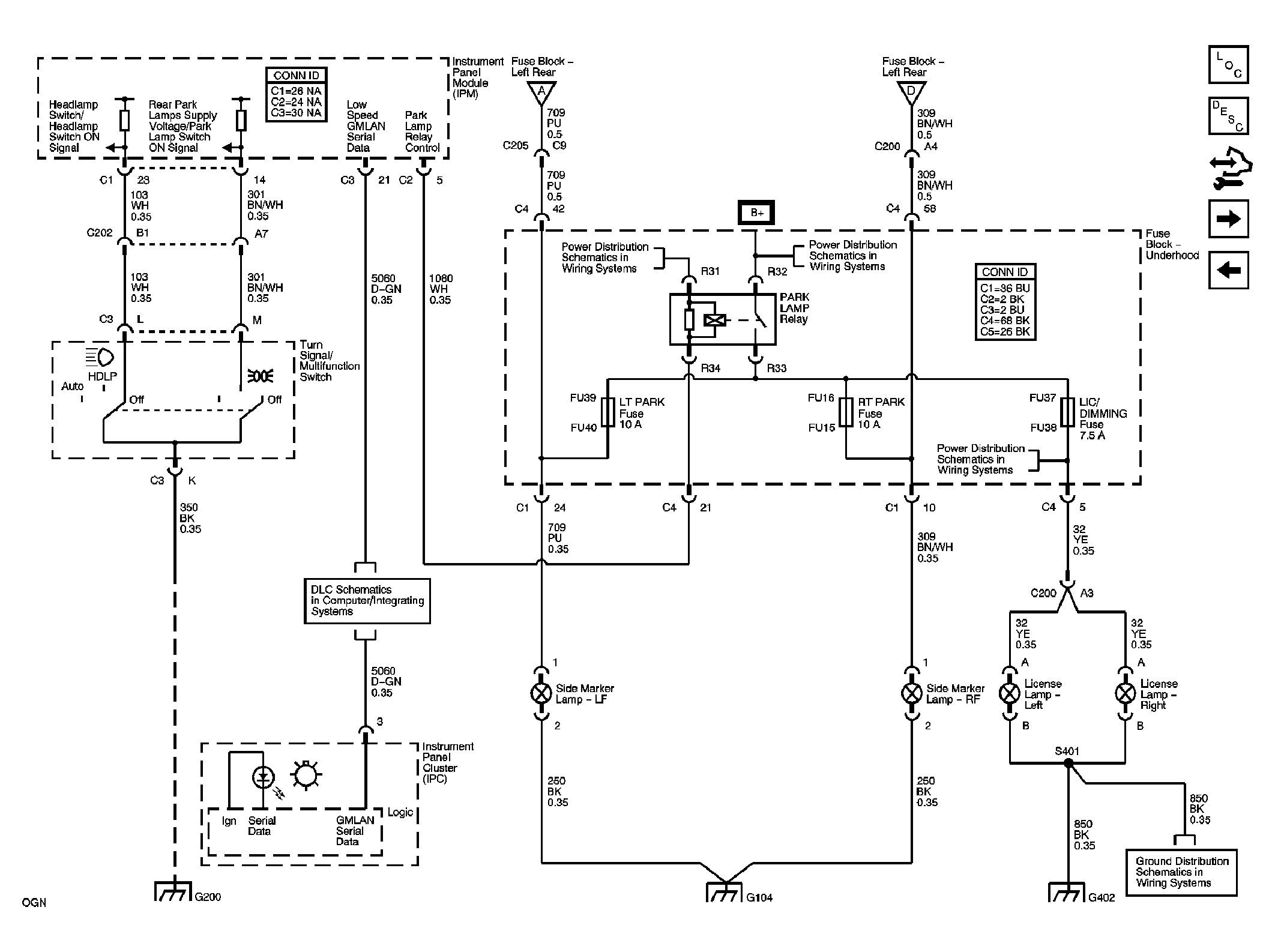

Fig 1: Park Lamp Relay, Switch, and Instrument Cluster - Domestic

Courtesy of GENERAL MOTORS CORP.

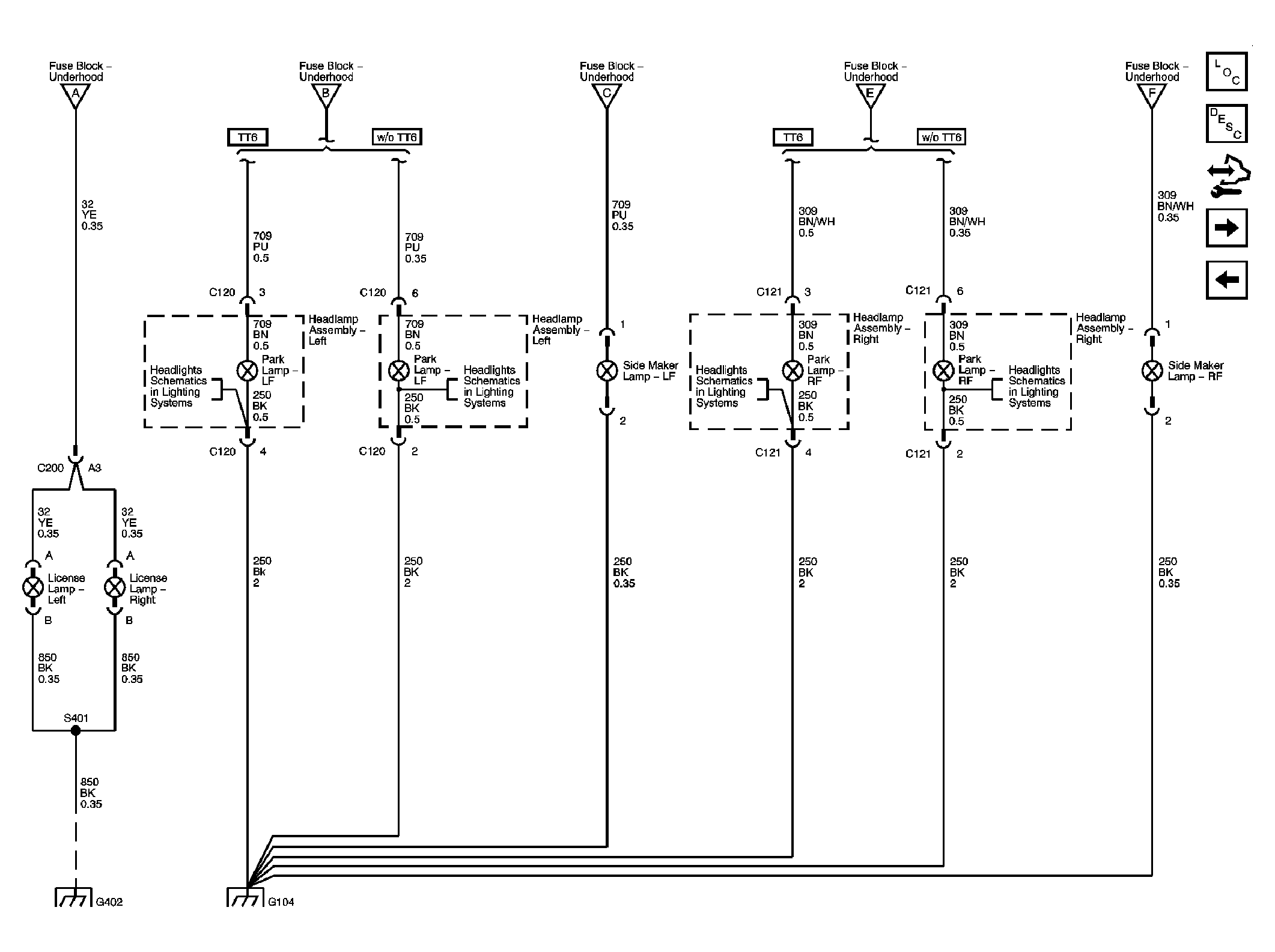

Fig 2: License, Park, and Side Marker Lamps - Domestic

Courtesy of GENERAL MOTORS CORP.

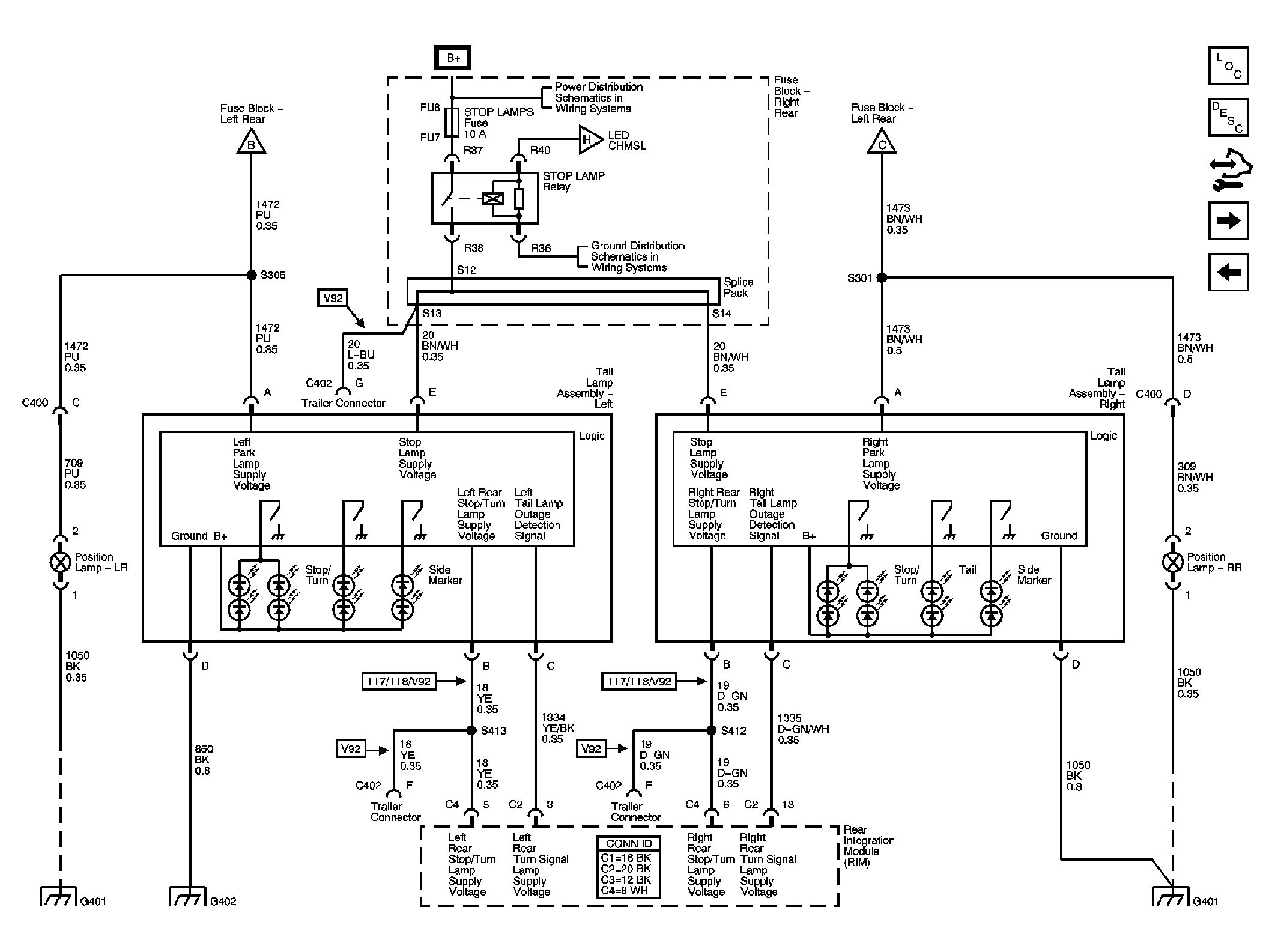

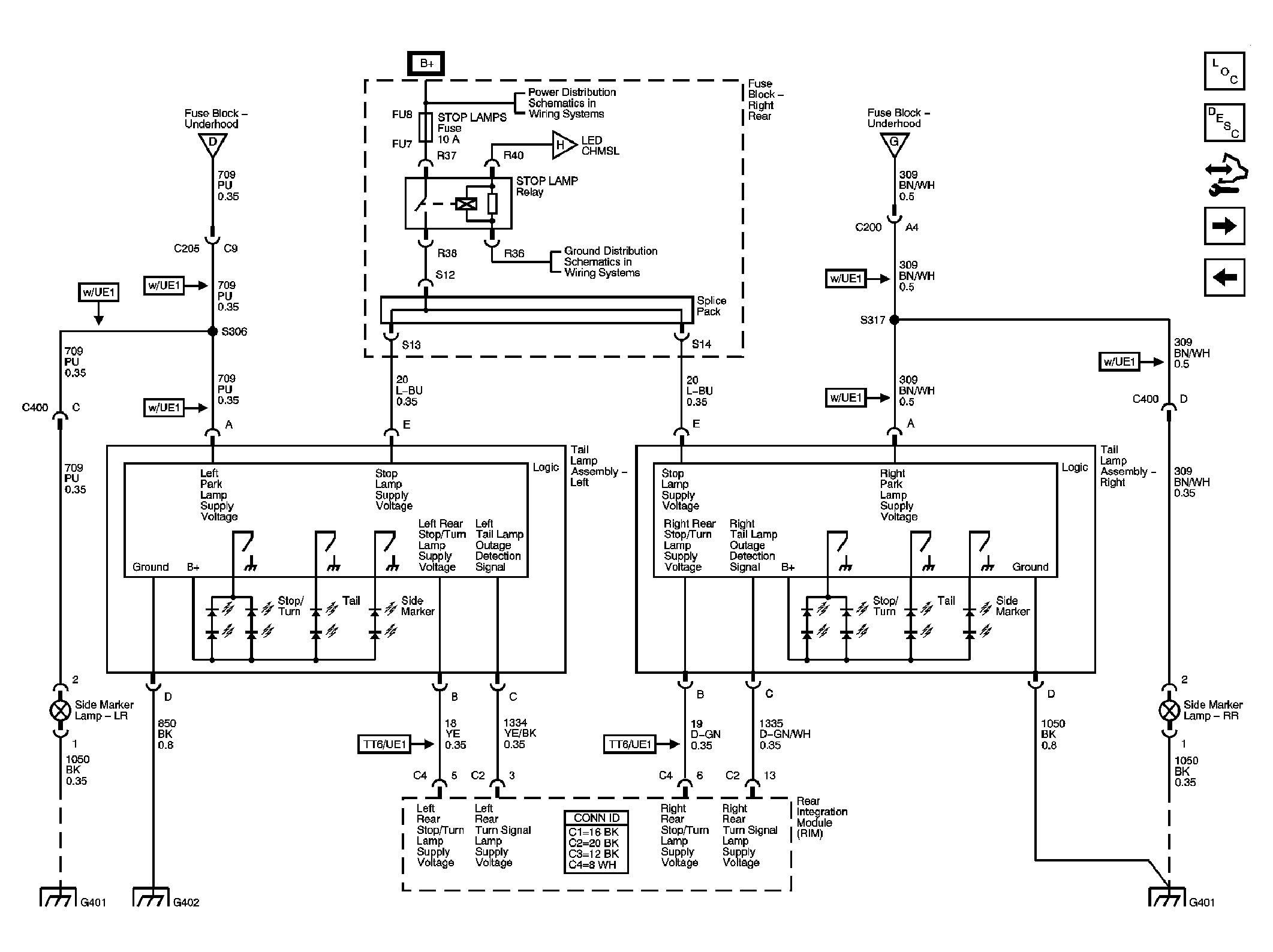

Fig 3: Tail Lamps - Domestic

Courtesy of GENERAL MOTORS CORP.

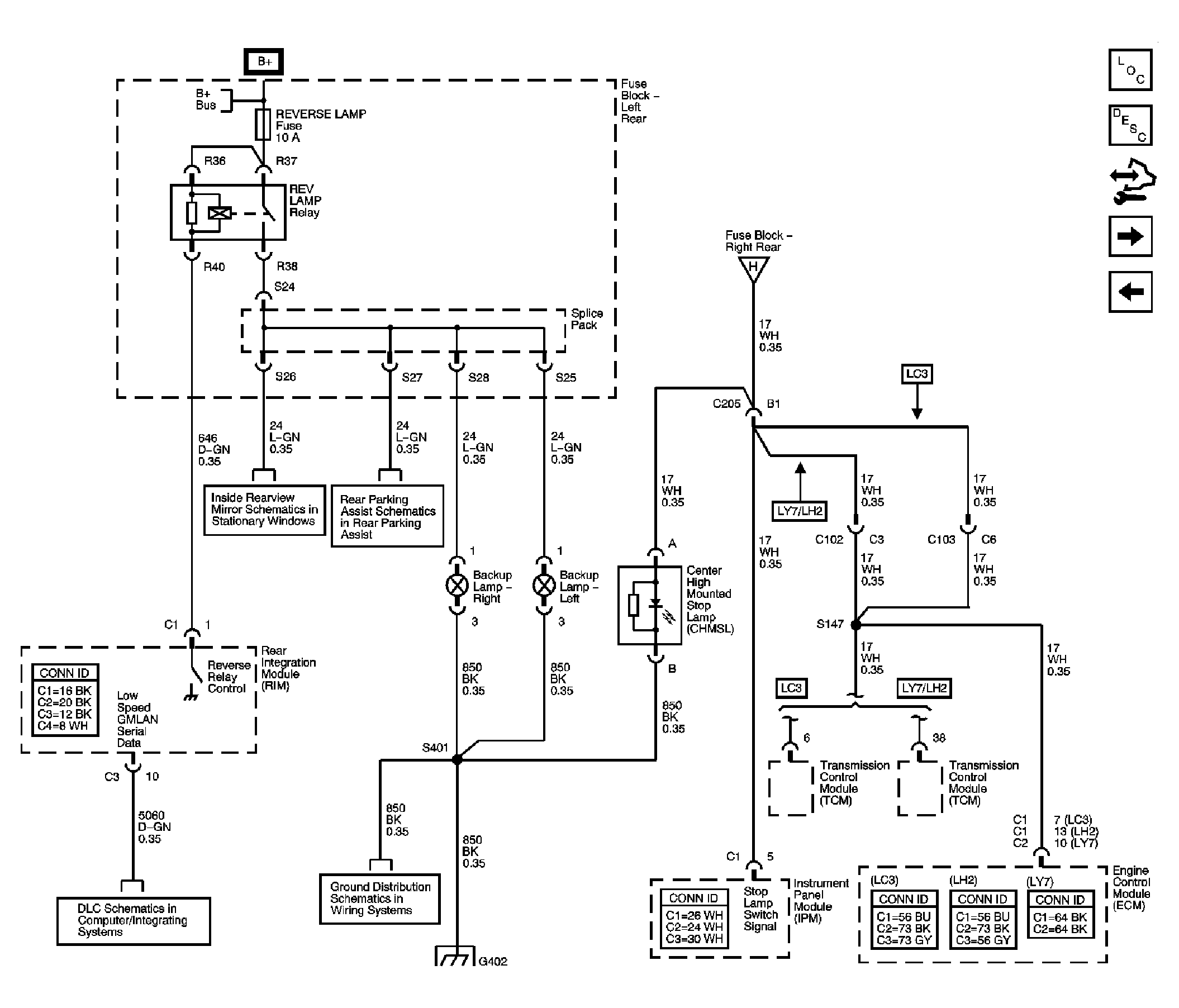

Fig 4: Backup Lamps, CHMSL - Domestic, Export

Courtesy of GENERAL MOTORS CORP.

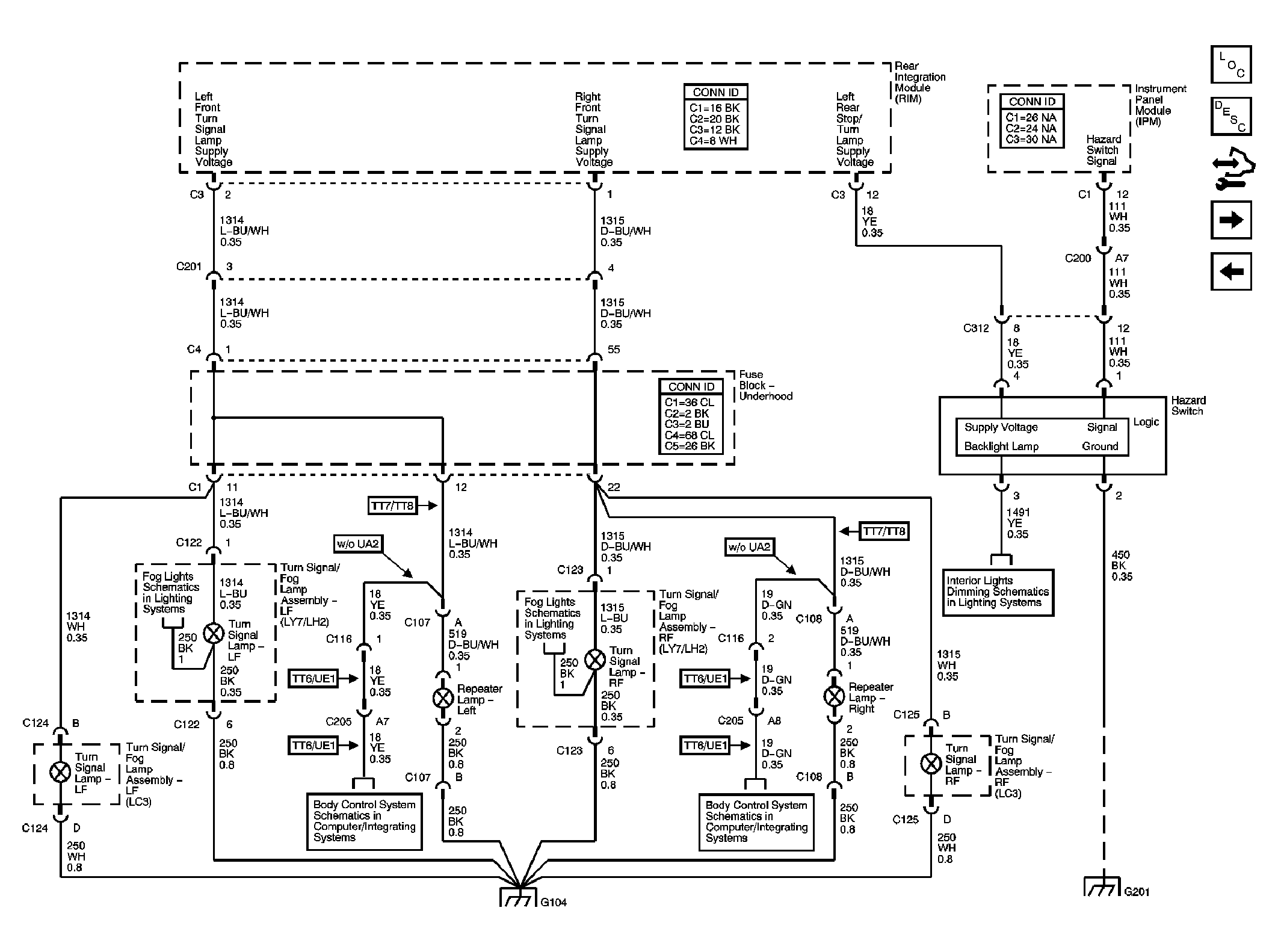

Fig 5: Front Turn Signal and Repeater Lamps, Hazard Switch - Domestic, Export

Courtesy of GENERAL MOTORS CORP.

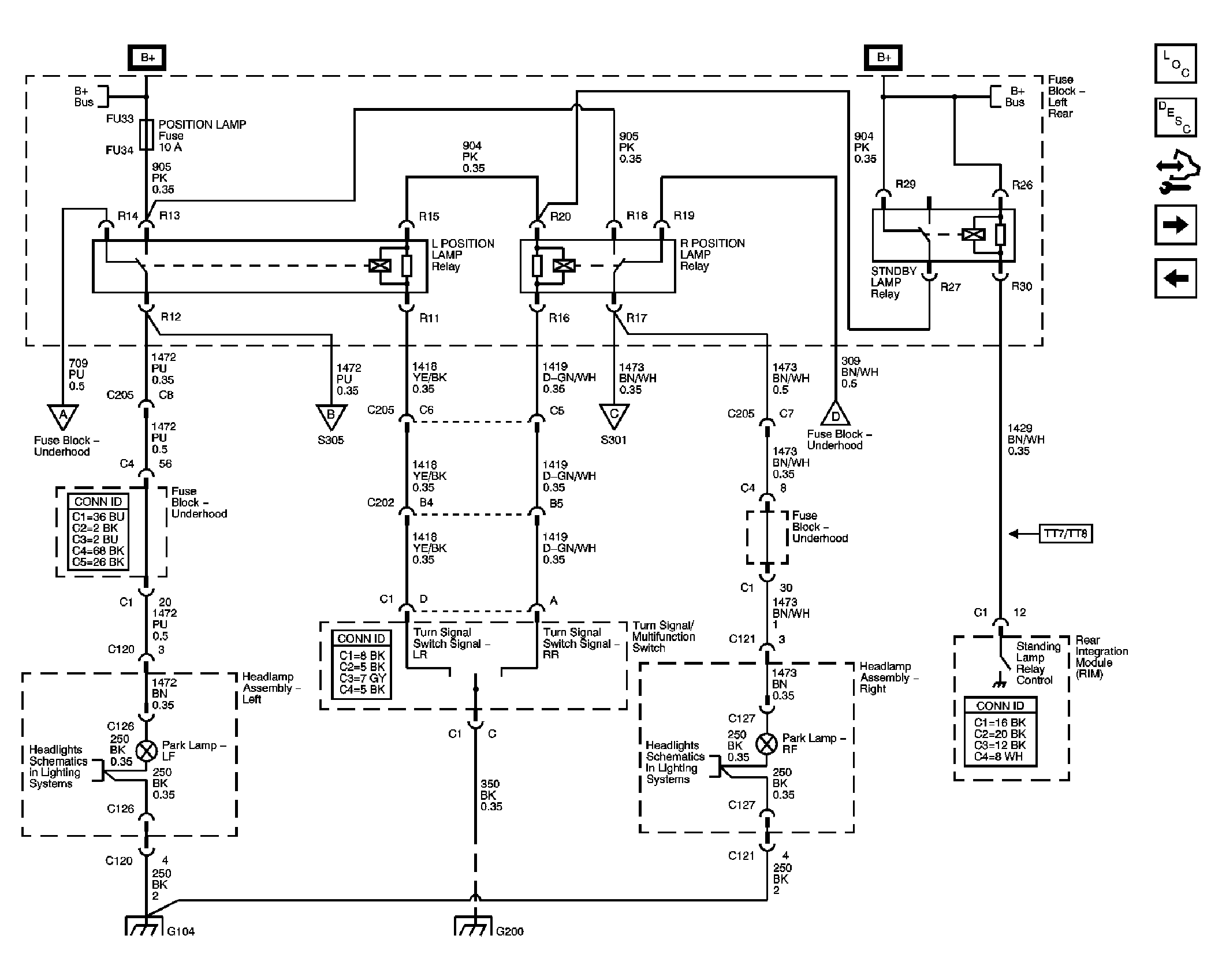

Fig 6: Front Park Lamps, Rear Turn Signal SW Signal, LT, RT Position and Standing Lamp Relays - Export

Courtesy of GENERAL MOTORS CORP.

Fig 7: Tail Lamps - Export

Courtesy of GENERAL MOTORS CORP.

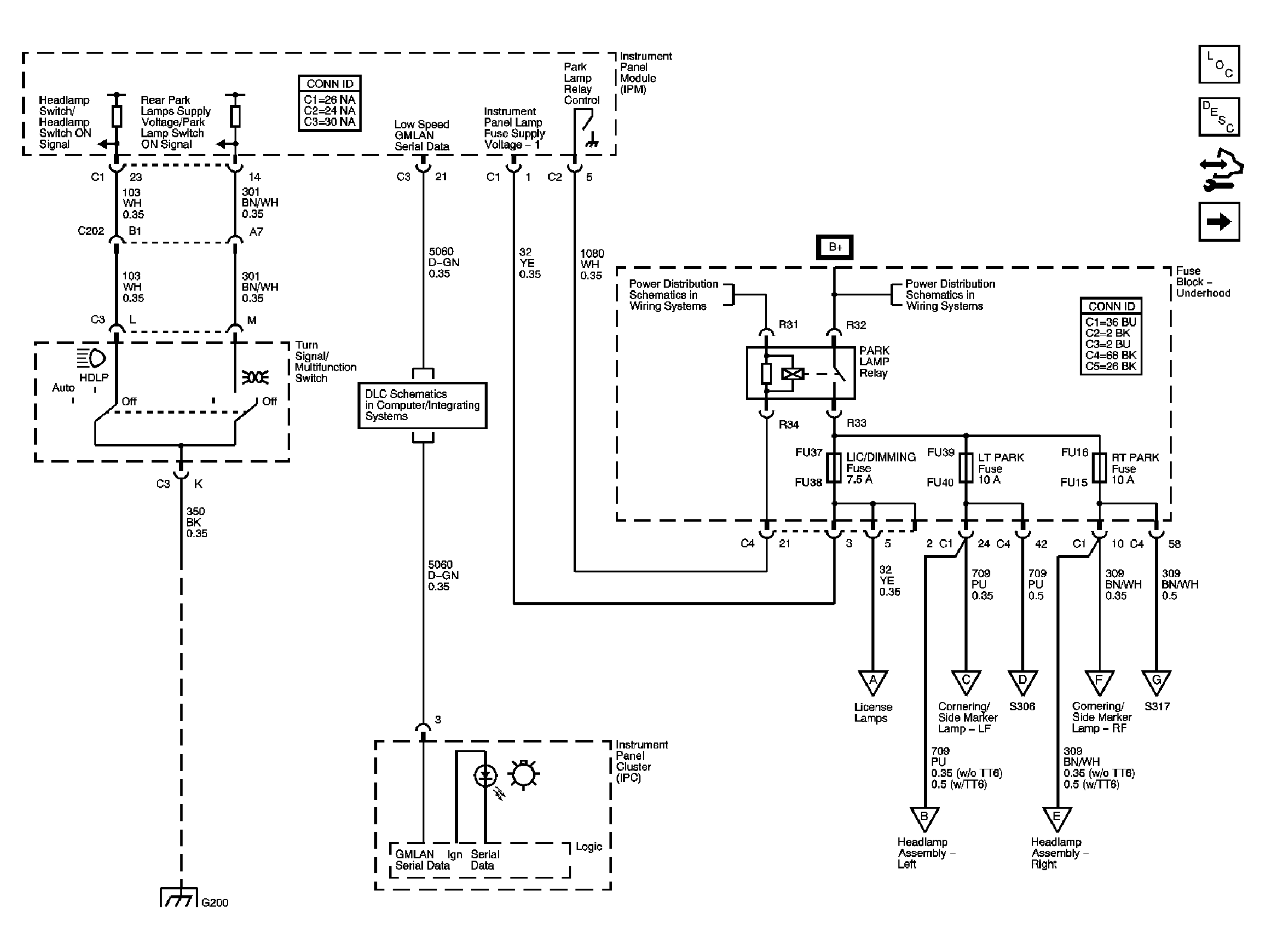

Fig 8: Park Lamp Relay, Switch, and Instrument Cluster - Export

Courtesy of GENERAL MOTORS CORP.

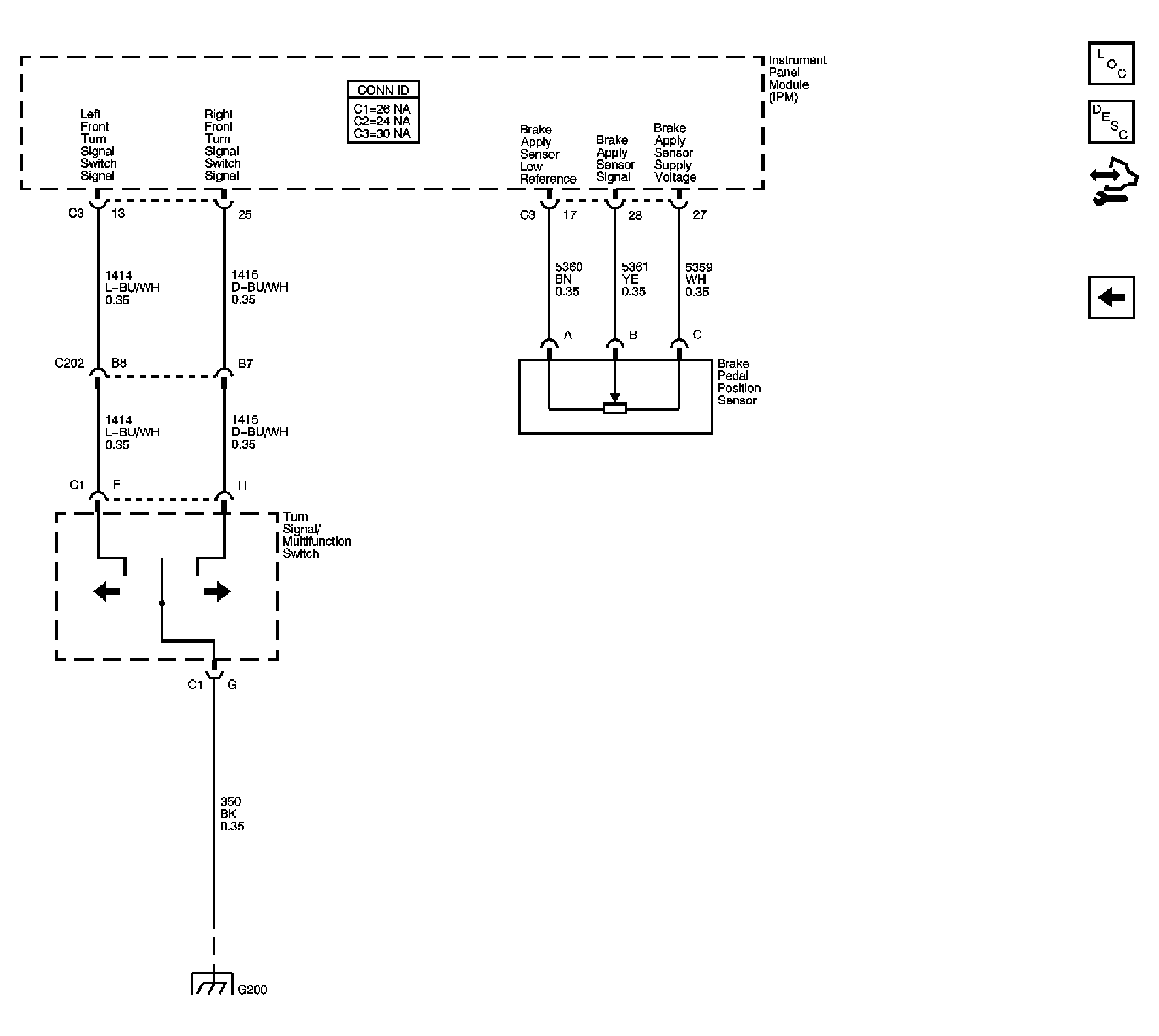

Fig 9: Front Turn Signal Switch Signals, Brake Pedal Position Sensor - Domestic, Export

Courtesy of GENERAL MOTORS CORP.
