Installation Procedure

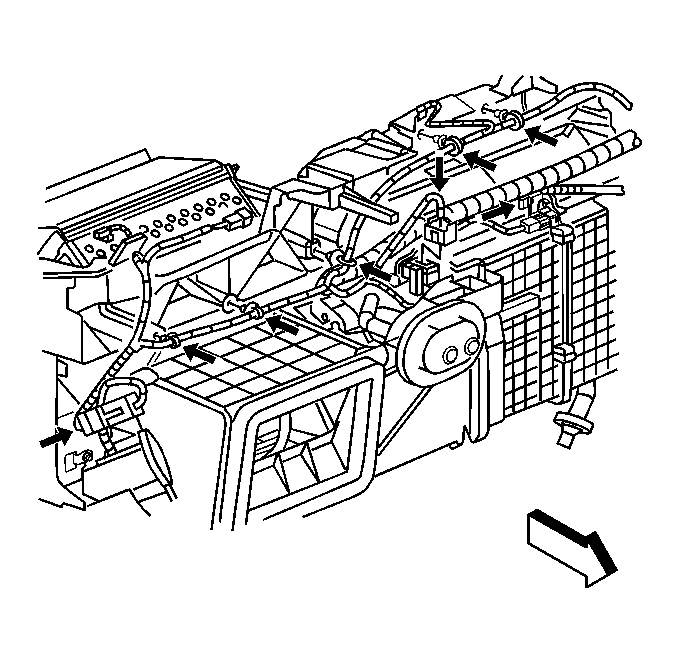

    Fig 1: View Of Instrument Panel (I/P) Carrier Wire Harness Retaining Clips
    GM1385918Courtesy of GENERAL MOTORS CORP.
  1. Connect the wire harness retaining clips to the rear of the carrier.

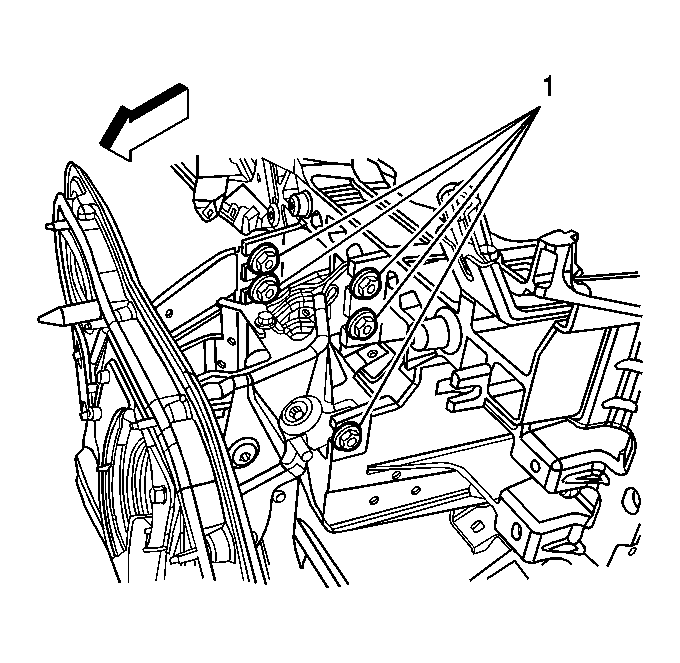

    2. Fig 2: View Of Nuts Securing The Instrument Panel Carrier Brackets To The Pedal Assembly
    GM1442345Courtesy of GENERAL MOTORS CORP.
  2. Locate the carrier on to the pedal assembly brackets.

    Tighten:  Tighten the nuts securing the instrument panel carrier brackets to the pedal assembly to 25 N.m (18 lb ft)

    3. Fig 3: View Of Instrument Panel (I/P) Carrier
    GM1442342Courtesy of GENERAL MOTORS CORP.
  3. Install the carrier to the vehicle.
  4. Install the wire harness back into noted position.
    5. Fig 4: View Of Fasteners Securing The Carrier To The Cowl
    GM1442340Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  5. Install the fasteners securing the carrier to the cowl.

    Tighten:  Tighten the bolts to 9 N.m (80 lb in).

  6. Install the bolt securing the carrier to the HVAC housing.

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

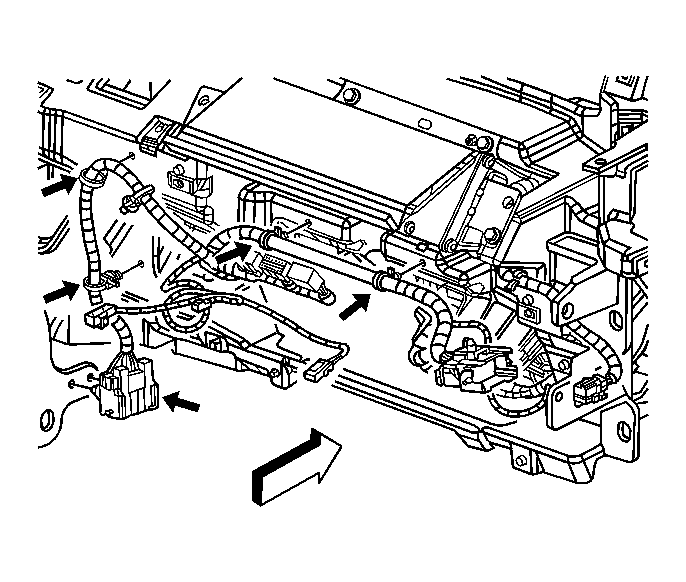

    7. Fig 5: View Of Wire Harness Connector And Clips On The Passenger Side
    GM1385926Courtesy of GENERAL MOTORS CORP.
  7. Connect the wire harness connectors and the harness clips on the passenger side of the instrument panel.

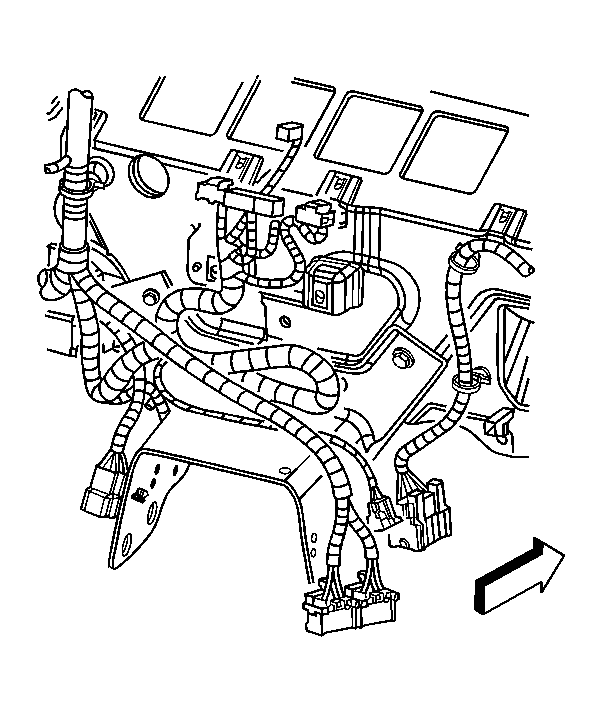

    8. Fig 6: View Of Wire Harness Connector And Clips On The Center Of The Instrument Panel
    GM1385929Courtesy of GENERAL MOTORS CORP.
  8. Install the wire harness clips in the center of the instrument panel.

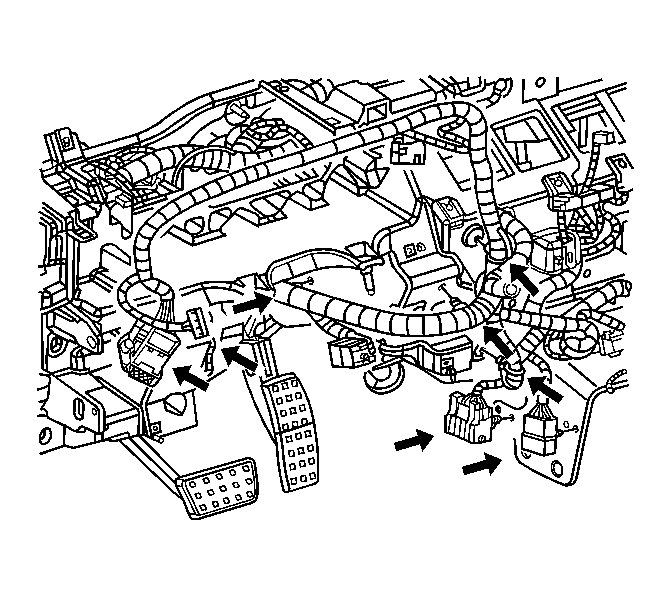

    9. Fig 7: View Of Wire Harness Connector And Clips On The Drivers Side
    GM1385924Courtesy of GENERAL MOTORS CORP.
  9. Connect the wire harness connector and clips on the drivers side of the vehicle.
  10. Install the steering column. Refer to Steering Column Replacement .
  11. Install the instrument panel retainer. Refer to Instrument Panel Retainer Replacement .
  12. Install the front seats. Refer to Bucket Seat Replacement .
