Removal Procedure

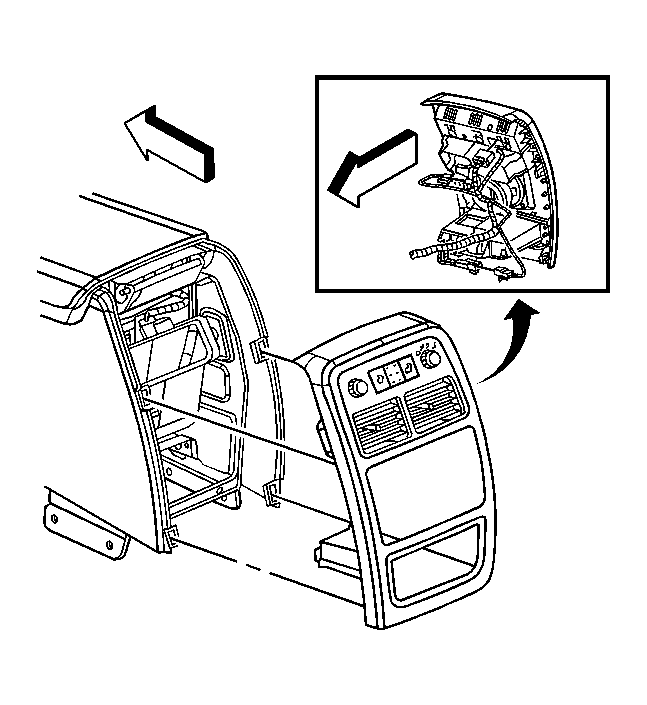

    Fig 1: View Of Center Console End Panel
    GM1442978Courtesy of GENERAL MOTORS CORP.
  1. Release the retaining clips using a blunt trim tool.
  2. Disconnect the wire harness connectors.
  3. Remove the end panel trim panel.
