Suspension Controls Schematics

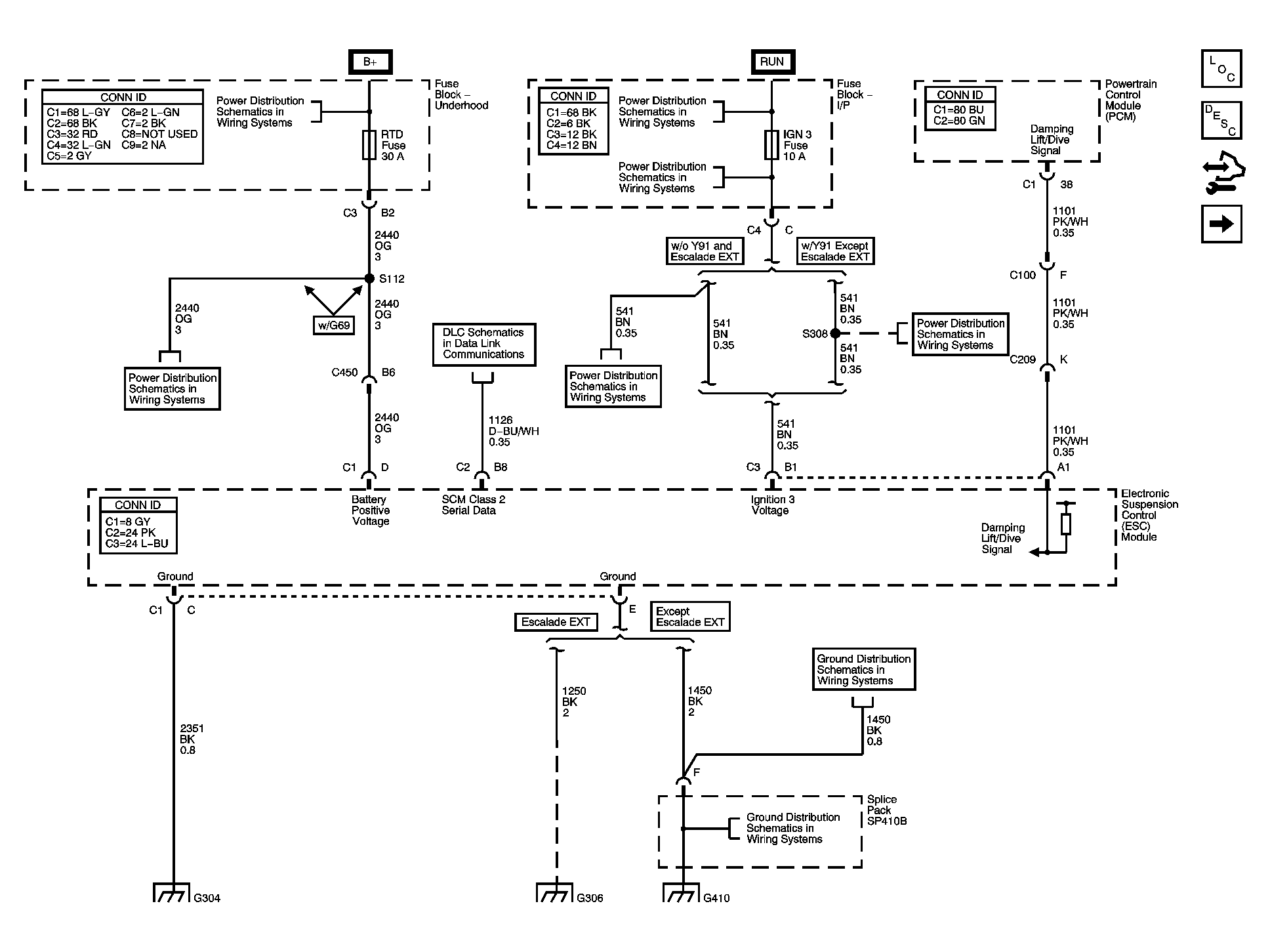

Fig 1: Power, Ground, and Serial Data
GM1607844Courtesy of GENERAL MOTORS CORP.

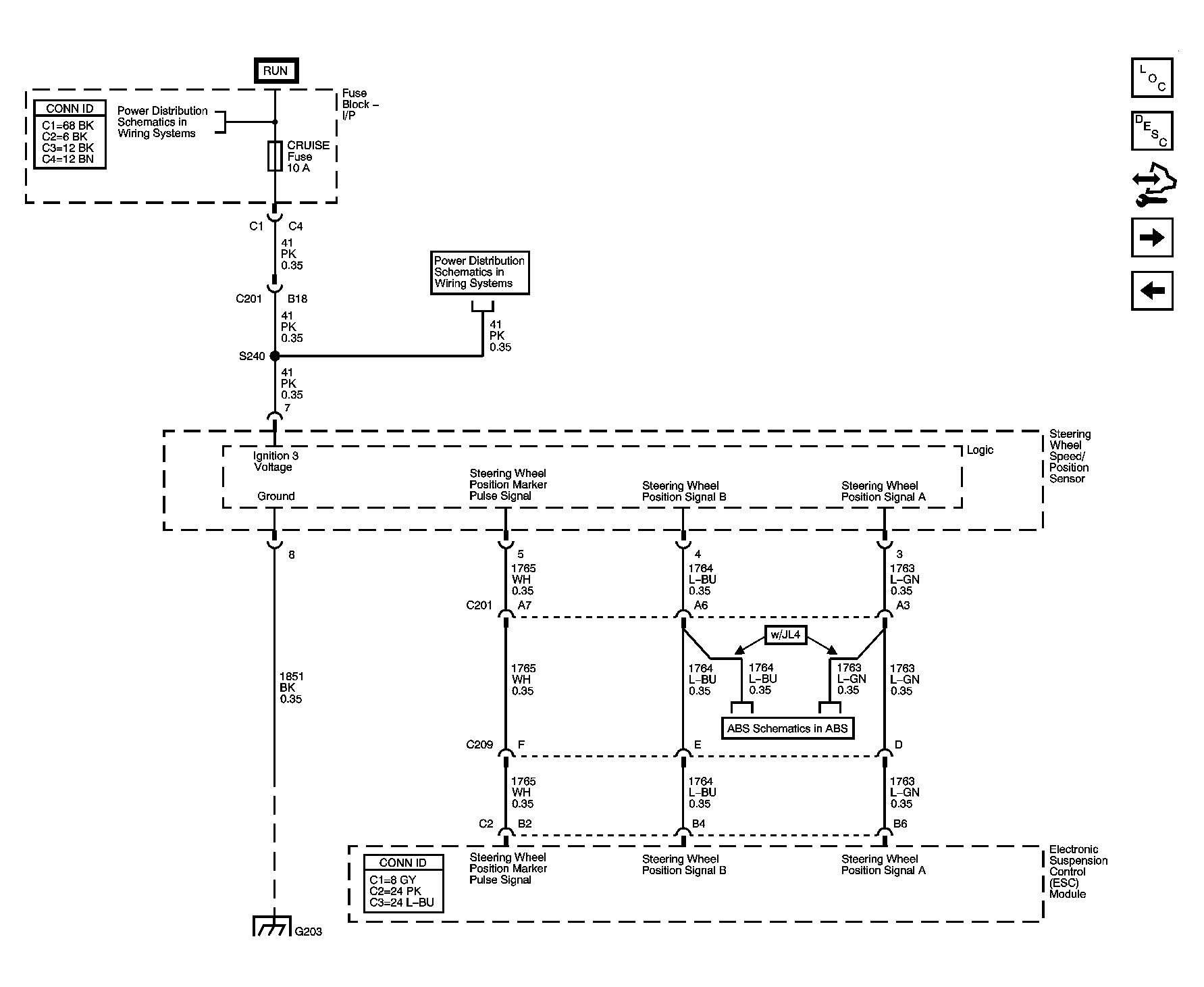

Fig 2: Steering Wheel Speed/Position Sensor Inputs
GM1607845Courtesy of GENERAL MOTORS CORP.

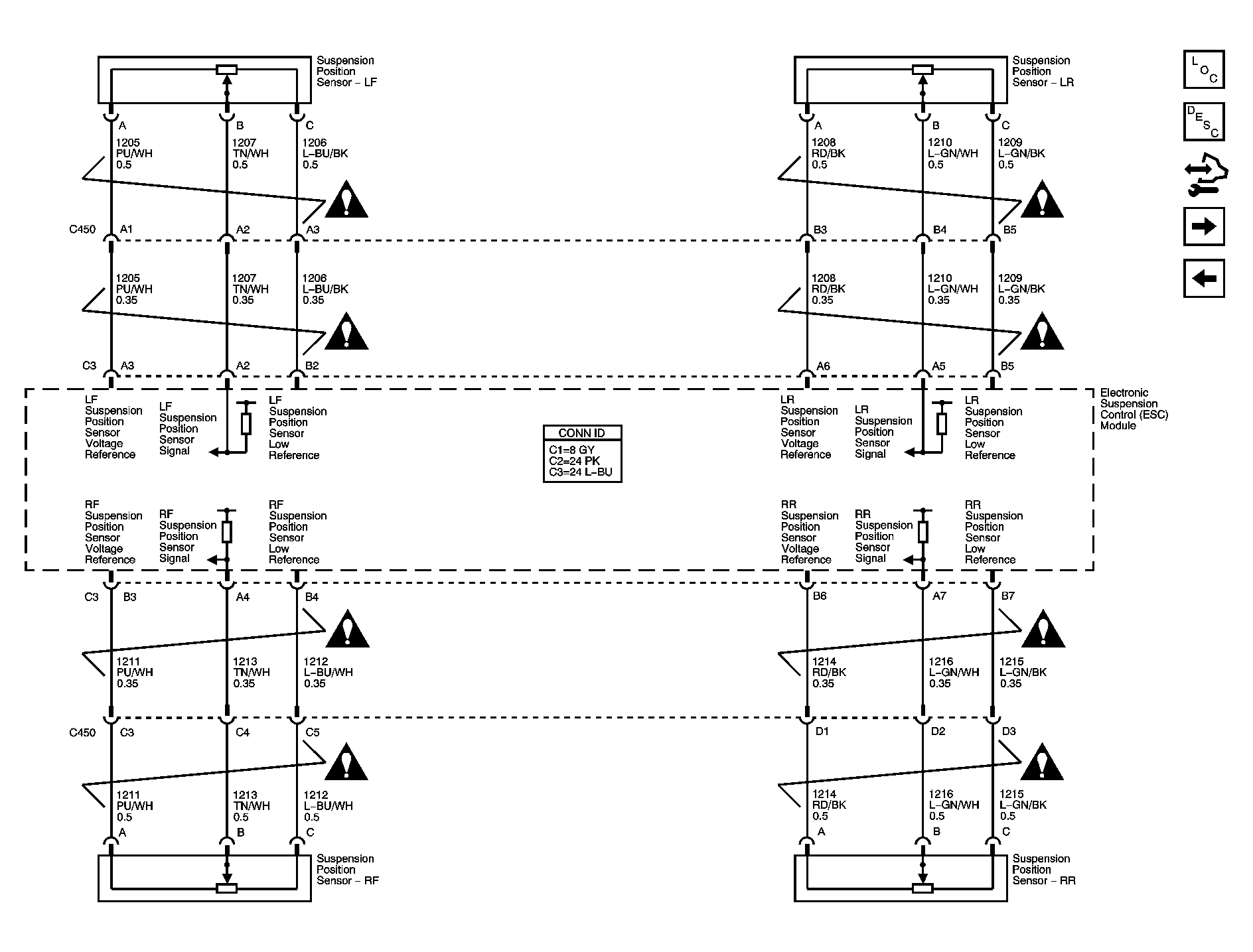

Fig 3: Suspension Position Sensors
GM1607846Courtesy of GENERAL MOTORS CORP.

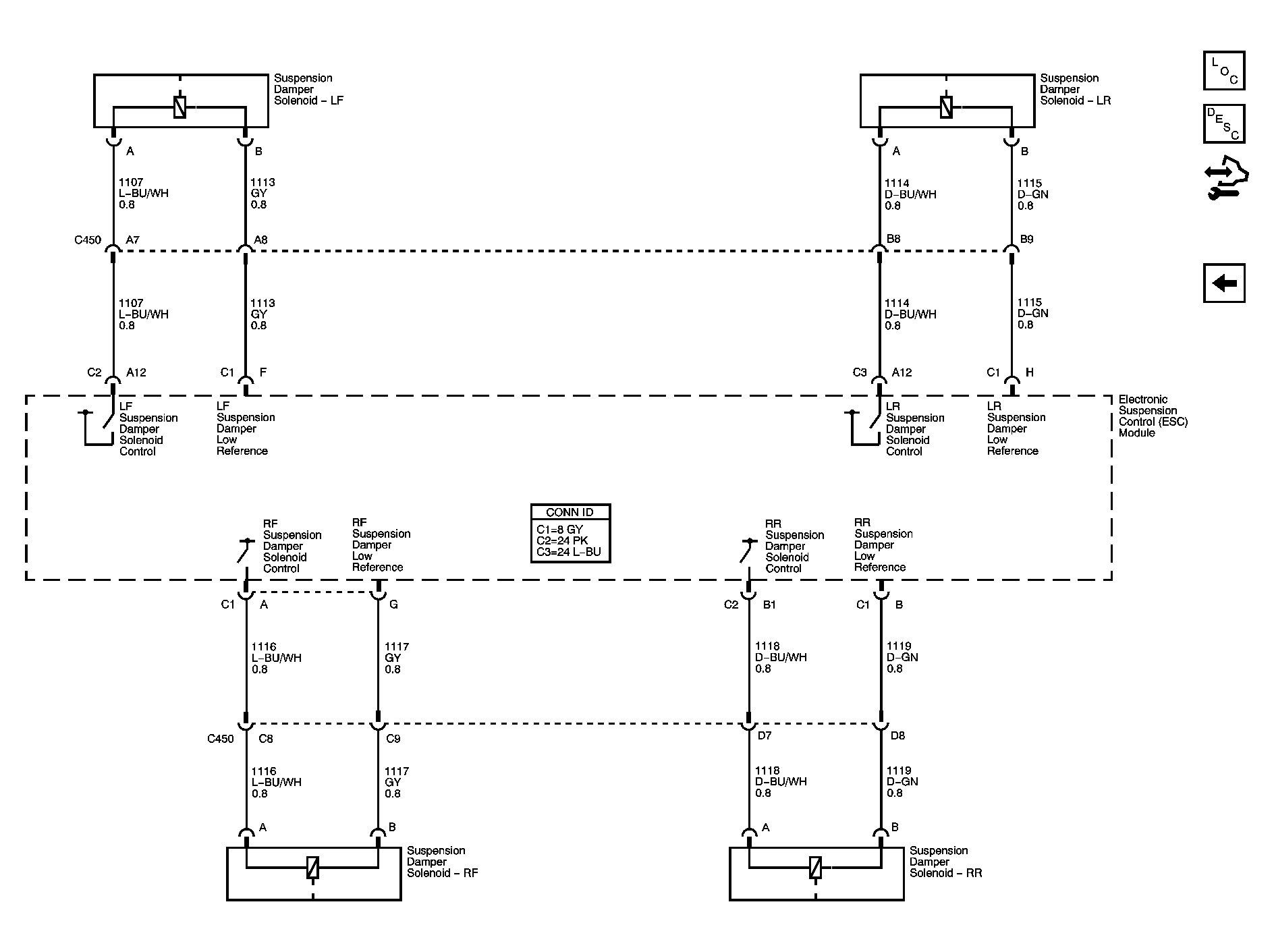

Fig 4: Suspension Damper Solenoids
GM1607847Courtesy of GENERAL MOTORS CORP.
