SIR Schematics

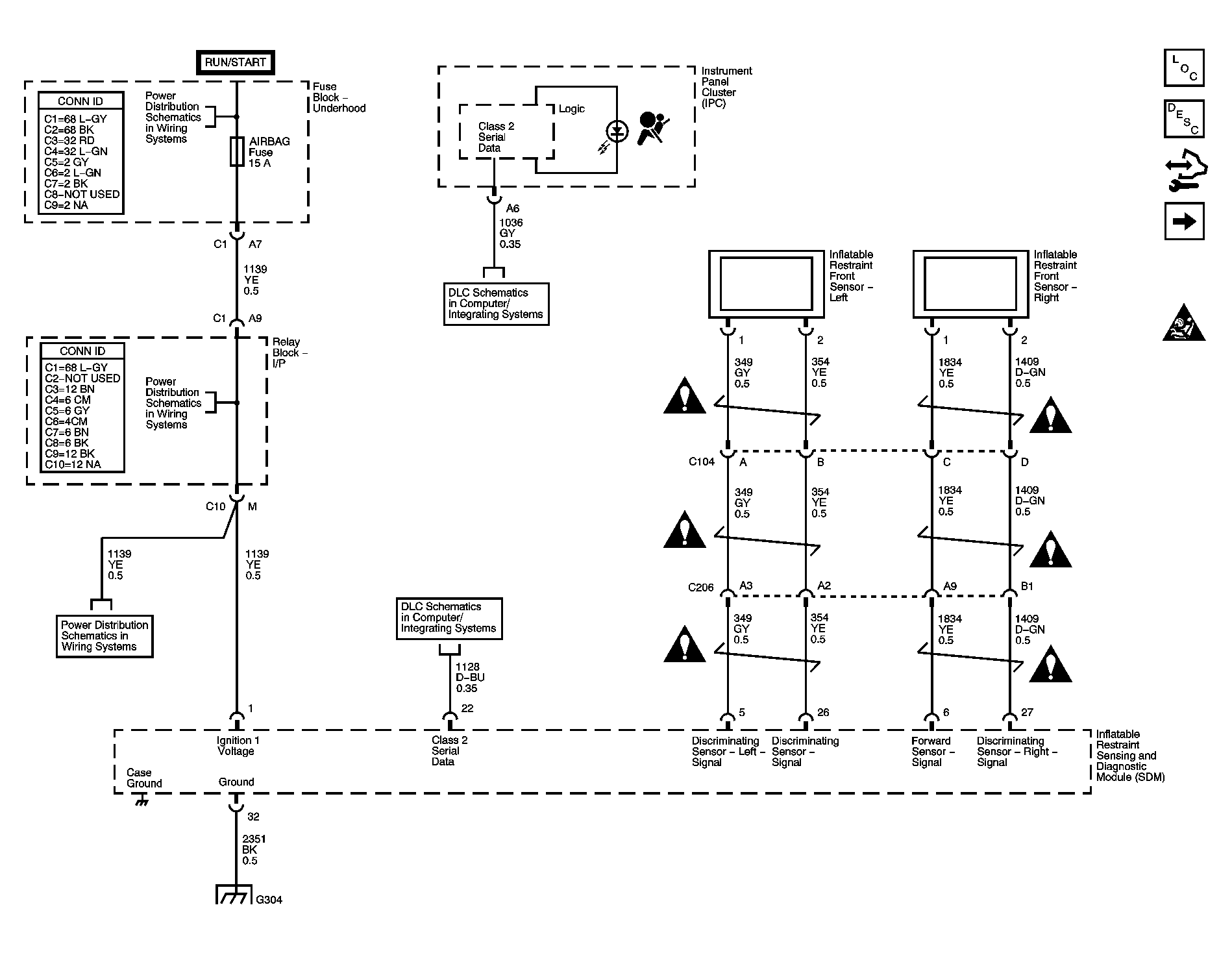

Fig 1: Power, Ground, Serial Data, and Front Impact Sensors

Courtesy of GENERAL MOTORS CORP.

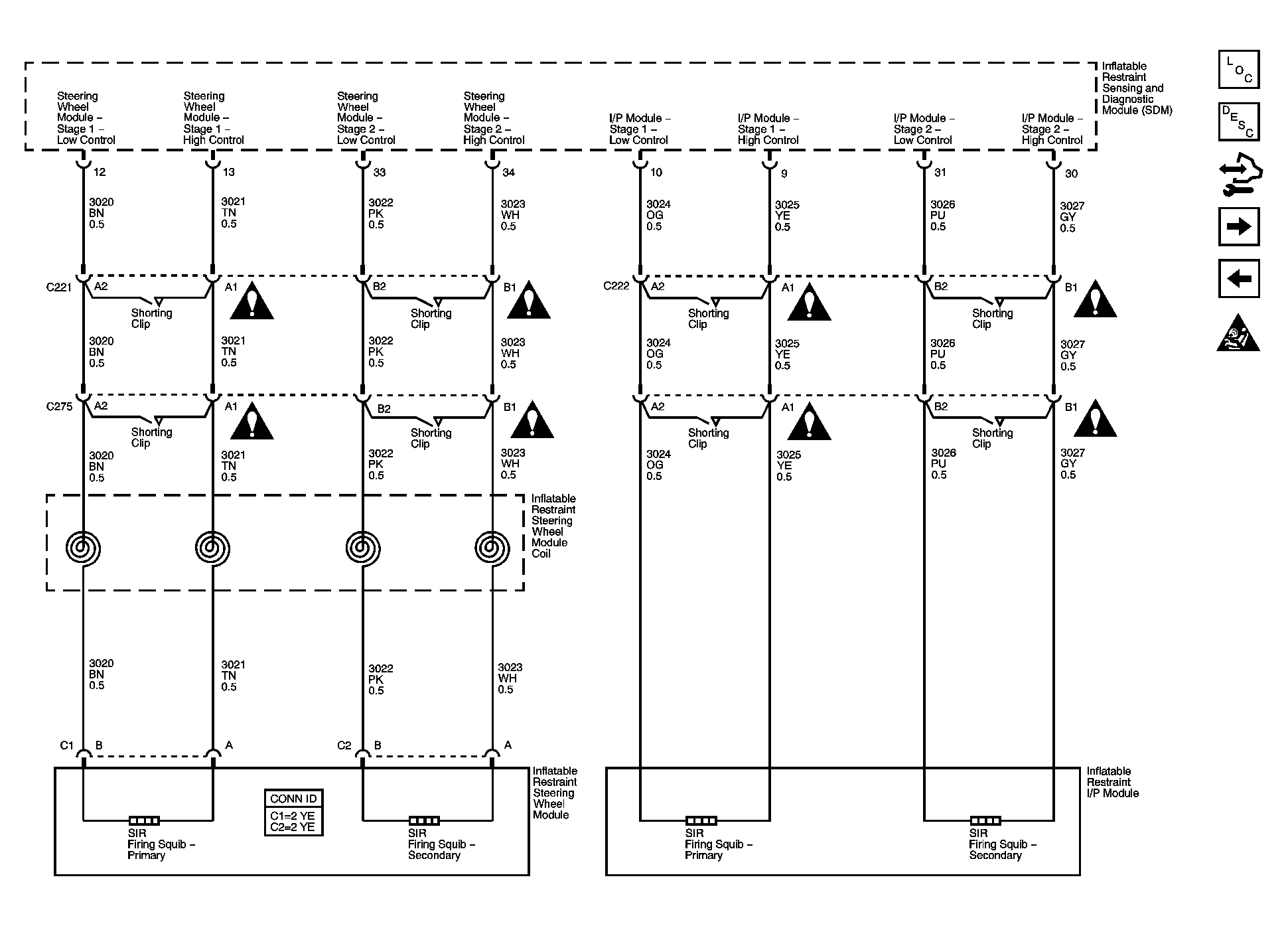

Fig 2: Driver and Passenger Air Bags

Courtesy of GENERAL MOTORS CORP.

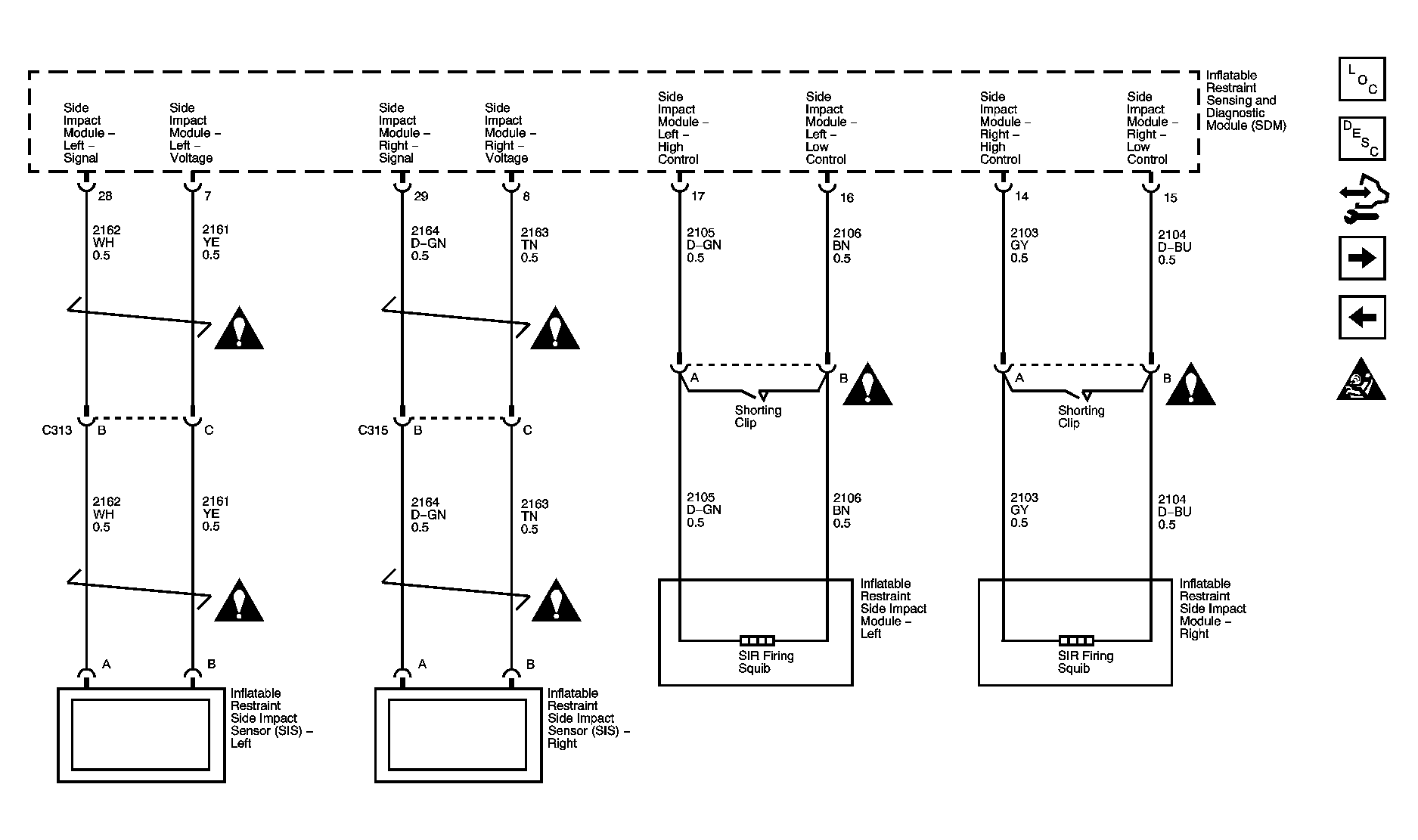

Fig 3: Side Impact Sensors and Air Bags

Courtesy of GENERAL MOTORS CORP.

Fig 4: Seat Position Switches

Courtesy of GENERAL MOTORS CORP.

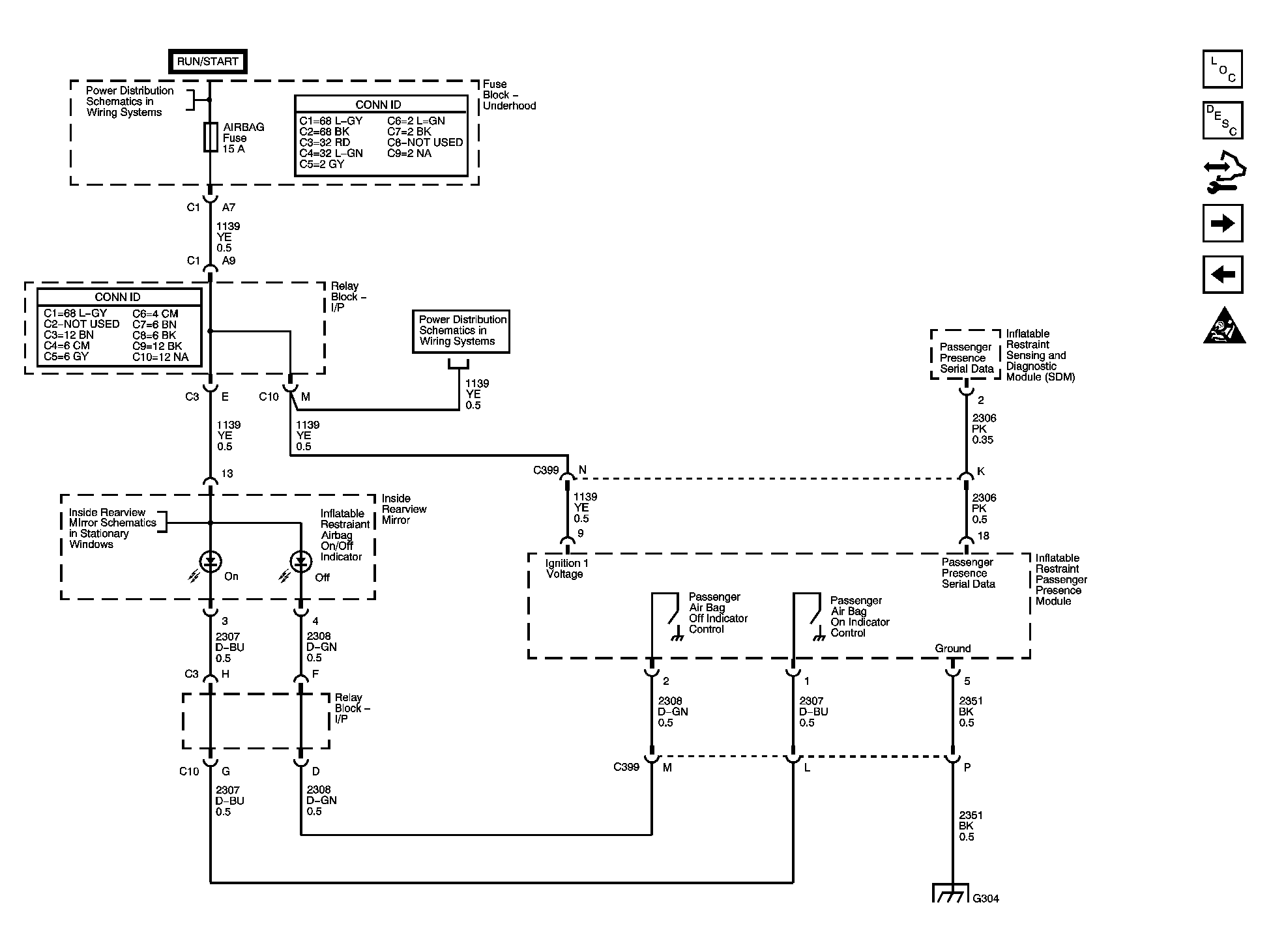

Fig 5: Passenger Presence Schematics (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Passenger Presence Schematics (2 of 2)

Courtesy of GENERAL MOTORS CORP.
