HVAC Schematics

Fig 1: Power, Ground, and Serial Data

Courtesy of GENERAL MOTORS CORP.

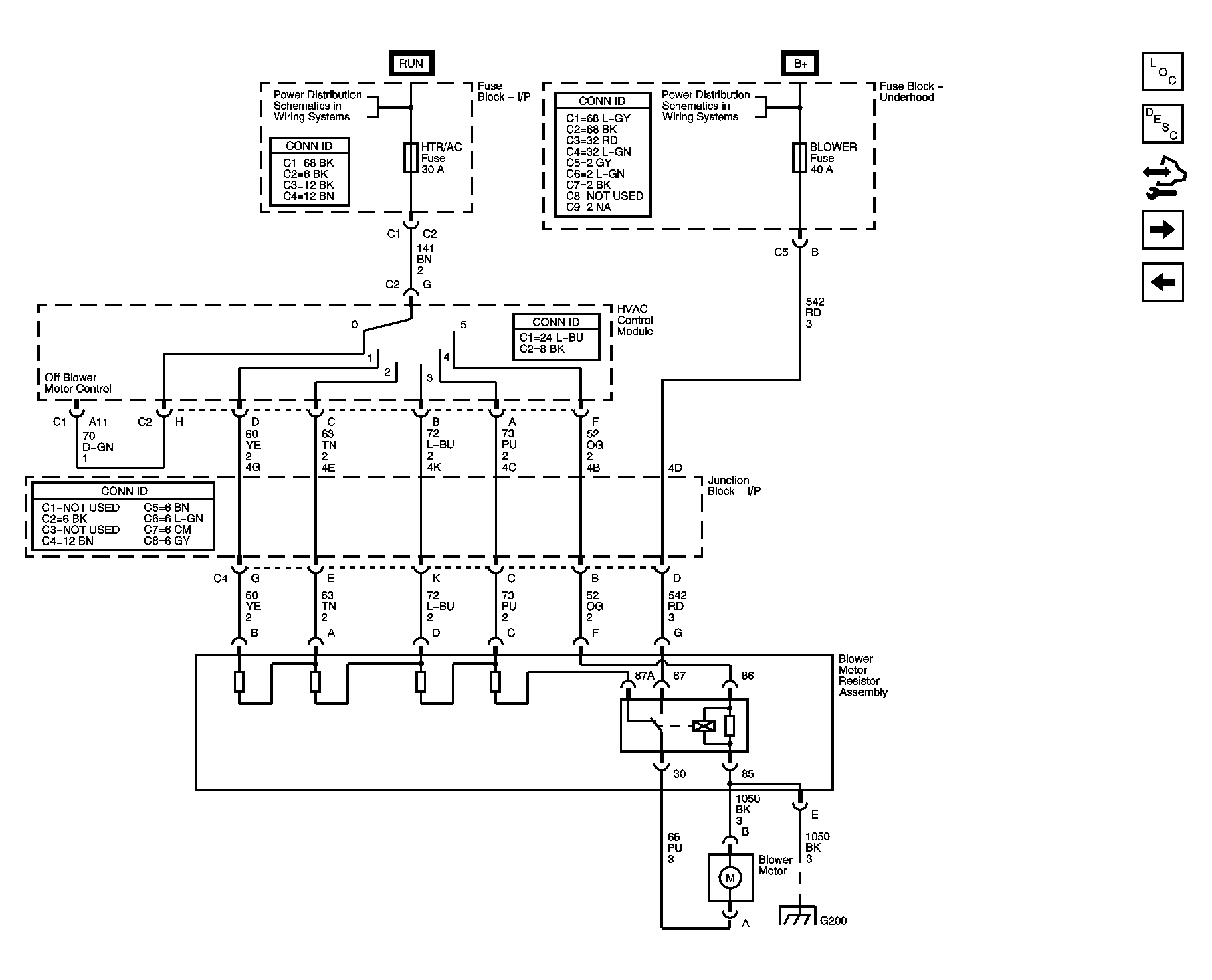

Fig 2: Front Blower Controls

Courtesy of GENERAL MOTORS CORP.

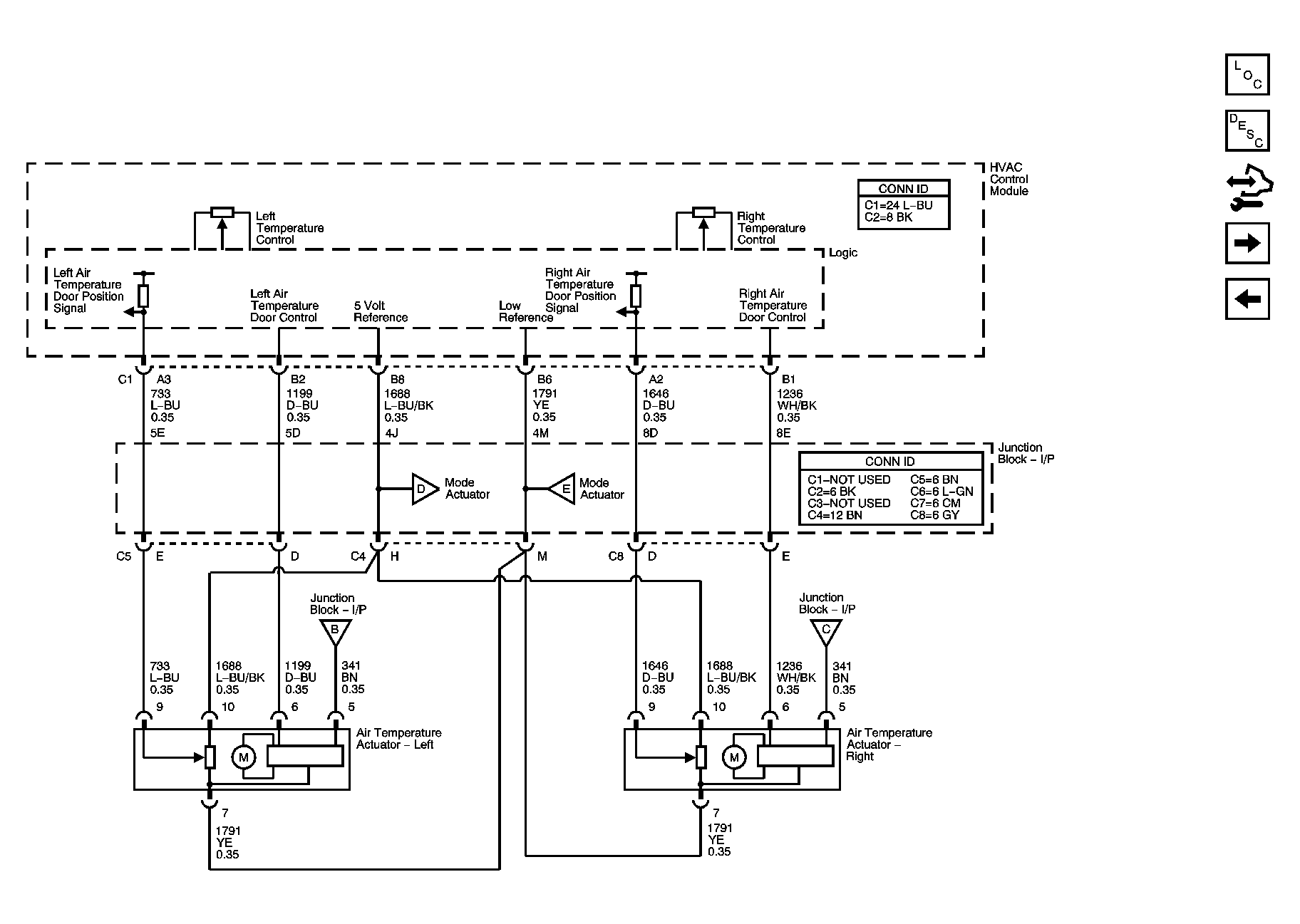

Fig 3: Front Left and Right Temperature Control

Courtesy of GENERAL MOTORS CORP.

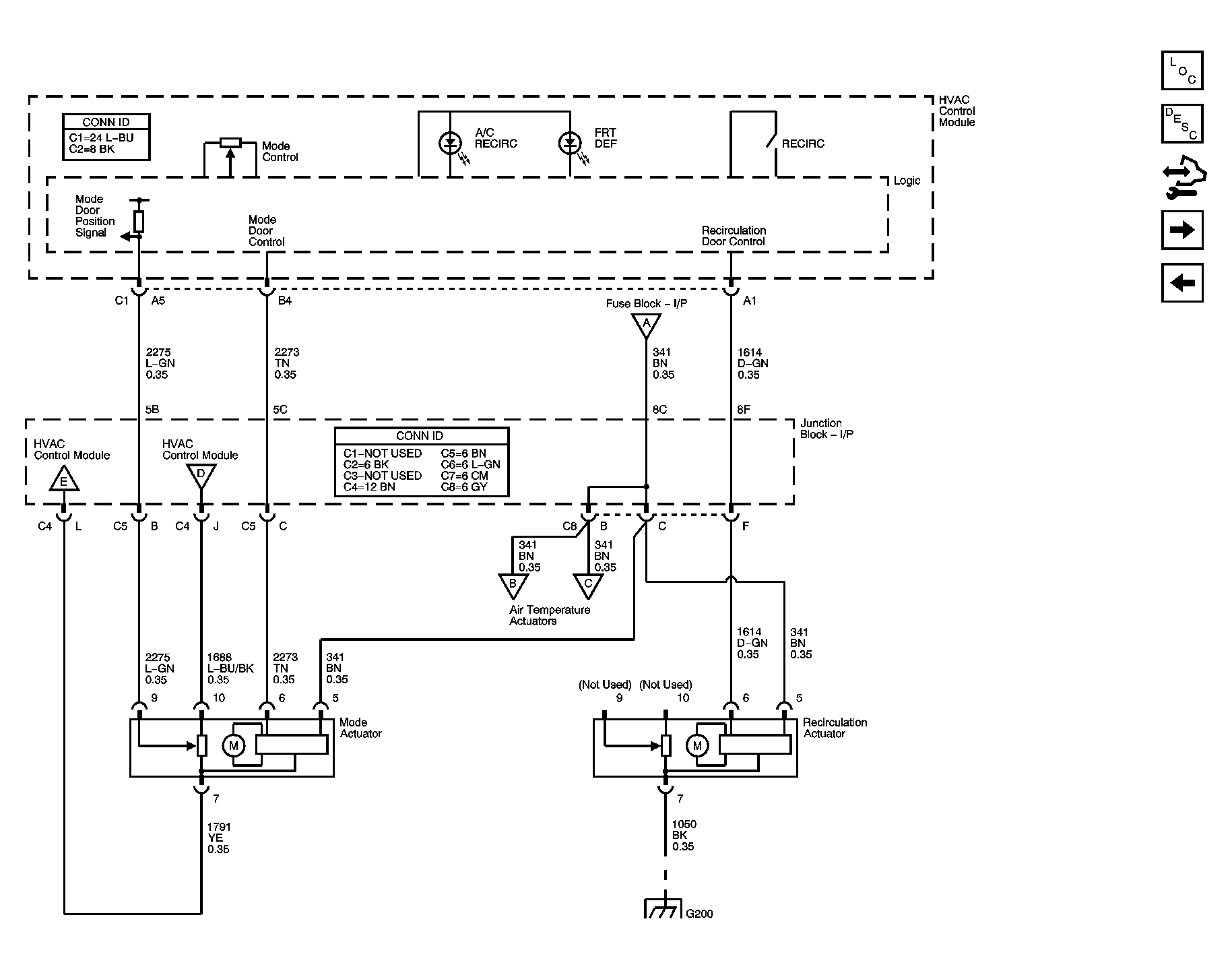

Fig 4: Mode Actuator and Recirculation Door Controls

Courtesy of GENERAL MOTORS CORP.

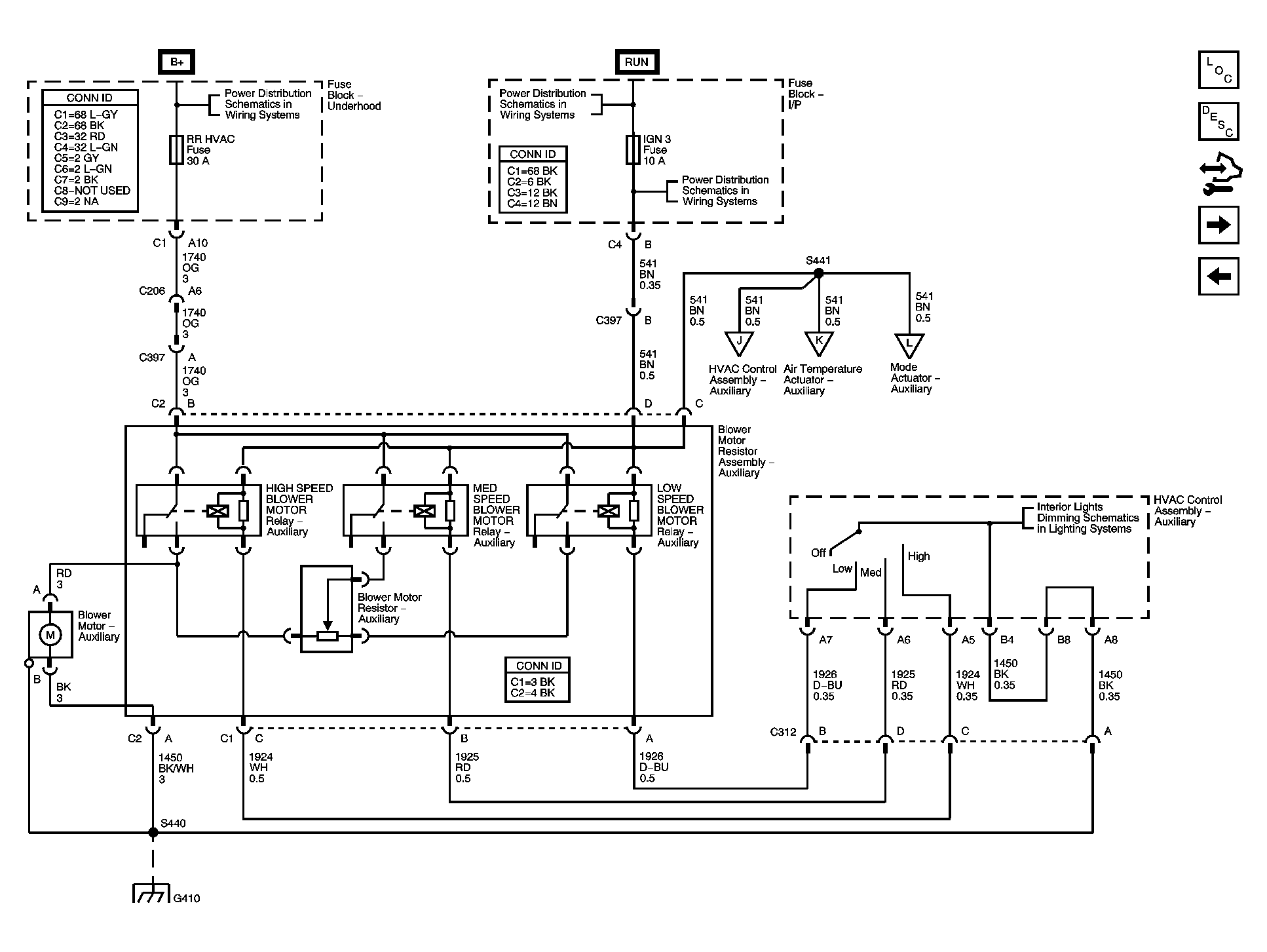

Fig 5: Auxiliary HVAC Controls, Long Wheelbase - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 6: Auxiliary HVAC Controls, Long Wheelbase - 2 of 2

Courtesy of GENERAL MOTORS CORP.

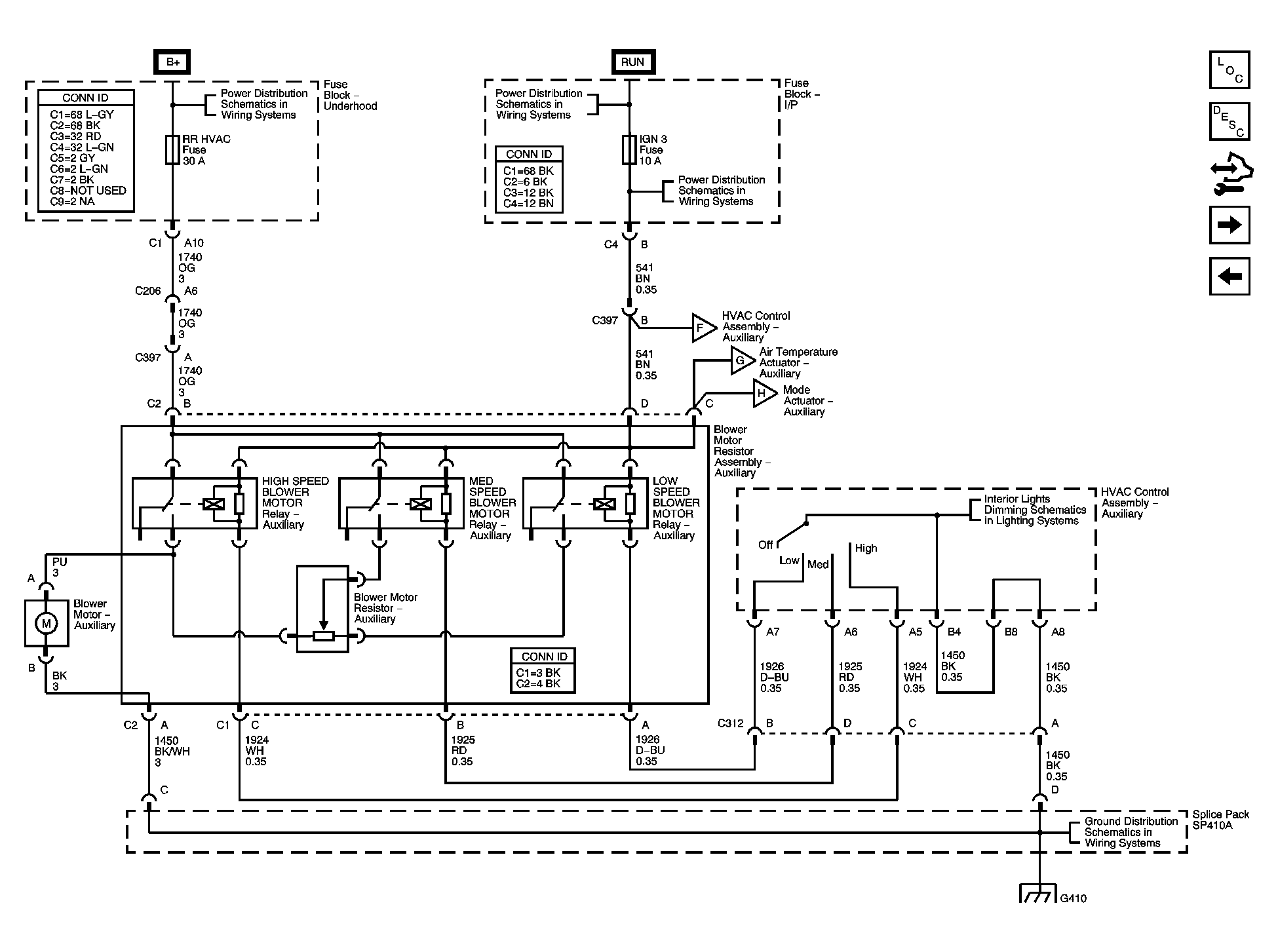

Fig 7: Auxiliary HVAC Controls, Short Wheelbase - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 8: Auxiliary HVAC Controls, Short Wheelbase - 2 of 2

Courtesy of GENERAL MOTORS CORP.

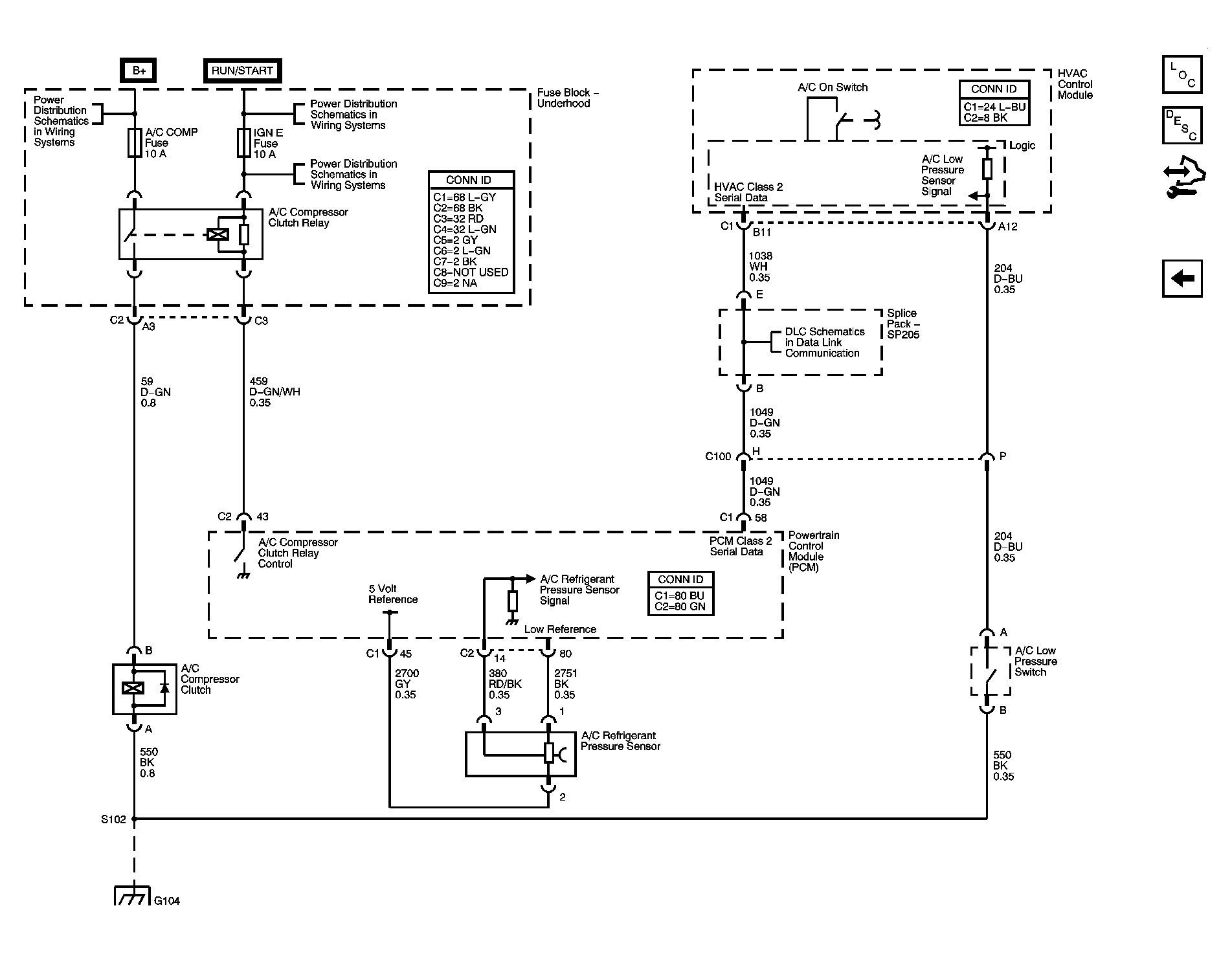

Fig 9: A/C Compressor Controls

Courtesy of GENERAL MOTORS CORP.
