HVAC Schematics

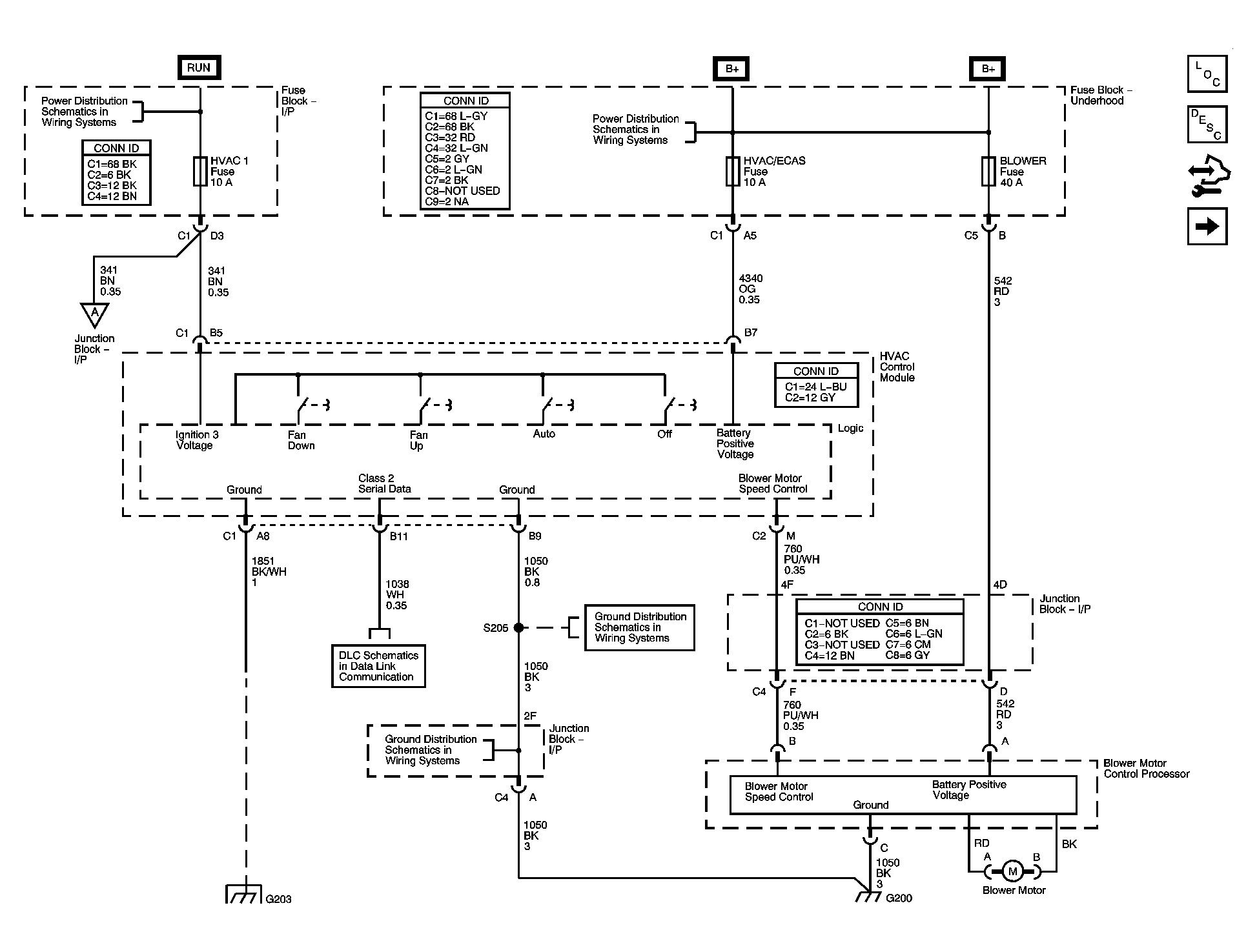

Fig 1: Power, Ground, Serial Data, and Front Blower Controls

Courtesy of GENERAL MOTORS CORP.

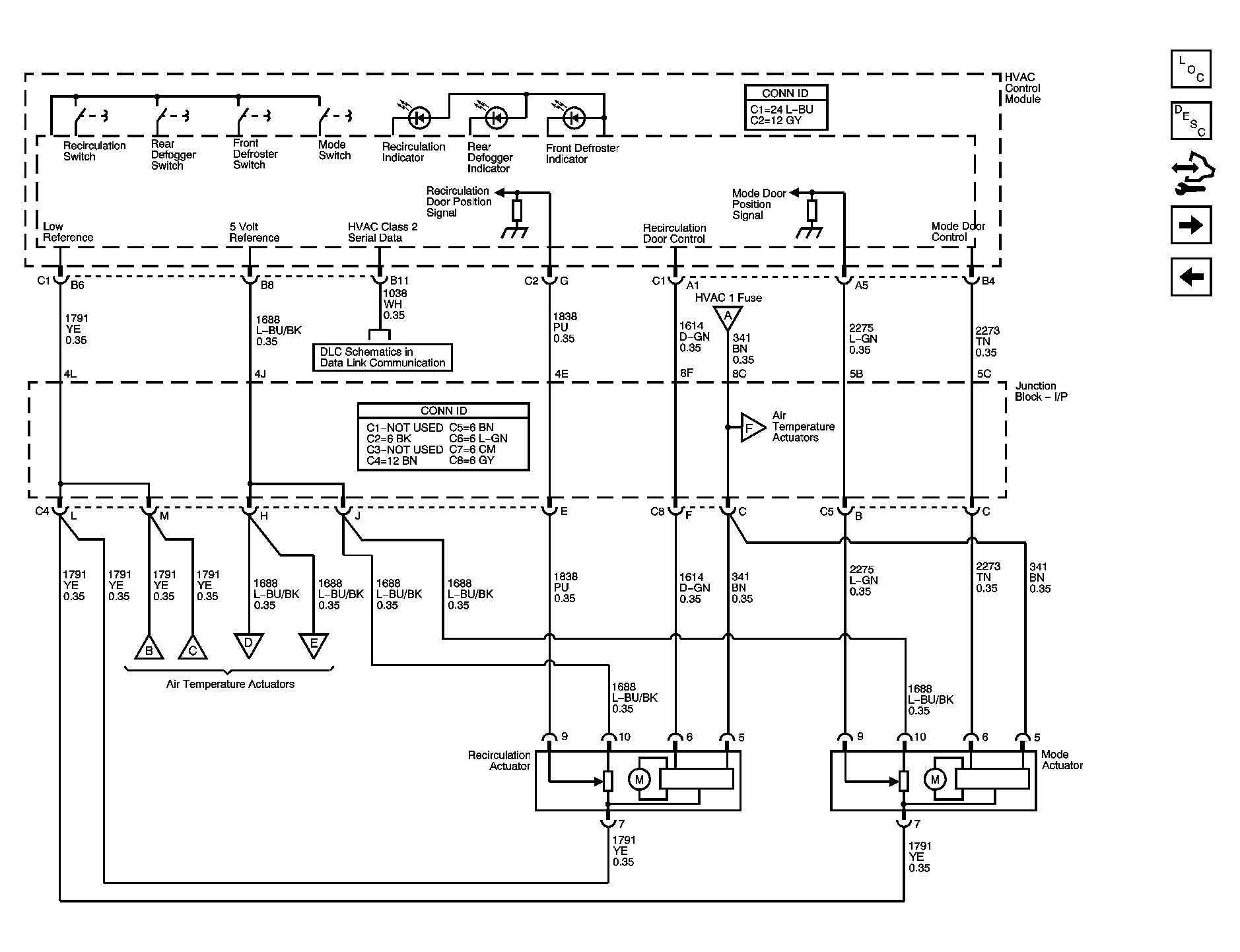

Fig 2: Mode and Recirculation Controls, Front Defrost and Rear Defog Controls

Courtesy of GENERAL MOTORS CORP.

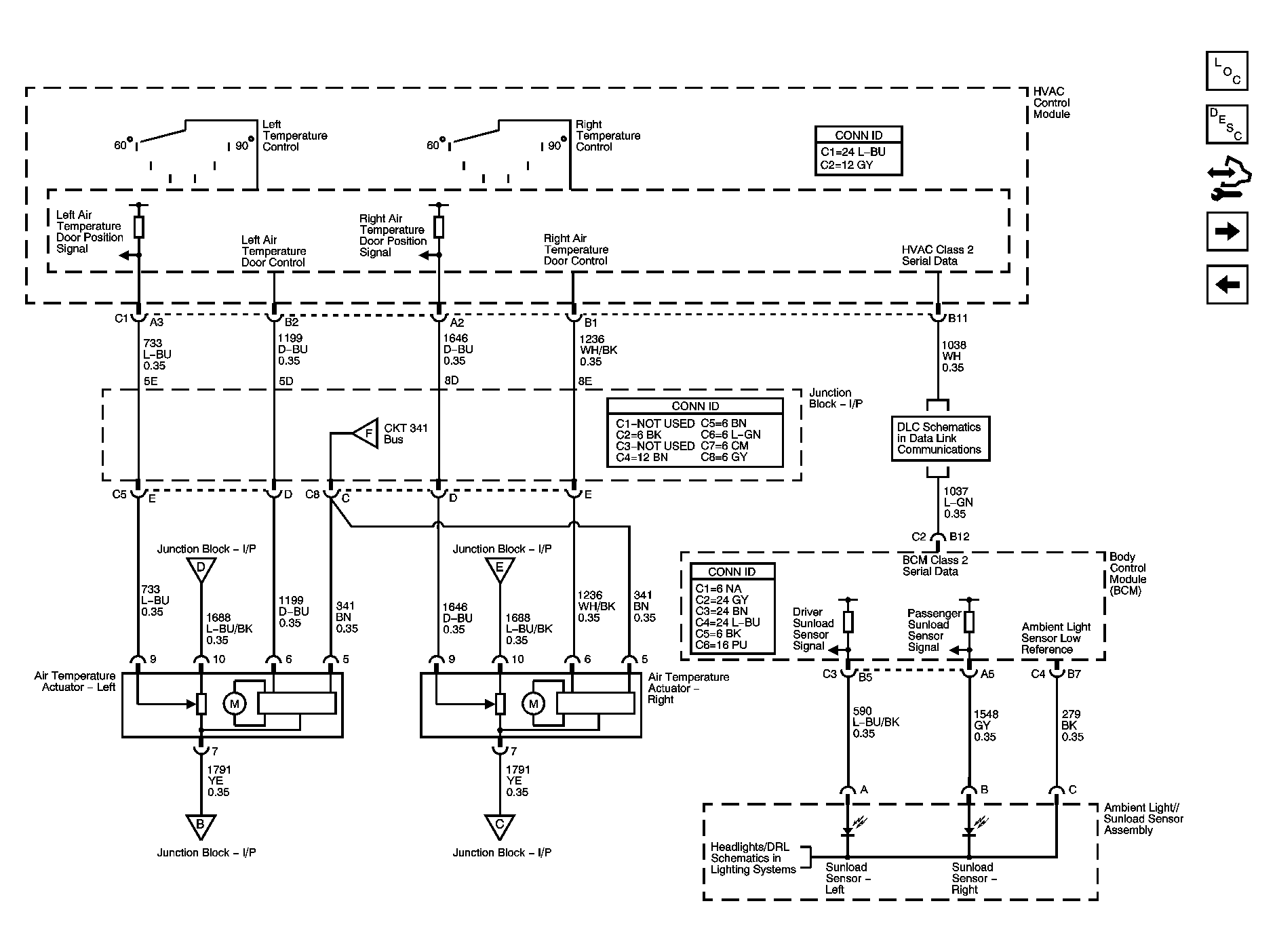

Fig 3: Temperature Controls and Sunload Sensors

Courtesy of GENERAL MOTORS CORP.

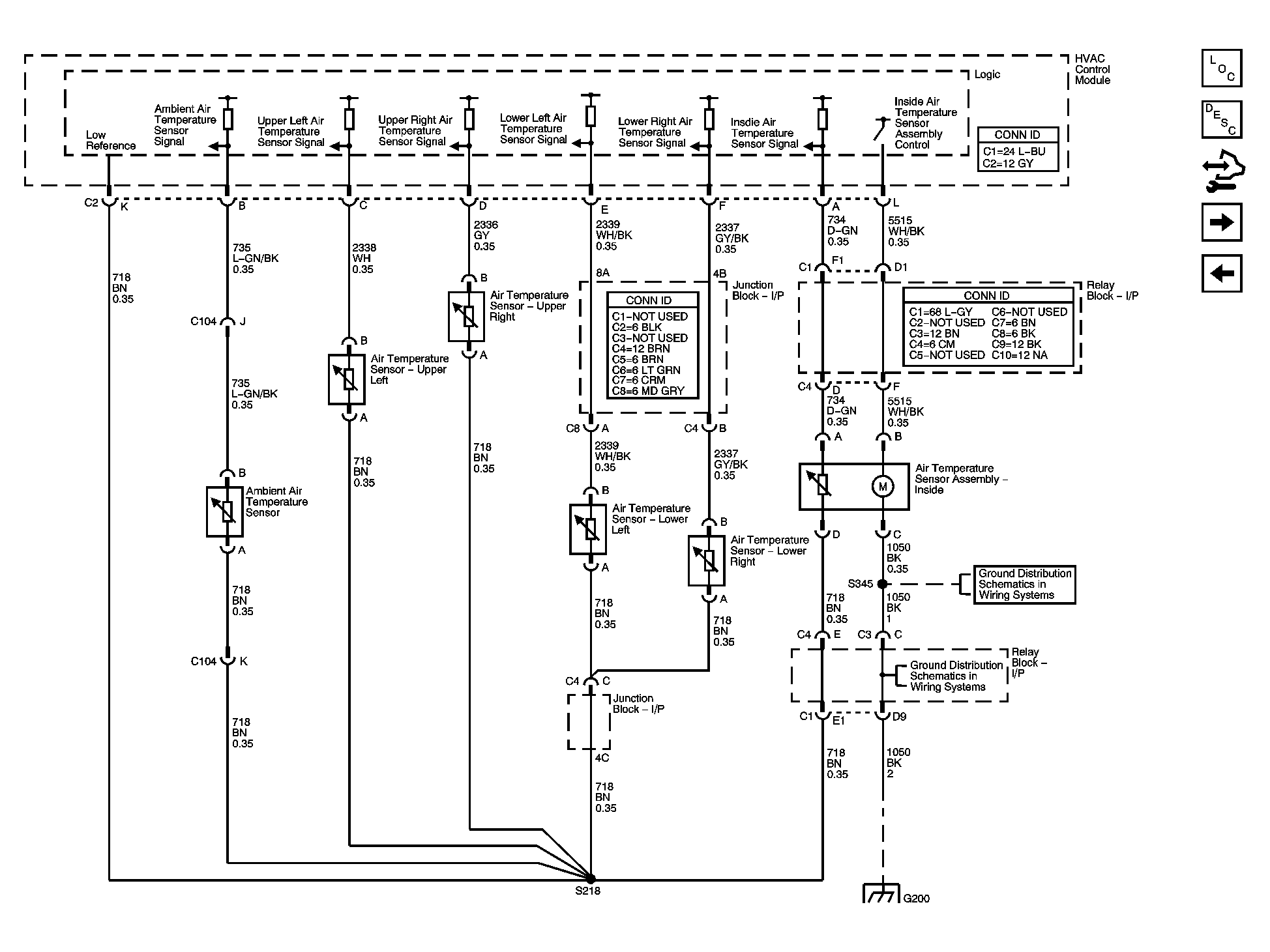

Fig 4: Air Temperature Sensors

Courtesy of GENERAL MOTORS CORP.

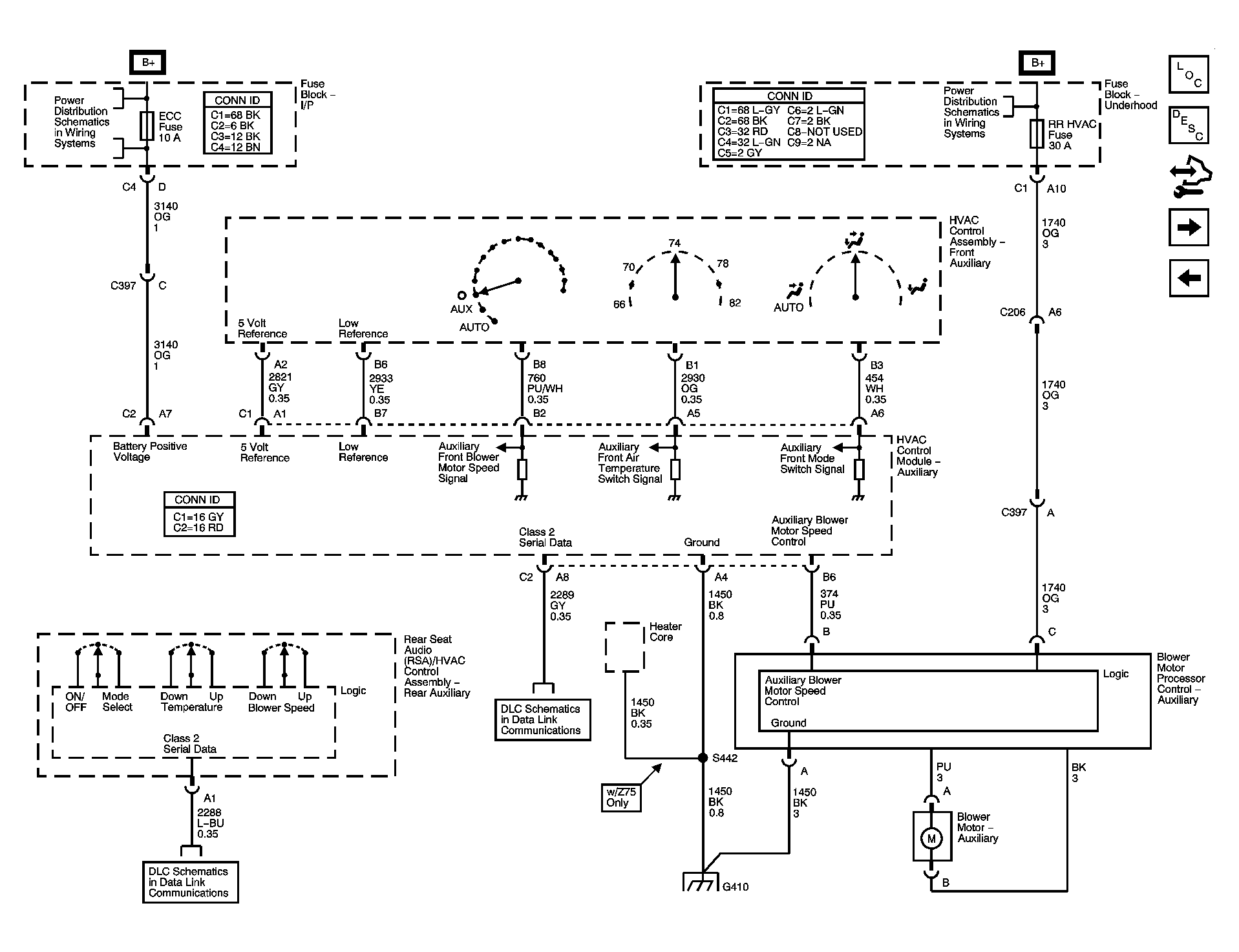

Fig 5: Auxiliary HVAC Controls - Power, Ground, Serial Data, and Auxiliary Blower Control

Courtesy of GENERAL MOTORS CORP.

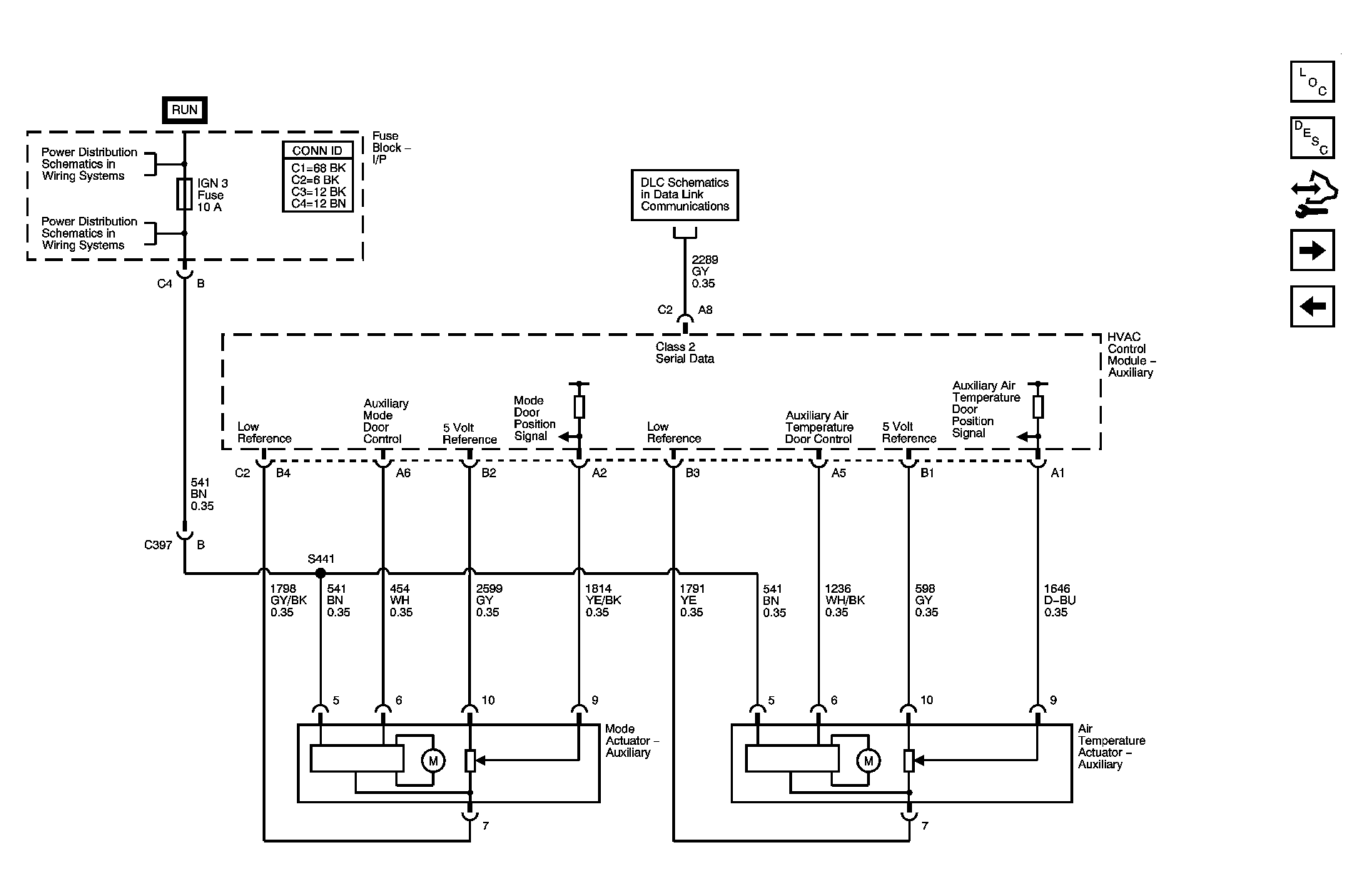

Fig 6: Auxiliary HVAC Controls - Mode and Air Temperature Controls

Courtesy of GENERAL MOTORS CORP.

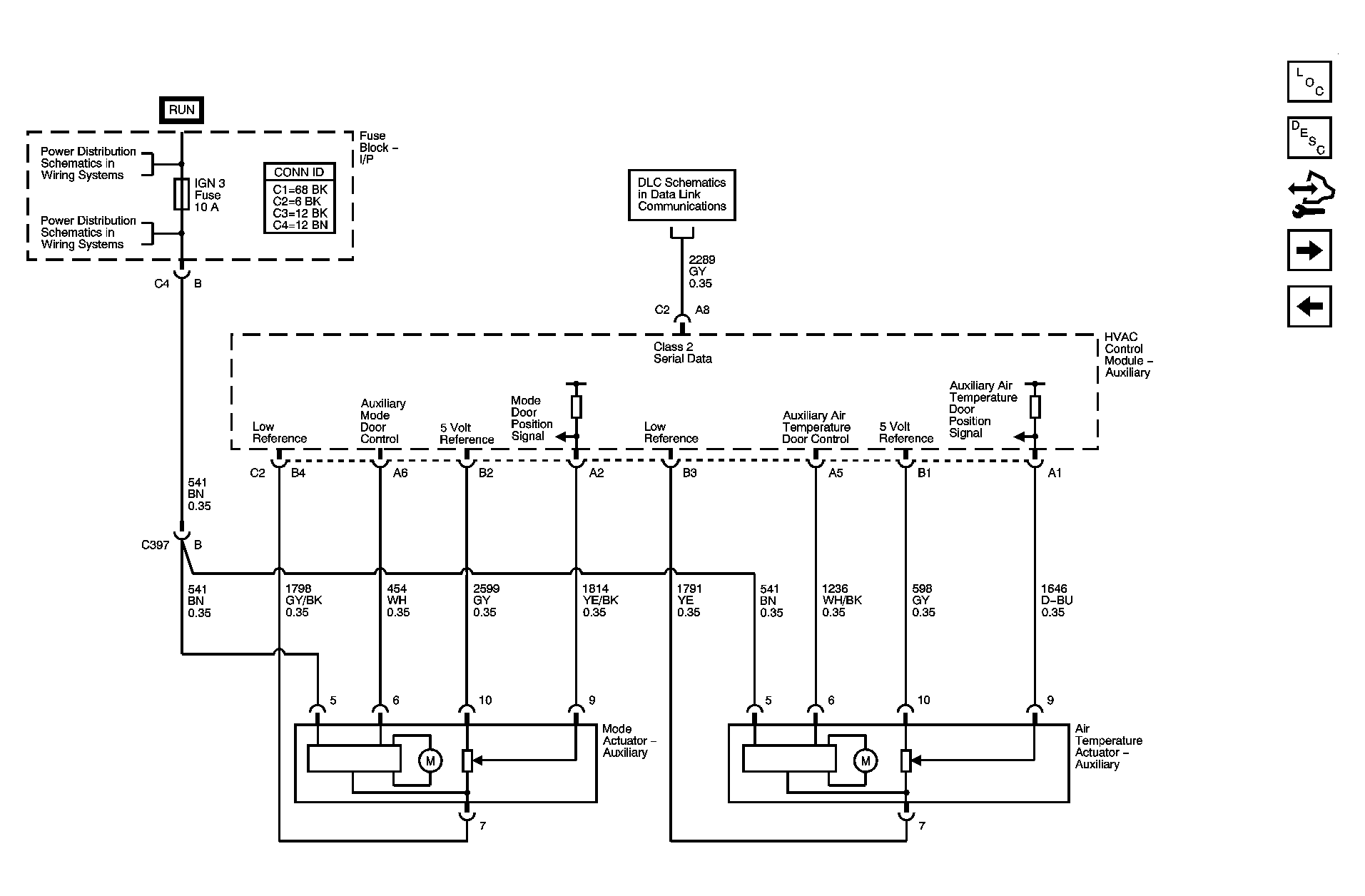

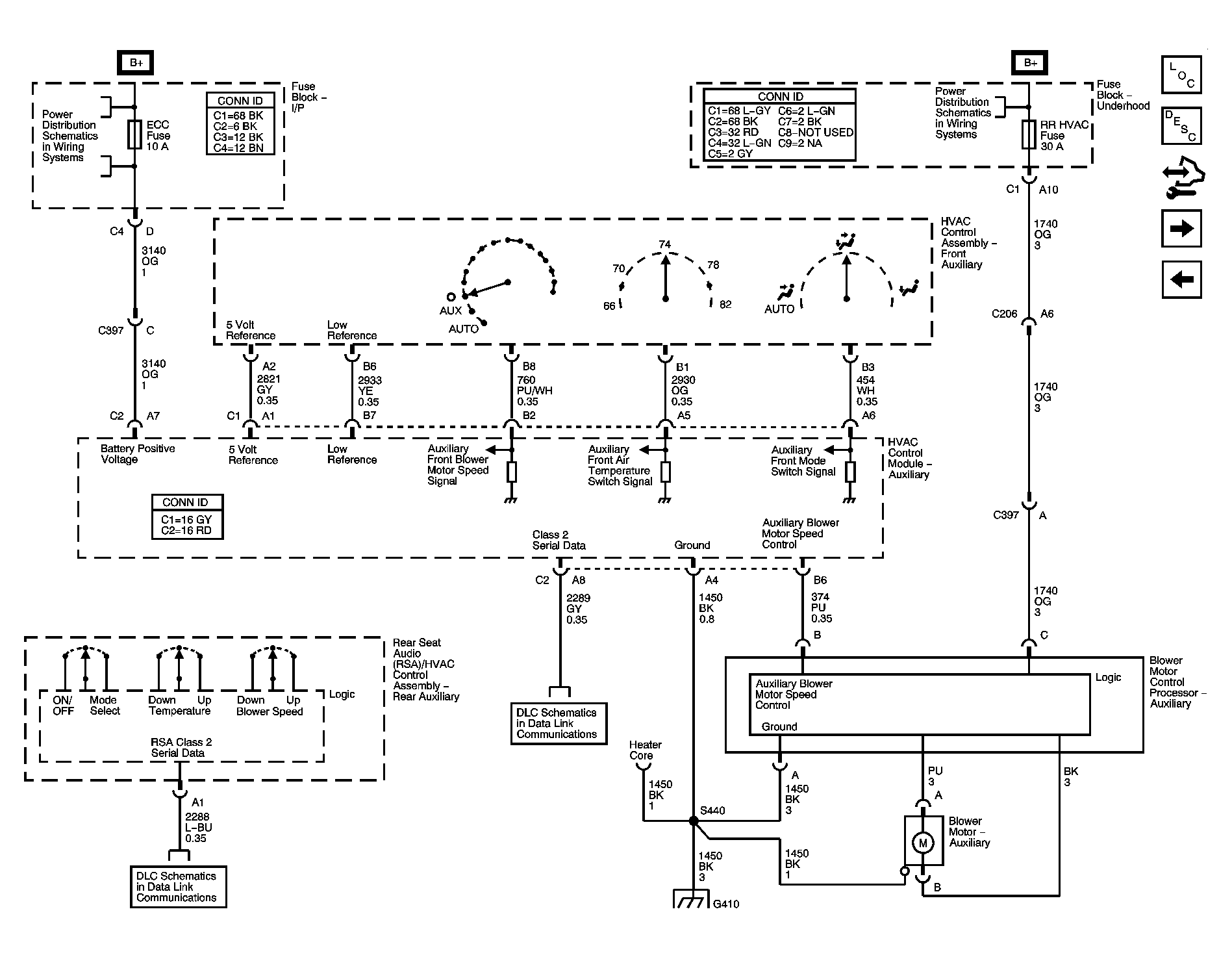

Fig 7: Auxiliary HVAC Controls, Short Wheelbase - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 8: Auxiliary HVAC Controls, Short Wheelbase - 1 of 2

Courtesy of GENERAL MOTORS CORP.

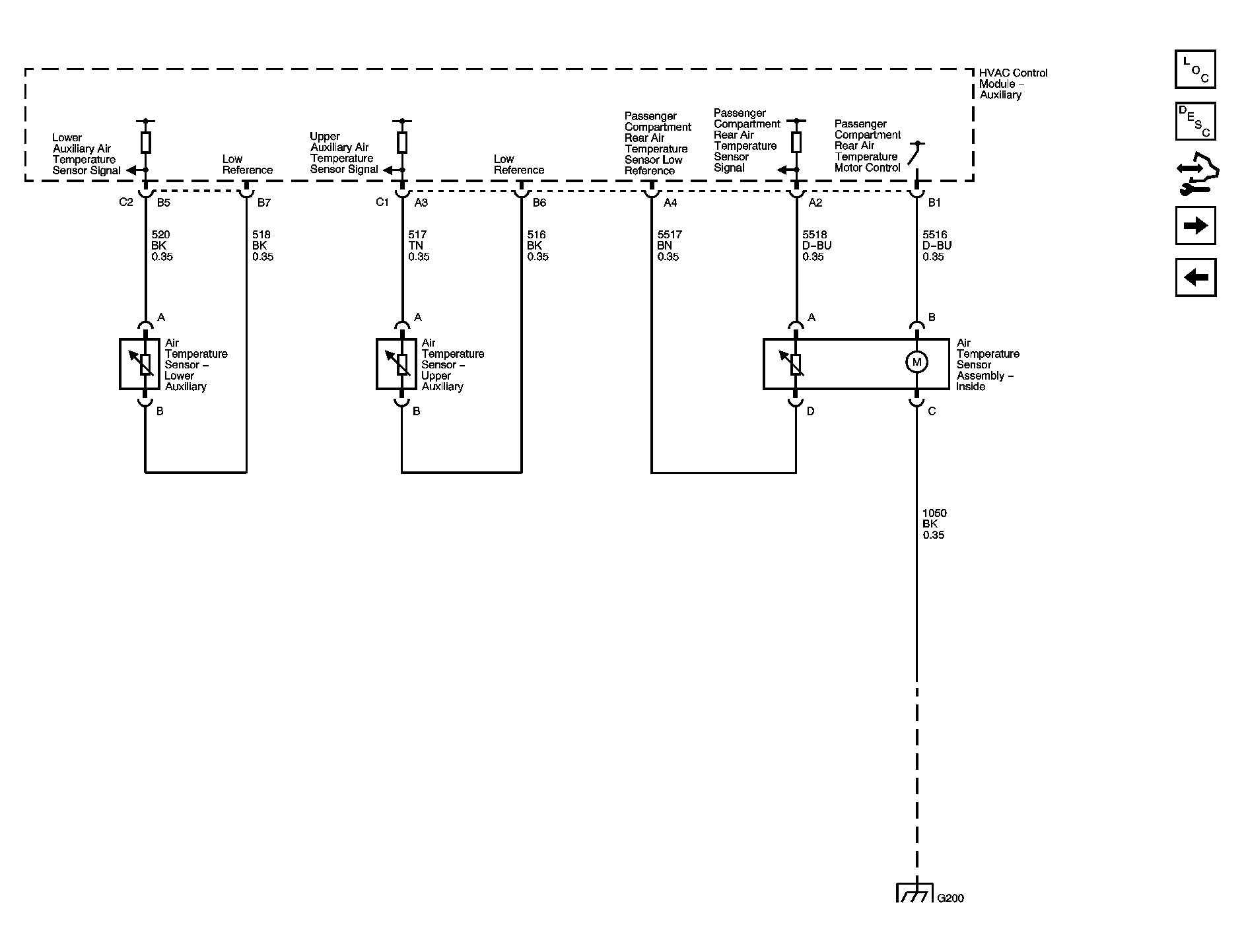

Fig 9: Auxiliary HVAC Controls - Air Temperature Sensors

Courtesy of GENERAL MOTORS CORP.

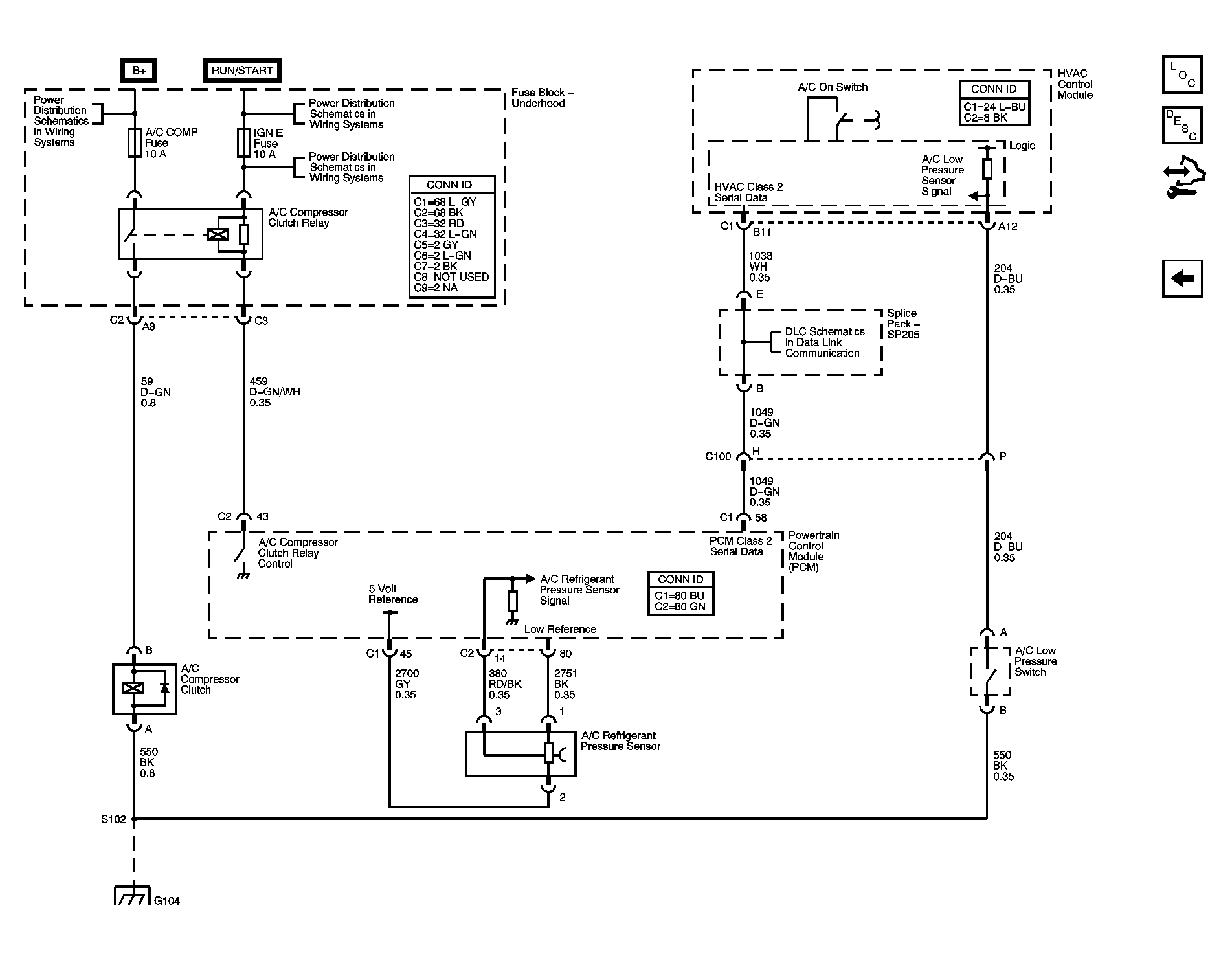

Fig 10: A/C Compressor Controls

Courtesy of GENERAL MOTORS CORP.
