Transfer Case Control Schematics

WARNING: This page is about a different car, the 2006 GMC Yukon XL and 2006 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.

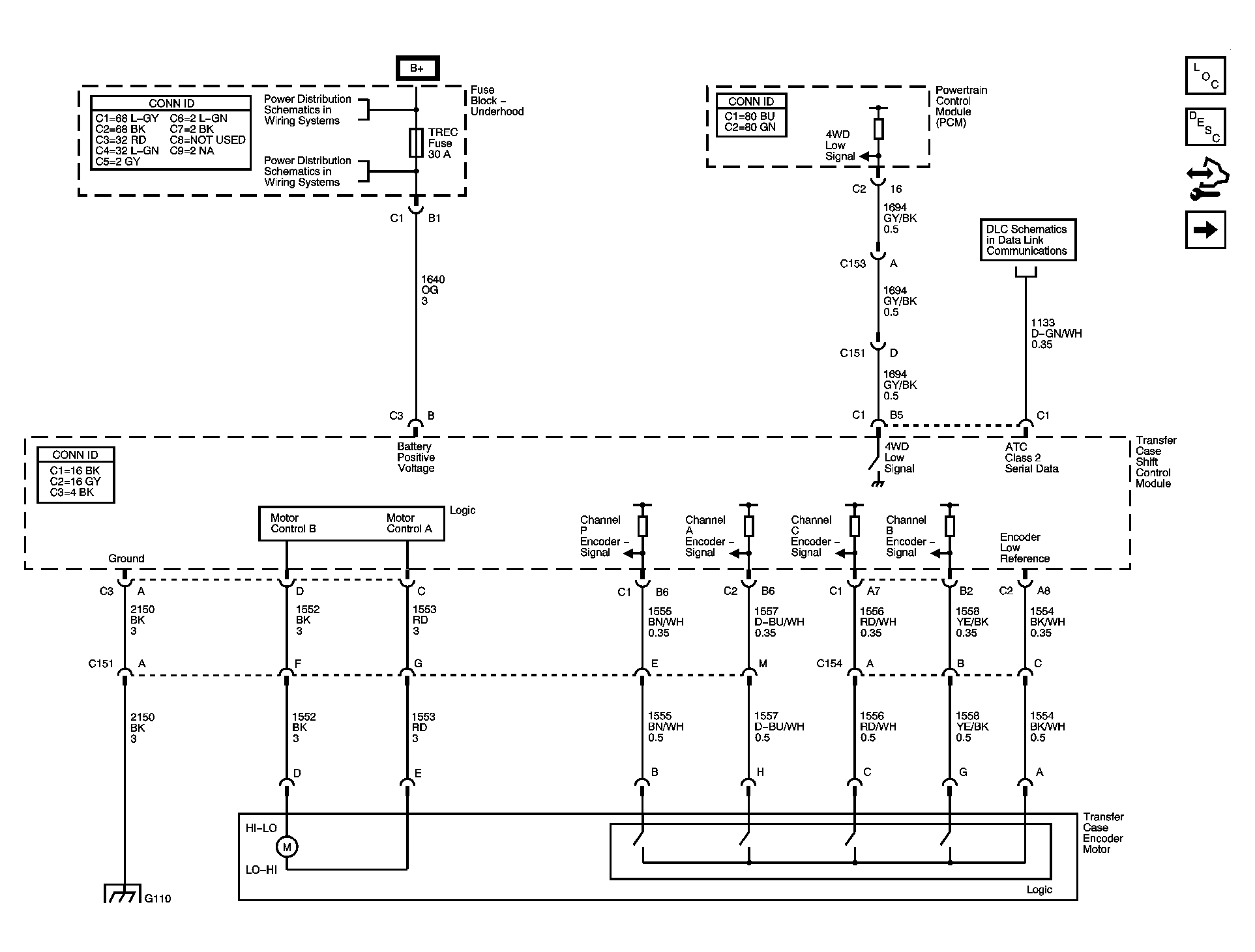

Fig 1: Power, Ground, Serial Data, and Encoder Circuits
GM1469128Courtesy of GENERAL MOTORS CORP.

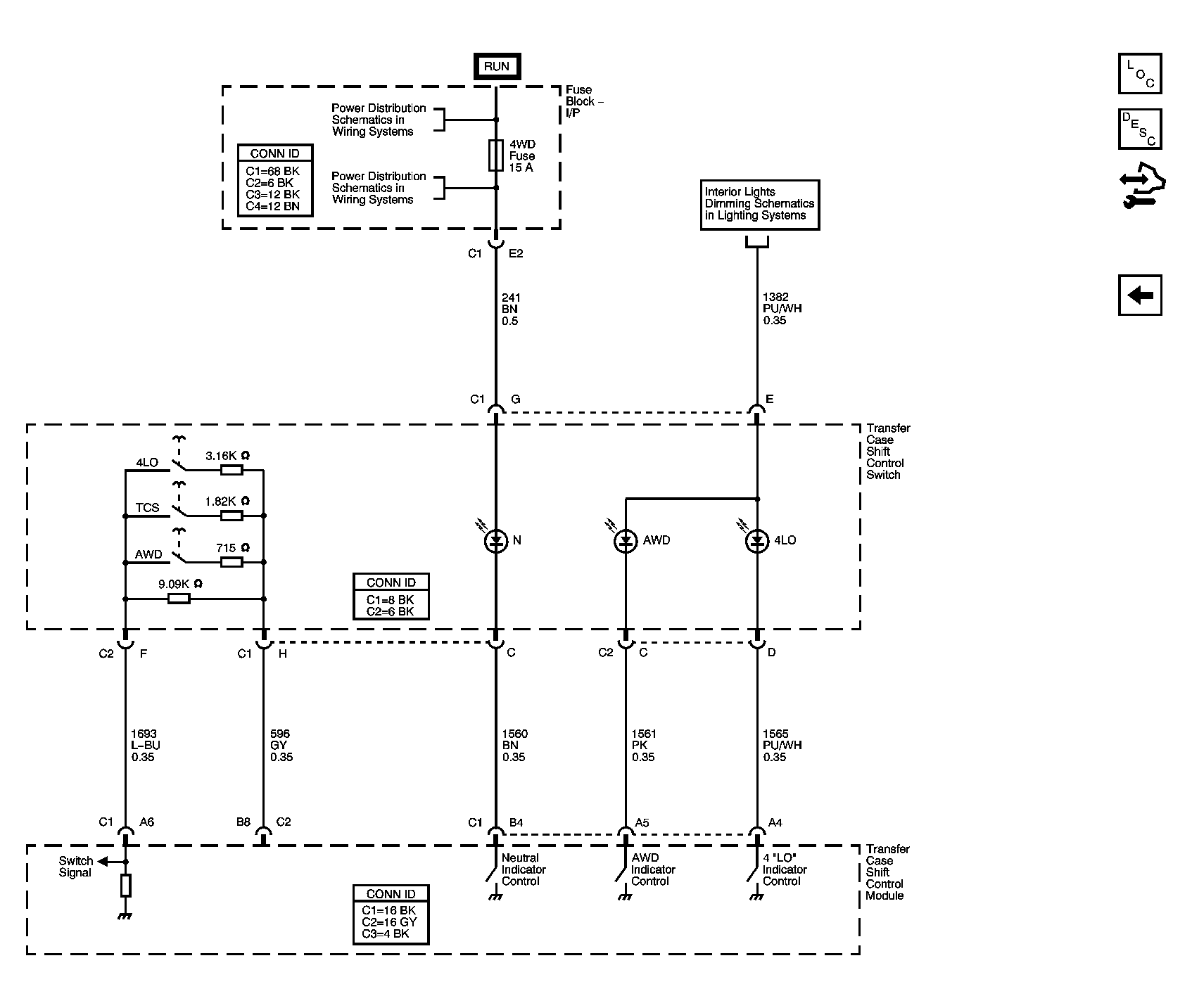

Fig 2: Control Switch and Module
GM1469130Courtesy of GENERAL MOTORS CORP.
