Installation Procedure

WARNING: This page is about a different car, the 2006 GMC Yukon XL, 2006 Chevrolet Suburban, and 2006 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

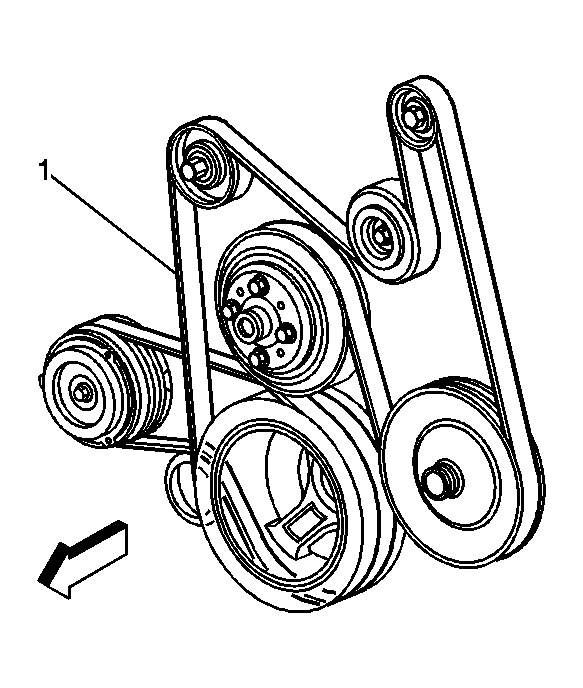

    Fig 1: Accessory Drive Belt Routing 8.1L
    GM843771Courtesy of GENERAL MOTORS CORP.
  1. Route the drive belt (1) around all the pulleys except the idler pulley.
  2. Install the breaker bar with hex-head socket to the belt tensioner bolt.
  3. Rotate the belt tensioner clockwise in order to relieve the tension on the tensioner.
  4. Install the drive belt (1) under the idler pulley.
  5. Slowly release the tension on the belt tensioner.
  6. Remove the breaker bar and socket from the belt tensioner bolt.
  7. Inspect the drive belt for proper installation and alignment.
