Automatic Transmission Controls Schematics

WARNING: This page is about a different car, the 2006 GMC Yukon XL, 2006 Chevrolet Suburban, and 2006 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

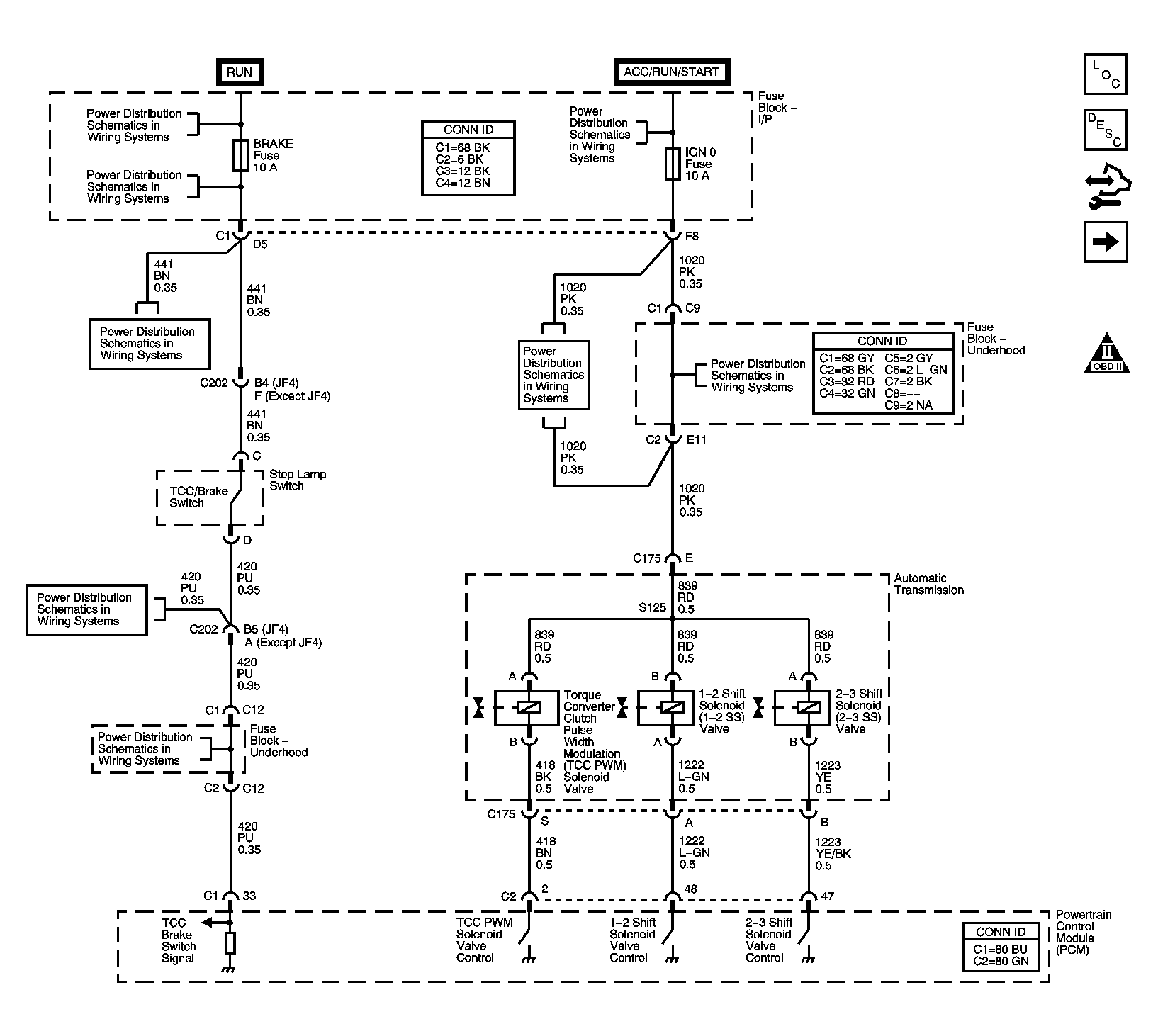

Fig 1: Shift Controls and Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.

Fig 2: Pressure Controls, Temperature, and VSS

Courtesy of GENERAL MOTORS CORP.

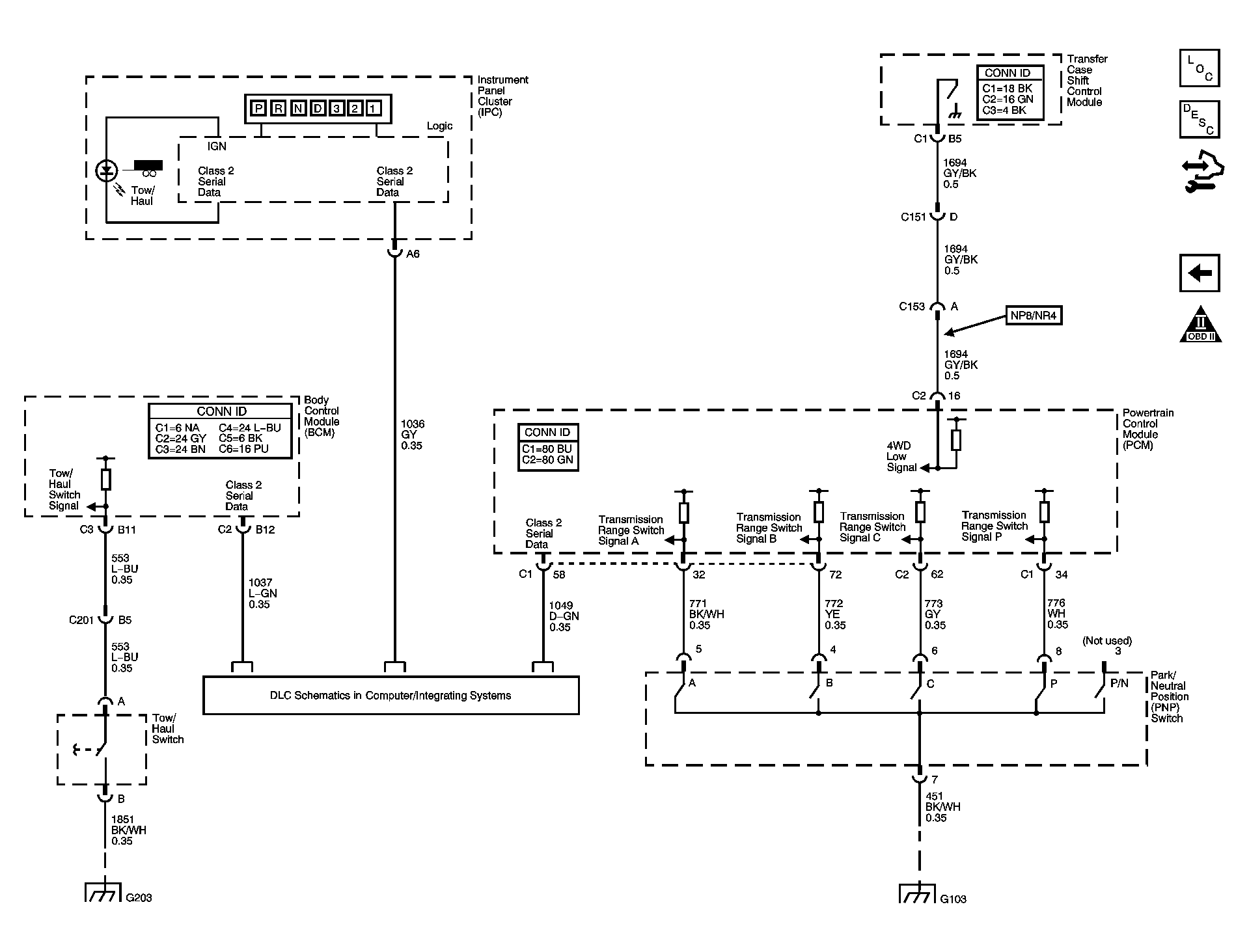

Fig 3: PNP Switch, 4WD Signal, Tow/Haul, Serial Data, and Indicator

Courtesy of GENERAL MOTORS CORP.
