Power Distribution Schematics

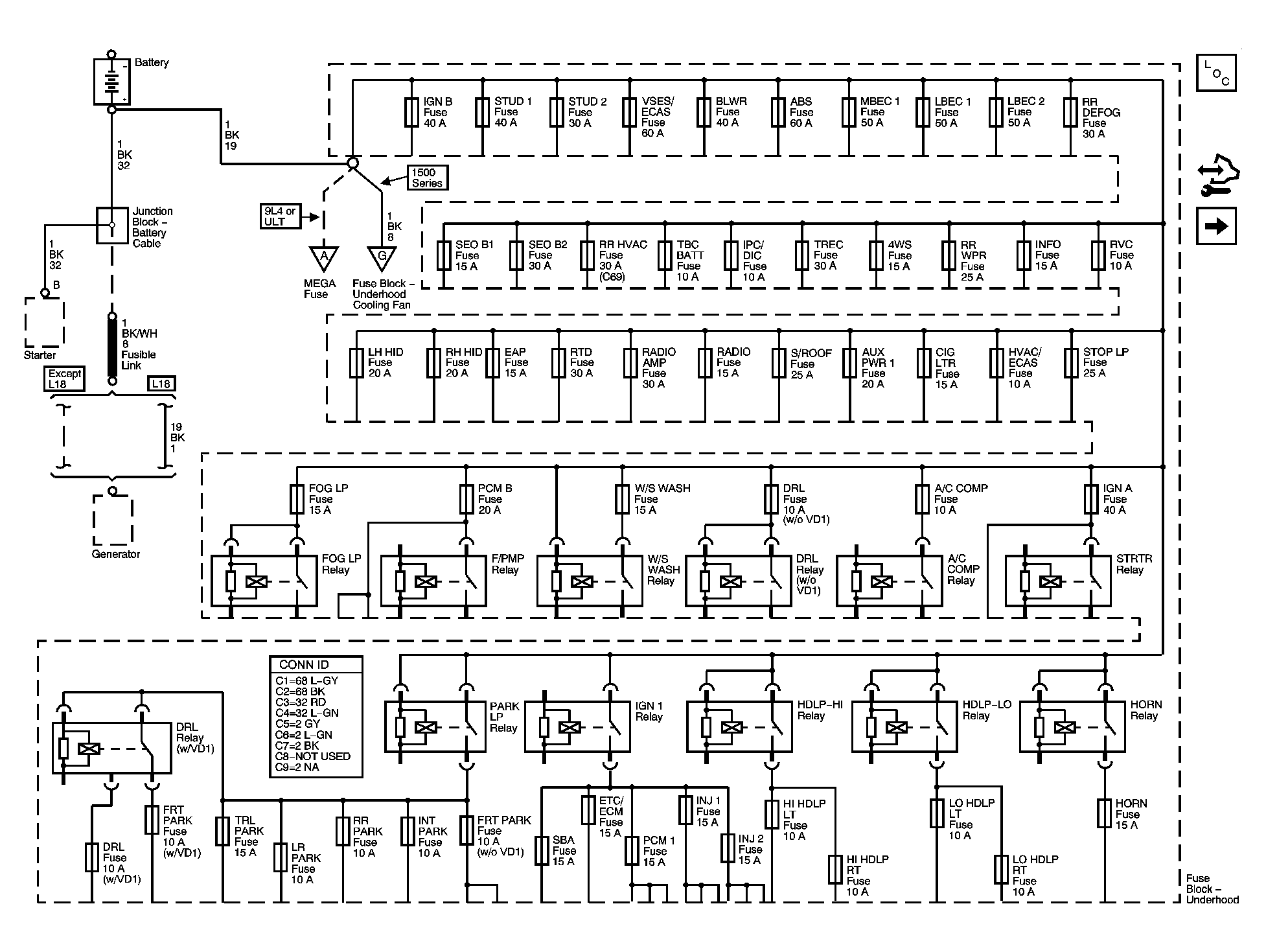

Fig 1: B+ Bus 1 of 2

GM1608452

Courtesy of GENERAL MOTORS CORP.

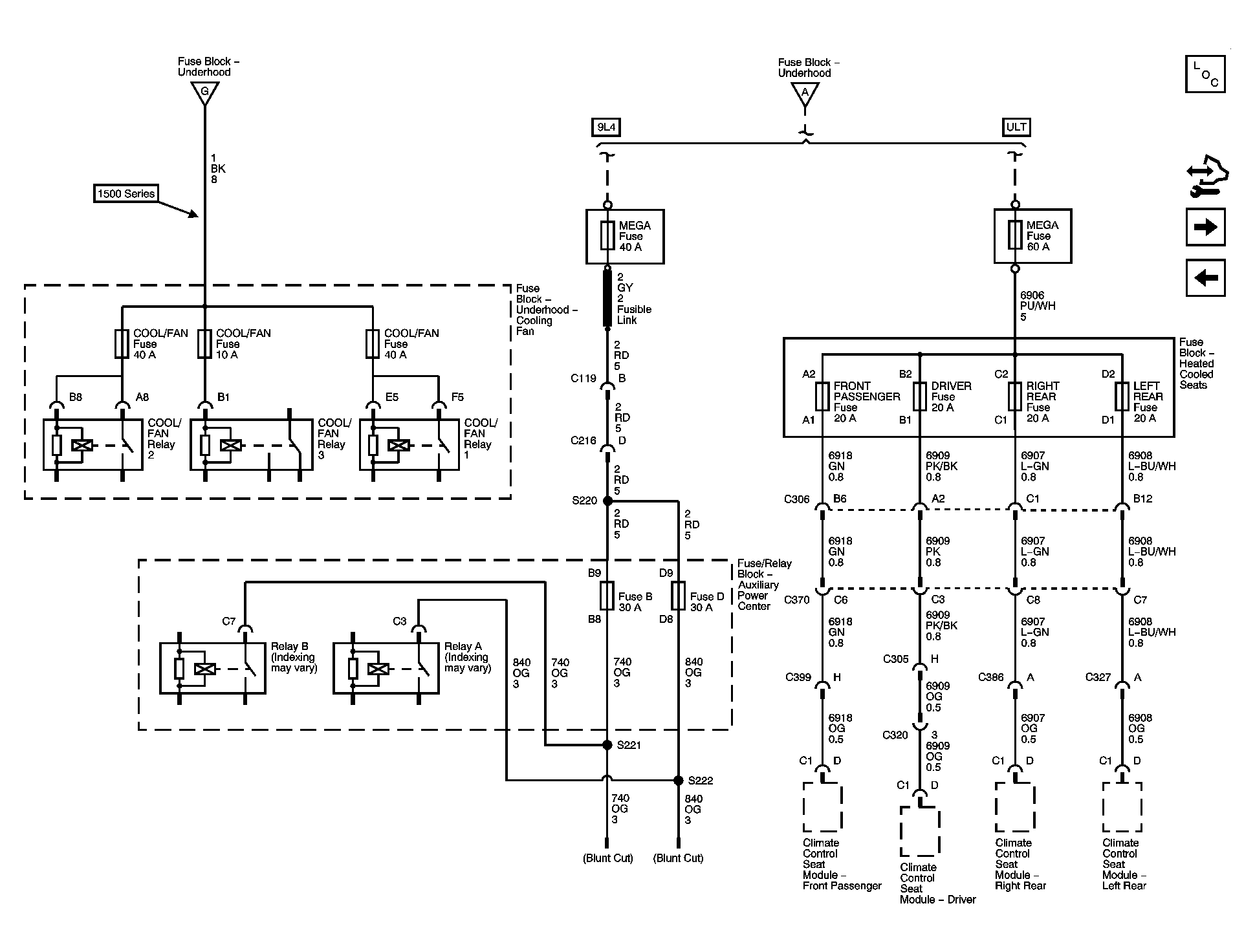

Fig 2: B+ Bus 2 of 2

GM1608454

Courtesy of GENERAL MOTORS CORP.

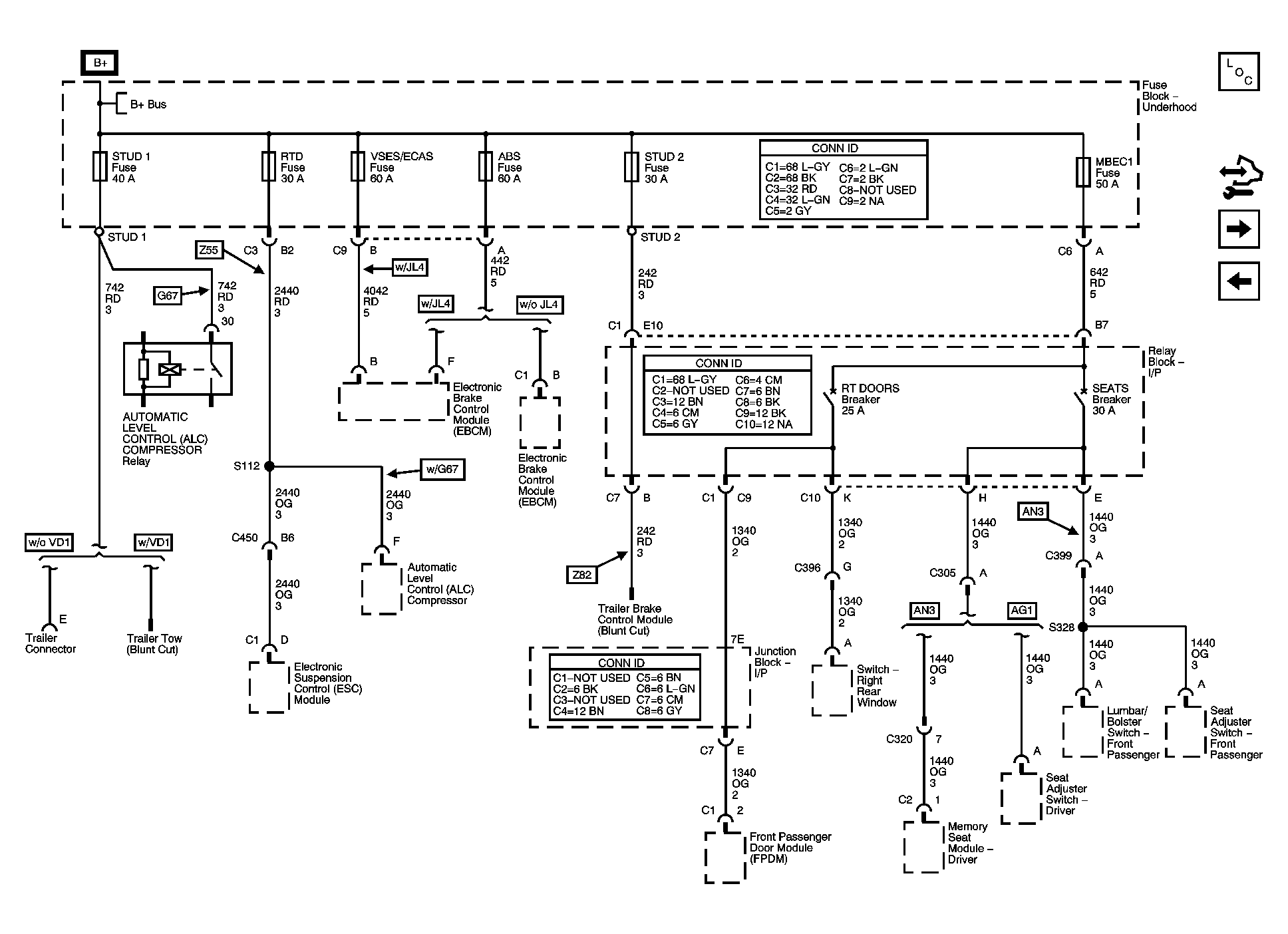

Fig 3: ABS, MBEC 1, RTD, STUD 2, VSES/ECAS Fuses; RT DOORS and SEATS Circuit Breakers

GM1608455

Courtesy of GENERAL MOTORS CORP.

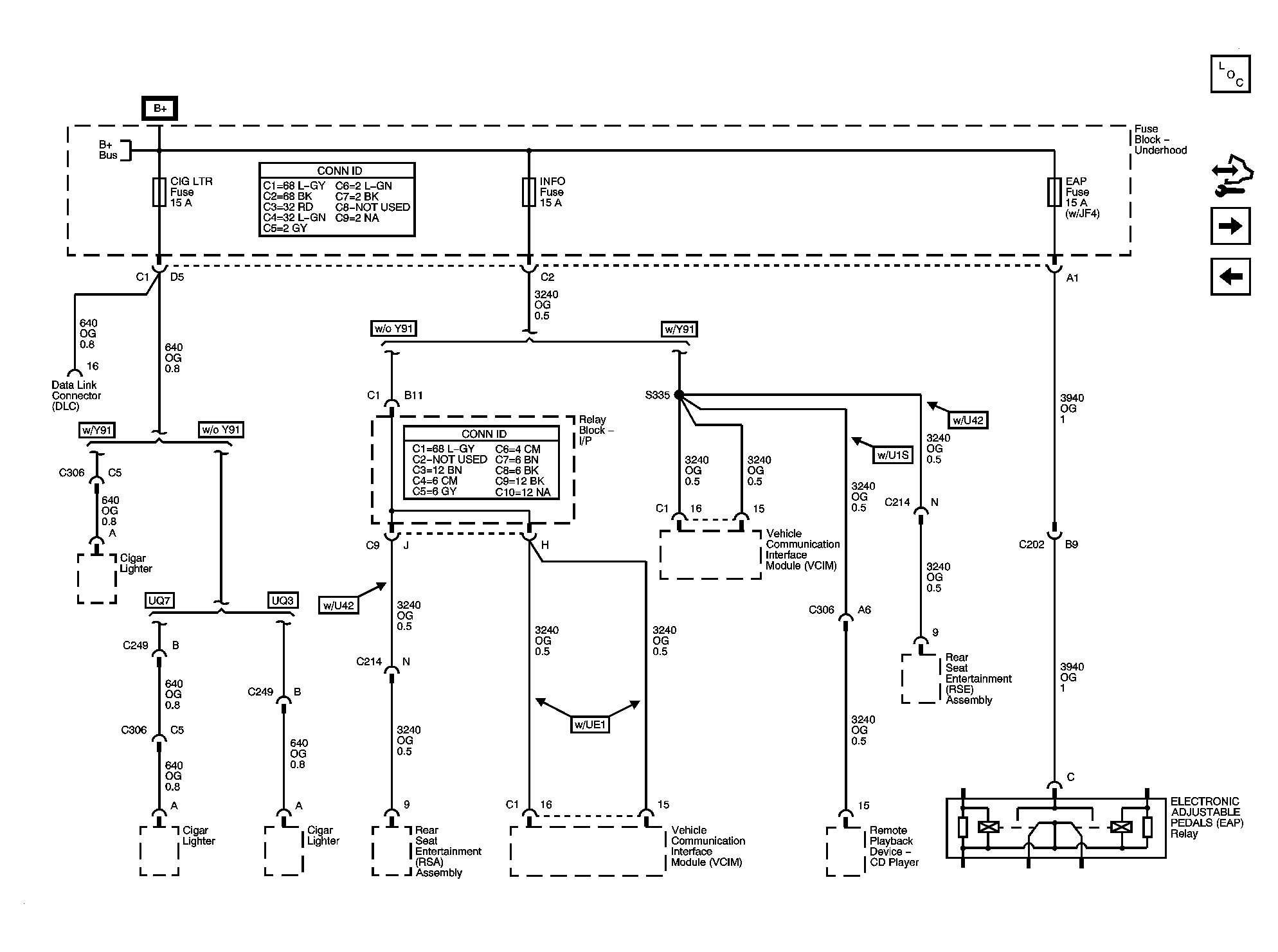

Fig 4: CIG LTR, EAP, and INGO Fuses

GM1608456

Courtesy of GENERAL MOTORS CORP.

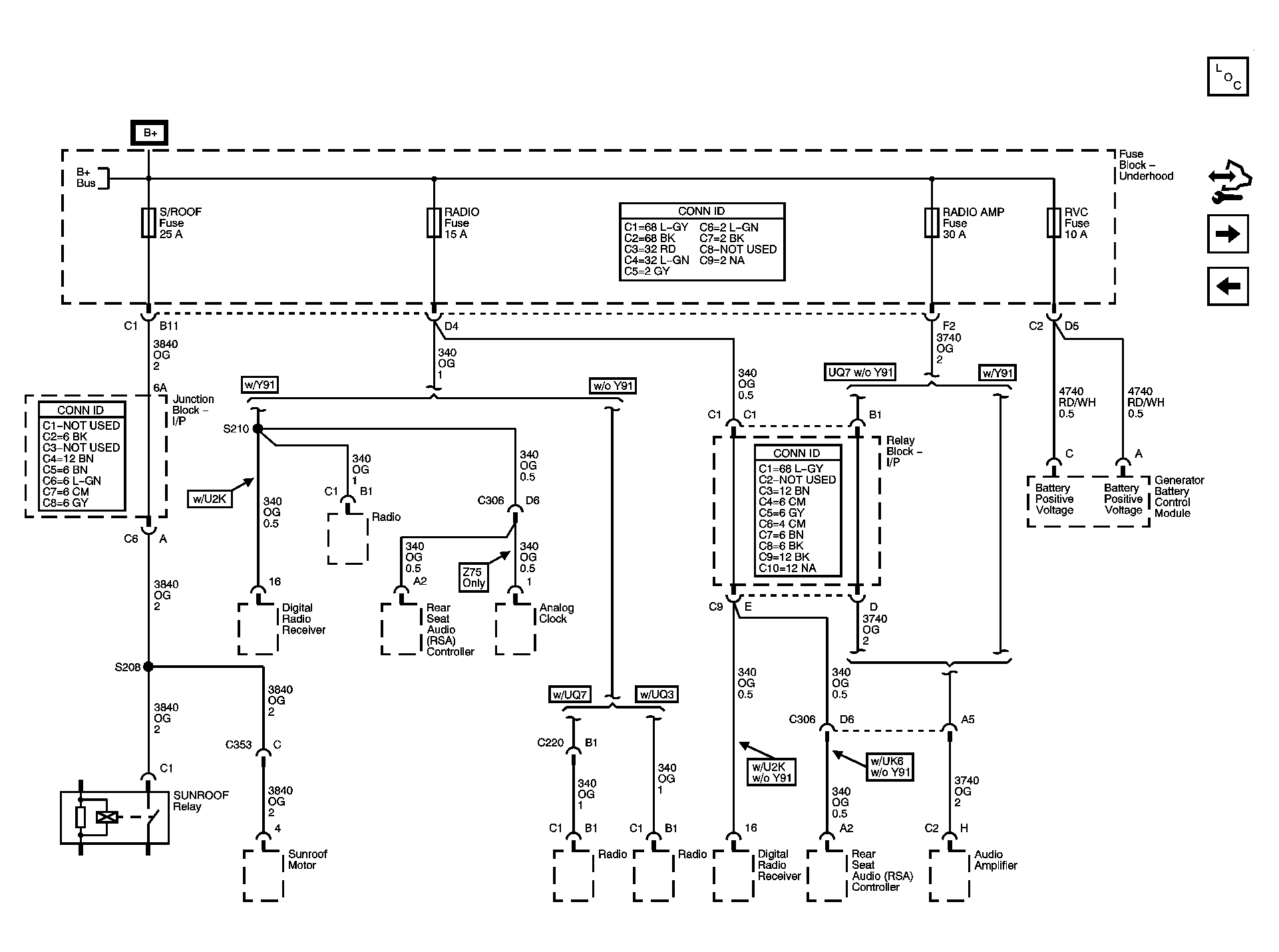

Fig 5: RADIO, RADIO AMP, and S/ROOF Fuses

GM1608457

Courtesy of GENERAL MOTORS CORP.

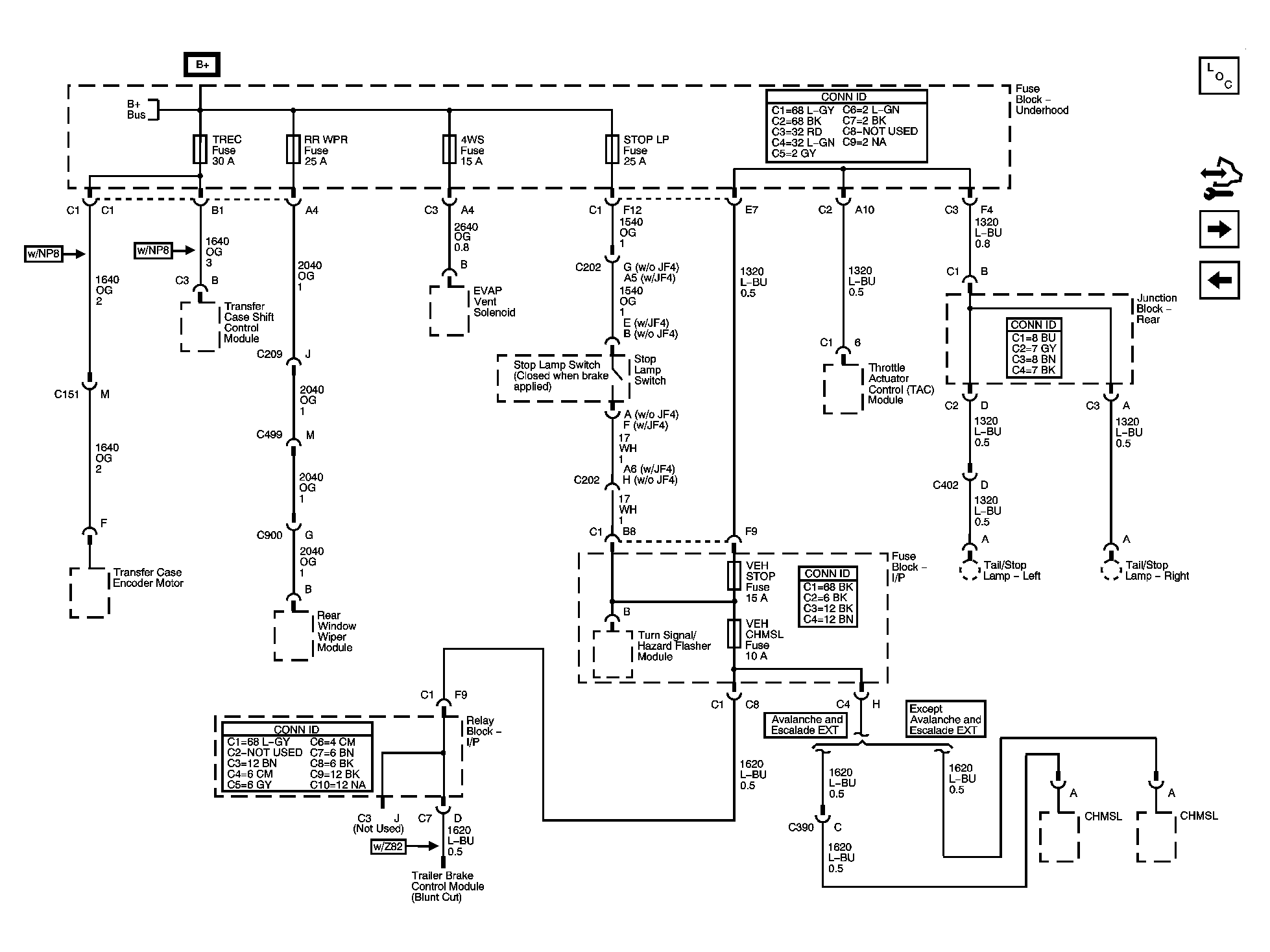

Fig 6: RR WPR, STIP LO, TREC, VEH CHMSL, VEH STOP, and 4WS Fuses

GM1608458

Courtesy of GENERAL MOTORS CORP.

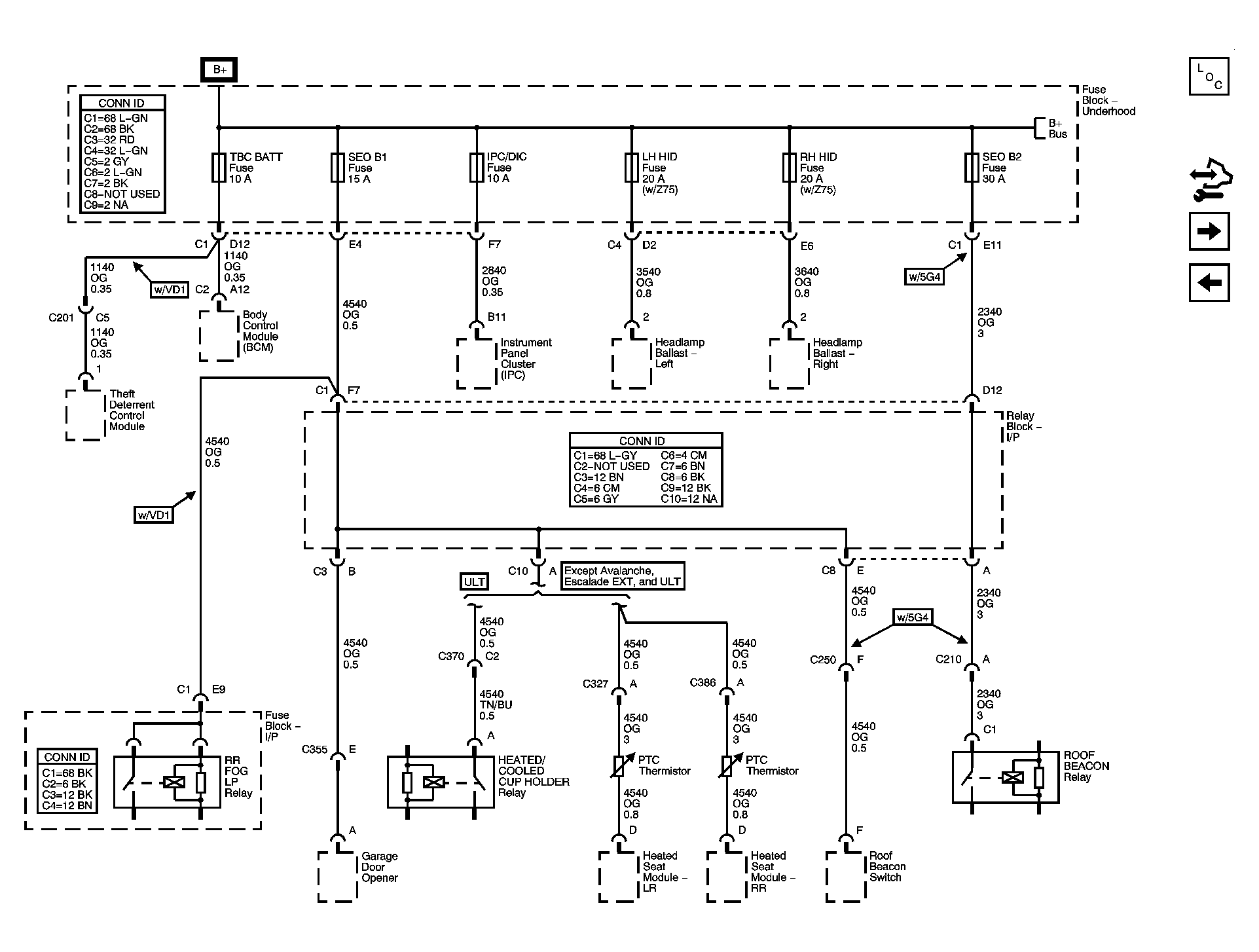

Fig 7: IPC/DIC, LH HID, RH HID, SEO B1, SEO B2, and TBC BATT Fuses

GM1608459

Courtesy of GENERAL MOTORS CORP.

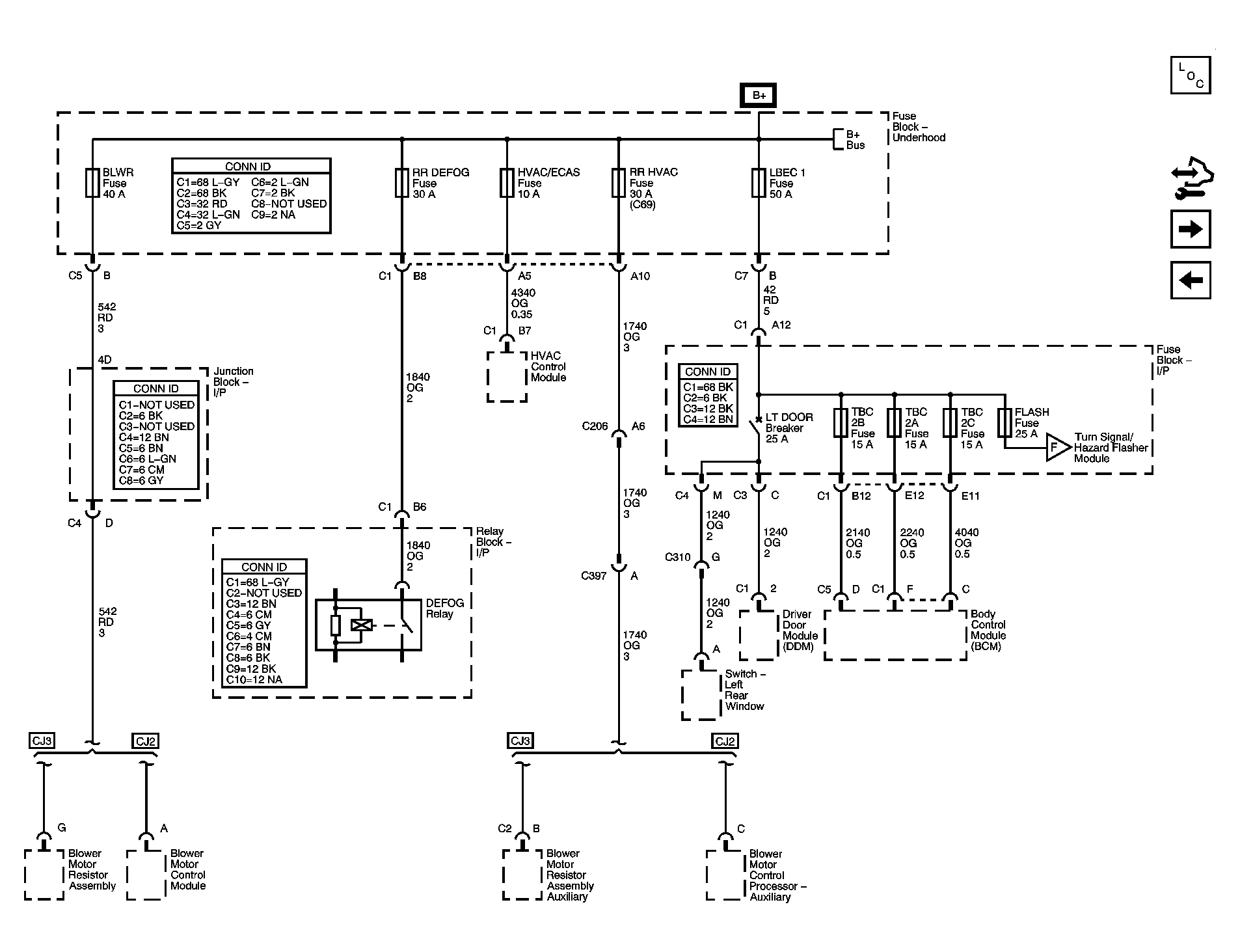

Fig 8: BLOWER, FLASH, HVAC/ECAS, LBEC 1, RR DEFOG, RR HVAC, TBC2A, TBC 2B, and TBC 2C Fuses, and LT DOOR Breaker

GM1608461

Courtesy of GENERAL MOTORS CORP.

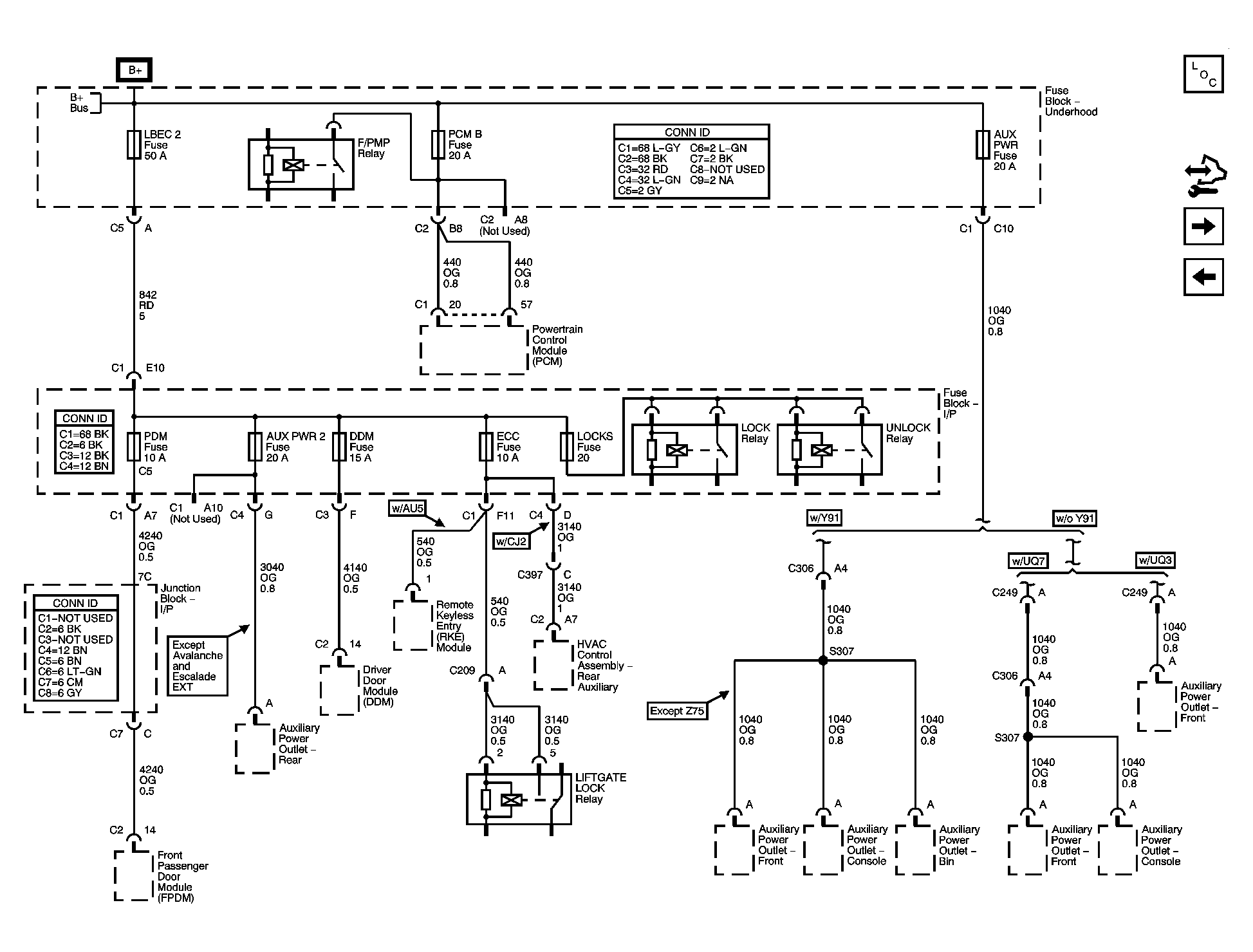

Fig 9: AUX PWR, AUX PWR 2, DDM, ECC, LBEC 2, LOCKS, PCM B, and PDM Fuses

GM1608499

Courtesy of GENERAL MOTORS CORP.

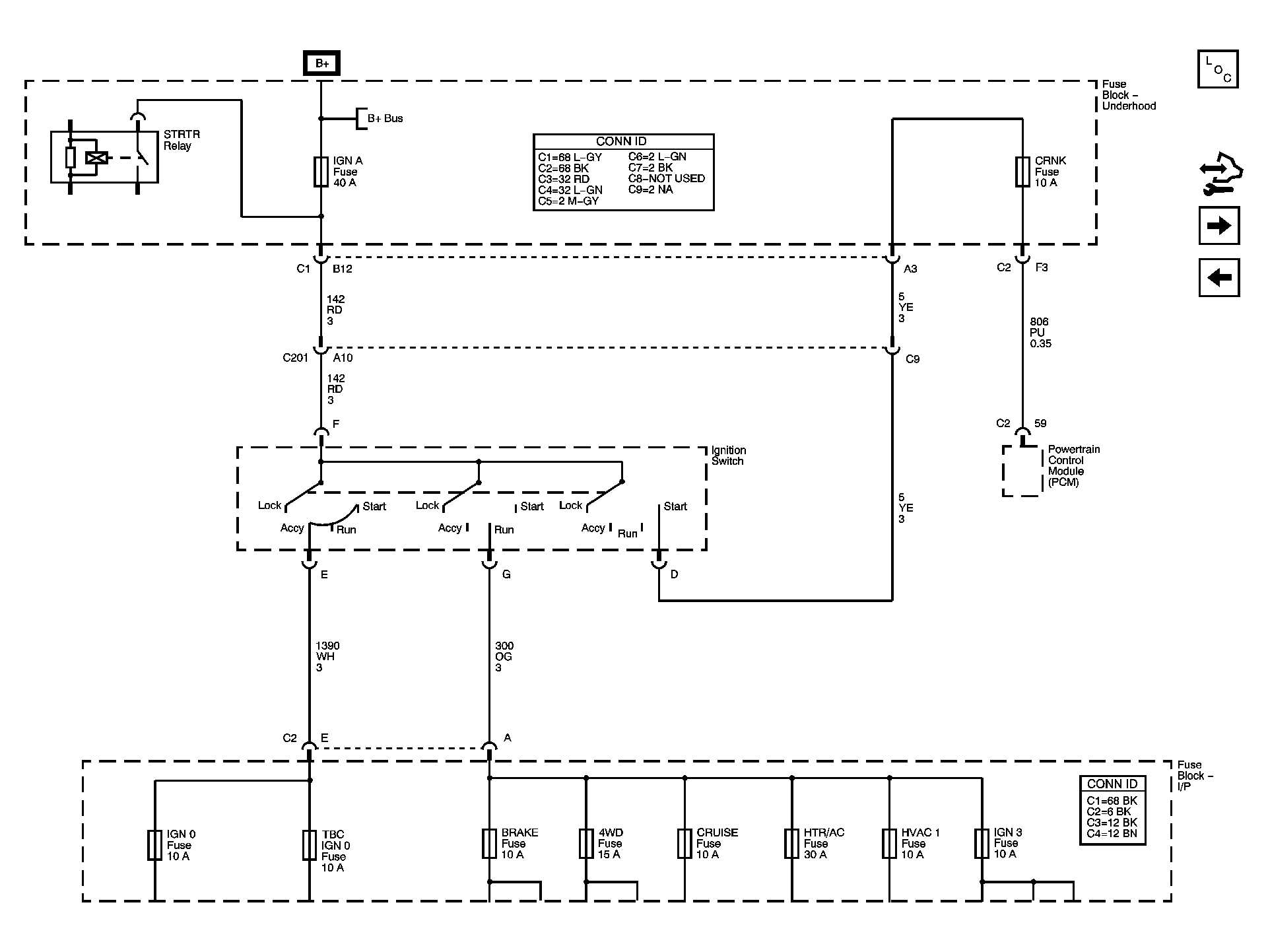

Fig 10: Ignition Switch - ACCY/RUN/START, RUN, and START Busses, IGN A, and CRANK Fuses

GM1608525

Courtesy of GENERAL MOTORS CORP.

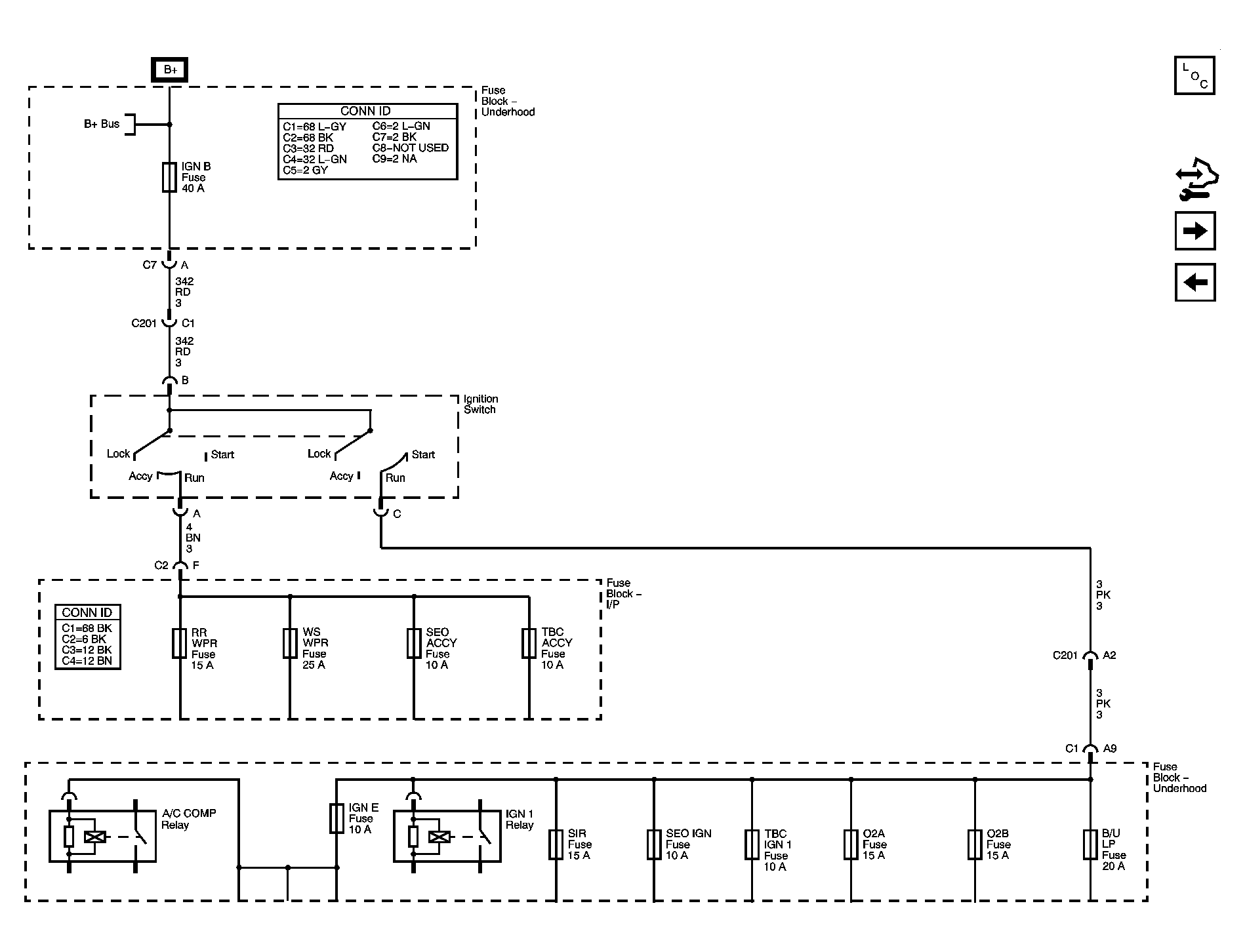

Fig 11: Ignition Switch - ACCY/RUN and RUN/START Busses, and IGN B Fuse

GM1608529

Courtesy of GENERAL MOTORS CORP.

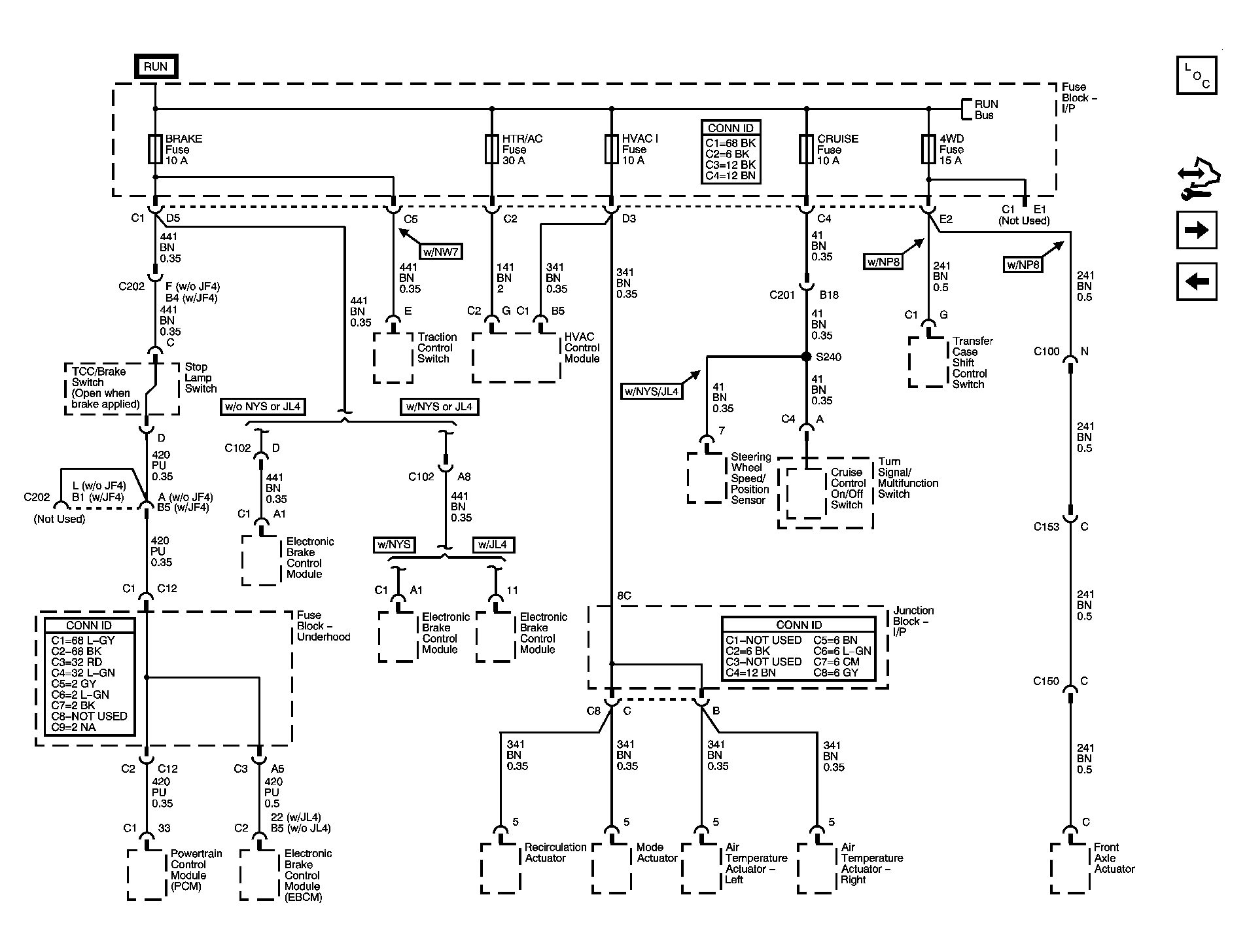

Fig 12: BRAKE, CRUISE, IGN 2, HTR/AC, HVAC 1, and 4WD Fuses

GM1608532

Courtesy of GENERAL MOTORS CORP.

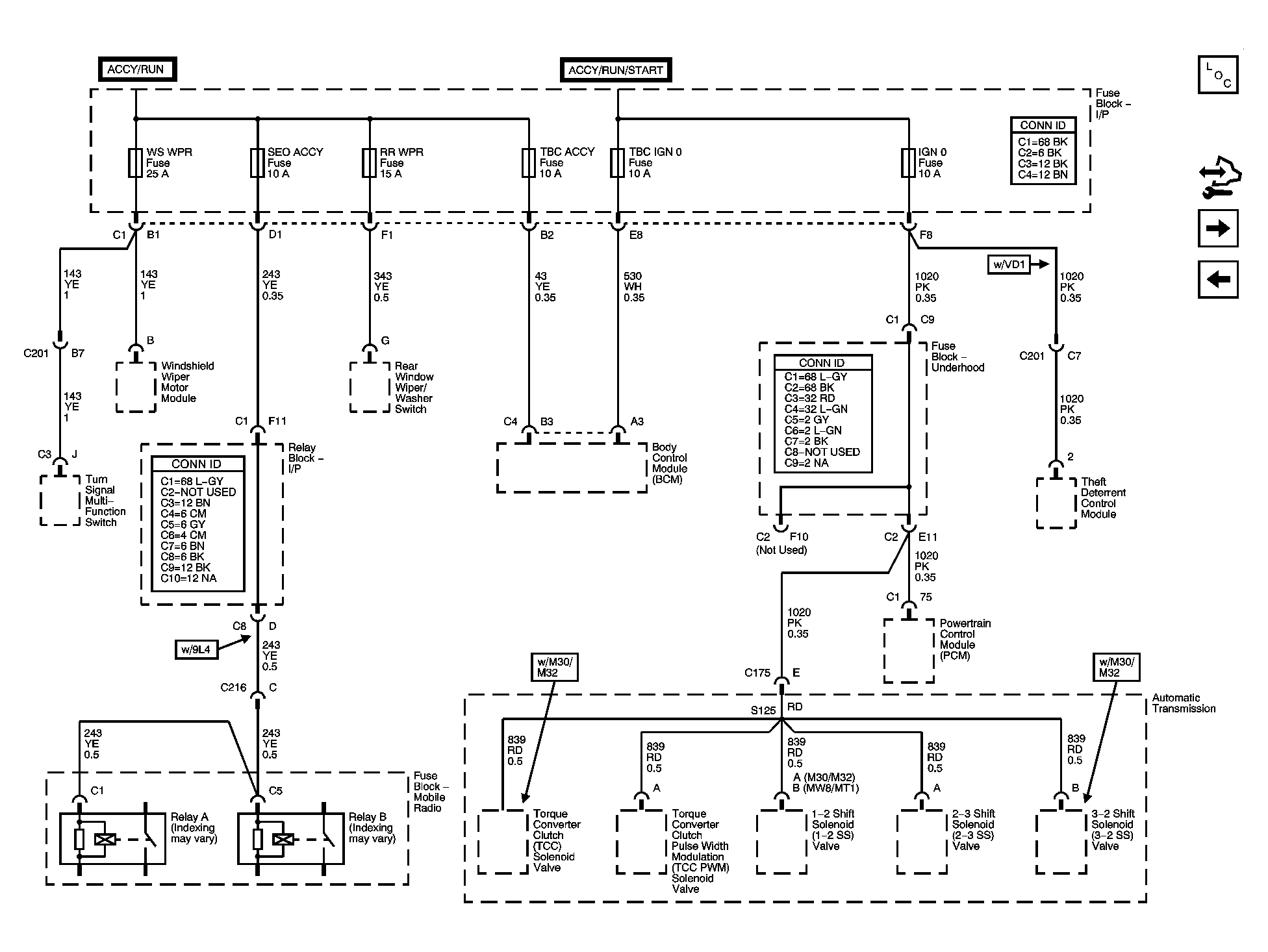

Fig 13: IGN 0, RR WPR, SEO ACCY, TBC ACCY, TBC IGN 0, and WS WPR Fuses

GM1608536

Courtesy of GENERAL MOTORS CORP.

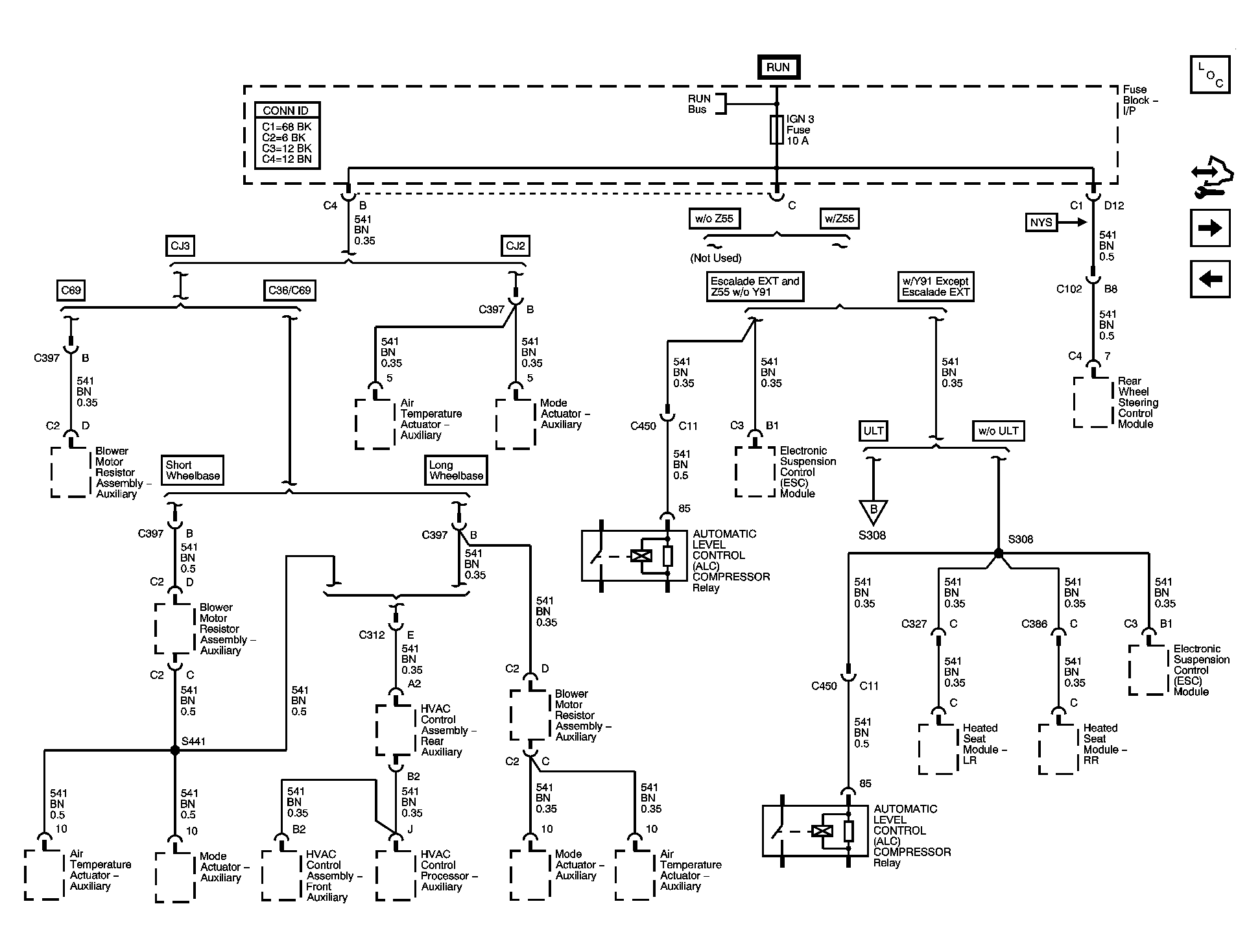

Fig 14: IGN 3 Fuse 1 of 2

GM1608538

Courtesy of GENERAL MOTORS CORP.

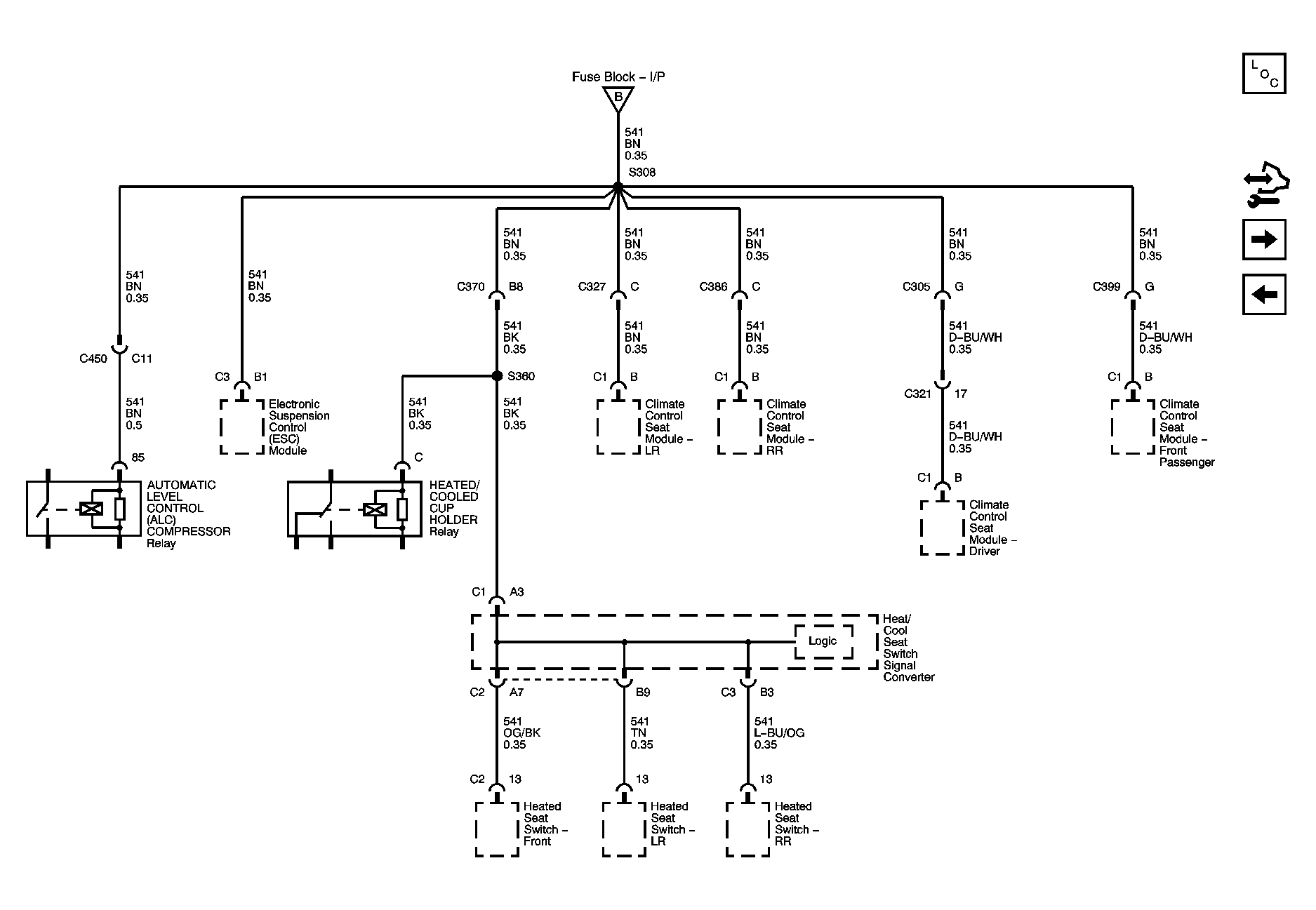

Fig 15: IGN 3 Fuse 2 of 2 ULT

GM1608540

Courtesy of GENERAL MOTORS CORP.

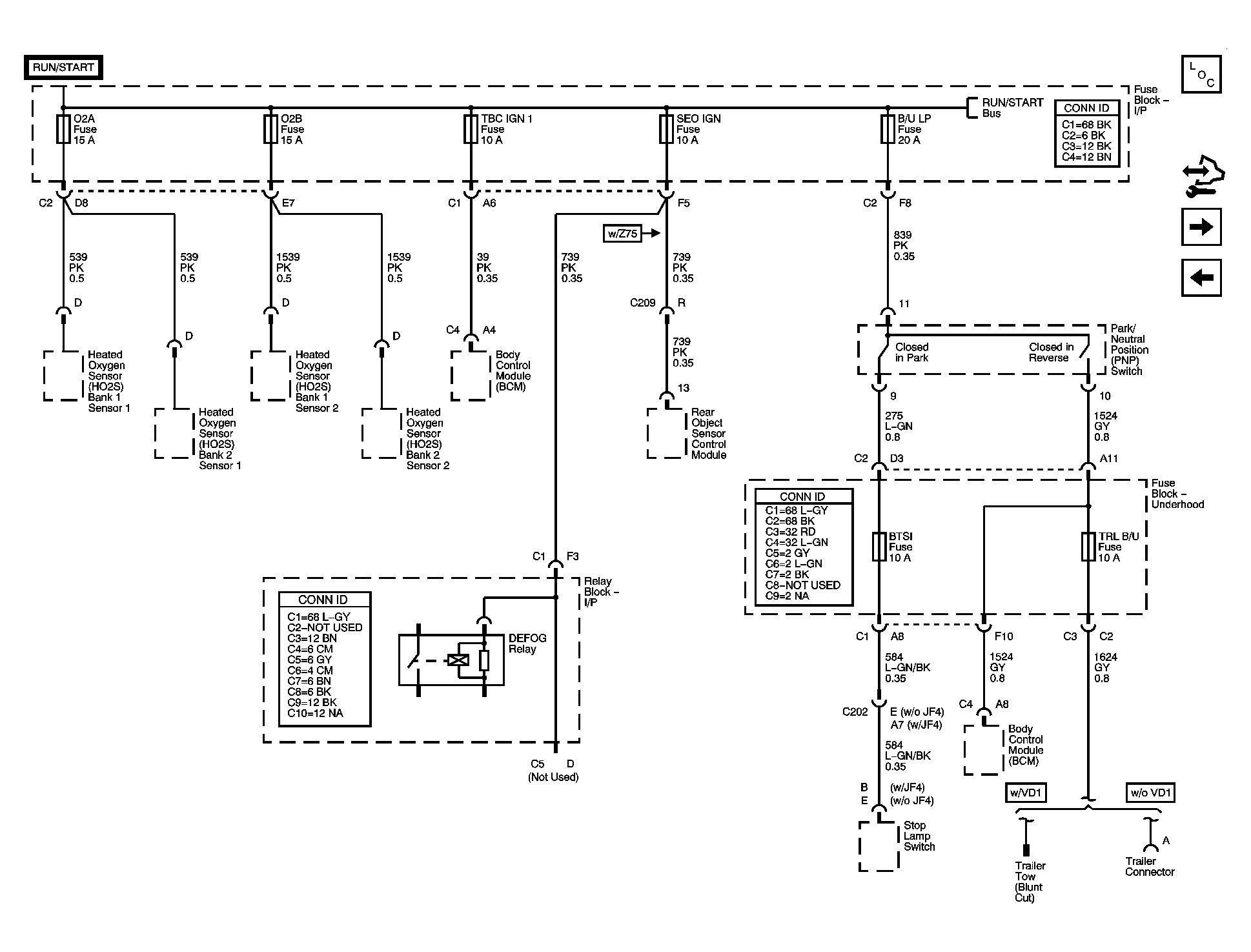

Fig 16: BTSI, B/U LP, O2A, O2B, SEO IGN, TBC IGN 1, and TRL B/U Fuses

GM1608543

Courtesy of GENERAL MOTORS CORP.

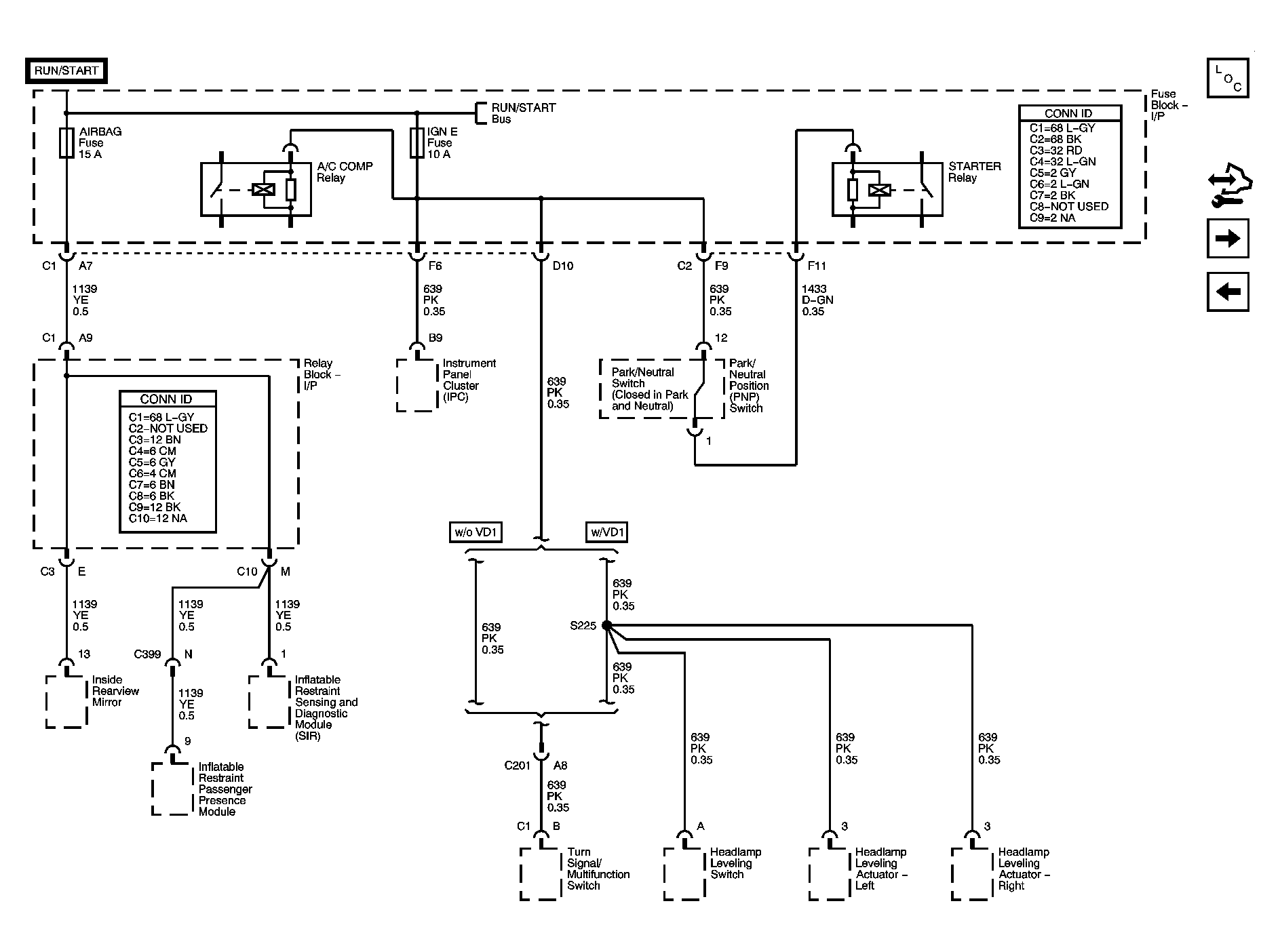

Fig 17: IGN E and SIR Fuses

GM1608545

Courtesy of GENERAL MOTORS CORP.

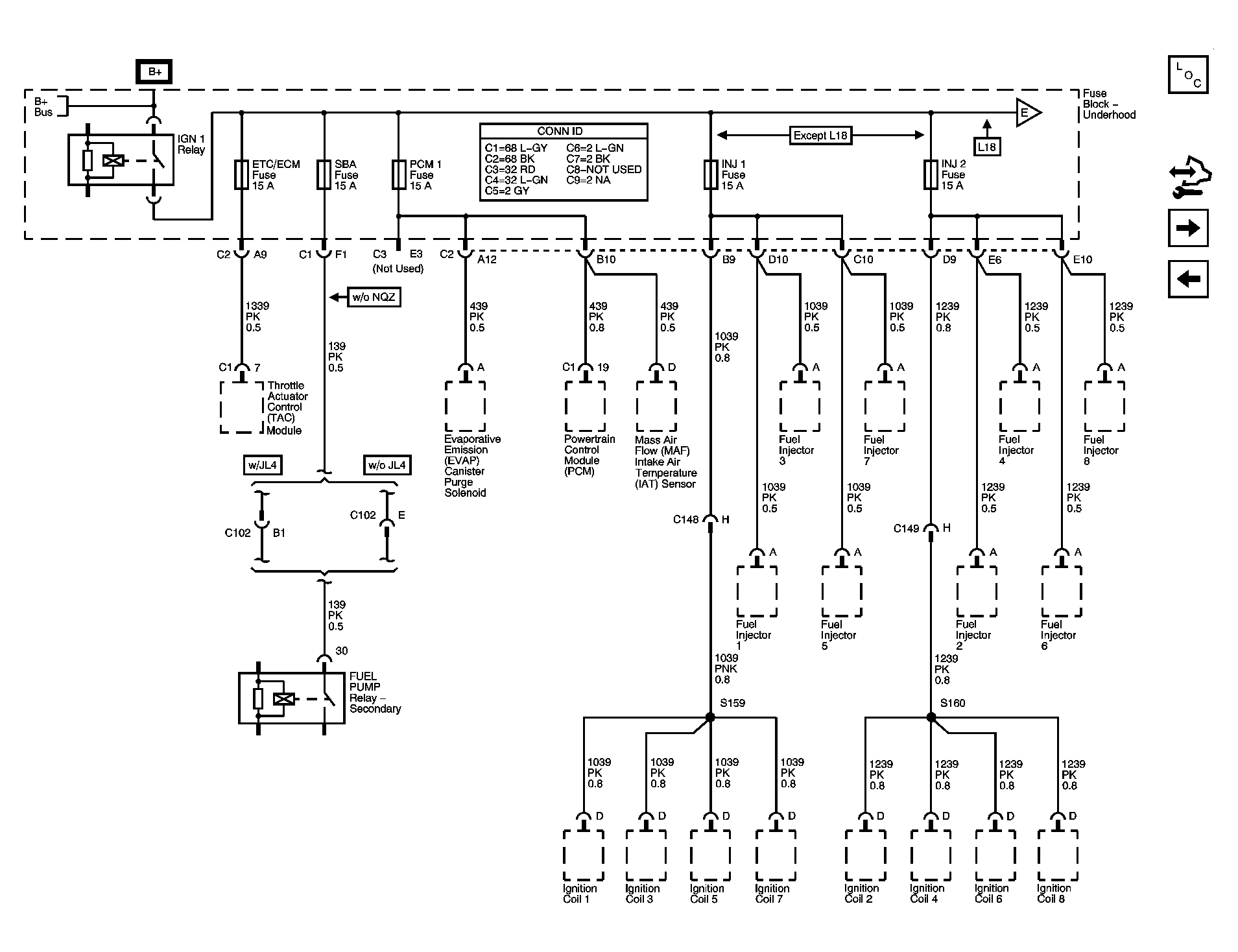

Fig 18: IGN 1 Relay Bus 1 of 2 ETC/ECM, PCM I, and SBA Fuses; INJ 1 and INJ 2 Fuses - Except L18

GM1608546

Courtesy of GENERAL MOTORS CORP.

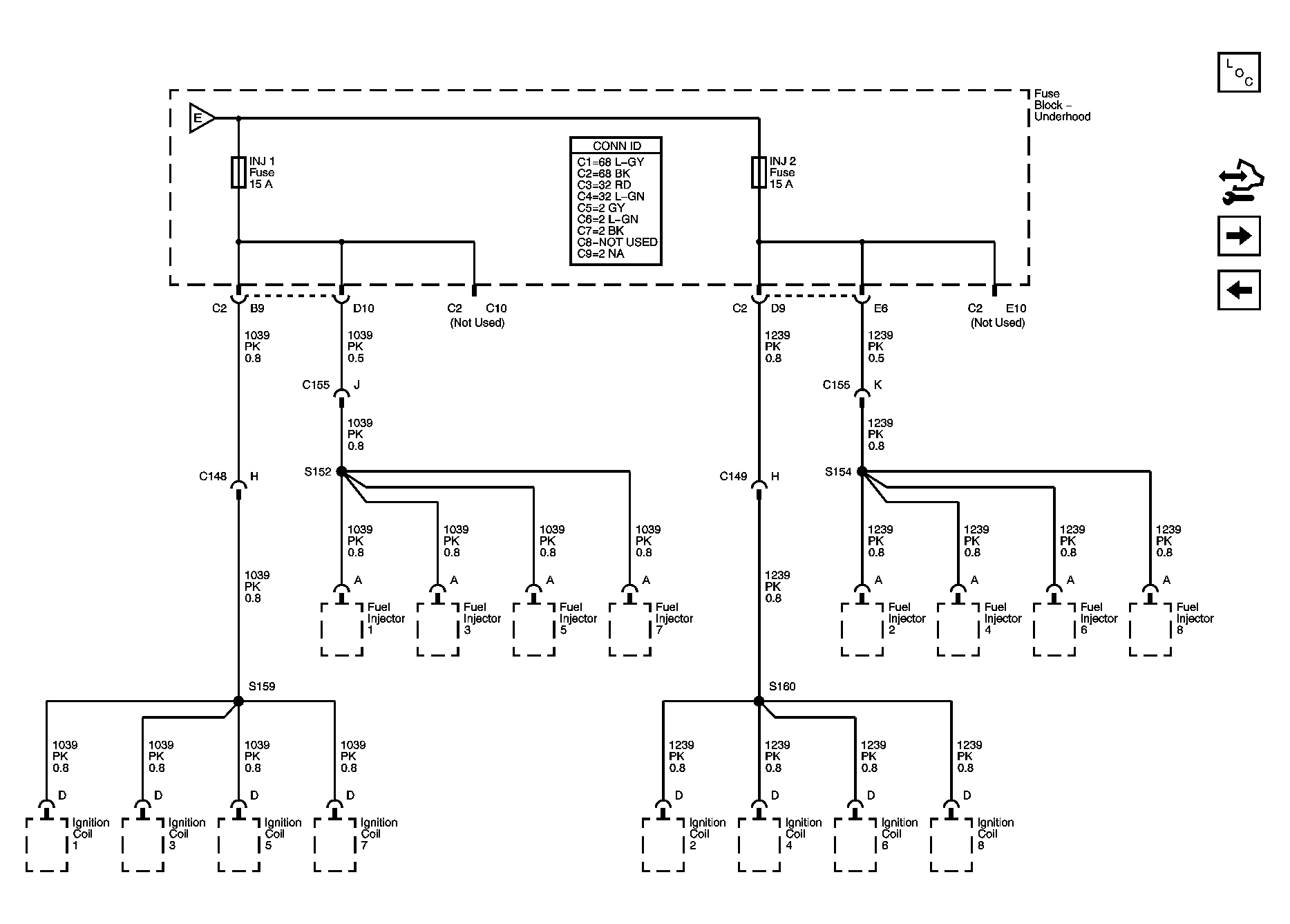

Fig 19: IGN 1 Relay Bus 2 of 2 INJ 1 and INJ 2 Fuses - L18

GM1608547

Courtesy of GENERAL MOTORS CORP.

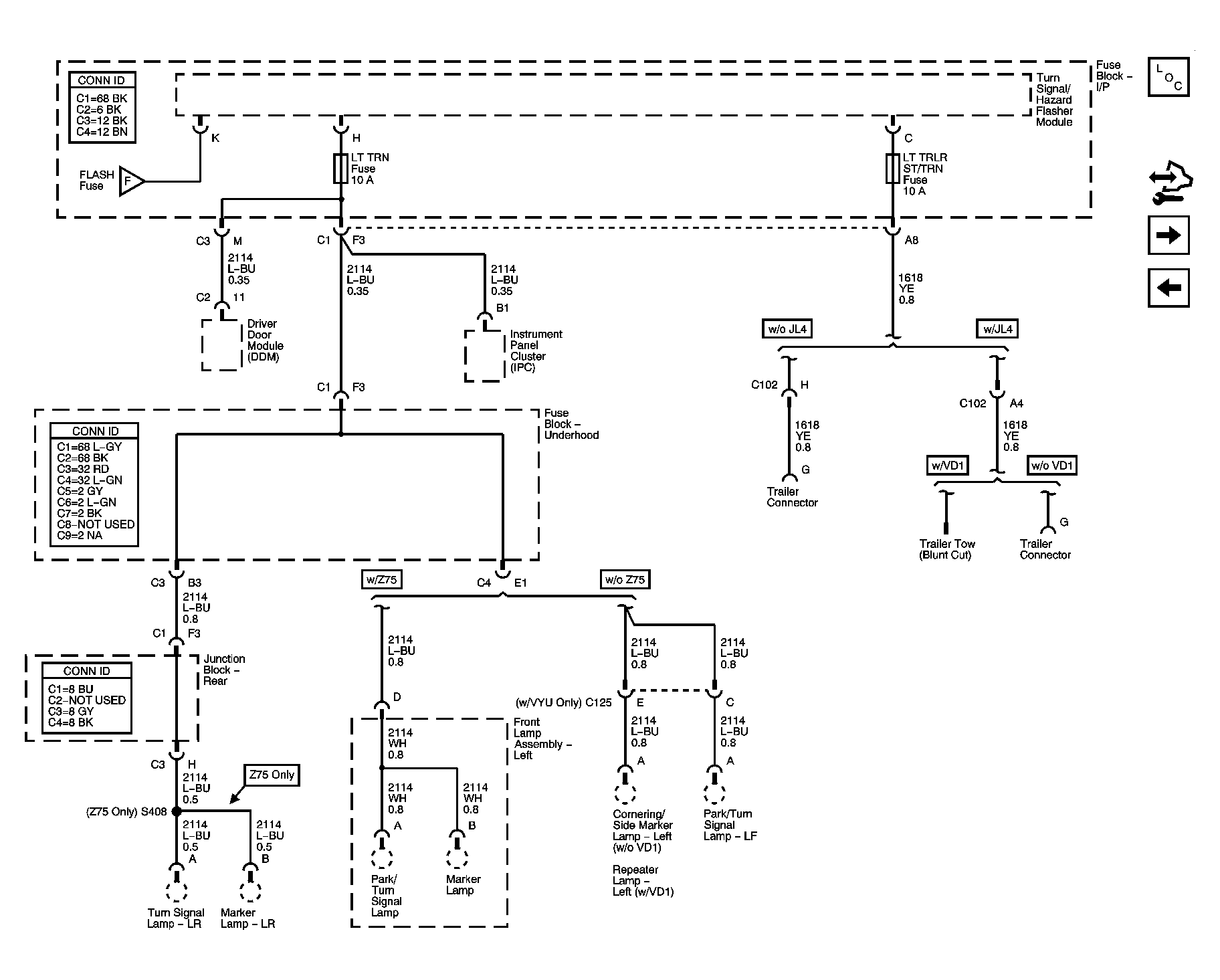

Fig 20: LT TRLR, LT TRN, RT TRLR, and RT TRN Fuses

GM1608548

Courtesy of GENERAL MOTORS CORP.

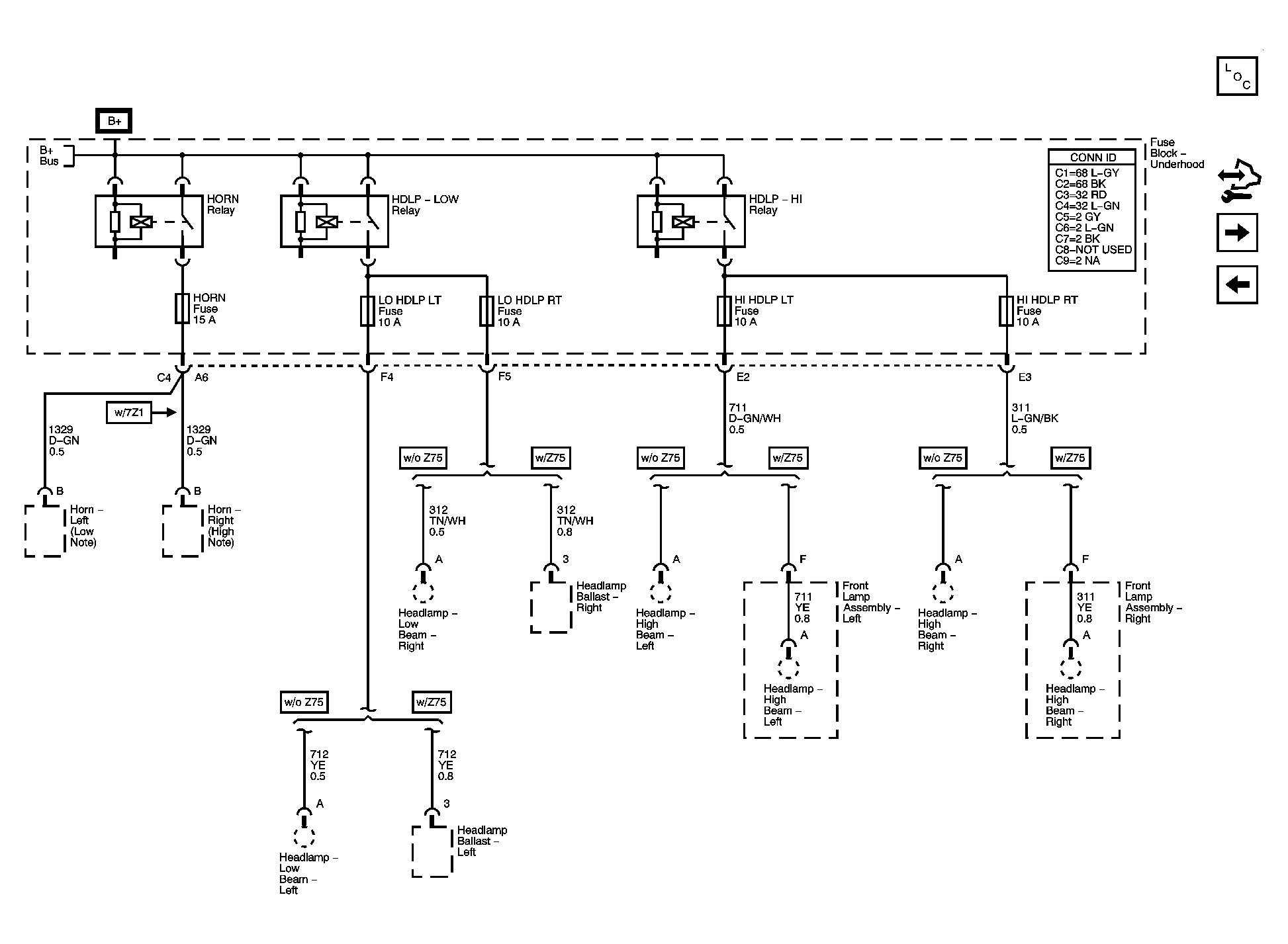

Fig 21: HI HDLP LT, HI HDLP RT, HORN, LO HDLP LT, and LO HDLP RT Fuses

GM1608551

Courtesy of GENERAL MOTORS CORP.

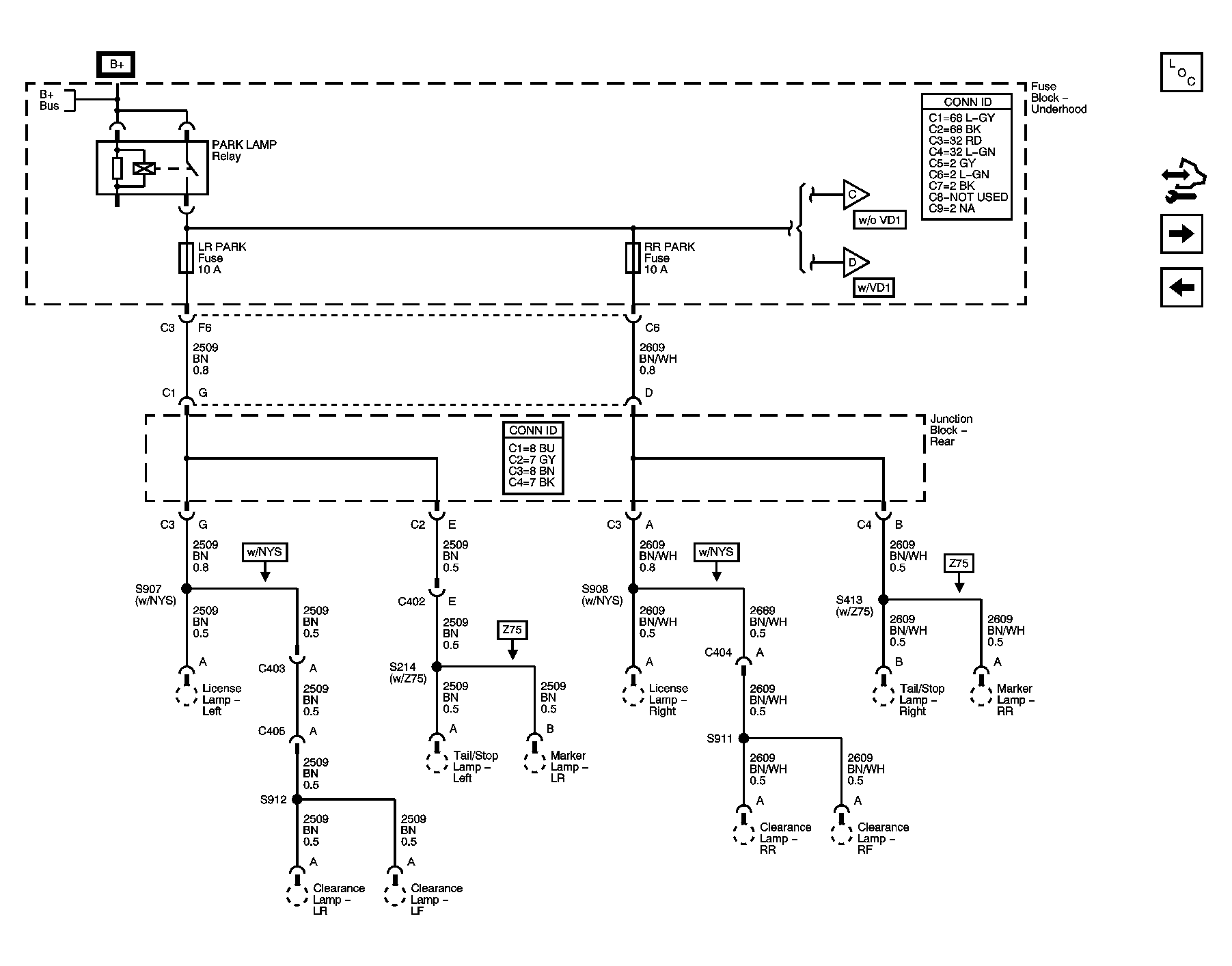

Fig 22: LR PARK and RR PARK Fuses

GM1608555

Courtesy of GENERAL MOTORS CORP.

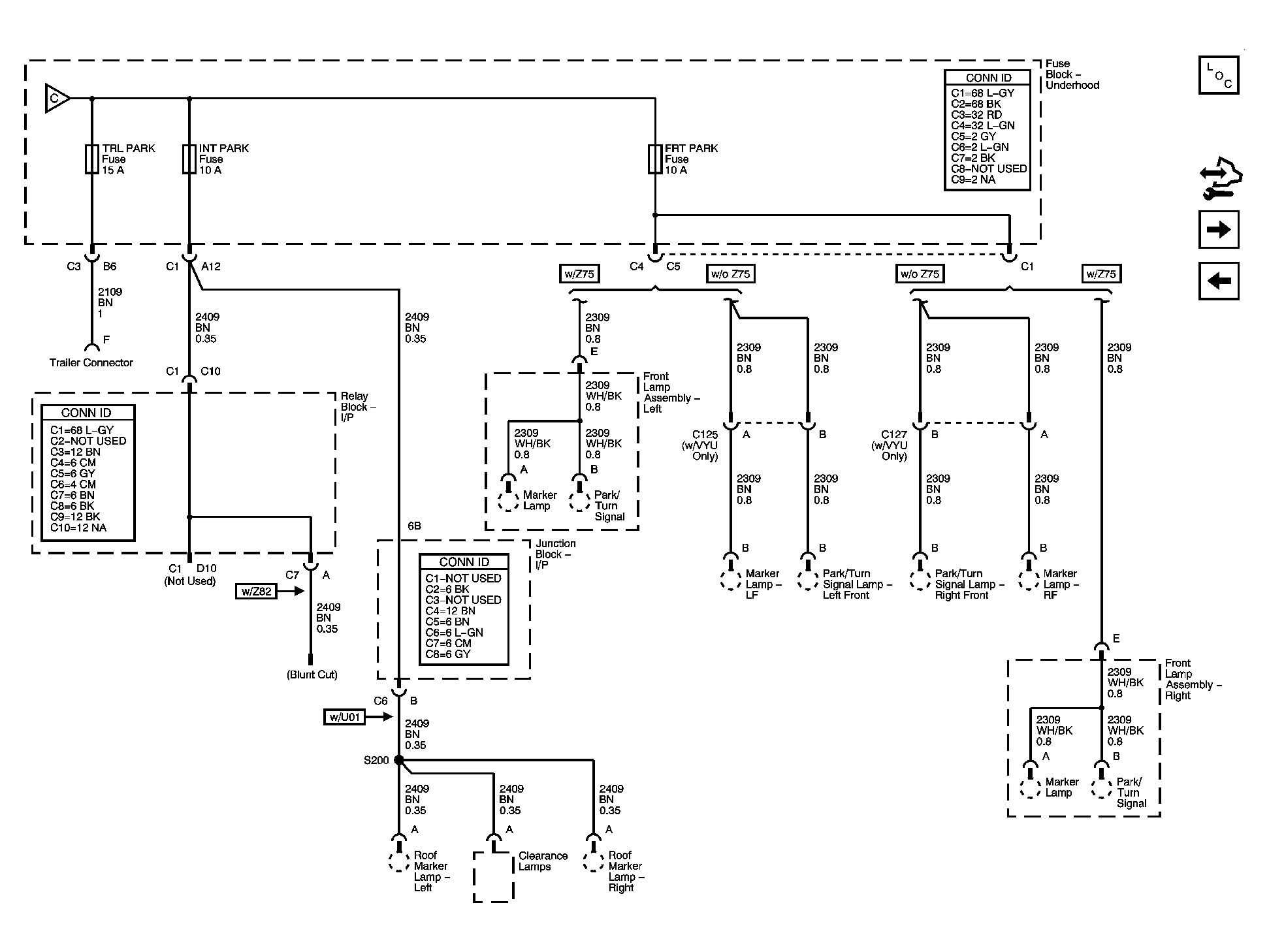

Fig 23: FRT PARK, INT PARK, and TRL PARK Fuses - Except VD1

GM1608557

Courtesy of GENERAL MOTORS CORP.

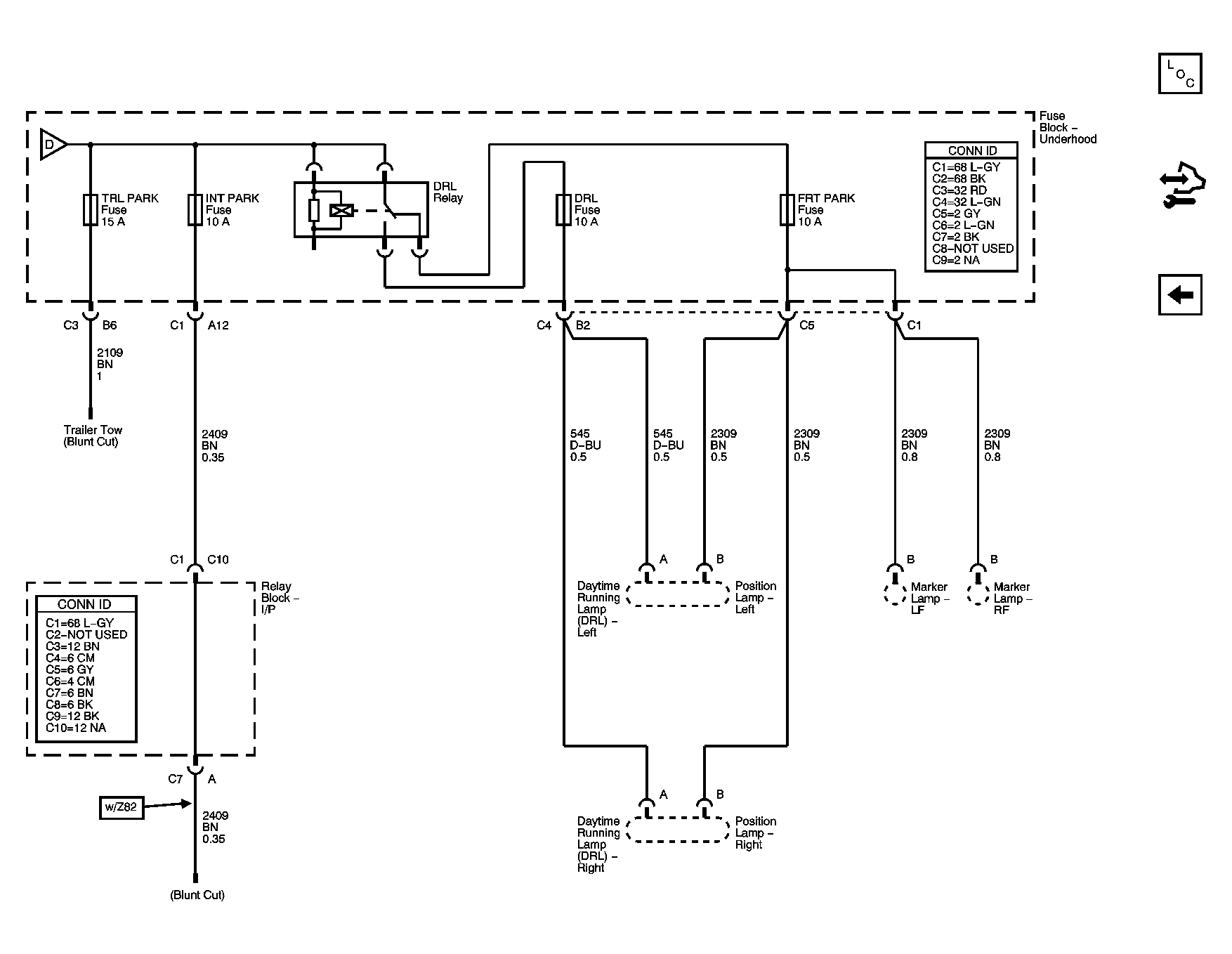

Fig 24: FRT PARK, DRL, INT PARK, and TRL PARK Fuses - w/VD1

GM1608559

Courtesy of GENERAL MOTORS CORP.
